Ducted Air Conditioner Haier Health-Connect 160 trif. AD160S2SM3FA (H) + 1U160S2SP1FB
High-power conduit air conditioning system, with 16 kW of nominal capacity, ideal for large commercial facilities. Equipped with advanced technology, energy efficiency A + / A, integrated Wi-Fi control, UVC sterilization and a compact and silent design for optimal performance in all kinds of professional environments.
- ✅ Nominal power of 16 kW for large spaces
- ✅ High energy efficiency A + / A with Seer of 5.94
- ✅ Integrated Wi-Fi Control for Remote Management
- ✅ UVC sterilization for clean and healthy air
- ✅ Efficient operation at extreme temperatures up to -20 ° C cold and up to 46 ° C in heat
Reference: AD160S2SM3FA (H) + 1U160S2SP1FB
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Haier Health Connect 160 AD160S2SM9FA(H) + 1U160S2SP1FB Trif.
Referencia: CONDUCTOS160HCT
€3,070.51
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Haier Health-Connect 160 trif. AD160S2SM3FA (H) + 1U160S2SP1FB
High-power conduit air conditioning system, with 16 kW of nominal capacity, ideal for large commercial facilities. Equipped with advanced technology, energy efficiency A + / A, integrated Wi-Fi control, UVC sterilization and a compact and silent design for optimal performance in all kinds of professional environments.
- ✅ Nominal power of 16 kW for large spaces
- ✅ High energy efficiency A + / A with Seer of 5.94
- ✅ Integrated Wi-Fi Control for Remote Management
- ✅ UVC sterilization for clean and healthy air
- ✅ Efficient operation at extreme temperatures up to -20 ° C cold and up to 46 ° C in heat
Reference: AD160S2SM3FA (H) + 1U160S2SP1FB
Security policy
Delivery policy
Refund policy
Product description
The Ducted Air Conditioner Haier Health-Connect 160 trif. Ad160s2sm3fa (pm) it is the definitive solution for air conditioning large commercial spaces, large offices, shopping centers and industrial buildings. This three-phase system offers a nominal power of 16 kW in refrigeration and 17 kW in heating, providing an effective and constant air conditioning in extreme conditions. With energy efficiency A + / A, it is ideal for those seeking to reduce your energy consumption without sacrificing performance.
Designed to adapt to large facilities and high performance needs, the system Haier Health-Connect 160 trif. It is easily integrated with a Wi-Fi network, allowing the remote control of the system from any mobile device using the HEALTH-CONNECT APP. In addition, its advanced UVC sterilization technology ensures a healthy environment by eliminating air viruses and bacteria.

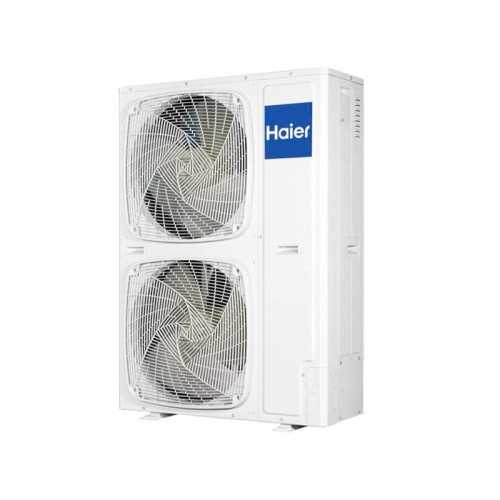

The outdoor Unit, 1U160S2SP1FB, is equipped with a rotary inverter compressor that offers stable and efficient performance. Its operating range is wide, running from -20 ° C up to 46 ° C in refrigeration and from -20 ° C to 24 ° C in heating, which makes it a reliable option even in the most extreme environments. The indoor Unit AD160S2SM3FA (H) is extremely compact, allowing its installation in reduced spaces, while offering an air flow of up to 2,800 m³ / h.
This system of ducts Haier not only is it stands out for its capacity for air conditioning, but also because of its ability to adapt to complex facilities, allowing pipe lengths up to 50 meters and a maximum rate of 30 meters. In addition, its integrated UVC technology provides a clean and purified air, which improves the quality of the environment in commercial spaces and offices.
Main features
📱
Total control by Wi-Fi
Full remote control from anywhere with the Health-Connect application, which allows you to adjust the temperature and schedule the system from your smartphone.
🦠
UVC sterilization
Advanced technology that eliminates viruses, bacteria and other microorganisms, guaranteeing a healthier interior environment.
⚡
High energy efficiency
Classification A + / A with Seer of 5.94, optimizing energy consumption without compromising performance.
Technical specifications
| Feature | Value |
|---|---|
| Pattern | AD160S2SM3FA (H) + 1U160S2SP1FB |
| Cold nominal power (min-nom-max) | 4,50 - 16.00 - 16,50 kW |
| Nominal power heat (min-nom-max) | 5.00 - 17.00 - 18.00 kW |
| Seer / Scop | 5,94 / 5.00 |
| Energy label | A + / A + |
| Operating temperature range | -20 ° C at 46 ° C (cold) /--20 ° C at 24 ° C (heat) |
| Maximum tubing length | 50 m |
| Maximum height difference | 30 m |
| Liquid connection / gas | 9.52 mm (3/8 ") / 15.88 mm (5/8") |
Benefits of air conditioning Haier Health-Connect 160 trif.
✓
Ideal for large commercial facilities
With a power of 16 kW, it is ideal for shopping centers, large offices and other large spaces that require constant and efficient air conditioning.
✓
Remote control via APP
The system can be controlled from anywhere using the HEALTH-CONNECT APP, allowing temperature, mode and remote programming settings.
Advanced solution for professional air conditioning is here!
The Ducted Air Conditioner Haier Health-Connect 160 trif. It offers the best technology in air conditioning for large facilities. Increase efficiency, control air and maximize energy savings with reliability that only Haier it can offer.
Request your personalized budget today!
CONDUCTOS160HCT
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 16.000
- Refrigerator capacity (kcal / h)
- 13.760
- Nominal consumption Cold (W)
- 5.480
- Energy class (cold)
- A+
- SEER
- 5,9
- Heat capacity (W)
- 17.000
- Heat capacity (Kcal / h)
- 14.620
- Nominal heat consumption (W)
- 4.820
- Energy class (heat)
- A++
- SCOP
- 5,0
- Minimum sound pressure UI DB
- 39
- Weight Indoor Unit (Kg)
- 48,0
- Weight Outdoor Unit (Kg)
- 101,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 3/4"
- Possibility Integration
- Integrated WiFi
- Recommended area
- 125m2 station approx.
- Dimensions UI (ANXFXH) mm
- 1500 x 700 x 248
- EU dimensions (anxfxh) mm
- 950 x 370 x 1350
