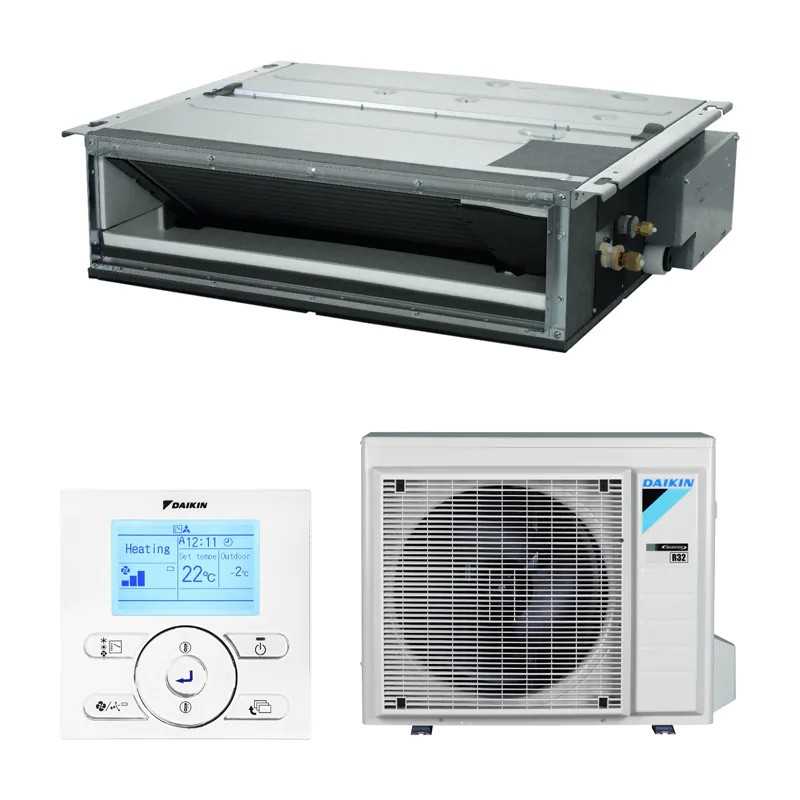

Air Conditioning Low Silueta Conduct Daikin DXM35F SKY AIR SERIE ADVANCE
Referencia: DXM35F
€1,842.78
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin DXM35F represents the perfect evolution for medium spaces that require efficient air conditioning with maximum discretion in the installation. With capacity 3400W in cooling (2924 kcal/h) and 4000W heating (3440 kcal/h), this model of the Sky Air Advance Series integrates advanced inverter technology with eco-friendly R-32 coolant, maintaining the revolutionary low silhouette design 200mm high.
Your energy efficiency A/A with SEER values 5,26 and SCOP de 3,88 guarantees annual seasonal energy consumption optimized 226 kWh in refrigeration and 1046 kWh heating, offering an excellent balance between performance and efficiency. The system uses coolant R-32 with a load 0.76 kg and an impact 0.52 TCO2eq, maintaining commitment to environmental sustainability.

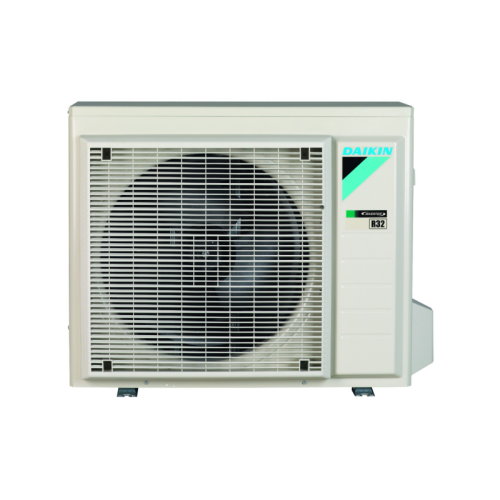

La outdoor Unit RXM35R9 incorporates a compressor SWING high efficiency with air flow 36 m3/min cooling and 28.3 m3/min in heating. Its compact dimensions 552×840×350 mm and weight 32 kg facilitates installation, while its sound pressure 49 dBA both in cooling and in heating ensures discreet operation.

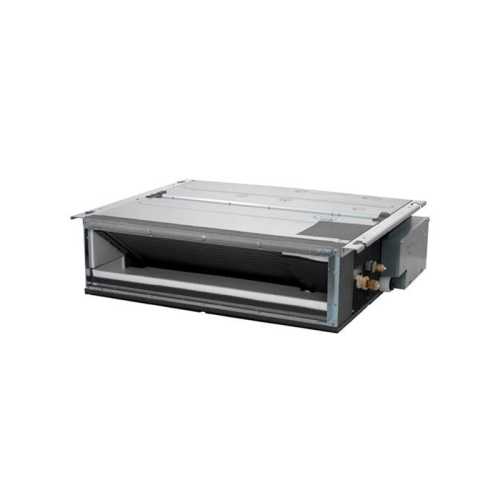

La indoor Unit FDXM35F9 keeps revolutionary design low silhouette with only 200 mm height, dimensions 200×750×620 mm and weight 21 kg. Its variable air flow 8.7 m3/min at high speed, , 7,3 m3/min at medium speed and 6,2 m3/min at super low speed allows perfect adaptation to the specific needs of each moment.
The system allows flexible installations maximum pipe length 20 meters and maximum level difference of 15 meters. Your cold connections 1/4" for liquid and 3/8" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, ensure a simple and efficient installation.
With standard available pressure 30 Pa and 3 fan speeds, the system provides optimized comfort for small residential and commercial applications. Its exceptional internal sound pressure 35 dBA at high speed and 27 dBA at low speed makes it an ideal choice for spaces that require silent operation.
Nominal consumptions 1140W in cooling and 1150W heating demonstrate system efficiency. Your design load 3,40 kW in cooling and 2,90 kW heating at -10°C ensures constant performance in various climatic conditions, ideal for residential and commercial applications that require reliability throughout the year.
Main characteristics Low silhouette
📐
Low silhouette 200mm
Ultra-compact design for discrete installation in false reduced ceilings.
️
Refrigeration 3400W
Ideal capacity for residential and commercial medium spaces.
🔥
Heating 4000W
Heating power for thermal comfort throughout the year.
▪
A/A efficiency
SEER 5,26 and SCOP 3,88 for efficient energy savings.
🌿
R-32 Ecological
Refrigerant Gas sustainable with minimal environmental impact.
🔇
Ultra Quiet
From 27 dBA for maximum acoustic comfort.
Complete Technical Specifications
| Feature | Value |
|---|---|

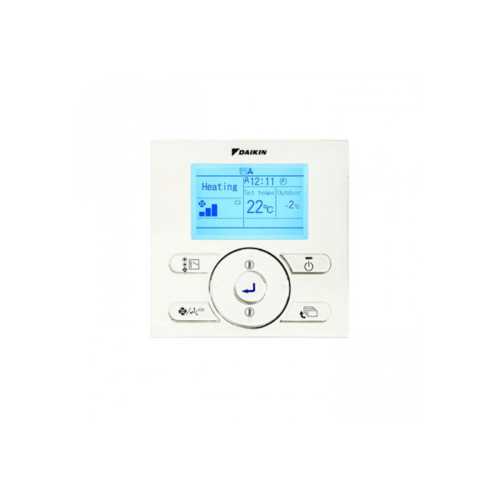

| Model Set | DXM35F (FDXM35F9 + RXM35R9 + BRC1E53A) |
| Refrigeration capacity | 3400W (2924 kcal/h) |
| Capacity Heating | 4000W (3440 kcal/h) |
| Nominal consumption | 1140W (Refrigeration), 1150W (Calefaction) |
| SEER / SCOP | 5,26 / 3,88 |
| Energy label ( Cold/Calor) | A/A |
| Annual Energy Consumption | 226 kWh (Refrigeration), 1046 kWh (Calefaction) |
| Refrigerant Gas | R-32 (0.76 kg / 0.52 TCO2eq / PCA 675) |
| Frigorific connections | Liquid 6.4mm (1/4") - Gas 9.5mm (3/8") |
| Maximum Length Tuberia | 20 meters |
| Air flow Indoor Unit | 8,7/7,3/6.2 m3/min (A/B/SB) |
| Sonic pressure Indoor Unit | 35/27 dBA (A/B) |
| Dimensions Indoor Unit | 200×750×620 mm |
| Air flow Outdoor Unit | 36/28.3 m3/min (Refrig./Calef.) |
| Dimensions Outdoor Unit | 552×840×350 mm |
Lower Silueta 200mm with 3400W Power!
The Daikin DXM35F offers the perfect combination of 200mm compact design with 3400W cooling and ultra silent operation since 27 dBA. Ideal for medium spaces that require discrete and efficient air conditioning.
Request your budget today!
DXM35F
Data sheet
- Brand
- Daikin
- Indoor Unit
- FDXM35F9
- Outdoor Unit
- RXM35R
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.400
- Refrigerator capacity (kcal / h)
- 2.924
- Nominal consumption Cold (W)
- 1.140
- Energy class (cold)
- TO
- SEER
- 5,3
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.440
- Nominal heat consumption (W)
- 1.150
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 21,0
- Weight Outdoor Unit (Kg)
- 32,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 28m2 aprox.
- Dimensions UI (ANXFXH) mm
- 750 x 620 x 200
- EU dimensions (anxfxh) mm
- 765 x 285 x 550
