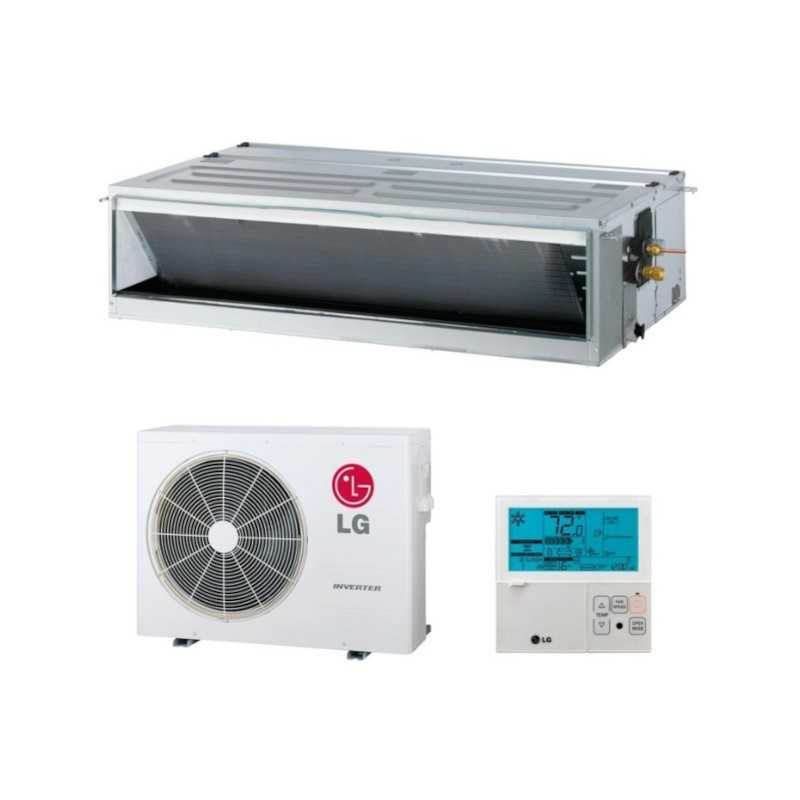

Ducted Air Conditioner LG UM36F CONFORT UM36F.N21 + UUC1.U40
A+/A+ high energy efficiency air conditioning system with 9.5 kW rated power. Designed for spacious spaces, this team combines maximum comfort with low sound level (36 dB) and features a built-in condensed pump, ideal for commercial or residential installations that require a discreet and powerful solution.
- ▷ Nominal power of 9.5 kW in cold and 10.8 kW in heat for wide spaces
- ▷ Higher energy efficiency with SEER 5,90 and SCOP 4,00 (A+/A+)
- ▷ Adjustable static pressure up to 147 Pa for greater installation flexibility
- ▷ Quiet operation with only 36/34/33 dB for optimal comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Condensing pump included for easier installation
Reference: UM36F.N21 + UUC1.U40
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
LG UM36F CONFORT Ducts UM36F.N21 + UUC1.U40
Referencia: KITCONDCM36F CONFORT
€1,753.53
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner LG UM36F CONFORT UM36F.N21 + UUC1.U40
A+/A+ high energy efficiency air conditioning system with 9.5 kW rated power. Designed for spacious spaces, this team combines maximum comfort with low sound level (36 dB) and features a built-in condensed pump, ideal for commercial or residential installations that require a discreet and powerful solution.
- ▷ Nominal power of 9.5 kW in cold and 10.8 kW in heat for wide spaces
- ▷ Higher energy efficiency with SEER 5,90 and SCOP 4,00 (A+/A+)
- ▷ Adjustable static pressure up to 147 Pa for greater installation flexibility
- ▷ Quiet operation with only 36/34/33 dB for optimal comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Condensing pump included for easier installation
Reference: UM36F.N21 + UUC1.U40
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM36F CONFORT is a high efficiency air conditioning system designed to provide superior comfort in large spaces, both commercial and residential. This team from the Free Combination Comfort range LG combines a nominal power of 9.5 kW in cold and 10.8 kW in heat with outstanding energy efficiency, represented by its A+/A+ rating.

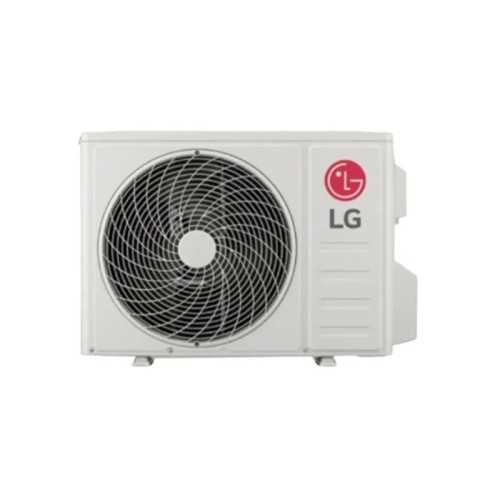

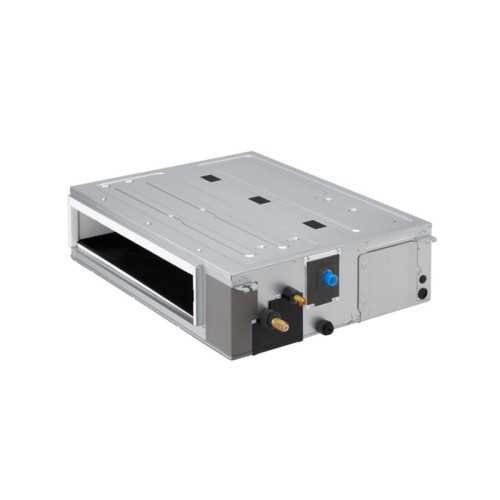

Composed of indoor Unit UM36F.N21 and outdoor Unit UUC1.U40, this system stands out for its adjustable static pressure of up to 147 Pa, allowing a flexible installation adapting to different duct configurations. La indoor Unit, with dimensions of 1,250 x 270 x 700 mm, offers a compact design that facilitates its installation in false ceilings, while maintaining silent operation with sound levels of only 36/34/33 dB according to the selected speed.
Using the R32 ecological refrigerant, this system significantly reduces the environmental impact compared to traditional refrigerants. In addition, it has a wide range of operation that allows its efficient operation in extreme conditions, from -10°C to 48°C in cooling mode and from -15°C to 18°C in heating mode, guaranteeing comfort throughout the year regardless of the outdoor weather conditions.
Main features
√
High Performance
Nominal power of 9.5 kW in cold and 10.8 kW in heat, with capacity to adapt to different thermal loads (3,80-10,50 kW in cold, 4,30-11,50 kW in heat).
🌱
Ecological and Efficient
Refrigerant Gas R32 with lower environmental impact and high energy efficiency with SEER 5,90 and SCOP 4,00, A+/A+ classification.
🔌
Adjustable Static Pressure
From 39 Pa (standard) to 147 Pa (maximum), allowing to adapt to different types of ducts and installations.
🔇
Quiet operation
Reduced sound levels of only 36/34/33 dB indoor Unit, ideal for environments that require tranquility.
💧
Condemned Pump
Included in series, facilitates the evacuation of condenses and provides greater flexibility in the installation.
️
Spacious Operation Range
It works efficiently at extreme temperatures: from -10°C to 48°C in cooling and from -15°C to 18°C in heating.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM36F.N21 + UUC1.U40 |
| Cold Capacity (Mín-Nom-Máx) | 3.80 - 9.50 - 10.50 kW |
| Heat capacity (Mín-Nom-Máx) | 4,30 - 10,80 - 11,50 kW |
| EER / COP | 3,01 / 3,57 |
| SEER / SCOP | 5,90 / 4,00 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Dimensions Indoor Unit (AnxAlxProf) | 1.250 x 270 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 834 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 36 / 34 / 33 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 54 / 56 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 32 / 28 / 24 m3/min |
| Static Pressure (Standard/Maximum) | 39 / 147 Pa |
| Refrigerant Gas / Charge | R32 / 1.9 kg |
| Length Tuberia (Min/Máx) | 5 / 50 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
Air Conditioning Benefits LG UM36F CONFORT
✓
Maximum comfort with minimal visual impact
By installing on false ceilings and distributing the air through ducts, it provides a homogeneous and discreet air conditioning, ideal for commercial and residential spaces where the aesthetic is important.
✓
Significant energy saving
With A+/A+ energy ratings and high SEER and SCOP values, it reduces electricity consumption considerably while maintaining optimal performance, resulting in lower spending on electricity bills.
✓
Versatility in the installation
The adjustable static pressure up to 147 Pa allows you to adapt the system to different duct configurations, even in complex installations with multiple direction changes or grids.
✓
Air conditioning throughout the year
Its wide range of operation allows you to use the equipment both in the hottest days of the summer and in the coldest of the winter, guaranteeing comfort at any season of the year.
Why choose Air Conditioning LG UM36F CONFORT?
Installation Information
Important considerations:
- La indoor Unit UM36F.N21 is designed exclusively for horizontal installation, its vertical installation is not possible.
- Maximum length of pipe: 50 meters, with a maximum height of 30 meters between units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 55 g/m for upper lengths.
- Frigorphic connections: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2") in the outdoor Unit.
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation is recommended by qualified and authorized technical staff LG to ensure proper functioning and maintain the validity of the warranty.
Calm your spaces with maximum efficiency and comfort!
Air Conditioning by Conduct LG UM36F CONFORT offers the perfect solution for large spaces that require homogeneous, efficient and discreet air conditioning. Invests in quality, comfort and energy saving with guarantee LG Electronics.
Request your custom budget today!
KITCONDCM36F CONFORT
Data sheet
- Brand
- LG
- Indoor Unit
- UM36F.N21
- Outdoor Unit
- UUC1.U40
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 3.160
- Energy class (cold)
- A+
- SEER
- 5,9
- Heat capacity (W)
- 10.800
- Heat capacity (Kcal / h)
- 9.288
- Nominal heat consumption (W)
- 3.030
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 33
- Weight Indoor Unit (Kg)
- 36,0
- Weight Outdoor Unit (Kg)
- 59,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1250 x 700 x 270
- EU dimensions (anxfxh) mm
- 950 x 330 x 834
