Ducted Air Conditioner Daikin BA60A SKY AIR SERIE ADVANCE
Referencia: BA60A
€2,460.50
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning Daikin BA60A Sky Air Series Advance represents the technological evolution of commercial and residential climate, offering a nominal capacity 5700W in refrigeration (4902 kcal/h) and 7000W heating (6020 kcal/h). This inverter technology duct system is designed to provide efficient and accurate climate control in medium spaces, combining high performance with optimized energy consumption.
The Advance Series incorporates the latest innovations Daikin, including organic refrigerant R-32 with a load 1,15 kg (0.78 TCO2eq), which significantly reduces environmental impact while improving thermal efficiency. Your energy classification A+ in both cooling and heating, with SEER values 5,91 and SCOP de 4,01, guarantees responsible energy consumption of just 337 kWh annual cooling and 1607 kWh heating.
The BA60A set consists of the indoor Unit ducts FBA60A9 and the outdoor Unit RXM60R, designed to work in perfect synchrony. La indoor Unit provides a 18 m3/min airflow in cooling and 12.5 m3/min in heating, with a nominal available pressure 30 Pa which can reach 150 Pa in high pressure mode, allowing complex duct installations.
Inverter technology with type compressor SWING allows a continuous modulation of the power, automatically adapting to the needs of air conditioning and maintaining a constant temperature with minimal variations. This translates into silent operation, with sound pressure levels of just 30 dBA in cooling and 25 dBA in heating in the indoor Unit.
The system allows a flexible installation with a maximum pipe length 30 meters and one maximum level difference of 20 meters, using cold connections 6.4mm (1/4") for liquid and 12.7mm (1/2") for gas. Electrical power is monophasic 220V with 3 threads more earth, simplifying the electrical installation.
Main Features Sky Air Series Advance
️
Refrigeration capacity 5700W
4902 kcal/h rated power with inverter technology for maximum efficiency and precise temperature control.
🔥
Heating 7000W
6020 kcal/h heat capacity, ideal to maintain thermal comfort even in adverse weather conditions.
🌿
R-32 Ecological
Refrigerant Gas of new generation with PCA 675, reduces environmental impact by 68% compared to R-410A.
▪
Efficiency A+/A+
SEER 5,91 and SCOP 4,01 guarantee maximum energy savings with minimum annual consumption of 337 kWh refrigeration.
🔇
Quiet operation
Sound pressure of 30/25 dBA interior and 49 dBA exterior, ideal for spaces that require minimal noise.
💨
Optimized Air Stream
18/12.5 m3/min with pressure available up to 150 Pa for complex duct installations.
Complete Technical Specifications
BA60A Conduct Set
| Sound pressure Heating | 49 dBA |
| Level Acoustic Power | 63 dBA |
| Charge Refrigerant Gas Base | 10 meters |
| Additional charge | 20 gr/m |
Advantages Sky Air Series Advance
✓
Higher Energy Efficiency
SEER 5,91 and SCOP 4,01 with annual consumption of just 337 kWh in refrigeration, ensuring maximum savings on the electric bill.
✓
Flexible installation
Up to 30 meters of pipe and 20 meters of unevenness, with pressure available up to 150 Pa for complex duct installations.
✓
Advanced Inverter Technology
Precise temperature control with continuous modulation, silent operation and greater durability of the equipment.
✓
Refrigerant Gas Ecological R-32
It reduces environmental impact by 68% compared to R-410A, meets European sustainability standards.
Ideal applications
🏢
Medium offices
Workspaces of 40-60 m2, meeting rooms, executive offices and business centres that require silent air conditioning.
🏪
Trade
Shops, boutiques, pharmacies, clinics and commercial establishments that need comfortable atmosphere for customers.
▪
Wide housing
Single houses, large apartments, penthouses and houses that require distribution through hidden channels.
Sky Air Series Advance - Maximum Efficiency!
The Daikin BA60A combines inverter, eco-friendly R-32 coolant and A+/A+ efficiency to deliver the best air conditioning solution through ducts. Flexible installation up to 30m, silent operation from 25 dBA and guaranteed minimum consumption.
Request your professional budget today!
: #0099CC; color: white
Nominal cooling capacity5700W (4902 kcal/h)Capacity Nominal heating7000W (6020 kcal/h)SEER / SCOP5,91 / 4,01Label Seasonal EfficiencyA+ Refrigeration / A+ HeatingAnnual Energy Consumption337 kWh (Refrigeration) / 1607 kWh (Calefaction)Frigorific connectionsLiquid 6.4mm (1/4") / Gas 12.7mm (1/2")Electrical supplyMonof Classic 220VInterconnection threads3 + EarthMaximum Length Tuberia30 metersMaximum level difference20 meters

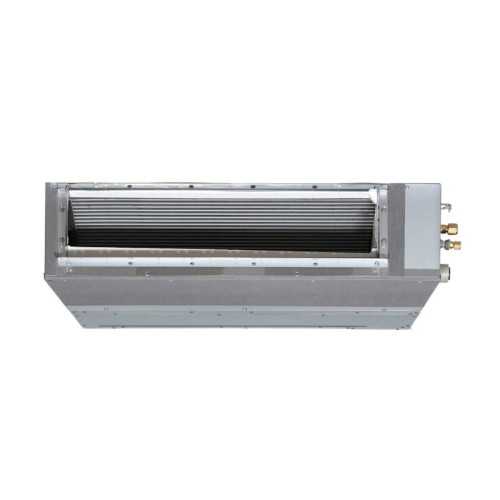

Indoor Unit fBA60A9 Conduct
| Feature | Value |
|---|---|
| Refrigeration air flow | 18 m3/min |
| Air flow heating | 12.5 m3/min |
| Nominal Available Pressure | 30 Pa |
| Pressure Available High | 150 Pa |
| Ventilator speeds | 3 speeds |
| Dimensions (Height x Width x Fund) | 245 x 1000 x 800 mm |
| Weight | 35.0 kg |
| Sound pressure Refrigeration | 30 dBA |
| Sound pressure Heating | 25 dBA |
| Level Acoustic Power | 56 dBA |

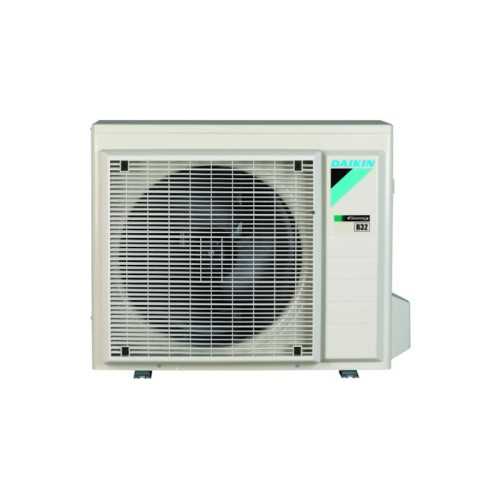

Outdoor Unit RXM60R
DAIKIN BA60A SKY AIR SERIE ADVANCE
A+/A+ + R-32 ECHOGIC + INVERTER
️ Refrigeration 5700W
4902 kcal/h nominal capacity
SEER 5,91 - A+ Efficiency
Heating 7000W
6020 kcal/h maximum comfort
SCOP 4,01 - Efficiency A+
R-32 Ecological
1,15 kg - PCA 675
68% less environmental impact
▪ Minimum consumption
337 kWh/year cooling
Maximum energy saving
🏢 Ideal spaces 40-60 m2
💨 Caudal 18/12.5 m3/min
📏 30m pipe + 20m
🔇 Silence 30/25 dBA
📐 Pressure up to 150 Pa
️ Technology Inverter
SKY AIR SERIE ADVANCE DISPONIBLE

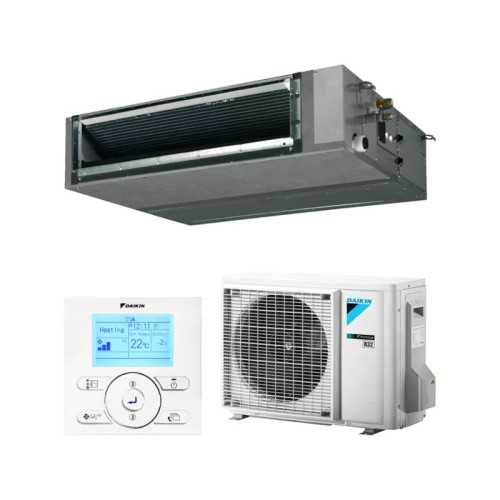

Indoor Unit FBA60A9 + Outdoor Unit RXM60R
Perfect for offices, shops and spacious housing
▷ SPECIALIZED
️ Official guarantee Daikin
🔧 National Technical Service
📋 Certification A+/A+
🌿 Ecological R-32 technology
BA60A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FBA60A9
- Outdoor Unit
- RXM60R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.700
- Refrigerator capacity (kcal / h)
- 4.902
- Nominal consumption Cold (W)
- 1.640
- Energy class (cold)
- A+
- SEER
- 5,9
- Heat capacity (W)
- 7.000
- Heat capacity (Kcal / h)
- 6.020
- Nominal heat consumption (W)
- 1.890
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 35,0
- Weight Outdoor Unit (Kg)
- 49,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 50m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 800 x 245
- EU dimensions (anxfxh) mm
- 954 x 401 x 734
