Air Conditioning Mitsubishi Electric MGPEZ-35VJA
Refrigeration 3600W 日本語 Heating 4100W ̄s Efficiency A+ Δ R-32
The Air Conditioning Mitsubishi Electric MGPEZ-35VJA is the compact solution of the PRO Mr.SLIM series with 3600W in cooling and 4100W heating. With indoor Unit ultra compact single 250mm high, this hidden duct system offers efficient and discreet air conditioning for small and medium spaces that require maximum use of space.
3️ 3600W Refrigeration
EER 3.23 - Compact
4 4100W Heating
COP 3.71 - Efficient
▪ SEER 6,0 / SCOP 4,0
Efficiency A+ / A+
Ultra Compact
Only 250mm height
Product Specifications Conduct Series PRO

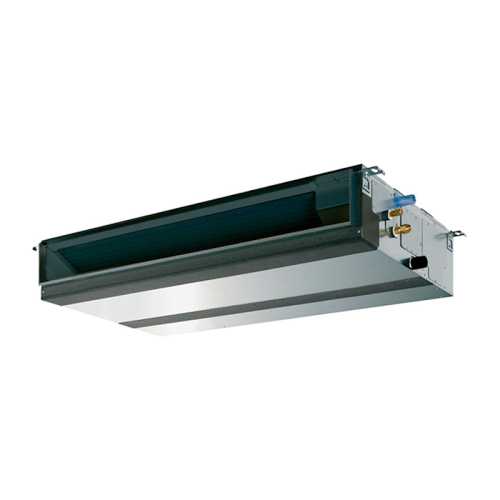

Indoor Unit: PEAD-SM35JA

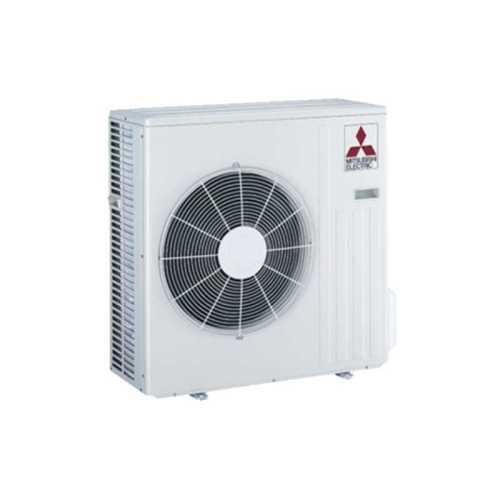

Outdoor Unit: SUZ-SM35VA
Air flow: 10,0-14,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 209 kWh/year
Refrigerant Gas: R-32 (0.90 kg)
Length Tuberia: up to 20m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MGPEZ-35VJA PRO Series Ducted Air Conditioning System
Referencia: MGPEZ-35VJA-C41
€1,247.03
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MGPEZ-35VJA
Refrigeration 3600W 日本語 Heating 4100W ̄s Efficiency A+ Δ R-32
The Air Conditioning Mitsubishi Electric MGPEZ-35VJA is the compact solution of the PRO Mr.SLIM series with 3600W in cooling and 4100W heating. With indoor Unit ultra compact single 250mm high, this hidden duct system offers efficient and discreet air conditioning for small and medium spaces that require maximum use of space.
3️ 3600W Refrigeration
EER 3.23 - Compact
4 4100W Heating
COP 3.71 - Efficient
▪ SEER 6,0 / SCOP 4,0
Efficiency A+ / A+
Ultra Compact
Only 250mm height
Product Specifications Conduct Series PRO
Indoor Unit: PEAD-SM35JA
Outdoor Unit: SUZ-SM35VA
Air flow: 10,0-14,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 209 kWh/year
Refrigerant Gas: R-32 (0.90 kg)
Length Tuberia: up to 20m
Security policy
Delivery policy
Refund policy
Air Conditioning Mitsubishi Electric MGPEZ-35VJA
PRO series Mr.SLIM 3600W Δ Ultra Compacto 250mm Δ R-32 Δ A+
O️ Ultra Compact Design PRO Series
The Mitsubishi Electric MGPEZ-35VJA belongs to the prestigious PRO Mr.SLIM Series, offering 3600W of frigorific power and 4100W heat power in an ultra compact design 250mm high. This hidden duct unit is designed for small and medium spaces where the use of space is fundamental, without compromising the air conditioning benefits.
A Features PRO Ultra Compact Series
▪ Area: 30-45m2 compact spaces
▪ Frigorific power: 3600W efficient
Calorific power: 4100W superior
Food: Monof Classic 230V
: Air flow: 10,0-14,0 m3/min
Height Ultra: Only 250mm
Technology Mr.SLIM Advanced
Technology Mr.SLIM de Mitsubishi Electric integrates multiple innovations to maximize efficiency and comfort. The system includes built-in condensation control, , advanced dehumidification function and IT Integrated terminal for intelligent system management, ensuring optimal performance in all conditions.
Tecnología Technology Mr.SLIM
- Inbuilt condensation control
- Advanced dehumidification function
- IT Integrated serial terminal
- Self-diagnosis system
Os️ Compact Benefits
- Maximum use of space
- Installation in false reduced ceilings
- Discreet and elegant design
- Total architectural flexibility
▪ Energy Efficiency A+ Optimized
With SEER 6.0 A+ in cooling and SCOP 4.0 A+ in heating, the MGPEZ-35VJA offers excellent energy efficiency for its compact size. The system consumes only 209 kWh annual in cooling, optimizing energy efficiency for small spaces where efficiency is a priority.
▼ Energy benefits
- Reduced annual consumption
- Energy classification A+
- Economic functioning
Efficiency
SEER:
6.0 A+
6.0 A+
SCOP:
4.0 A+
4.0 A+
EER:
3,23
3,23
COP:
3,71
3,71
Y Flexible and versatile installation
The MGPEZ-35VJA system offers maximum installation flexibility with variable static pressure 35 to 150 Pa, adapting to different conduit configurations. La indoor Unit ultra compact 250 x 900 x 732 mm allows installation in false ceilings with minimum height, optimizing the available space without compromising the performance.
Flexibility Installation
- Static pressure: 35-150 Pa variable
- Minimum height: only 250mm
- Optimized compact dimensions
- Total architectural adaptation
S️ Technical advantages
- Air flow adjustable 10,0-14,0 m3/min
- Pipe length up to 20m
- Vertical distance up to 12m
- Precise temperature control
Miento Operation Ultra Silent 23dBA
With only 23 dBA at its lowest level, the MGPEZ-35VJA offers exceptionally silent operation. This feature is essential for noise-sensitive spaces such as dormitories, studios or small offices where acoustic comfort is a priority without compromising the performance of air conditioning.
Tiva Comparison Sonora
- 23 dBA: Very soft whisper
- Less than silent library
- Ideal bedrooms and studios
Nivel Sound level
23 dBA
Ultra Quiet
Perfect for ultra noise sensitive spaces
De️ Advanced Control Systems
Standard control

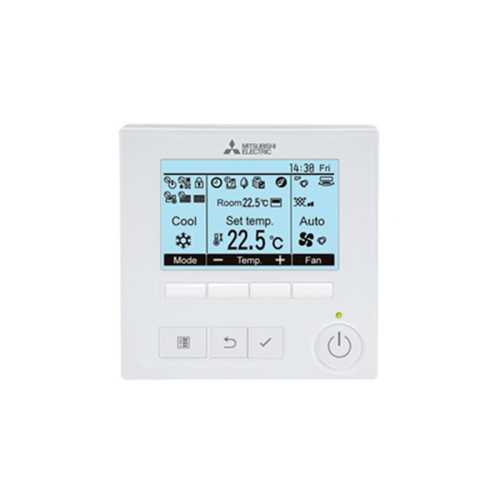

PAR-41MAA included for full basic system control with programming functions and temperature adjustment.
- Precise temperature control
- Time programme
- Operating modes
- Basic system configuration
Optional Advanced Control
PAR-40(41) optional for advanced control with superior functions and improved connectivity.
- Advanced programming functions
- Precise multizone control
- Professional configuration
- Detailed monitoring
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Refrigerating charge: 0.90 kg
- Low global warming potential
- Increased energy efficiency
- Respectful environment
Es Dimensions Ultra Compact
- Indoor Unit: 250x900x732mm
- Outdoor Unit: 550x800x285mm
- Liquid pipe: Ø6,35mm
- Gas pipe: Ø9,52mm
️ Operation
- Outer temperature: -10°C to +46°C
- Heating range: -10°C to +24°C
- Power supply: 230V monophasic
- Interior weight: 26 kg
️ MGPEZ-35VJA - Serie PRO Mr.SLIM Ultra Compacta
3600W Compact Δ 250mm Height Δ 23dBA Silent Δ A+ Efficiency Δ R32 Ecological
️ Ultra Compacto Mitsubishi Electric MGPEZ-35VJA!
3600W Series PRO Δ Solo 250mm Altitude Δ 23dBA Ultra Silent Δ SEER 6,0 A+ Δ Mr.SLIM
️ Why choose the MGPEZ-35VJA?
✓ Ultra Compact: Only 250mm maximum height space
✓ PRO Mr.SLIM series: Technology Mitsubishi Electric
✓ Ultra Silence: Only 23dBA functioning
✓ Efficiency A+: SEER 6.0 low consumption
✓ Control included: PAR-41MAA series handle
✓ Ecological R32: Respectful environment
Offer PRO Exclusive Series
️ PRECIO SERIE PRO WEB
Consult ultra compact special conditions
Consult ultra compact special conditions

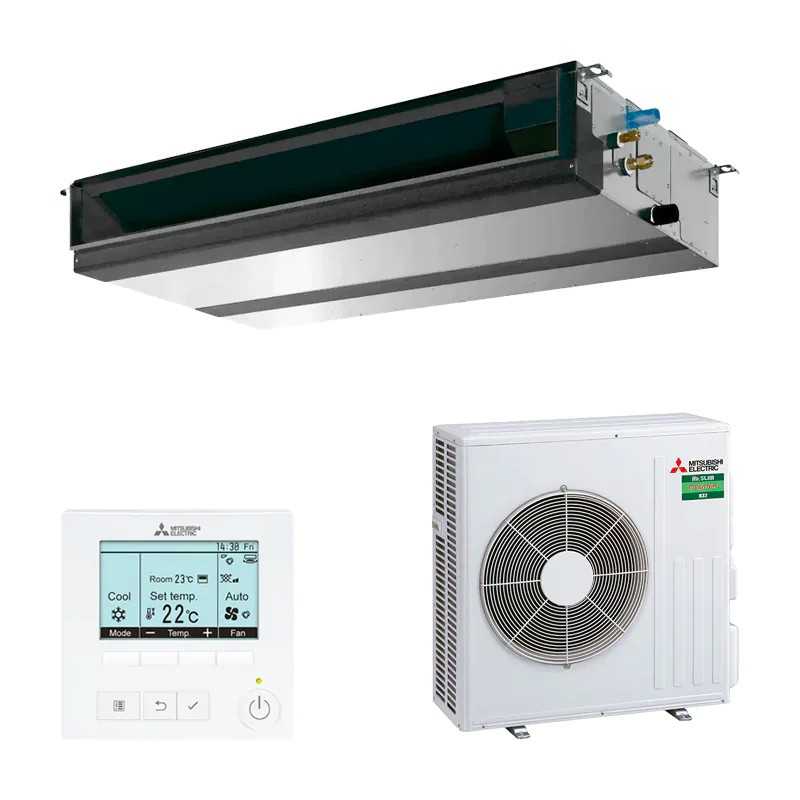

PRO Series Pack Includes:
- Indoor Unit PEAD-SM35JA (250mm)
- Outdoor Unit SUZ-SM35VA
- PAR-41MAA included
- Official guarantee Mitsubishi Electric
Technical Specifications PRO Series
️ Frigorific Power
3600WCalorific power
4100WEfficiency SEER
6.0 A+Nivel Sound level
23 dBAHeight
250mmSurface
30-45m2️ MGPEZ-35VJA - The Perfect Ultra Compact Solution
3600W Series PRO Δ 250mm Ultra Compacto Δ SEER 6,0 A+ Δ 23dBA Δ Mr.SLIM Δ R32 Ecological
MGPEZ-35VJA-C41
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-SM35JA
- Outdoor Unit
- PUZ-SM35VKA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.600
- Refrigerator capacity (kcal / h)
- 3.096
- Nominal consumption Cold (W)
- 1.110
- Energy class (cold)
- A+
- SEER
- 6,0
- Heat capacity (W)
- 4.100
- Heat capacity (Kcal / h)
- 3.526
- Nominal heat consumption (W)
- 1.110
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 23
- Weight Indoor Unit (Kg)
- 26,0
- Weight Outdoor Unit (Kg)
- 35,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 30m2 aprox.
- Dimensions UI (ANXFXH) mm
- 900 x 732 x 250
- EU dimensions (anxfxh) mm
- 800 x 285 x 550
