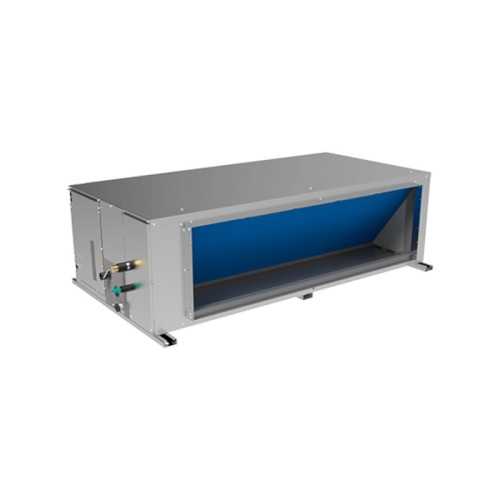

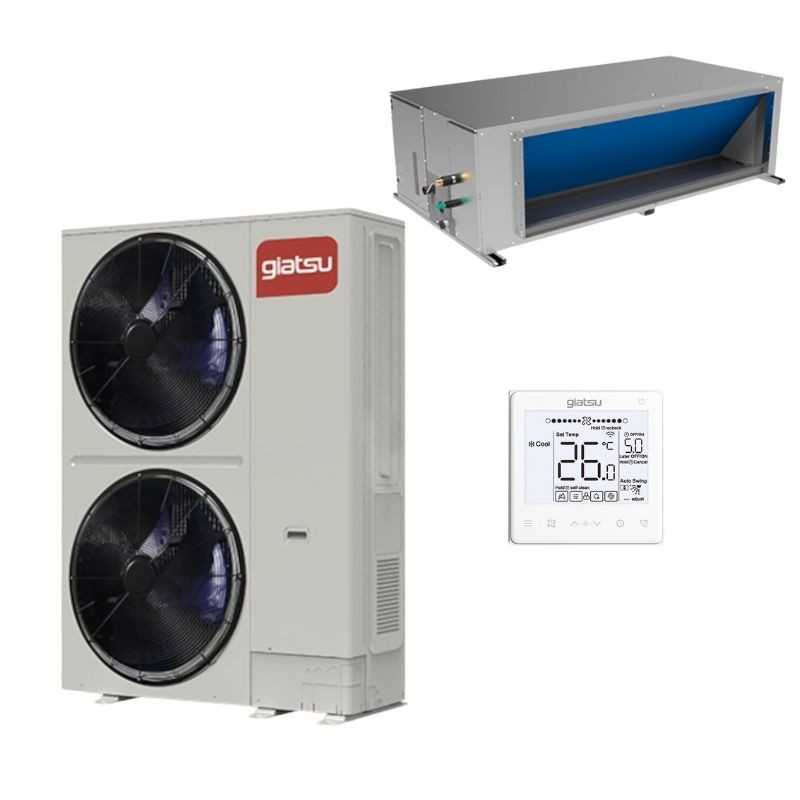

Ducted Air Conditioner Giatsu GIA-BD-33IX56A
Series BIG DUCT IX56A LICIT 33.500 W LIC 400Pa Pressure Δ R410A Δ Control Weekly
The Air Conditioning by Conduct Giatsu GIA-BD-33IX56A elevates the performance of the BIG DUCT IX56A Series with 33.5kW and the same exceptional static pressure 400 Pa. Ideal for larger commercial and residential spaces (160-180 m2), it combines R410A inverter technology with SEER 6,2 and a powerful 2100 m3/h flow. Your programmable weekly control system and outdoor Unit front download ensure flexible installation and intelligent energy management for demanding professional applications.
400 400 Pass
Maximum static pressure
2️ 2100 m3/h
Powerful air flow
▪ SEER 6,2
R410A Inverter
160-180 m2
Professional coverage
Key Specifications
Power: 33.500 W
SEER: 6,2
Static pressure: 400 Pa
Air flow: 2100 m3/h
Refrigerant Gas: R410A
Sound level: 51/49/46/42 dB(A)
Food: 220-240/50 Hz
Pipe length: 50m max.
Reference: GIA-BD-33IX56A Giatsu BIG DUCT IX56A
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-BD-33IX56A Big Duct
Referencia: GIA-BD-33IX56A
€6,945.85
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-BD-33IX56A
Series BIG DUCT IX56A LICIT 33.500 W LIC 400Pa Pressure Δ R410A Δ Control Weekly
The Air Conditioning by Conduct Giatsu GIA-BD-33IX56A elevates the performance of the BIG DUCT IX56A Series with 33.5kW and the same exceptional static pressure 400 Pa. Ideal for larger commercial and residential spaces (160-180 m2), it combines R410A inverter technology with SEER 6,2 and a powerful 2100 m3/h flow. Your programmable weekly control system and outdoor Unit front download ensure flexible installation and intelligent energy management for demanding professional applications.
400 400 Pass
Maximum static pressure
2️ 2100 m3/h
Powerful air flow
▪ SEER 6,2
R410A Inverter
160-180 m2
Professional coverage
Key Specifications
Power: 33.500 W
SEER: 6,2
Static pressure: 400 Pa
Air flow: 2100 m3/h
Refrigerant Gas: R410A
Sound level: 51/49/46/42 dB(A)
Food: 220-240/50 Hz
Pipe length: 50m max.
Reference: GIA-BD-33IX56A Giatsu BIG DUCT IX56A
Security policy
Delivery policy
Refund policy
Higher Commercial Power with Maximum Efficiency
The Air Conditioning by Conduct Giatsu GIA-BD-33IX56A the BIG DUCT IX56A Series with 33000 W power optimized for larger commercial and residential spaces. Maintains exceptional static pressure 400 Pa characteristic of the series, ensuring uniform air distribution in complex installations with long ducts and multiple outputs.
Your technology inverter with coolant R410A achieves improved efficiency SEER 6,2, while the expanded flow rate 2100 m3/h ensures effective air conditioning for spaces of 160-180 m2. Programmable weekly control system and outdoor Unit front download offers maximum installation flexibility for demanding commercial applications.
💨
33.500 W + 400 Pa
Higher commercial power with high static pressure for complex large median installations.
️
Expansion range 2100 m3/h
Increased airflow for efficient distribution in commercial spaces of 160-180 m2.
▪
SEER 6,2 Improved
Improved energy efficiency with R410A inverter technology for maximum operating savings.
🏢
Commercial application
Designed specifically for medium offices, shops and demanding professional spaces.
Complete Technical Specifications
| Feature | Specification | Unit |
|---|---|---|
| Model | GIA-BD-33IX56A | - |
| Frigorific power | 33000 | W |
| Calorific power | 35000 | W |
| SEER (Efficiency) | 6,2 | - |
| Electrical supply | 220-240V/50Hz | V/Hz |
| Maximum Static Pressure | 400 | Pa |
| Maximum Air flow rate | 2100 | m3/h |
| Sound level (4 speeds) | 53/51/48/45 | dB(A) |
| Refrigerant Gas | R410A | - |
| Length Tuberia Maximum | 50 | meters |
| Maximum level | 25 | meters |

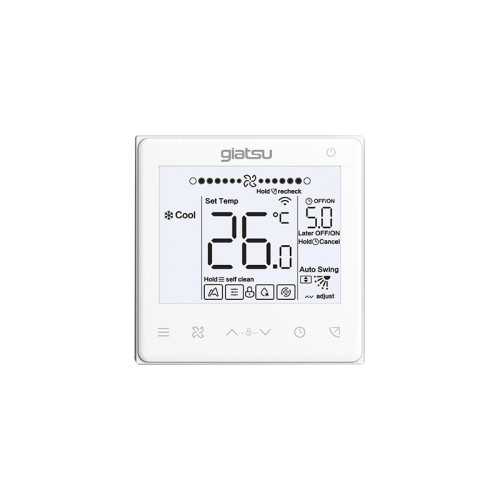

| Control | Weekly programmable | - |
Main Benefits of GIA-BD-33IX56A
Commercial power
33,50 kW ideal for medium offices and commercial spaces of 160-180 m2
▪ SEER 6,2 Improved
Higher energy efficiency with inverter technology R410A
400 400 Pa + 2100 m3/h
High pressure and expanded flow for complex installations
Silence
From 45 dB(A) for maximum comfort in commercial spaces
Request your Budget for the Giatsu GIA-BD-33IX56A!
33500 W BIG DUCT IX56A - High-pressure commercial power 400Pa
What WhatsApp
Commercial advice
SEER 6,2
Trade efficiency
️ Warranty
Professional coverage
GIA-BD-33IX56A
Data sheet
- Brand
- Giatsu
- Indoor Unit

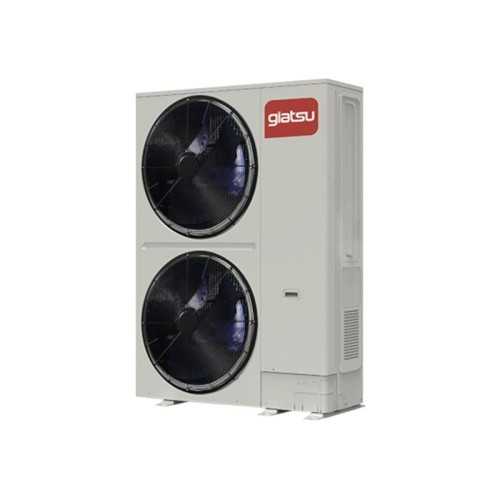

- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 33.500
- Refrigerator capacity (kcal / h)
- 28.810
- Nominal consumption Cold (W)
- 15.020
- SEER
- 6,4
- Heat capacity (W)
- 38.000
- Heat capacity (Kcal / h)
- 32.680
- Nominal heat consumption (W)
- 10.326
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 43
- Weight Indoor Unit (Kg)
- 128,0
- Weight Outdoor Unit (Kg)
- 157,0
- Diameter Liquid pipe
- 1/2"
- Diameter Gas Pipe
- 7/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 1300 x 900 x 580
- EU dimensions (anxfxh) mm
- 1120 x 528 x 1558
