Ducted Air Conditioner LG UM30F CONFORT UM30F.NA0 + UUC1.U40
A+/A high energy efficiency air conditioning system with 7.5 kW rated power. Designed for medium spaces, this team combines optimal performance with low sound level (38 dB) and has included capacitated pump, ideal for commercial or residential installations that require a discreet and efficient solution.
- ▷ Nominal power of 7.5 kW in cold and 8,0 kW in heat for medium spaces
- ▷ High energy efficiency with SEER 5,60 and SCOP 3,90 (A+/A)
- ▷ Adjustable static pressure up to 150 Pa for greater installation flexibility
- ▷ Quiet operation with only 38/33/30 dB for optimal comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Condensed pump included and vertical installation possibility
Reference: UM30F.NA0 + UUC1.U40
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG UM30F CONFORT UM30F.NA0 + UUC1.U40
Referencia: KITCONDCM30F_CONFORT
€1,552.94
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner LG UM30F CONFORT UM30F.NA0 + UUC1.U40
A+/A high energy efficiency air conditioning system with 7.5 kW rated power. Designed for medium spaces, this team combines optimal performance with low sound level (38 dB) and has included capacitated pump, ideal for commercial or residential installations that require a discreet and efficient solution.
- ▷ Nominal power of 7.5 kW in cold and 8,0 kW in heat for medium spaces
- ▷ High energy efficiency with SEER 5,60 and SCOP 3,90 (A+/A)
- ▷ Adjustable static pressure up to 150 Pa for greater installation flexibility
- ▷ Quiet operation with only 38/33/30 dB for optimal comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Condensed pump included and vertical installation possibility
Reference: UM30F.NA0 + UUC1.U40
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM30F CONFORT is a high efficiency air conditioning system specially designed to provide superior comfort in medium, commercial and residential spaces. This team from the Free Combination Comfort range LG combines a nominal power of 7.5 kW in cold and 8.0 kW in heat with outstanding energy efficiency, represented by its A+/A rating.

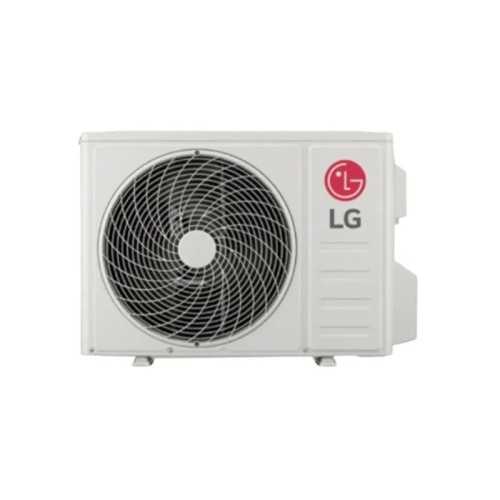

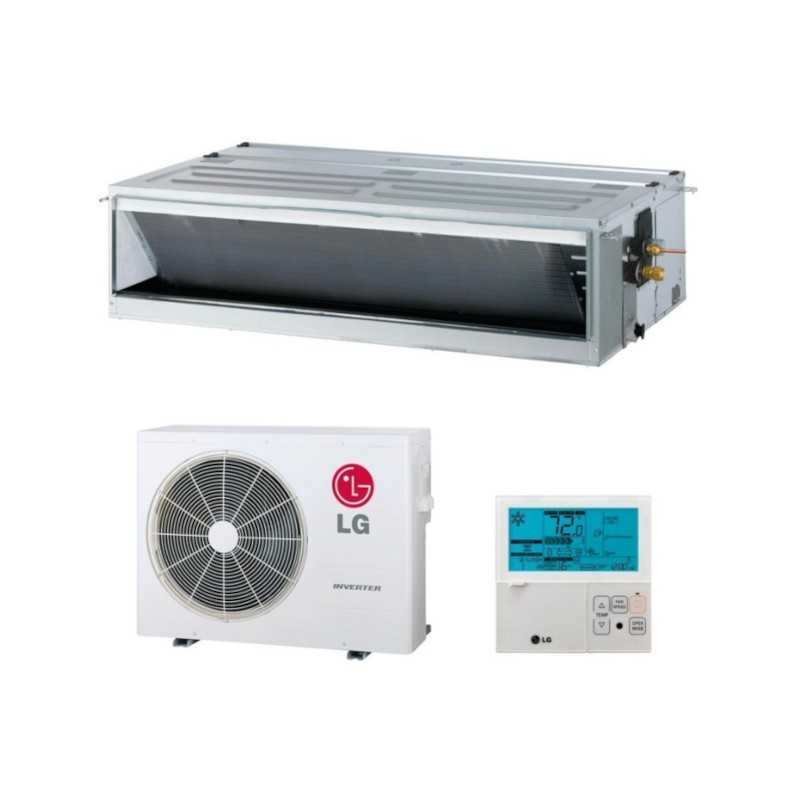

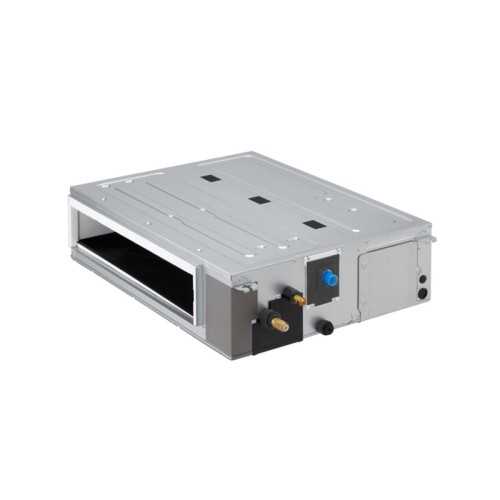

Composed of indoor Unit UM30F.NA0 and outdoor Unit UUC1.U40, this system stands out for its adjustable static pressure of up to 150 Pa, allowing a flexible installation adapting to different duct configurations. La indoor Unit, with compact dimensions of 900 x 245 x 700 mm, offers a design that facilitates its installation in false ceilings, while maintaining silent operation with sound levels of only 38/33/30 dB according to the selected speed.
Using the R32 ecological refrigerant, this system significantly reduces the environmental impact compared to traditional refrigerants. In addition, it has a wide range of operation that allows its efficient operation in extreme conditions, from -10°C to 48°C in cooling mode and from -15°C to 18°C in heating mode. A distinctive feature of this model is the possibility of both horizontal and vertical installation through the ABDAMA0 accessory, providing greater flexibility in the installation.
Main features
√
Balanced power
Rated power of 7.5 kW in cold and 8,0 kW in heat, with capacity to adapt to different thermal loads (3,00-8,30 kW in cold, 3,20-8,80 kW in heat).
🌱
Ecological and Efficient
Refrigerant Gas R32 with lower environmental impact and high energy efficiency with SEER 5,60 and SCOP 3,90, A+/A classification.
🔌
Flexible Static Pressure
From 25 Pa (standard) to 150 Pa (maximum), allowing to adapt to different types of ducts and complex installations.
🔇
Extra Silence
Very small sound levels of only 38/33/30 dB in the indoor Unit, perfect for environments that require maximum tranquility.
🔄
Versatile installation
Possibility of horizontal or vertical installation by ABDAMA0 accessory, adapting to different spaces and configurations.
💧
Condemned Pump
Included in series, facilitates the evacuation of condenses and provides greater flexibility in the installation.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM30F.NA0 + UUC1.U40 |
| Cold Capacity (Mín-Nom-Máx) | 3,00 - 7.50 - 8,30 kW |
| Heat capacity (Mín-Nom-Máx) | 3,20 - 8,00 - 8,80 kW |
| EER / COP | 2,92 / 3,56 |
| SEER / SCOP | 5,60 / 3,90 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 245 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 834 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 38 / 33 / 30 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 54 / 56 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 20 / 15.5 / 13 m3/min |
| Static Pressure (Standard/Maximum) | 25 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.9 kg |
| Length Tuberia (Min/Máx) | 5 / 50 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 29.1 kg |
| Weight Outdoor Unit | 59.0 kg |
Air Conditioning Benefits LG UM30F CONFORT
✓
Uniform and discreet air conditioning
The air distribution through ducts ensures a uniform temperature throughout the space without visible elements, keeping the aesthetics of offices, shops and homes.
✓
Maximum installation flexibility
With the possibility of horizontal or vertical installation and static pressure up to 150 Pa, it adapts to any architectural configuration and type of duct.
✓
Featured energy efficiency
With high A+/A ratings and SEER and SCOP values, it significantly reduces electrical consumption by maintaining optimal performance throughout the year.
✓
Superior acoustic comfort
Its low sound levels (from 30 dB) make it the ideal choice for bedrooms, meeting rooms, libraries and any space that requires tranquility.
Why choose Air Conditioning LG UM30F CONFORT?
Installation Information
Important considerations:
- La indoor Unit UM30F.NA0 allows both horizontal and vertical installation through the ABDAMA0 accessory.
- Maximum length of pipe: 50 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 55 g/m for upper lengths.
- Frigorific connections indoor Unit: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8").
- Frigorific connections outdoor Unit: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2").
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation is recommended by qualified and authorized technical staff LG to ensure proper functioning and maintain the validity of the warranty.
The perfect solution for medium spaces looking for maximum comfort!
Air Conditioning by Conduct LG UM30F CONFORT combines power, efficiency and installation versatility to provide ideal air conditioning in medium spaces. Invest in comfort, silence and energy saving with quality assurance LG.
Request your custom budget today!
KITCONDCM30F_CONFORT
Data sheet
- Brand
- LG
- Indoor Unit
- Outdoor Unit
- UUC1.U40
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 7.500
- Refrigerator capacity (kcal / h)
- 6.450
- Nominal consumption Cold (W)
- 2.570
- Energy class (cold)
- A+
- SEER
- 5,6
- Heat capacity (W)
- 8.000
- Heat capacity (Kcal / h)
- 6.880
- Nominal heat consumption (W)
- 2.250
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 29,5
- Weight Outdoor Unit (Kg)
- 59,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 60m2 aprox.
- Dimensions UI (ANXFXH) mm
- EU dimensions (anxfxh) mm
- 950 x 330 x 834
