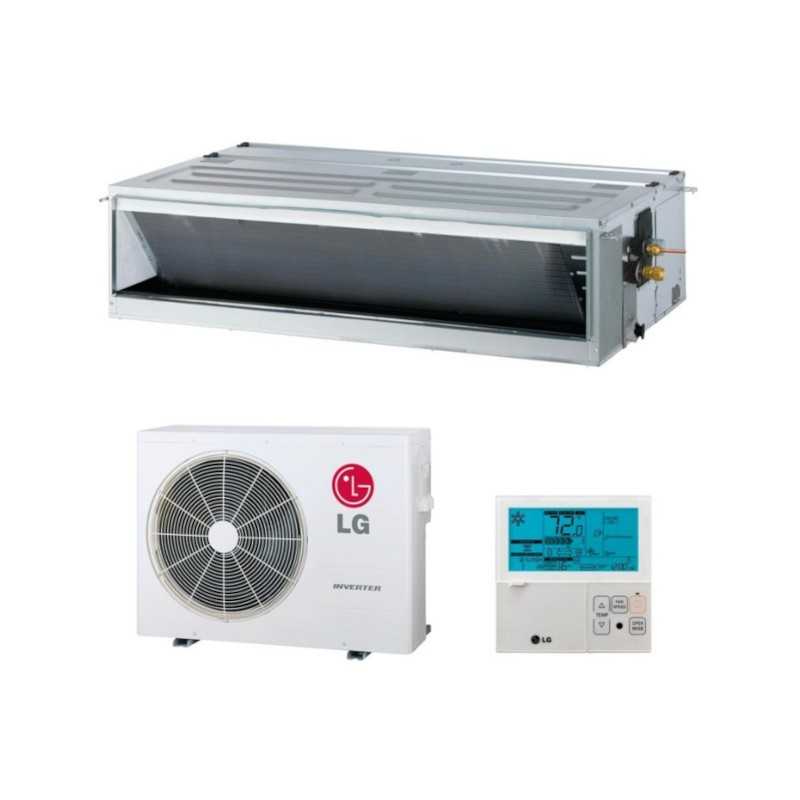

Ducted Air Conditioner LG CM24F CONFORT CM24F.NA0 + UUB1.U20
A+/A+ high energy efficiency air conditioning system with 6.8 kW rated power. Designed for small and medium spaces, this team combines excellent performance with low sound level (36 dB) and has included capacitated pump, ideal for homes, small offices and shops that require a discreet and effective solution.
- ▷ Nominal power of 6.8 kW in cold and 7.4 kW in heat for medium-sized small spaces
- ▷ Higher energy efficiency with SEER 5,70 and SCOP 4,10 (A+/A+)
- ▷ Adjustable static pressure up to 150 Pa for flexible installations
- ▷ Ultra silent operation with only 36/32/29 dB for maximum comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Condensed pump included and vertical installation possibility
Reference: CM24F.NA0 + UUB1.U20
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG CM24F CONFORT CM24F.NA0 + UUB1.U20
Referencia: KITCONDCM24F_CONFORT
€1,281.17
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner LG CM24F CONFORT CM24F.NA0 + UUB1.U20
A+/A+ high energy efficiency air conditioning system with 6.8 kW rated power. Designed for small and medium spaces, this team combines excellent performance with low sound level (36 dB) and has included capacitated pump, ideal for homes, small offices and shops that require a discreet and effective solution.
- ▷ Nominal power of 6.8 kW in cold and 7.4 kW in heat for medium-sized small spaces
- ▷ Higher energy efficiency with SEER 5,70 and SCOP 4,10 (A+/A+)
- ▷ Adjustable static pressure up to 150 Pa for flexible installations
- ▷ Ultra silent operation with only 36/32/29 dB for maximum comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Condensed pump included and vertical installation possibility
Reference: CM24F.NA0 + UUB1.U20
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG CM24F CONFORT is a high efficiency air conditioning system specially designed to provide superior comfort in small and medium spaces, both residential and commercial. This team from the Free Combination Comfort range LG combines a nominal power of 6.8 kW in cold and 7.4 kW in heat with exceptional energy efficiency, represented by its A+/A+ rating.

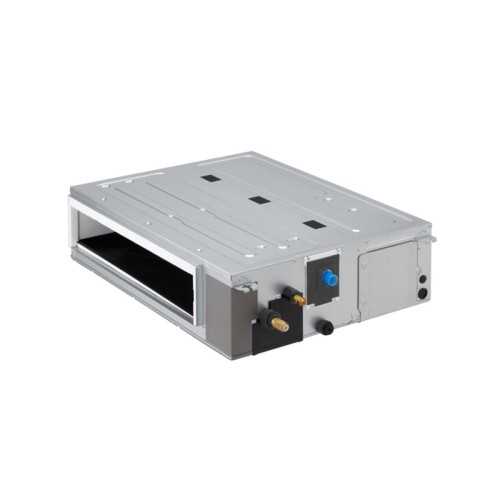

Composed of indoor Unit CM24F.NA0 and outdoor Unit UUB1.U20, this system stands out for its adjustable static pressure of up to 150 Pa, allowing a flexible installation adapting to different duct configurations. La indoor Unit, with compact dimensions of 900 x 245 x 700 mm, offers an optimized design that facilitates its installation in false ceilings, while maintaining an ultra silent operation with sound levels of only 36/32/29 dB according to the selected speed.
Using the R32 ecological refrigerant, this system significantly reduces the environmental impact compared to traditional refrigerants. Its wide range of operation allows efficient operation from -10°C to 48°C in cooling mode and from -15°C to 18°C in heating mode. An outstanding feature of this model is the possibility of installation both horizontal and vertical through the ABDAMA0 accessory, offering maximum versatility for different spaces and architectural configurations.
Main features
√
Optimized Power
Nominal power of 6.8 kW in cold and 7.4 kW in heat, with modulant capacity of 2.70-7.50 kW in cold and 3.00-8.20 kW in heat.
🌱
Maximum Efficiency
Refrigerant Gas Ecological R32 with excellent energy efficiency: SEER 5,70 and SCOP 4,10, classification A+/A+.
🔌
Versatile Static Pressure
From 20 Pa (standard) to 150 Pa (maximum), allowing to adapt to different lengths and configurations of ducts.
🔇
Ultra Quiet
Extremely low sound levels of 36/32/29 dB indoor Unit, ideal for bedrooms and spaces sensitive to noise.
🔄
Flexible installation
Possibility of horizontal or vertical mounting by ABDAMA0 accessory, adapting to any available space.
💧
Complete system
Condensed pump included in series to facilitate water evacuation and simplify installation.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CM24F.NA0 + UUB1.U20 |
| Cold Capacity (Mín-Nom-Máx) | 2.70 - 6.80 - 7.50 kW |
| Heat capacity (Mín-Nom-Máx) | 3,00 - 7.40 - 8,20 kW |
| EER / COP | 2,91 / 3,41 |
| SEER / SCOP | 5,70 / 4,10 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 245 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 870 x 650 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 36 / 32 / 29 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 48 / 53 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 18 / 15 / 12 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.2 kg |
| Length Tuberia (Min/Máx) | 5 / 35 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 27.9 kg |
| Weight Outdoor Unit | 44,5 kg |
Air Conditioning Benefits LG CM24F CONFORT
✓
Ideal for small and medium spaces
With 6.8 kW rated power, it is perfect for apartments, small offices, queries, shops and residential spaces that need efficient air conditioning without oversizing the system.
✓
Comfort silent day and night
Its extremely low sound levels (from 29 dB) make it the perfect choice for bedrooms, studios and any space where silence is fundamental.
✓
Energy excellence
With A+/A+ ratings and high SEER and SCOP indices, it ensures significant savings in electricity bills while maintaining maximum comfort throughout the year.
✓
Installation without limits
The horizontal or vertical mounting option and static pressure up to 150 Pa allow installations in complicated spaces where other systems cannot be adapted.
Why choose Air Conditioning LG CM24F CONFORT?
Installation Information
Important considerations:
- La indoor Unit CM24F.NA0 allows both horizontal and vertical installation through the ABDAMA0 accessory.
- Maximum length of pipe: 35 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add 40 g/m for upper lengths.
- Frigorific connections indoor Unit: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8").
- Frigorific connections outdoor Unit: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2").
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation is recommended by qualified and authorized technical staff LG to ensure proper functioning and maintain the validity of the warranty.
The smart choice for spaces that seek efficiency and silence!
Air Conditioning by Conduct LG CM24F CONFORT offers the perfect combination of power, efficiency and tranquility for small and medium spaces. Invest in technology LG and enjoy superior comfort with minimal energy and acoustic impact.
Request your custom budget today!
KITCONDCM24F_CONFORT
Data sheet
- Brand
- LG
- Indoor Unit
- Outdoor Unit
- UUB1.U20
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- 2.340
- Energy class (cold)
- A+
- SEER
- 5,7
- Heat capacity (W)
- 7.400
- Heat capacity (Kcal / h)
- 6.364
- Nominal heat consumption (W)
- 2.170
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 29
- Weight Indoor Unit (Kg)
- 28,0
- Weight Outdoor Unit (Kg)
- 44,5
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 55m2 aprox.
- Dimensions UI (ANXFXH) mm
- EU dimensions (anxfxh) mm
- 870 x 330 x 650
