Air Conditioning Panasonic KIT-36PF3Z5
Refrigeration 3400W 日本語 Heating 4000W ̄s Efficiency A+ 日本語 Compact
The Air Conditioning Panasonic KIT-36PF3Z5 is the compact solution of the PACi NX Standard Series with 3400W in cooling and 4000W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for small and medium spaces that require efficient and silent air conditioning.
3️ 3400W Refrigeration
EER 4,25 - Compact
4 4000W Heating
COP 4.40 - Efficient
▪ SEER 6,1 / SCOP 4,4
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Compact Drive
Indoor Unit: CS-36PF3Z5EAW

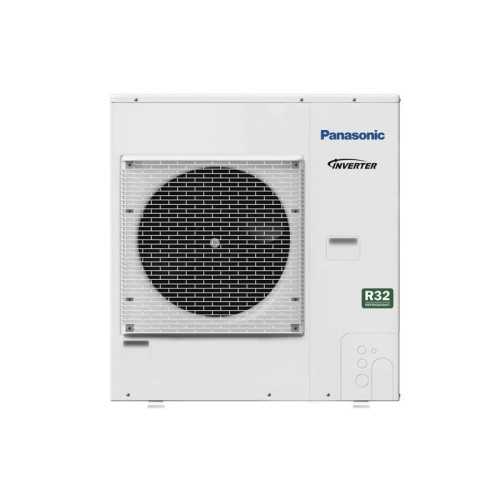

Outdoor Unit: CU-36PF3Z5EA
Air flow: 10.5 m3/min
Static pressure: 150 Pa
Sonic Pressure: 22 dBA
Annual consumption: 195 kWh/year
Refrigerant Gas: R-32 (0.95 kg)
Length Tuberia: 3-15m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

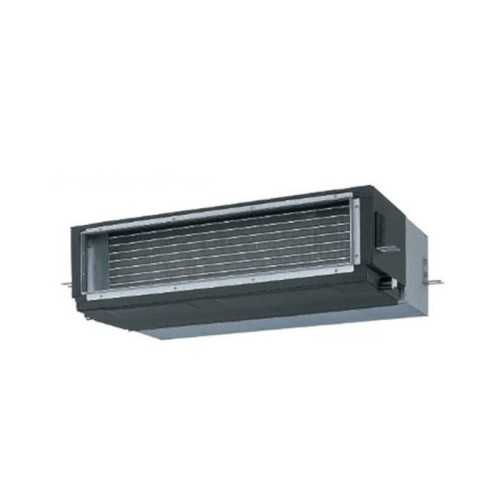

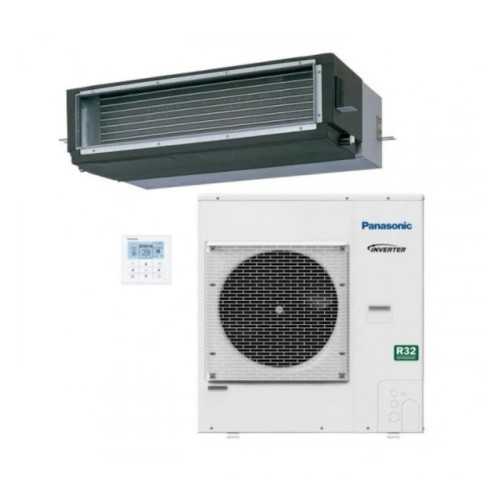

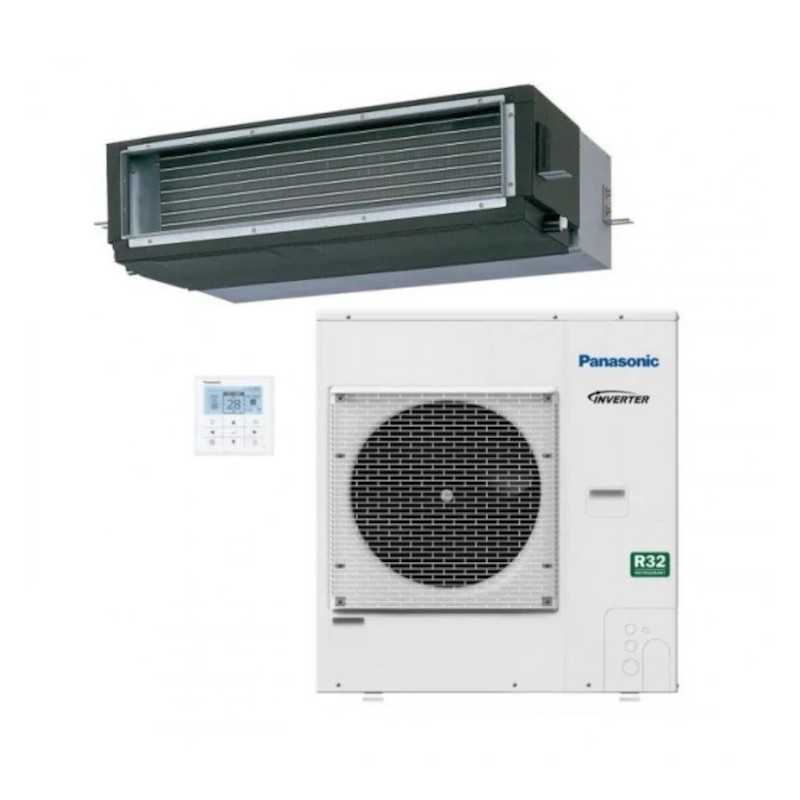

Ducted Air Conditioner Panasonic KIT-36PF3Z5-6W PACi NX Standard Series
Referencia: KIT-36PF3Z5-6W
€982.31
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-36PF3Z5
Refrigeration 3400W 日本語 Heating 4000W ̄s Efficiency A+ 日本語 Compact
The Air Conditioning Panasonic KIT-36PF3Z5 is the compact solution of the PACi NX Standard Series with 3400W in cooling and 4000W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for small and medium spaces that require efficient and silent air conditioning.
3️ 3400W Refrigeration
EER 4,25 - Compact
4 4000W Heating
COP 4.40 - Efficient
▪ SEER 6,1 / SCOP 4,4
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Compact Drive
Indoor Unit: CS-36PF3Z5EAW
Outdoor Unit: CU-36PF3Z5EA
Air flow: 10.5 m3/min
Static pressure: 150 Pa
Sonic Pressure: 22 dBA
Annual consumption: 195 kWh/year
Refrigerant Gas: R-32 (0.95 kg)
Length Tuberia: 3-15m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-36PF3Z5
Compact 3400W Δ PACi NX Standard Δ nanoeTM X Mark 2 Δ A+
Y Compact and Versatile Solution
The Panasonic KIT-36PF3Z5 is the most compact solution of the PACi NX Standard Series, offering 3400W frigorific power and 4000W heat power with monophasic power 220-240V. This model is designed for small and medium spaces, homes, small offices and commercial premises that require efficient air conditioning without compromising the available space.
As Compact Features
▪ Area: 35-50m2 small spaces
▪ Frigorific power: 3400W compact
Calorific power: 4000W efficient
Food: Monofs 220-240V
: Air flow: 10.5 m3/min
🔧 Indoor Unit: 800mm standard
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, creating a healthier and more comfortable space especially important in small spaces where air quality is fundamental.
A Compact Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
S Benefits Small Spaces
- Cleaner and healthy air
- Allergic symptoms reduction
- More hygienic environment
- Continuous silent operation
▪ Energy Efficiency A+ Optimized
With SEER 6,1 A+ in cooling and SCOP 4,4 A+ in heating, the KIT-36PF3Z5 offers excellent energy efficiency for its compact size. The system consumes only 195 kWh annual, optimizing energy performance for small spaces where each watt counts for global efficiency.
▼ Compact Advantages
- Reduced annual operating cost
- Fast repayment
- Energy classification A+
Efficiency
SEER:
6.1 A+
6.1 A+
SCOP:
4.4 A+
4.4 A+
EER:
4,25
4,25
COP:
4,40
4,40
Dual PF3 Compact Installation
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to adapt to any small space configuration. This versatility is particularly valuable in small houses and offices where space limitations require adaptable solutions.
Compact Flexibility
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Adaptation of small spaces
S️ Technical advantages
- Standard 800mm unit
- Optimized false ceiling height
- Maintenance accessibility
- Uniform air distribution
Miento Operation Ultra Silent 22dBA
With its compact power 3400W, the KIT-36PF3Z5 maintains exceptionally silent operation with only 22 dBA sound pressure. This feature is essential for small spaces such as bedrooms, small offices or studios where acoustic comfort is a priority without compromising the performance of air conditioning.
Tiva Comparison Sonora
- 22 dBA: Very soft whisper
- Less than whispered conversation
- Ideal bedrooms and studios
Nivel Sound level
22 dBA
Ultra Quiet
Perfect for noise sensitive spaces
Advanced Drying and Control System
Included Dry Pump
Drainage pump included in series capacity 2.7 L/h, allowing elevation to 680mm and efficient condensate evacuation for any small space configuration.
- No additional cost
- Efficient Condensed Evacuation
- Automatic operation
- Lift height 680mm

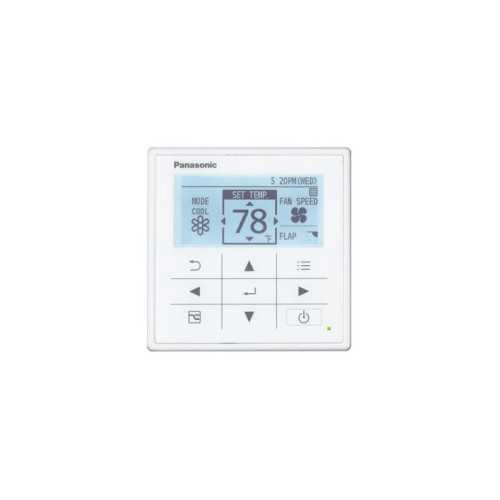

Bluetooth® Control
CZ-RTC6BL Bluetooth® included series for full wireless control from smartphone, with weekly programming and intelligent system management.
- IOS/Android Smartphone Control
- Weekly programme
- Monitoring consumption
- Complete remote management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Refrigerating charge: 0.95 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
Compact dimensions
- Indoor Unit: 800mm
- Pipe length: 3-15m
- Maximum level: 15/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +46°C
- Air flow: 10.5 m3/min
- Power supply: 220-240V 1~
- Annual consumption: 195 kWh
KIT-36PF3Z5 - Compact Solution PACi NX Standard Series
3400W Compacto Δ nanoeTM X Mark 2 Δ 22dBA Quiet Δ A+ Efficiency Δ Dual Installation
¡ Compact Solution Panasonic KIT-36PF3Z5!
3400W Compacto Δ nanoeTM X Mark 2 Δ Solo 22dBA Δ SEER 6,1 A+ Δ Dual Installation
Why Choose the KIT-36PF3Z5?
✓ Compact Solution: 3400W ideal small spaces
✓ Ultra Silence: Only 22dBA, ideal bedrooms
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Dual installation: Horizontal/vertical same tray
✓ Under Consumption: Only 195 kWh per year
✓ Bluetooth® Control: CZ-RTC6BL included
Compact Online Offer
COMPACY PRICE
Consult special conditions solution small
Consult special conditions solution small
Compact Pack Includes:
- Internal units (800mm) and exterior
- CZ-RTC6BL Bluetooth®
- Integrated drainage pump
- Official guarantee Panasonic
S Compact Technical Specifications
️ Frigorific Power
3400WCalorific power
4000WEfficiency SEER
6.1 A+Nivel Sound level
22 dBASurface
35-50m2Maximum pipe
15mKIT-36PF3Z5 - The Perfect Compact Solution
3400W Compact Δ SEER 6,1 A+ Δ nanoeTM X Mark 2 Δ 22dBA Δ Tubería 15m Δ Control Bluetooth® Δ Pump Drenage
KIT-36PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-3650PF3E
- Outdoor Unit
- U-36PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.400
- Refrigerator capacity (kcal / h)
- 2.924
- Nominal consumption Cold (W)
- 900
- Energy class (cold)
- A+
- SEER
- 6,0
- Heat capacity (W)
- 3.400
- Heat capacity (Kcal / h)
- 2.924
- Nominal heat consumption (W)
- 820
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 22
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 32,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 28m2 aprox.
- Dimensions UI (ANXFXH) mm
- 800 x 730 x 250
- EU dimensions (anxfxh) mm
- 824 x 299 x 619
