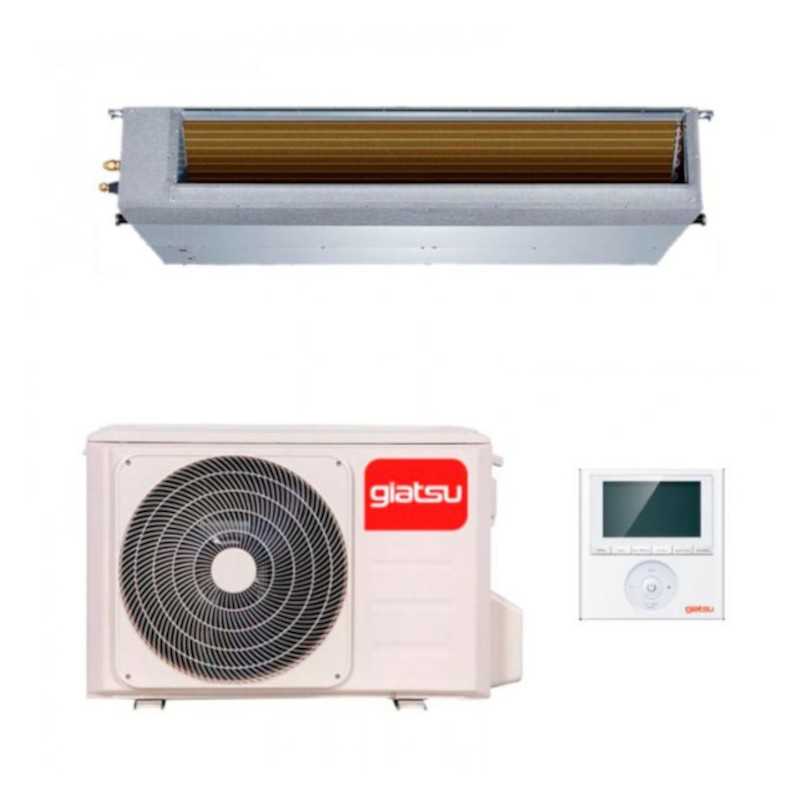

Ducts Giatsu GIA-D-48ADM2R32-WF Series Admires Plus Monof.

Product Description

The Air Conditioning by Conduct Giatsu GIA-D-48ADM2R32-WF represents the absolute culmination of the Admira Plus series in monophasic power, constituting the technological range top for industrial and commercial applications that demand maximum power without resorting to triphasic power. With an exceptional nominal capacity of 14,07 kW in refrigeration (48000 BTU/h) and 16,12 kW in heating (55000 BTU/h), this system employs maximum monophase DC inverter technology that allows intelligent modulation from 12000 to 51000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of large industrial complexes, production centers, high-speed commercial installations and applications.

The extraordinary combination of GMCC inverter compressor of maximum monophase capacity and industrial DC fan ensures an A++ energy rating in cooling (SEER 6,1) and A+ in heating (SCOP 4.0), maintaining exceptional efficiency even with this extreme power at 220-240V. The system employs eco-friendly R32 coolant with a maximum load of 2.9 kg, optimized for this end-of-end capacity while maintaining environmental commitment, crucial for large-scale commercial applications that require intensive, continuous and sustainable operation with maximum environmental responsibility.

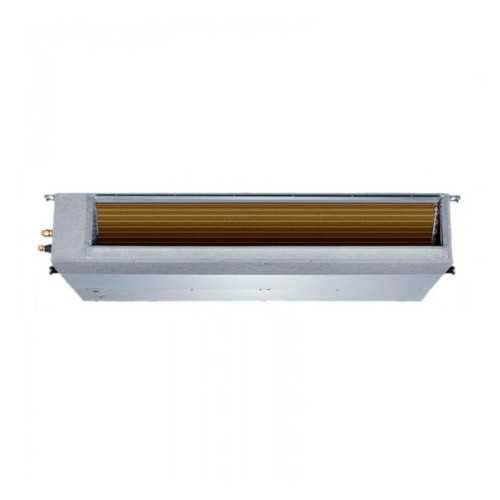

La indoor Unit maintains the optimized dimensions of 1200×245×750 mm with robust weight of 40.4 kg, conserving the versatility of horizontal and vertical multiposition installation while providing extreme airflows from 1300 to 2000 m3/h with static pressure of up to 160 Pa. These specifications allow installations of maximum industrial complexity with distribution in complexes of multiple buildings, complete industrial plants and extremely demanding architectural configurations. Its optimized sound levels of 46/44/42 dB(A) according to speed guarantee discreet professional performance even with this range top capability, essential for industrial applications that require comfortable working environment.

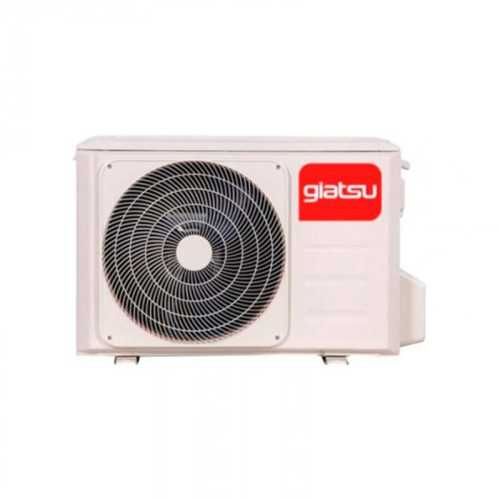

La outdoor Unit Industrial GMCC has been revolutionaryly redesigned with optimized vertical orientation of 980×375×975 mm and industrial weight of 82.5 kg, specifically engineered to maximize thermal exchange and efficiency in this monophase range top capability. This vertical configuration allows better thermal dissipation and greater exchange capacity in less space, incorporating protection Golden Fin premium anticorrosion and maximum efficiency thermal exchange systems. The system allows maximum industrial scale installations with pipe length of 75 meters and height of up to 30 meters, while the 3/8" - 5/8" refrigerator connections guarantee optimal flow for this extreme capacity. The cable control included offers advanced weekly programming for automatic optimization in complex industrial applications of maximum size.

Features Top Classical Gama

Technical Specifications Tope Gama

Advantages Top Classical Gama

Applications Top Gama Main

Tope Monophosic Gama for Maximum Demands!

The Giatsu Admira Plus Series 48000 BTU is the absolute top in monophase feeding. With optimized vertical exterior, 2000 m3/h of flow and maximum efficiency A++/A+, is the ultimate solution before jumping to triphasic models.

Request your top-end budget today!
