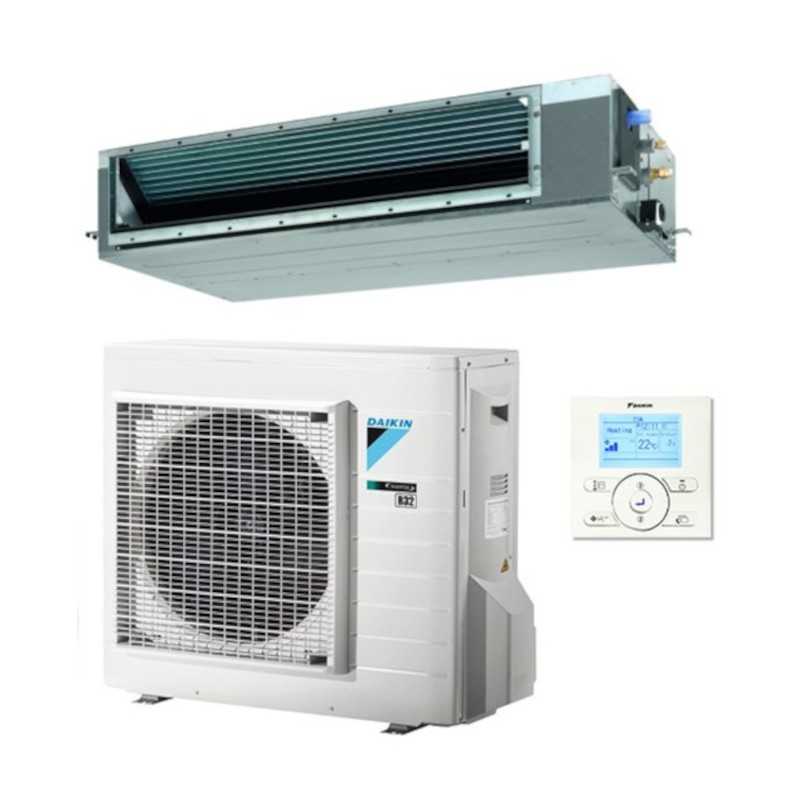

Ducted Air Conditioner Daikin ADEAS100A
SKY AIR Series Active Δ R-32 Δ 9500W Cold Δ SEER 5,13 Δ A/A 150Pa Pressure
The Air Conditioning by Conduct Daikin ADEAS100A of the prestigious Sky Air Active Series represents the high-power commercial solution with advanced R-32 coolant. Its exceptional capacity of 9500W in cooling and 10800W in heating, combined with a compact design of 245 mm height and enlarged dimensions of 1400×245×800 mm, makes it the ideal choice for large commercial spaces, large offices and intensive commercial applications. With energy classification A/A (SEER 5.13 / SCOP 3.81), static pressure up to 150Pa and massive flow up to 29 m3/min, guarantees maximum power and intensive air conditioning in large spaces up to 90 m2.
️ 9500W Powerful
10800W heat / R-32 massive
es Expanded dimensions
1400×245×800 mm / 46 kg
Masivotive Caudal
29 m3/min / 150Pa pressure
▪ SEER 5.13
A/A high efficiency
Key Specifications High Power
Cold capacity: 9500W
Heat capacity: 10800W
Air flow: 29/23 m3/min
Static pressure: 40/150 Pa
Sound pressure: 34/30 dB(A)
Refrigerant Gas: R-32 (2.60 kg)
Connections: Ø9,5"/Ø15,9"
Max pipe: 30 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Daikin ADEAS100A SKY AIR
Referencia: ADEAS100A
€2,701.91
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Daikin ADEAS100A
SKY AIR Series Active Δ R-32 Δ 9500W Cold Δ SEER 5,13 Δ A/A 150Pa Pressure
The Air Conditioning by Conduct Daikin ADEAS100A of the prestigious Sky Air Active Series represents the high-power commercial solution with advanced R-32 coolant. Its exceptional capacity of 9500W in cooling and 10800W in heating, combined with a compact design of 245 mm height and enlarged dimensions of 1400×245×800 mm, makes it the ideal choice for large commercial spaces, large offices and intensive commercial applications. With energy classification A/A (SEER 5.13 / SCOP 3.81), static pressure up to 150Pa and massive flow up to 29 m3/min, guarantees maximum power and intensive air conditioning in large spaces up to 90 m2.
️ 9500W Powerful
10800W heat / R-32 massive
es Expanded dimensions
1400×245×800 mm / 46 kg
Masivotive Caudal
29 m3/min / 150Pa pressure
▪ SEER 5.13
A/A high efficiency
Key Specifications High Power
Cold capacity: 9500W
Heat capacity: 10800W
Air flow: 29/23 m3/min
Static pressure: 40/150 Pa
Sound pressure: 34/30 dB(A)
Refrigerant Gas: R-32 (2.60 kg)
Connections: Ø9,5"/Ø15,9"
Max pipe: 30 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin ADEAS100A represents the high-power level of the prestigious Sky Air Active Series, designed specifically for large-scale commercial applications that demand exceptional thermal capacity without compromising energy efficiency. With a nominal capacity of 9500W in refrigeration (8170 kcal/h) and 10800W in heating (9288 kcal/h), this system incorporates the innovative R-32 refrigerant technology with a massive load of 2.60 kg which guarantees maximum energy efficiency and environmental sustainability, maintaining an A/A energy rating with SEER 5,13 and SCOP 3,81, ideal for large commercial spaces, large offices, medium shopping centres and demanding commercial applications.
Its optimized design maintains the compact height of 245 mm with enlarged dimensions of 1400×245×800 mm and weight of 46 kg, facilitating the installation in large commercial spaces, while its static pressure of up to 150Pa allows the use of extensive flexible ducts, ideal for complex architectural configurations and distribution in multiple wide areas. La indoor Unit incorporates series drainage pump, automatic air flow adjustment system that measures the volume and static pressure adjusting to the nominal flow regardless of the length of the duct, and F1/F2 communication port included for advanced commercial centralized control.
The exceptional air conditioning capacity operates with massive airflows of 29 m3/min in refrigeration and 23 m3/min in heating with three fan speeds, providing fast and efficient air conditioning for large commercial spaces. Its silent operation with sound levels from 30 dB(A) in low mode up to 36 dB(A) indoor Unit and 53 dB(A) on the outside, it guarantees quiet commercial environment even with this massive power, essential for commercial applications that require acoustic comfort.
La outdoor Unit AZAS100MV1 with SWING compressor incorporates R-32 coolant load of 2.60 kg (TCO2 eq 1.76 / PCA 675), enlarged dimensions of 990×940×320 mm and weight of 70 kg, with premium anti-red protection and thermal exchange systems optimized for this massive capacity. The system allows large-scale installations with a maximum pipe length of 30 meters and a height of up to 30 meters, with Ø9,5" (3/8") fluid and Ø15,9" (5/8") gas, monophasic power supply 220V with 3+T interconnection threads, ensuring easy installation and reliable operation in high thermal intensive commercial applications.
Features Sky Air Active High Power Series
🏭
Massive Commercial Power
9500W cooling and 10800W heating ideal for large commercial spaces, medium shopping centers and applications up to 90 m2 with high thermal demand.
📐
Optimized Expanded Dimensions
1400×245×800 mm with a compact height of 245 mm, optimized for high-capacity commercial applications with installation flexibility.
💨
Massive flow 29 m3/min
Massive air flow up to 29 m3/min with static pressure 150Pa for rapid and efficient air conditioning of large commercial spaces.
🌿
R-32 Massive Charge
R-32 technology with massive load of 2.60 kg optimized for maximum thermal capacity, ensuring energy efficiency and superior environmental sustainability.
🔇
Silence 30dB
Sound levels from 30 dB(A) inside for quiet commercial environment even with this massive 9500W power.
▪
Efficiency A/A
SEER 5.13 and SCOP 3.81 with energy classification A/A even with this massive power, ensuring commercial energy savings.
Technical Specifications Active High Power Series
| Feature | Value |
|---|---|
| Model Set | ADEAS100A (Sky Air Active High Power Series) |
| Refrigeration capacity | 9500W (8170 kcal/h) |
| Capacity Heating | 10800W (9288 kcal/h) |
| SEER / SCOP | 5,13 / 3,81 |
| Energy label ( Cold/Calor) | A/A |
| Charge Design Refrigeration | 9,50 kW |
| Charge Design Heating (-10oC) | 6,00 kW |
| Consumption Energy Annual Refrigeration | 633 kWh |
| Consumption Annual Energy Heating | 2205 kWh |
| Frigorific connections | Liquid Ø9,5" (3/8") - Gas Ø15,9" (5/8") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 30 meters |
| Refrigerant Gas / Charge | R-32 / 2.60 kg (TCO2 eq 1.76 / GWP 675) |

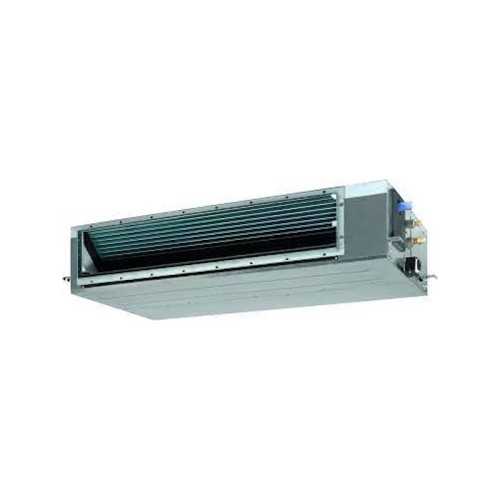

Specifications Indoor Unit ADEA100A
| Feature | Value |
|---|---|
| Refrigeration air flow | 29 m3/min |
| Air flow heating | 23 m3/min |
| Pressure Available Nominal/High | 40 / 150 Pa |
| Ventilator speeds | 3 speeds |
| Dimensions (Alto×Ancho×Fondo) | 245×1400×800 mm |
| Weight | 46 kg |
| Sound pressure Refrigeration (A/B) | 34 / 30 dB(A) |
| Sound pressure Heating (A/B) | 36 / 30 dB(A) |
| Level Acoustic Power | 58 dB(A) |

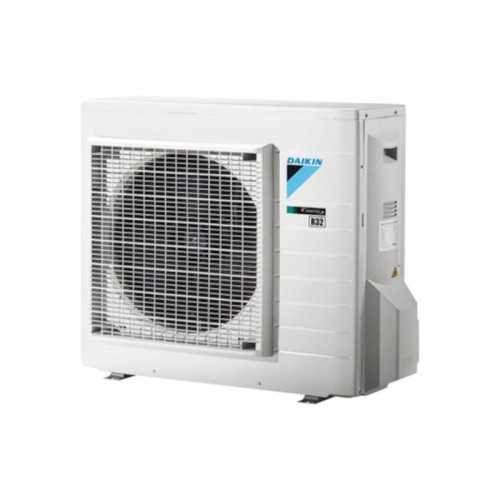

Specifications Outdoor Unit AZAS100MV1
| Feature | Value |
|---|---|
| Refrigeration air flow | 69 m3/min |
| Air flow heating | 82 m3/min |
| Type of Compressor | SWING |
| Dimensions (Alto×Ancho×Fondo) | 990×940×320 mm |
| Weight | 70 kg |
| Sound pressure Refrigeration | 53 dB(A) |
| Sound pressure Heating | 57 dB(A) |
| Level Acoustic Power | 70 dB(A) |
| Charge Refrigerant Gas | 30 meters |
Commercial Advantages Active High Power Series
✓
Ideal solution for large commercial spaces
Fully sized 9500W capacity for large commercial spaces, medium-sized shopping centers, large offices and 80-90 m2 commercial applications that require massive power.
✓
Massive cause for rapid air conditioning
29 m3/min allow quick and efficient air conditioning of large spaces, ensuring homogeneous comfort even in large applications.
✓
Optimized dimensions for high capacity
1400×245×800 mm with compact height maintained, specifically optimized for high capacity applications with maximum installation flexibility.
✓
Efficiency maintained with massive power
SEER 5.13 and A/A rating even with 9500W capacity, ensuring exceptional energy savings in high thermal demand applications.
✓
Optimized massive R-32 load
2.60 kg of R-32 coolant optimized for maximum thermal capacity, ensuring energy efficiency and environmental sustainability in intensive applications.
✓
Flexibility of commercial installation
30m pipe, 30m uneven, included drainage pump and centralized control F1/F2 for large complex commercial installations.
Main Commercial Applications
🏭
Middle Commercial Centers
Medium shopping centers, large commercial surfaces, large showrooms and large retail spaces up to 90 m2.
🏢
Broad Offices
Complete office plants, large corporate spaces, large business centers and corporate applications that require massive power.
🏨
Institutional applications
Hotels, convention centers, auditoriums, educational centers and institutional applications that need massive and efficient air conditioning.
Massive power for Big Commercial Spaces!
The Daikin ADEAS100A Series Sky Air Active combines massive power of 9500W, flow of 29 m3/min, R-32 technology with load of 2.60 kg and silent operation from 30dB. The ultimate solution for medium-sized shopping centres, large offices and commercial applications that demand maximum thermal capacity with energy efficiency A/A.
Request your budget for large commercial applications!
DAIKIN ADEAS100A SKY AIR ACTIVE
9500W MASIVA + 29 m3/min CAUDAL + 2.60kg R-32
️ Massive power
9500W cold / 10800W heat
Ideal shopping centres and large offices
Massive flow 29 m3/min
Rapid air conditioning large spaces
Massive air conditioning
Es Expanded dimensions
1400×245×800 mm - 46 kg
Optimized for high capacity
▪ SEER 5.13 Efficient
A/A with massive power
Maximum savings with 9500W
🏭 Large spaces 80-90m2
🌿 Massive R-32 2.60kg
🔧 Outdoor Unit 990×940mm
🔇 Quiet since 30dB
📏 30m pipe + 30m

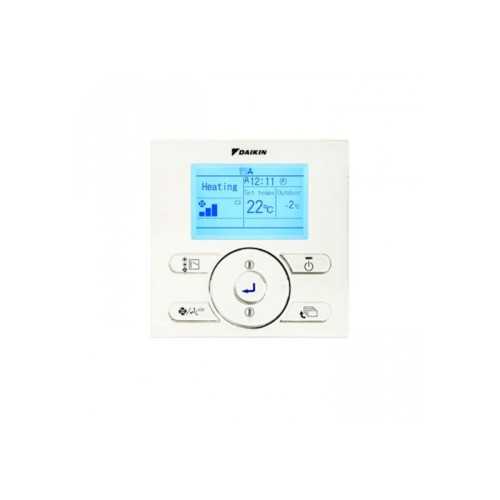

📡 Centralized control F1/F2
SERIE ACTIVE ALTA MASSIVE POTENCE
9500W with 29 m3/min mass flow + 245mm compact + 2.60kg R-32
Perfect for medium shopping centres, large offices and large commercial applications
▷ GREAT ENVERGAGEMENT
️ Warranty Daikin Officer
🔧 National Technical Service
📋 Certification A/A Masiva
🏭 Applications Big size
ADEAS100A
Data sheet
- Brand
- Daikin
- Indoor Unit
- ADEA100A
- Outdoor Unit
- AZAS100MV1
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.970
- Energy class (cold)
- TO
- SEER
- 5,1
- Heat capacity (W)
- 10.800
- Heat capacity (Kcal / h)
- 9.288
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 46,0
- Weight Outdoor Unit (Kg)
- 70,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 800 x 245
- EU dimensions (anxfxh) mm
- 940 x 380 x 990
