Air Conditioning Panasonic KIT-60PF3Z5
Refrigeration 5700W 日本語 Heating 6800W ̄s Efficiency A++ Δ R-32 Δ Premium
The Air Conditioning Panasonic KIT-60PF3Z5 is the premium model of the PACi NX Standard Series with 5700W in cooling and 6800W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, offering superior performances for premium commercial spaces and high-quality homes.
5️ 5700W Refrigeration
EER 4,31 - Premium
6 6800W Heating
COP 4,40 - Superior
▪ SEER 6,5 / SCOP 4,4
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Premium Conduct

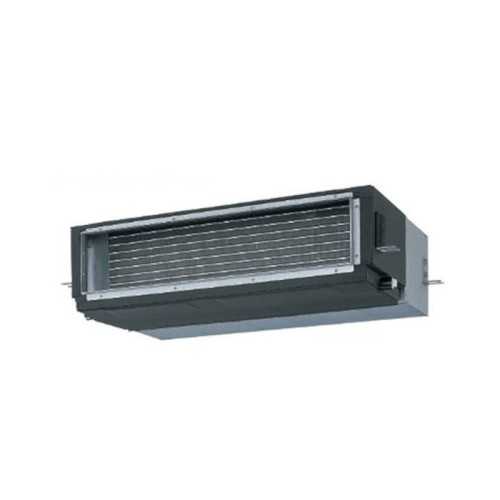

Indoor Unit: CS-60PF3Z5EAW

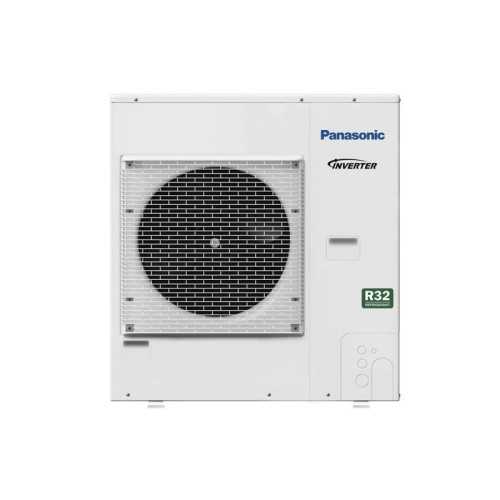

Outdoor Unit: CU-60PF3Z5EA
Air flow: 16.5 m3/min
Static pressure: 150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 306 kWh/year
Refrigerant Gas: R-32 (1.55 kg)
Length Tuberia: 3-40m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

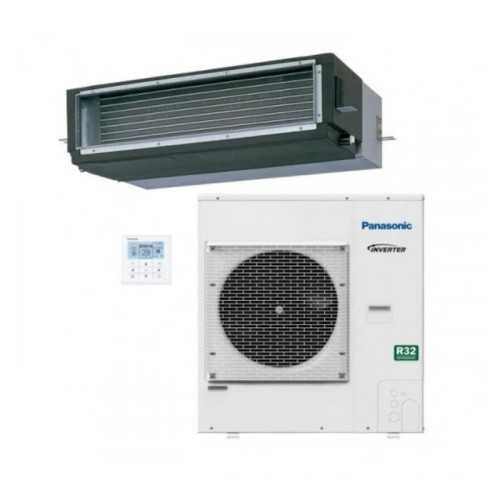

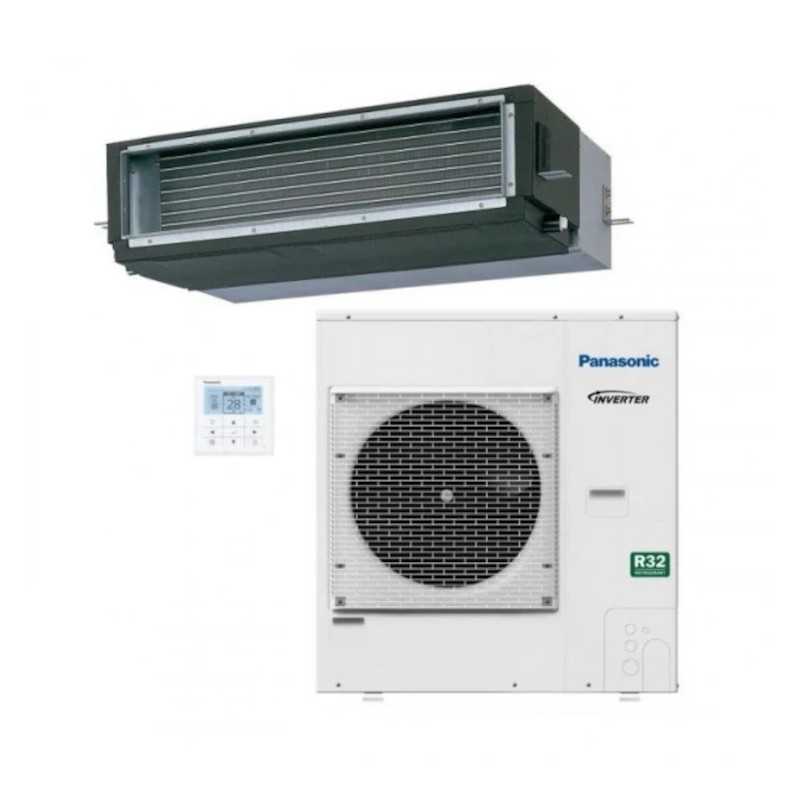

Ducted Air Conditioner Panasonic KIT-60PF3Z5-6W PACi NX Standard Series
Referencia: KIT-60PF3Z5-6W
€1,437.69
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-60PF3Z5
Refrigeration 5700W 日本語 Heating 6800W ̄s Efficiency A++ Δ R-32 Δ Premium
The Air Conditioning Panasonic KIT-60PF3Z5 is the premium model of the PACi NX Standard Series with 5700W in cooling and 6800W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, offering superior performances for premium commercial spaces and high-quality homes.
5️ 5700W Refrigeration
EER 4,31 - Premium
6 6800W Heating
COP 4,40 - Superior
▪ SEER 6,5 / SCOP 4,4
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Premium Conduct
Indoor Unit: CS-60PF3Z5EAW
Outdoor Unit: CU-60PF3Z5EA
Air flow: 16.5 m3/min
Static pressure: 150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 306 kWh/year
Refrigerant Gas: R-32 (1.55 kg)
Length Tuberia: 3-40m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-60PF3Z5
Premium Model 5700W Δ PACi NX Standard Δ nanoeTM X Mark 2 Δ A++
De Premium Model of the PACi NX Series
The Panasonic KIT-60PF3Z5 represents the premium model of the PACi NX Standard Series, offering 5700W of frigorific power and 6800W heat power with monophasic power 220-240V. This model stands out for its superior performance, indoor Unit large size (1000mm) and extended pipe range up to 40m, ideal for premium commercial applications and high quality housing.
Premium features
Area: 55-75m2 premium
▪ Frigorific power: 5700W superior
Calorific power: 6800W high
Food: Monofs 220-240V
: Air flow: 16.5 m3/min
🔧 Indoor Unit: 1000mm premium
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, creating a healthier and more comfortable space especially important in premium spaces where air quality is fundamental.
Premium Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
Beneficios Premium benefits
- Cleaner and healthy air
- Allergic symptoms reduction
- More hygienic environment
- Continuous silent operation
Energy Efficiency A++ Superior
With SEER 6,5 A++ in cooling and SCOP 4,4 A+ in heating, the KIT-60PF3Z5 offers the maximum energy efficiency of the series. The system consumes only 306 kWh per year, optimizing energy performance for premium spaces where efficiency and operating savings are priority.
▼ Premium benefits
- Reduced annual operating cost
- Fast repayment
- Energy rating A++
Efficiency
SEER:
6.5 A++
6.5 A++
SCOP:
4.4 A+
4.4 A+
EER:
4,31
4,31
COP:
4,40
4,40
Dual PF3 Premium installation
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to fit any premium settings. La indoor Unit of 1000mm offers greater capacity and superior performance for spaces that require maximum performance.
Premium flexibility
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Unit 1000mm large capacity
Ciones️ Premium benefits
- Up to 40m range
- Higher air distribution
- Maintenance accessibility
- Higher performance
Miento Operation Ultra Silent 23dBA
Despite its superior power 5700W, the KIT-60PF3Z5 maintains exceptionally silent operation with only 23 dBA sound pressure. This feature is fundamental for premium spaces that require power without compromising acoustic comfort, such as executive offices, premium commercial spaces or high-quality housing.
Tiva Comparison Sonora
- 23 dBA: Very soft whisper
- Less than whispered conversation
- Ideal sensitive premium spaces
Nivel Sound level
23 dBA
Ultra Quiet
Perfect for premium spaces that require silence
Advanced Drying and Control System
Included Dry Pump
Drainage pump included in series capacity 2.7 L/h, allowing elevation to 680mm and efficient condensate evacuation for any premium configuration.
- No additional cost
- Efficient Condensed Evacuation
- Automatic operation
- Lift height 680mm
Bluetooth® Control

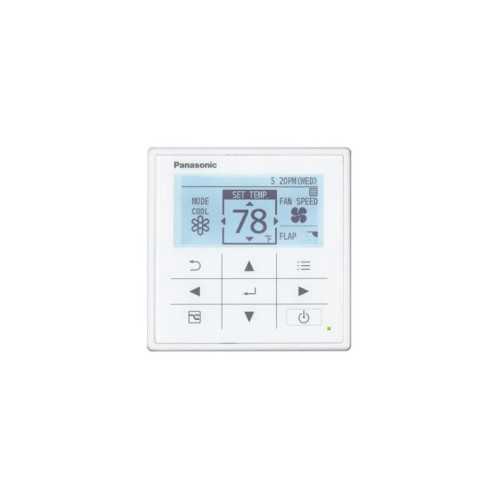

CZ-RTC6BL Bluetooth® included series for full wireless control from smartphone, with weekly programming and intelligent system management.
- IOS/Android Smartphone Control
- Premium weekly programming
- Monitoring consumption
- Complete remote management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Coolant load: 1.55 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
Premium dimensions
- Indoor Unit: 1000mm
- Pipe length: 3-40m
- Maximum level: 20/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +46°C
- Air flow: 16.5 m3/min
- Power supply: 220-240V 1~
- Annual consumption: 306 kWh
KIT-60PF3Z5 - Premium Model PACi NX Standard
5700W Premium Δ nanoeTM X Mark 2 ̄s 23dBA Silence Δ A++ Efficiency Δ Dual Installation
Premium model Panasonic KIT-60PF3Z5!
5700W Premium Δ nanoeTM X Mark 2 Δ Solo 23dBA Δ SEER 6,5 A++ Δ Dual Installation
Why Choose the KIT-60PF3Z5 Premium?
✓ Premium model: 5700W with top 1000mm unit
✓ Maximum Efficiency: SEER 6,5 A++ market leader
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Tube 40m: Increased range vs standard models
✓ Ultra Silence: Only 23dBA functioning
✓ Bluetooth® Control: CZ-RTC6BL included
Premium Exclusive Offer
WEB PRICE
Check special conditions premium model
Check special conditions premium model
Premium Pack Includes:
- Internal units (1000mm) and exterior
- Premium CZ-RTC6BL Bluetooth®
- Integrated drainage pump
- Official guarantee Panasonic extended
S Premium Technical Specifications
️ Frigorific Power
5700WCalorific power
6800WEfficiency SEER
6.5 A++Nivel Sound level
23 dBASurface
55-75m2Maximum pipe
40mKIT-60PF3Z5 - The Premium Series Model
5700W Premium Δ SEER 6,5 A++ Δ nanoeTM X Mark 2 Δ 23dBA Δ Tubería 40m Δ Control Bluetooth® Δ Pump
KIT-60PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-6071PF3E
- Outdoor Unit
- U-60PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.700
- Refrigerator capacity (kcal / h)
- 4.902
- Nominal consumption Cold (W)
- 1.610
- Energy class (cold)
- A++
- SEER
- 6,4
- Heat capacity (W)
- 5.700
- Heat capacity (Kcal / h)
- 4.902
- Nominal heat consumption (W)
- 1.410
- Energy class (heat)
- A+
- SCOP
- 4,4
- Minimum sound pressure UI DB
- 23
- Weight Indoor Unit (Kg)
- 30,0
- Weight Outdoor Unit (Kg)
- 42,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 50m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 730 x 250
- EU dimensions (anxfxh) mm
- 875 x 320 x 695
