The Giatsu GIAC560IX49BDT3 represents the absolute summit of industrial power with extremes 56kW (191000 BTU) and massive flow 10600 m3/h designed to master the most challenging projects on the planet. With technology compressor DC Inverter maximum efficiency and configuration 380-415V, conquer extreme industrial complexes, intercontinental distribution centers and mass production plants up to 800+ m2 with unlimited operation 24/7/365.
56kW EXTREMA
191000 maximum BTU
10600 m3/h
Extreme flow
DC INVERTER
Extreme technology
Up to 800+ m2
Megaprojects
Technical Specifications Extreme
Power: 56kW / 191000 BTU
Caudal: 10600 m3/h
Food: 380-415V
Technology: DC Inverter Extremo
Application: Megaprojects
Installation: Conduct
Reference: GIAC560IX49BDT3 Δ Giatsu BIG DUCT IX49B Extreme Industrial Power
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

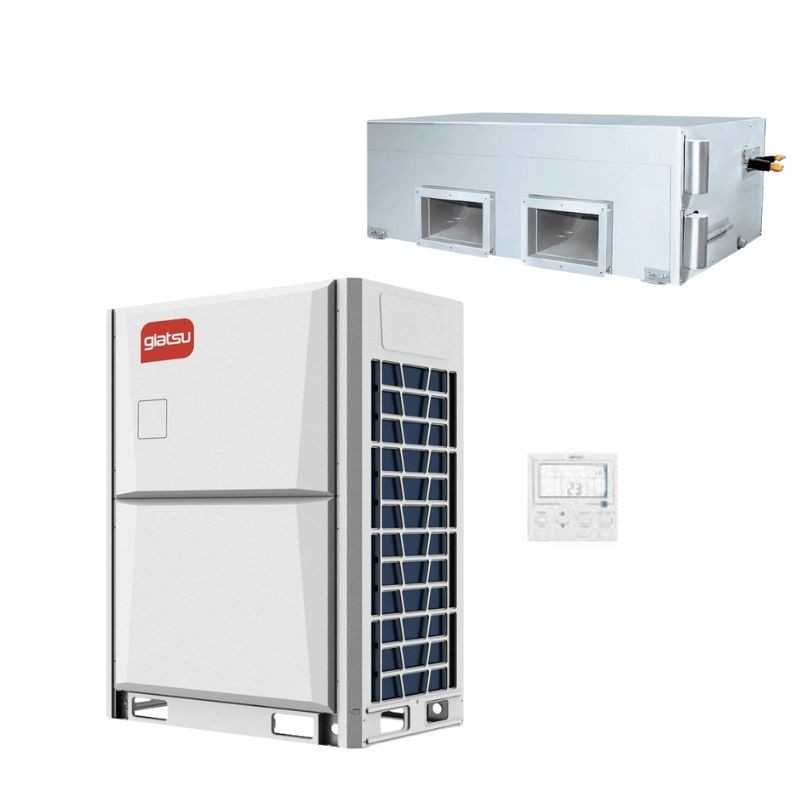

Ducted Air Conditioner Giatsu GIAC560IX49BDT3 Big Duct
Referencia: GIAC560IX49BDT3
€9,085.30
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The Giatsu GIAC560IX49BDT3 represents the absolute summit of industrial power with extremes 56kW (191000 BTU) and massive flow 10600 m3/h designed to master the most challenging projects on the planet. With technology compressor DC Inverter maximum efficiency and configuration 380-415V, conquer extreme industrial complexes, intercontinental distribution centers and mass production plants up to 800+ m2 with unlimited operation 24/7/365.
56kW EXTREMA
191000 maximum BTU
10600 m3/h
Extreme flow
DC INVERTER
Extreme technology
Up to 800+ m2
Megaprojects
Technical Specifications Extreme
Power: 56kW / 191000 BTU
Caudal: 10600 m3/h
Food: 380-415V
Technology: DC Inverter Extremo
Application: Megaprojects
Installation: Conduct
Reference: GIAC560IX49BDT3 Δ Giatsu BIG DUCT IX49B Extreme Industrial Power
Security policy
Delivery policy
Refund policy
INDUSTRIAL ULTRA-PREMIUM
GIATSU GIAC560IX49BDT3
Big Duct - Ultra Industrial Power
56 kW
Frigorific power
7800 m3/h
Air flow rate
1120 m2
Maximum coverage
Main features
▪ ULTRA POTENCIA
56 kW Refrigeration
The absolute ultra power with 56,000W for industrial macro-installations and top-need projects.
️ MASSIVE CAUDAL
7800 m3/h Air
Massive flow for macro-installations of up to 1120 m2 with perfect air conditioning distribution.
️ EXTREET CONDUCTS
Maximum static pressure
Maximum pressure duct system for ultra-complete installations with extensive ramifications.
️ CONTROL EMPRESARIAL
Corporate investment
Corporate inverter technology with smart management for mega-critical installations 24/7/365.
S Technical Specifications GIAC560IX49BDT3
⚡ PERFORMANCE
• Cooling Capacity: 56,000W (56 kW)
• Heating Power: 63,000W (63 kW)
• Consumption Cold: 17.800W
• Heat Consumption: 16.900W
• EER: 3.15
• COP: 3.73
• Heating Power: 63,000W (63 kW)
• Consumption Cold: 17.800W
• Heat Consumption: 16.900W
• EER: 3.15
• COP: 3.73
🌪️ FLOW AND PRESSURE
• Air Flow: 7800 m3/h
• Static pressure: 200 Pa
• Speed: Continuous control
• Control: Ultra-precise modulation
• UI Sound Level: 56 dB(A)
• EU sound level: 69 dB(A)
• Static pressure: 200 Pa
• Speed: Continuous control
• Control: Ultra-precise modulation
• UI Sound Level: 56 dB(A)
• EU sound level: 69 dB(A)
️ REFRIGERANT
• Type: R410A
• Loading: 9.2 kg
• Connections: 3/4" + 1 1/8"
• Maximum length: 75 m
• Maximum level: 40 m
• Preload: 25 m
• Loading: 9.2 kg
• Connections: 3/4" + 1 1/8"
• Maximum length: 75 m
• Maximum level: 40 m
• Preload: 25 m
DIMENSIONS
• Indoor Unit:
- High: 380 mm
- Width: 1600 mm
- Fund: 950 mm
• UI weight: 92 kg
• EU Weight: 195 kg
- High: 380 mm
- Width: 1600 mm
- Fund: 950 mm
• UI weight: 92 kg
• EU Weight: 195 kg
Es Mega-Industrial applications
️
Mega Complex
Stadiums, congress palaces, fairs
🏭
Macro Industries
Manufacturing plants, data centres
🏢
Mega Torres
Skyscrapers, corporate complexes
🏥
Mega Hospitals
Hospital complexes, medical centers
🎓
University Campus
Universities, libraries, laboratories
Русский
Critical infrastructure
Airports, terminals, ports
Tiva Comparison Complete Series Big Duct IX49B
GIAC280IX49BDT3
28 kW
4400 m3/h • 560 m2
GIAC400IX49BDT3
40 kW
5800 m3/h • 800 m2
GIAC450IX49BDT3
45 kW
6500 m3/h • 900 m2
GIAC560IX49BDT3
56 kW
7800 m3/h • 1120 m2
ULTRA POTENCIA
Competitive advantages of GIAC560IX49BDT3
√ ULTRA ABSOLUTE POTENCE
56 kW of ultra frigorific power, the maximum available for macro-installations of up to 1120 m2 with exceptional performance.
▪ CORPORATE EFFICIENCY
Corporate inverter with EER 3.15 and COP 3.73, designed for continuous operation with maximum energy efficiency.
EXTREMA INSTALMENT
200 Maximum static pressure pa and 3/4"+11⁄8" connections for ultra-complete installations up to 75 meters away.
TECHNOLOGICAL EXCELENCE
The Technological Cuspide Giatsu, designed for the most ambitious and demanding projects in the global market.
Y️ Warranty and Ultra-Specialized Technical Service
▷ Manufacturer's Warranty: 2 years in equipment + 5 years in compressor
Official technical service: National Network of Ultra-high Power Specialized Techniques
Technical support: Specialized technical care 24/7/365 for critical facilities
Certifications: CE, EUROVENT, ISO 9001, ISO 14001, ISO 45001
Official technical service: National Network of Ultra-high Power Specialized Techniques
Technical support: Specialized technical care 24/7/365 for critical facilities
Certifications: CE, EUROVENT, ISO 9001, ISO 14001, ISO 45001
GIATSU - ULTRA INDUSTRIAL POTENCE
GIAC560IX49BDT3
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 56.000
- Refrigerator capacity (kcal / h)
- 48.160
- Nominal consumption Cold (W)
- 14.660
- SEER
- 5,5
- Heat capacity (W)
- 63.000
- Heat capacity (Kcal / h)
- 54.180
- Nominal heat consumption (W)
- 14.160
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 64
- Weight Indoor Unit (Kg)
- 222,0
- Weight Outdoor Unit (Kg)
- 290,0
- Diameter Liquid pipe
- 5/8"
- Diameter Gas Pipe
- 1 1/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 2165 x 916 x 676
- EU dimensions (anxfxh) mm
- 1340 x 840 x 1740
