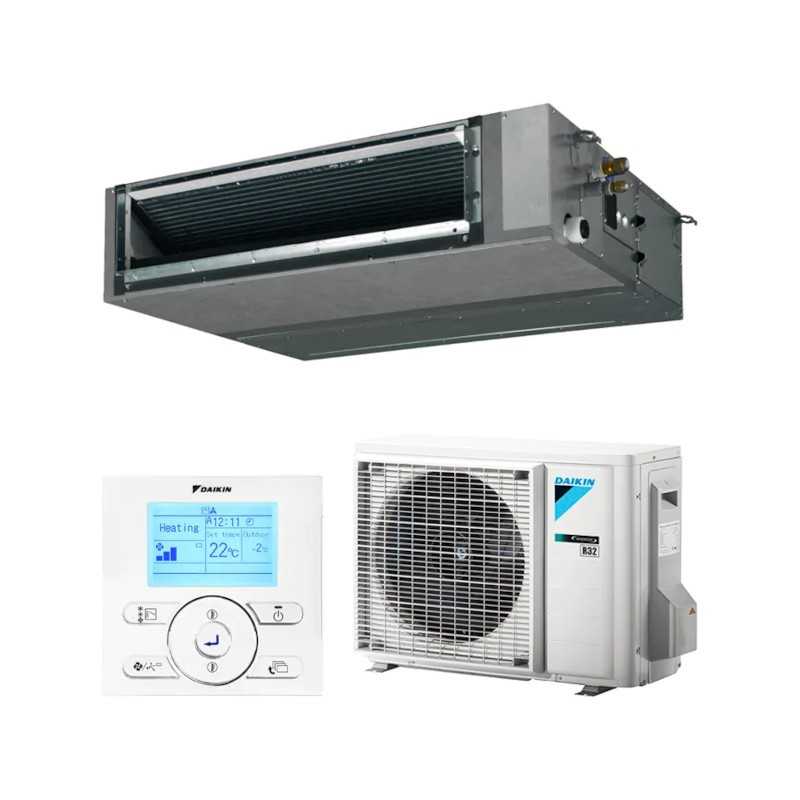

Ducted Air Conditioner Daikin BASG71A SKY AIR SERIE ADVANCE
Referencia: BASG71A
€2,776.54
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin BASG71A represents the technological excellence of the prestigious Sky Air Advance Series, designed specifically for large commercial and residential applications. With a nominal capacity 6800W in refrigeration (5850 kcal/h) and 7500W heating (6450 kcal/h), this system integrates the most advanced inverter technology with eco-friendly R-32 coolant, offering exceptional performance with maximum energy efficiency.
Its extraordinary energy efficiency A++/A+ with SEER values 6,19 and SCOP de 4,01 guarantees annual seasonal energy consumption only 385 kWh in cooling and 1571 kWh heating, representing significant savings in operating costs. The system uses coolant R-32 with a load 2.45 kg and an impact 1.65 TCO2eq, contributing actively to the reduction of carbon emissions.

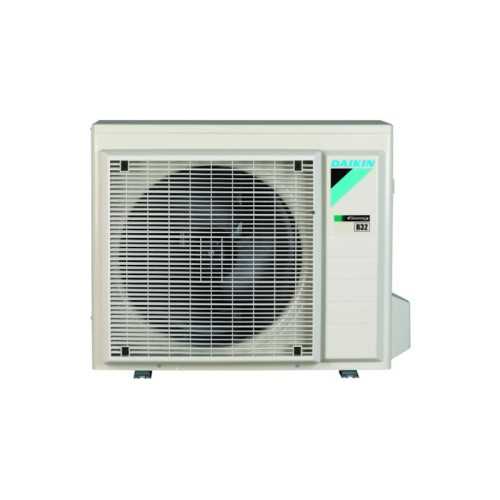

La outdoor Unit RZASG71MV1 incorporates a compressor SWING of last generation with air flow of 56 m3/min cooling and 50 m3/min heating. Its optimized dimensions 770×900×320 mm and weight 60 kg facilitate the installation, while their sound pressure alone 46 dBA in refrigeration and 47 dBA in heating ensures exceptionally silent operation.

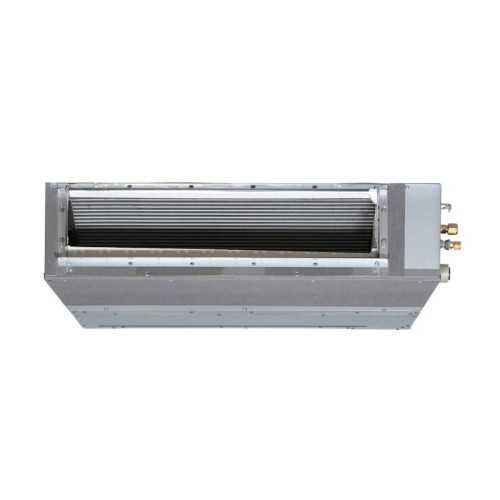

La indoor Unit FBA71A9 maintains the ultra-compact design characteristic of the series with only 245 mm height, dimensions 245×1000×800 mm and weight 35 kg. Its air flow 18 m3/min at high speed and 12.5 m3/min at low speed ensures a homogeneous distribution of air-conditioned.
The system allows maximum flexibility with maximum pipe length of 50 meters (70 meters equivalent) and maximum level difference of 30 meters. Your cold connections 3/8" for liquid and 5/8" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, they simplify the installation considerably.
With an internal sound pressure only 30 dBA in cooling (25 dBA at low speed) and 31 dBA heating (25 dBA at low speed), the Daikin BASG71A is ideal for spaces that require maximum acoustic comfort such as executive offices, meeting rooms, medical clinics and luxury residential applications.
Main Features Advance Series
️
Refrigeration 6800W
Ideal capacity for large commercial and residential spaces with maximum efficiency A++.
🔥
Heating 7500W
Superior heating power with efficiency A+ for exceptional thermal comfort throughout the year.
▪
Efficiency A+/A+
SEER 6,19 and SCOP 4,01 guarantee maximum energy savings and environmental sustainability.
🔇
Ultra Quiet
Sound pressure from 25 dBA for maximum acoustic comfort in professional applications.
🌿
R-32 Ecological
Refrigerant Gas ecological with less environmental impact and higher thermal efficiency.
📏
Flexible installation
Up to 50m of pipe and 30m of unevenness with indoor Unit only 245mm high.
Complete Technical Specifications
| Feature | Value |
|---|---|
| Model Set | BASG71A (FBA71A9 + RZASG71MV1) |
| Refrigeration capacity | 6800W (5850 kcal/h) |
| Capacity Heating | 7500W (6450 kcal/h) |
| SEER / SCOP | 6,19 / 4,01 |
| Energy label ( Cold/Calor) | A++ / A+ |
| Annual Energy Consumption | 385 kWh (Refrigeration), 1571 kWh (Calefaction) |
| Charge Design (Pdesign) | 6,80 kW (Frío), 4,50 kW (Calor -10°C) |
| Refrigerant Gas | R-32 (2.45 kg / 1.65 TCO2eq / PCA 675) |
| Frigorific connections | Liquid 9.5mm (3/8") - Gas 15.9mm (5/8") |
| Electrical supply | I/220V (3+T interconnected threads) |
| Maximum Length Tuberia | 50 meters (70 meters equivalent) |
| Maximum level difference | 30 meters |
| Air flow Indoor Unit | 18/12.5 m3/min (Refrigeration A/B), 18/12.5 m3/min (A/B) |
| Available pressure | 30 Pa (Nominal) / 150 Pa (Alta) |
| Ventilator speeds | 3 speeds |
| Dimensions Indoor Unit | 245×1000×800 mm (Alto×Ancho×Fondo) |
| Weight Indoor Unit | 35 kg |
| Sonic pressure Indoor Unit | 30/25 dBA (A/B), 31/25 dBA (A/B) |
| Level Domestic acoustic power | 56 dBA |
| Air flow Outdoor Unit | 56 m3/min (Refrigeration), 50 m3/min (Calefaction) |
| Type Compressor | SWING |
| Dimensions Outdoor Unit | 770×900×320 mm (Alto×Ancho×Fondo) |
| Weight Outdoor Unit | 60 kg |
| Sonic pressure Outdoor Unit | 46 dBA (Refrigeration), 47 dBA (Calefaction) |
| Level External Acoustic Power | 65 dBA |
| Charge Refrigerant Gas Included | 30 meters |
| Additional charge | +0.35kg (30-40m), +0.7kg (40-50m) |
Advantages Advance Series
✓
Maximum Energy Efficiency A++
Superior SEER 6.19 ensures minimum energy consumption with maximum performance, ideal for continuous commercial applications.
✓
Ultra Silent operation
25 dBA minimum in indoor Unit for professional environments that require maximum acoustic comfort.
✓
Extended Flexible Installation
50 meters of pipe and 30 meters of difference allow complex configurations in multi-storey buildings.
✓
Refrigerant Gas R-32 Sustainable
Ecological technology with lower environmental impact and higher thermal efficiency for responsible applications.
Ideal applications
🏢
Corporate offices
Executive spaces, meeting rooms, business centers that require maximum acoustic comfort and energy efficiency.
🏪
Medium-sized trade
Shops, boutiques, showrooms and commercial spaces that demand efficient and silent air conditioning.
🏥
Sanitary applications
Medical consultants, dental clinics, laboratories where the low sound level is essential.
A+ and Maximum Acoustic Comfort!
The Daikin BASG71A series Advance combines maximum energy efficiency A++ with ultra silent operation since 25 dBA. The professional solution for applications that demand excellence in air conditioning with environmental sustainability.
Request your professional quote today!
CLAVE TECHNICAL SPECIFICATIONS
√ SUPERIORITY
- Cold capacity: 6800W
- Capacity Heat: 7500W
- SEER/SCOP: 6,19 / 4,01
- Application: 55-70 m2
DIMENSIONS
- IU: 1000×245×800 mm (35kg)
- EU: 900×770×320 mm (60kg)
- Caudal: 18/12.5 m3/min
- Total weight: 95 kg
EXTENDED INSTALMENT
- Connections: Ø9,5" - Ø15,9"
- Max pipe: 50m (70m equiv.)
- Max: 30m
- Pressure: 30/150 Pa
SUSTAINABLE
- Refrigerant Gas: R-32 Ecological
- Charge: 2.45 kg
- PCA: 675 (vs 2088 R-410A)
- Annual summary: 385/1571 kWh
WHERE'S THE DAIKIN BASG71A?
▷ HIGH POTENCE 6800W
Professional air conditioning for large commercial spaces
▷ EXTENDED INSTALMENT
50m pipe and 30m uneven for complex projects
▷ A++/A+
SEER 6,19 - maximum commercial energy saving
▷ TECHNOLOGY DAIKIN
Guarantee and reliability of the world leader in climate control
️ High power solution for large commercial applications
BASG71A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FBA71A9
- Outdoor Unit
- RZASG71MV1
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.802
- Refrigerator capacity (kcal / h)
- 5.850
- Nominal consumption Cold (W)
- 1.890
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 35,0
- Weight Outdoor Unit (Kg)
- 60,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 55m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 800 x 245
- EU dimensions (anxfxh) mm
- 900 x 380 x 770
