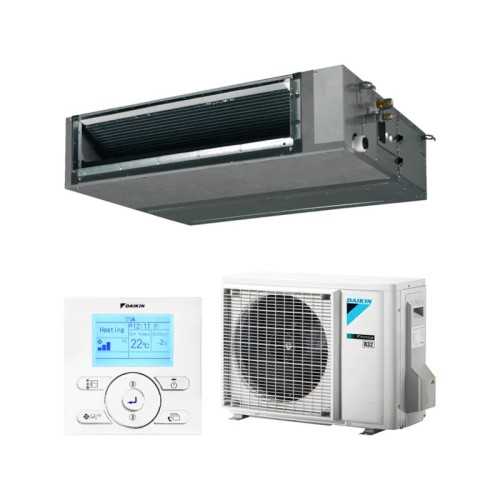

Ducted Air Conditioner Daikin BASG100A SKY AIR SERIE ADVANCE
Referencia: BASG100A
€3,884.28
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin BASG100A represents the top power solution of the prestigious Sky Air Advance Series, designed specifically for large commercial and institutional applications that demand high performance air conditioning. With exceptional capacity 9500W in cooling (8170 kcal/h) and 10800W in heating (9290 kcal/h), This system integrates cutting-edge inverter technology with environmentally friendly R-32 refrigerant to deliver superior performance in large-scale installations.
Your energy efficiency A+/A with SEER values 5.83 and SCOP de 3.85 ensures annual seasonal energy consumption optimized 570 kWh in cooling and 2182 kWh heating, maintaining competitive operating costs even at this maximum capacity.The system uses coolant R-32 with a load 2.60 kg and an impact 1.76 TCO2eq, contributing significantly to environmental sustainability in large-scale applications.

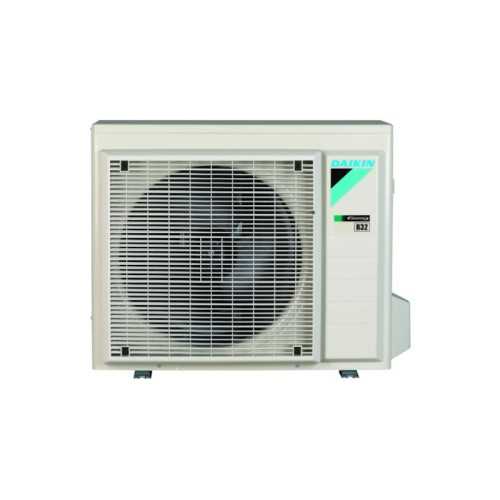

La outdoor Unit RZASG100MV1 incorporates a compressor SWING maximum power with air flow 69 m3/min cooling and 82 m3/min heating. Its robust dimensions 990×940×320 mm and weight 70 kg are designed to support the intensive operation of large installations, while their sound pressure 53 dBA in cooling and 57 dBA heating maintains sound levels acceptable for commercial applications.

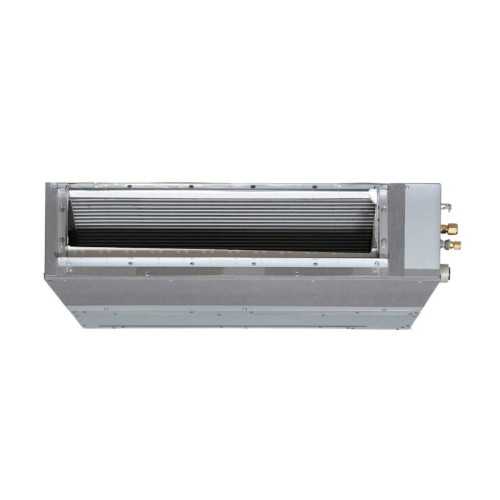

La indoor Unit FBA100A preserves the ultra-compact design characteristic of the series with only 245 mm height, dimensions 245×1400×800 mm and weight 46 kg. Its upper air flow 29 m³/min at high speed and 23 m3/min at low speed ensures a massive and homogeneous distribution of air air weathered in large spaces.
The system allows maximum complexity facilities with maximum pipe length of 50 meters (70 meters equivalent) and maximum level difference of 30 meters. Your cold connections 3/8" for liquid and 5/8" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, facilitate installation in complex architectural configurations.
With available pressure 40 Pa nominal and up to 150 Pa high, the system is capable of overcoming the resistance of long and complex ducts.Its internal sound pressure of 34 dBA in cooling (30 dBA at low speed) and 36 dBA heating (30 dBA at low speed) makes it suitable for large commercial spaces, convention centers, corporate offices and institutional applications that require powerful air conditioning with professional acoustic comfort.
The refrigerant load included covers up to 30 meters of installation, with additional charges +0.35kg for 30-40m and +0.7kg for 40-50m, optimizing installation costs in large scale projects. Your design load 9,50 kW in cooling and 6.00 kW in heating at -10°C guarantees constant performance even in extreme weather conditions.
Main Features Maximum Power
️
Refrigeration 9500W
Maximum capacity for large commercial and institutional spaces with A+ efficiency.
🔥
Heating 10800W
Superior heating power for thermal comfort in large-scale installations.
💨
Masitive flow
69 m3/min in cooling and 82 m3/min in heating for quick and efficient distribution.
📐
Higher pressure
40 Pa nominal up to 150 Pa to overcome resistances of large and complex ducts.
🌿
R-32 Great Capacity
2.60 kg eco-friendly coolant for maximum power with sustainability.
🏗️
Complex Installation
50m pipe and 30m uneven for architectural configurations of maximum complexity.
Technical Specifications Maximum Power
| Feature | Value |
|---|---|
| Model Set | BASG100A (FBA100A + RZASG100MV1) |
| Refrigeration capacity | 9500W (8170 kcal/h) |
| Capacity Heating | 10800W (9290 kcal/h) |
| SEER / SCOP | 5,83 / 3,85 |
| Energy label ( Cold/Calor) | A+ / A |
| Annual Energy Consumption | 570 kWh (Refrigeration), 2182 kWh (Calefaction) |
| Charge Design (Pdesign) | 9,50 kW (cold), 6,00 kW (Calor -10°C) |
| Refrigerant Gas | R-32 (2.60 kg / 1.76 TCO2eq / PCA 675) |
| Frigorific connections | Liquid 9.5mm (3/8") - Gas 15.9mm (5/8") |
| Electrical supply | I/220V (3+T interconnected threads) |
| Maximum Length Tuberia | 50 meters (70 meters equivalent) |
| Maximum level difference | 30 meters |
| Air flow Indoor Unit | 29/23 m3/min (A/B), 29/23 m3/min (A/B) |
| Available pressure | 40 Pa (Nominal) / 150 Pa (Alta) |
| Ventilator speeds | 3 speeds |
| Dimensions Indoor Unit | 245×1400×800 mm (Alto×Ancho×Fondo) |
| Weight Indoor Unit | 46 kg |
| Sonic pressure Indoor Unit | 34/30 dBA (A/B), 36/30 dBA (A/B) |
| Level Domestic acoustic power | 58 dBA |
| Air flow Outdoor Unit | 69 m3/min (Refrigeration), 82 m3/min (Calefaction) |
| Type Compressor | SWING |
| Dimensions Outdoor Unit | 990×940×320 mm (Alto×Ancho×Fondo) |
| Weight Outdoor Unit | 70 kg |
| Sonic pressure Outdoor Unit | 53 dBA (Refrigeration), 57 dBA (Calefaction) |
| Level External Acoustic Power | 70 dBA |
| Charge Refrigerant Gas Included | 30 meters |
| Additional charge | +0.35kg (30-40m), +0.7kg (40-50m) |
Advantages Maximum Power Series Advance
✓
Solution for Great Facilities
9500W ideal for shopping centers, large offices, industrial ships and high-end business applications.
✓
Massive cause for rapid air conditioning
82 m3/min in heating allow quick air conditioning of large volumes with homogeneous air distribution.
✓
Efficiency Maintained with Maximum Power
A+/A with SEER 5,83 maintains competitive energy efficiency even with 9500W of nominal capacity.
✓
Compact Design for Great Capacity
Only 245mm high with 9500W power, ideal for installations in spaces with architectural limitations.
Main applications Maximum Power
🏬
Shopping Centres
Large commercial surfaces, distribution centers, warehouses and large-scale retail applications that require maximum power.
🏢
Corporate offices
Corporate headquarters, business centres, large-scale coworking spaces and top-capacity institutional offices.
🏭
Industrial applications
Industrial ships, logistics centers, manufacturing facilities and technical applications that demand powerful air conditioning.
Maximum Power 9500W for Great Facilities!
The Daikin BASG100A series Advance offers the maximum air conditioning capacity with 9500W in cooling and 10800W in heating. Efficiency A+/A, a massive flow of 82 m3/min and eco-friendly R-32 technology for the most demanding applications.
Request your budget for large facilities today!
BASG100A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FBA100A
- Outdoor Unit
- RZASG100MV1
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.970
- Energy class (cold)
- A+
- SEER
- 5,8
- Heat capacity (W)
- 10.802
- Heat capacity (Kcal / h)
- 9.290
- Energy class (heat)
- A+
- SCOP
- 3,90
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 46,00
- Weight Outdoor Unit (Kg)
- 70,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 800 x 245
- EU dimensions (anxfxh) mm
- 940 x 380 x 990
