Ducted Air Conditioner Samsung KIT-140DNG Inverter Deluxe Trif.

Samsung KIT-140DNG - Maximum Industrial Power

Deluxe Steering Series - 13400W Refrigeration / 15500W Heating

380-415V Triphasic Feeding A+ Δ Táctil Control MWR-SH11N

M Maximum Triphasic Industrial Power

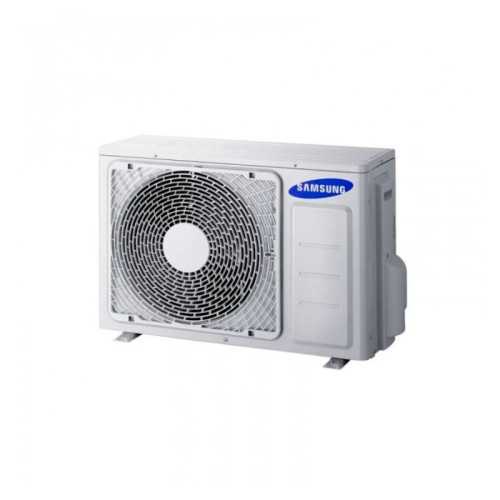

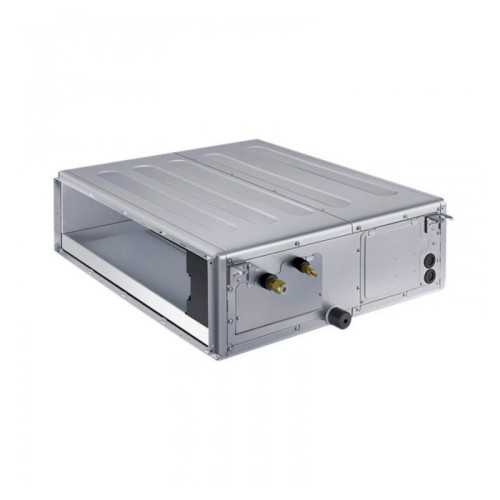

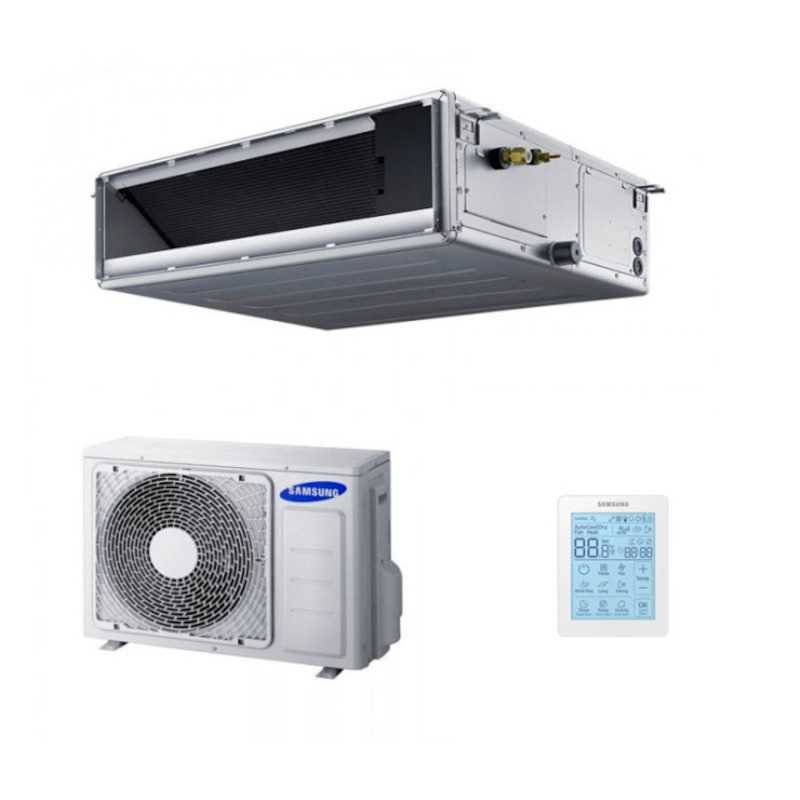

The Samsung KIT-140DNG Triphasic combines indoor Unit AC140RNMDKG/EU with the outdoor Unit three-phase AC140RXADNG/EU, representing the maximum absolute power in air conditioning through ducts Samsung. With 13400W in cooling and 15500W in heating, this kit is designed specifically for large-scale industrial and commercial applications that require 130-170 square metres efficient air conditioning.

Food 380-415V/16A provides maximum stability and efficiency in industrial installations, distributing the electric charge uniformly and significantly reducing the consumption of current by phase compared to equivalent monophasic systems. Its robust industrial construction 300mm high incorporates dimensioned components for 24/7 intensive use in demanding business environments.

The system integrates technology Samsung Most advanced Deluxe available, including 450-step EEV electronic expansion valve, variable static pressure system up to 147 Pa, and long-lasting washable permanent filter. This configuration guarantees optimal performance, maximum energy efficiency SEER 6.0 A+, and reduced operating and maintenance costs in critical commercial applications.

Industrial Advanced Technology

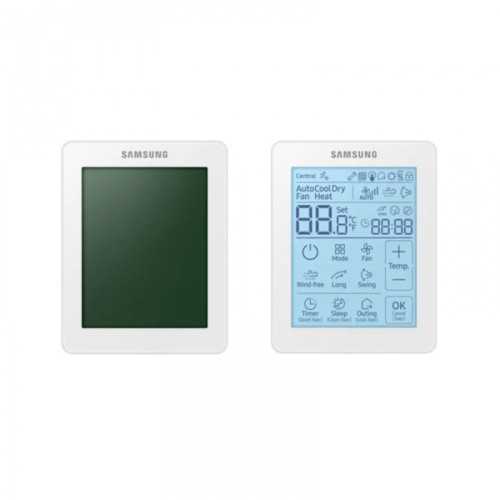

️ Control Táctil MWR-SH11N Industrial

The mWR-SH11N touch control included in the series offers advanced professional system management with high resolution retrolit LCD display and complete industrial programming. It allows configuration of complex operating hours, multi-zone control, real-time monitoring of energy consumption, advanced diagnostic functions, and preventive maintenance alerts. Its robust construction and specialized functions make it the ideal solution for commercial and industrial installations that require precise control and operational reliability 24/7.

450-Step EV Valve

La integrated EEV electronic expansion valve with ultra-precise 450-step control allows an extraordinarily fine regulation of the R-32 coolant flow. This cutting-edge technology continuously optimizes the performance of the three-phase system, instantly adapting to the minimum variations of thermal load and environmental conditions in industrial applications. The precision of 450 steps ensures maximum energy efficiency SEER 6.0 A+ and exceptional operating stability in all operating conditions.

Variable Industrial Static Pressure

The system variable external static pressure from 0 to 147 Pa (0-14.7 mmCA) with automatic control allows ultra-complete duct designs in large industrial installations. This exceptional capacity is essential to overcome load losses in facilities with extended lengths up to 75 meters, multiple forks, multi-zone distribution, and advanced filtering elements, maintaining optimal performance in all configurations.

🌿 Refrigerant Gas R-32 Industrial Ecological

The coolant Organic R-32 (2.9 kg of load) reduces environmental impact by 68% compared to traditional refrigerants, complying with the strictest environmental regulations for industrial applications. The R-32 provides greater energy efficiency, requires less load, offers better thermodynamic properties, and significantly facilitates maintenance operations, reducing operating costs and carbon footprint in large-scale commercial applications.

Auto Restart Industrial Function

La function Auto Restart is critical in industrial applications, automatically re-establishing all of the previous operating configuration after electrical supply cuts or system interruptions. This feature guarantees absolute operational continuity in critical facilities such as data centers, hospitals, laboratories, or industrial processes where the interruption of the air conditioning system can have significant operational, economic or security consequences.
