The Giatsu GIAC450IX49BDT3 reaches supreme power levels with extraordinary 45kW (153600 BTU) and massive flow 8600 m3/h designed to master the most demanding industrial projects. With technology compressor DC Inverter maximum efficiency and configuration 380-415V, becomes the definitive solution for large industrial complexes, continental distribution centers and production plants up to 700 m2 with continuous operation 24/7/365.
45kW SUPREMA
153600 Extreme BTU
8600 m3/h
Supreme cause
DC INVERTER
Maximum efficiency
Up to 700 m2
Supreme complexes
Supreme Technical Specifications
Power: 45kW / 153600 BTU
Caudal: 8600 m3/h
Food: 380-415V
Technology: DC Inverter Supreme
Application: Supreme Industrial Complex
Installation: Conduct
Reference: GIAC450IX49BDT3 Δ Giatsu BIG DUCT IX49B Supreme Industrial Power
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

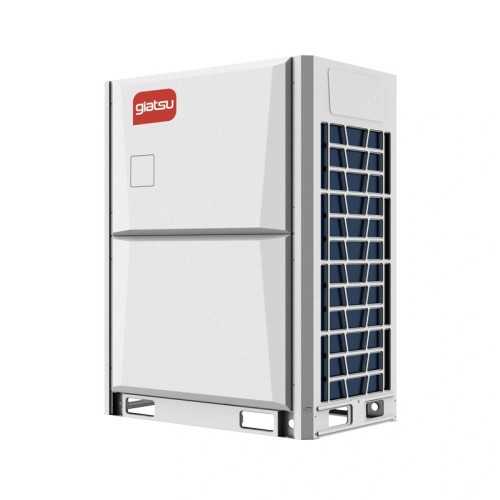

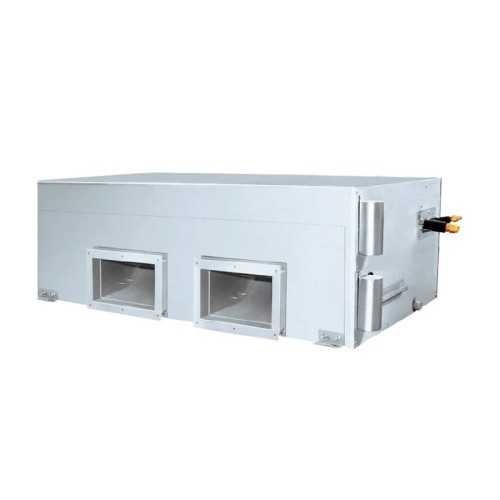

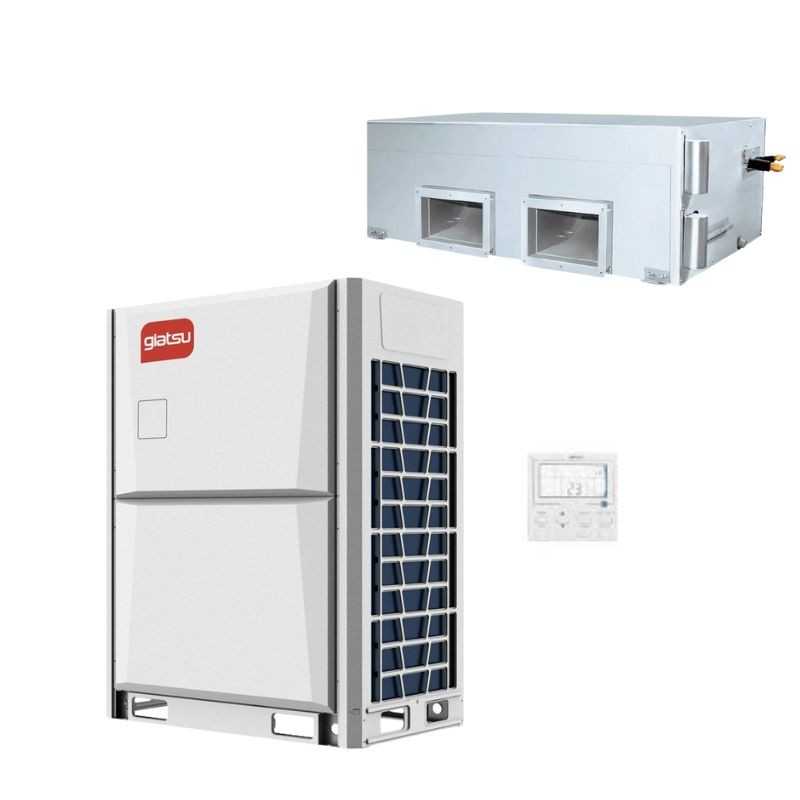

Ducted Air Conditioner Giatsu GIAC450IX49BDT3 Big Duct
Referencia: GIAC450IX49BDT3
€7,447.94
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
The Giatsu GIAC450IX49BDT3 reaches supreme power levels with extraordinary 45kW (153600 BTU) and massive flow 8600 m3/h designed to master the most demanding industrial projects. With technology compressor DC Inverter maximum efficiency and configuration 380-415V, becomes the definitive solution for large industrial complexes, continental distribution centers and production plants up to 700 m2 with continuous operation 24/7/365.
45kW SUPREMA
153600 Extreme BTU
8600 m3/h
Supreme cause
DC INVERTER
Maximum efficiency
Up to 700 m2
Supreme complexes
Supreme Technical Specifications
Power: 45kW / 153600 BTU
Caudal: 8600 m3/h
Food: 380-415V
Technology: DC Inverter Supreme
Application: Supreme Industrial Complex
Installation: Conduct
Reference: GIAC450IX49BDT3 Δ Giatsu BIG DUCT IX49B Supreme Industrial Power
Security policy
Delivery policy
Refund policy
INDUSTRIAL MÁXIMO
GIATSU GIAC450IX49BDT3
Big Duct - Maximum Industrial Power
45 kW
Frigorific power
6500 m3/h
Air flow rate
900 m2
Maximum coverage
Main features
▪ MÁXIMA POTENCE
45 kW Refrigeration
The maximum power of the Big Duct series with 45,000W for the most demanding industrial projects in the market.
️ CAUDAL EXTREMO
6500 m3/h Air
Extreme air flow ensures even air conditioning in mega-installations of up to 900 m2.
️ PURSUANT CONDUCTS
High Static Pressure
High-pressure duct system for complex installations with multiple ramifications and long distances.
️ INTERIM CONTROL
Inverter Industrial
Industrial inverter technology with precision control for critical installations and 24/7 operation.
S Technical Specifications GIAC450IX49BDT3
⚡ PERFORMANCE
• Cooling Capacity: 45,000W (45 kW)
• Heating Power: 50,000W (50 kW)
• Consumption Cold: 14.200W
• Heat Consumption: 13.500W
• EER: 3.17
• COP: 3.70
• Heating Power: 50,000W (50 kW)
• Consumption Cold: 14.200W
• Heat Consumption: 13.500W
• EER: 3.17
• COP: 3.70
🌪️ FLOW AND PRESSURE
• Air Flow: 6500 m3/h
• Static pressure: 180 Pa
• Speed: 3 speeds + Inverter
• Control: Continuous modification
• UI Sound Level: 54 dB(A)
• EU sound level: 67 dB(A)
• Static pressure: 180 Pa
• Speed: 3 speeds + Inverter
• Control: Continuous modification
• UI Sound Level: 54 dB(A)
• EU sound level: 67 dB(A)
️ REFRIGERANT
• Type: R410A
• Loading: 7.5 kg
• Connections: 5/8" + 1"
• Maximum length: 60 m
• Maximum level: 35 m
• Preload: 20 m
• Loading: 7.5 kg
• Connections: 5/8" + 1"
• Maximum length: 60 m
• Maximum level: 35 m
• Preload: 20 m
DIMENSIONS
• Indoor Unit:
- High: 340 mm
- Width: 1400 mm
- Fund: 900 mm
• UI weight: 78 kg
• EU Weight: 165 kg
- High: 340 mm
- Width: 1400 mm
- Fund: 900 mm
• UI weight: 78 kg
• EU Weight: 165 kg
Es Large scale industrial applications
🏪
Mega Shopping Centers
Large surfaces, outlets, shopping centers
🏭
Industrial Complexes
Production plants, mass logistic centers
🏢
Corporate towers
Rascacielos, headquarters, office complexes
🏥
General Hospitals
Hospital complexes, large medical centers
️
Public institutions
City councils, universities, congress palaces
Русский
Infrastructure
Airports, stations, transportation centres
Tiva Comparison Big Duct Series IX49B
GIAC280IX49BDT3
28 kW
4400 m3/h • 560 m2
GIAC400IX49BDT3
40 kW
5800 m3/h • 800 m2
GIAC450IX49BDT3
45 kW
6500 m3/h • 900 m2
MAXIM POTENCE
Competitive advantages of GIAC450IX49BDT3
√ EXTREME POTENCE
45 kW of refrigerator capacity, the maximum of the Big Duct series for mega-installations up to 900 m2 with perfect air conditioning.
▪ INDUSTRIAL EFFECTIVE
Inverter industrial with EER 3.17 and COP 3.70, optimized for continuous operation 24/7 with minimal consumption.
PROFESSIONAL INSTALMENT
180 Static pressure pa and 5/8"+1" connections for complex installations up to 60 meters with multiple ramifications.
TECHNOLOGICAL LIDERAZY
The most advanced model Giatsu with cutting edge technology, designed for the most ambitious projects in the market.
Y️ Warranty and Specialized Technical Service
▷ Manufacturer's Warranty: 2 years in equipment + 5 years in compressor
Official technical service: National High Power Technical Network
Technical support: 24/7 specialist technical care for critical facilities
Certifications: CE, EUROVENT, ISO 9001, ISO 14001
Official technical service: National High Power Technical Network
Technical support: 24/7 specialist technical care for critical facilities
Certifications: CE, EUROVENT, ISO 9001, ISO 14001
🏭 GIATSU - MAXIMUM SPANISH INDUSTRIAL POTENTIAL
GIAC450IX49BDT3
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 45.000
- Refrigerator capacity (kcal / h)
- 38.700
- Nominal consumption Cold (W)
- 11.630
- SEER
- 6,0
- Heat capacity (W)
- 50.000
- Heat capacity (Kcal / h)
- 43.000
- Nominal heat consumption (W)
- 10.870
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 60
- Weight Indoor Unit (Kg)
- 222,0
- Weight Outdoor Unit (Kg)
- 275,0
- Diameter Liquid pipe
- 5/8"
- Diameter Gas Pipe
- 1 1/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 2165 x 916 x 676
- EU dimensions (anxfxh) mm
- 1340 x 840 x 1740
