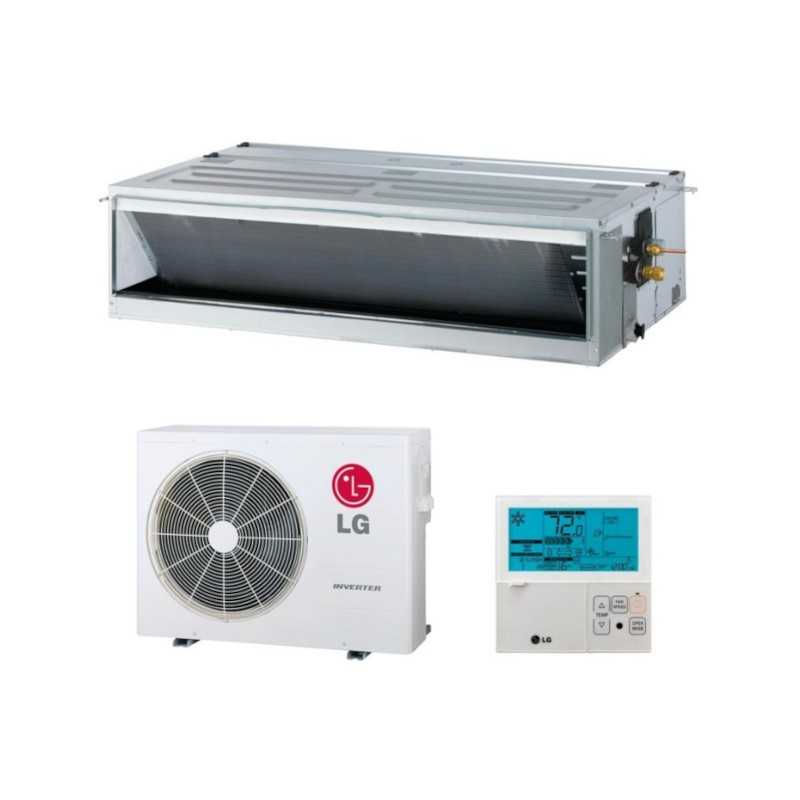

Ducted Air Conditioner LG CM18F CONFORT CM18F.NA0 + UUA1.UL0
A+/A high energy efficiency air conditioning system with 5.0 kW nominal power. Specially designed for small spaces, this team combines optimal performance with ultra-silent operation (31 dB) and has included capacitated pump, ideal for apartments, studios and small offices that require a discreet and effective solution.
- ▷ Nominal power of 5.0 kW in cold and 5.5 kW in heat for small spaces
- ▷ High energy efficiency with SEER 5,70 and SCOP 3,80 (A+/A)
- ▷ Adjustable static pressure up to 150 Pa for maximum flexibility
- ▷ Ultra silent operation with only 31/29/28 dB for maximum comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Outdoor Unit compact (770x545x288 mm) and possibility of vertical installation
Reference: CM18F.NA0 + UUA1.UL0
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
LG CM18F CONFORT Ducts CM18F.NA0 + UUA1.UL0
Referencia: KITCONDCM18F_CONFORT
€1,093.53
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner LG CM18F CONFORT CM18F.NA0 + UUA1.UL0
A+/A high energy efficiency air conditioning system with 5.0 kW nominal power. Specially designed for small spaces, this team combines optimal performance with ultra-silent operation (31 dB) and has included capacitated pump, ideal for apartments, studios and small offices that require a discreet and effective solution.
- ▷ Nominal power of 5.0 kW in cold and 5.5 kW in heat for small spaces
- ▷ High energy efficiency with SEER 5,70 and SCOP 3,80 (A+/A)
- ▷ Adjustable static pressure up to 150 Pa for maximum flexibility
- ▷ Ultra silent operation with only 31/29/28 dB for maximum comfort
- ▷ Refrigerant Gas ecological R32 that reduces environmental impact
- ▷ Outdoor Unit compact (770x545x288 mm) and possibility of vertical installation
Reference: CM18F.NA0 + UUA1.UL0
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG CM18F CONFORT is a high efficiency air conditioning system specially designed to provide superior comfort in small spaces such as apartments, studios, small offices and queries. This team from the Free Combination Comfort range LG combines a nominal power of 5.0 kW in cold and 5.5 kW in heat with outstanding energy efficiency, represented by its A+/A rating.

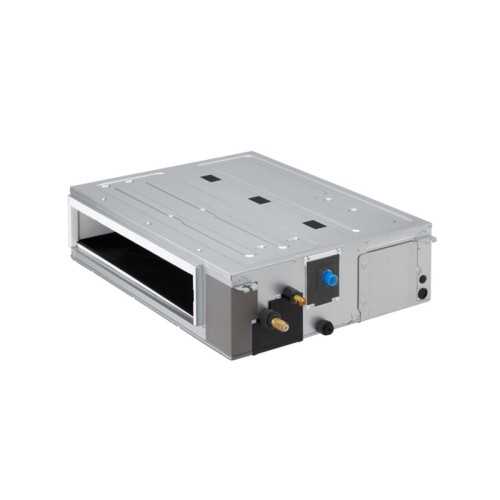

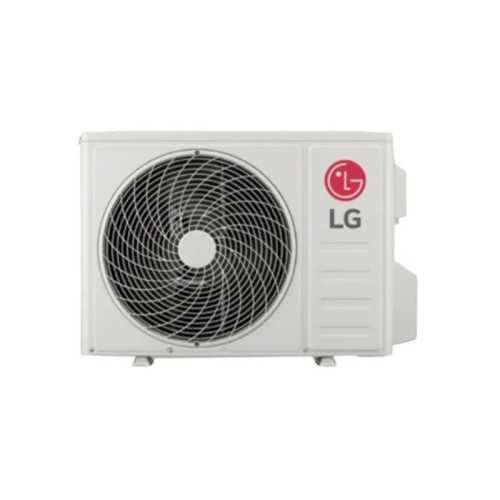

Composed of indoor Unit CM18F.NA0 and outdoor Unit UUA1.UL0, this system stands out for its outdoor Unit particularly compact with dimensions of only 770 x 545 x 288 mm and a weight of 33.3 kg, making it easy to install even in small spaces. La indoor Unit, with dimensions of 900 x 245 x 700 mm, incorporates adjustable static pressure up to 150 Pa and maintains ultra silent operation with sound levels of only 31/29/28 dB according to the selected speed.
Using the ecological coolant R32, this system significantly reduces the environmental impact with a load of just 1.0 kg. Its operating range allows efficient operation from -10°C to 50°C in cooling mode and from -10°C to 18°C in heating mode. A distinctive feature of this model is the possibility of installation both horizontal and vertical through the ABDAMA0 accessory, in addition to having the most affordable pipe length of the market (up to 30 meters), being ideal for simple and economic installations.
Main features
▪
Perfect for Small Spaces
Nominal power of 5.0 kW in cold and 5.5 kW in heat, with modulant capacity of 1.80-5.50 kW in cold and 2.20-6.30 kW in heat.
🌱
High Ecological Efficiency
Refrigerant Gas Organic R32 with excellent energy efficiency: SEER 5,70 and SCOP 3,80, classification A+/A.
📐
Outdoor Unit Compacta
Dimensions reduced from 770x545x288 mm and only 33.3 kg of weight, ideal for terraces and limited outdoor spaces.
🔇
Absolute Silence
Exceptional sound levels of 31/29/28 dB indoor Unit, practically inaudible during operation.
🔌
Economic installation
Preload for 10 meters of pipe and addition of only 20 g/m for upper lengths, up to 30 meters.
🔄
Versatile installation
Possibility of horizontal or vertical mounting by ABDAMA0 accessory, adapting to any configuration.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CM18F.NA0 + UUA1.UL0 |
| Cold Capacity (Mín-Nom-Máx) | 1,80 - 5,00 - 5.50 kW |
| Heat capacity (Mín-Nom-Máx) | 2,20 - 5,50 - 6,30 kW |
| EER / COP | 3,00 / 3,50 |
| SEER / SCOP | 5,70 / 3,80 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 245 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 770 x 545 x 288 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 31 / 29 / 28 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 49 / 52 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 14 / 12 / 10 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.0 kg |
| Length Tuberia (Min/Máx) | 5 / 30 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 27.9 kg |
| Weight Outdoor Unit | 33.3 kg |
Air Conditioning Benefits LG CM18F CONFORT
✓
Perfect solution for reduced spaces
With 5,0 kW rated power, it is ideal for small apartments, studios, single bedrooms, small offices and queries that need efficient air conditioning without oversizing the system.
✓
Ultra compact installation
His outdoor Unit with reduced dimensions allows installation even in small balconies, narrow terraces and limited outdoor spaces where other equipment cannot be located.
✓
Maximum acoustic comfort
With sound levels since 28 dB, it is practically inaudible, becoming the perfect choice for bedrooms, libraries and spaces where silence is fundamental.
✓
Smart investment
It combines competitive price with energy efficiency A+/A, ensuring continuous savings on electricity bills and a quick and sustainable investment return.
Why choose Air Conditioning LG CM18F CONFORT?
Installation Information
Important considerations:
- La indoor Unit CM18F.NA0 allows both horizontal and vertical installation through the ABDAMA0 accessory.
- Maximum length of pipe: 30 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add only 20 g/m for upper lengths.
- Uniform fridge connections: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2") in both units.
- La outdoor Unit compact (770x545x288 mm) facilitates installation in small spaces.
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation is recommended by qualified and authorized technical staff LG to ensure proper functioning and maintain the validity of the warranty.
The perfect solution for small spaces that deserve great comfort!
Air Conditioning by Conduct LG CM18F CONFORT demonstrates that small spaces can also enjoy top quality air conditioning. Invest in efficiency, silence and comfort with quality assurance LG in a perfectly dimensioned system for your needs.
Request your custom budget today!
KITCONDCM18F_CONFORT
Data sheet
- Brand
- LG
- Indoor Unit
- Outdoor Unit
- UUA1.UL0
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.670
- Energy class (cold)
- A+
- SEER
- 5,7
- Heat capacity (W)
- 5.500
- Heat capacity (Kcal / h)
- 4.730
- Nominal heat consumption (W)
- 1.580
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 28
- Weight Indoor Unit (Kg)
- 28,0
- Weight Outdoor Unit (Kg)
- 33,3
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 37m2 aprox.
- Dimensions UI (ANXFXH) mm
900 x 460 x 190- EU dimensions (anxfxh) mm
- 770 x 288 x 545
