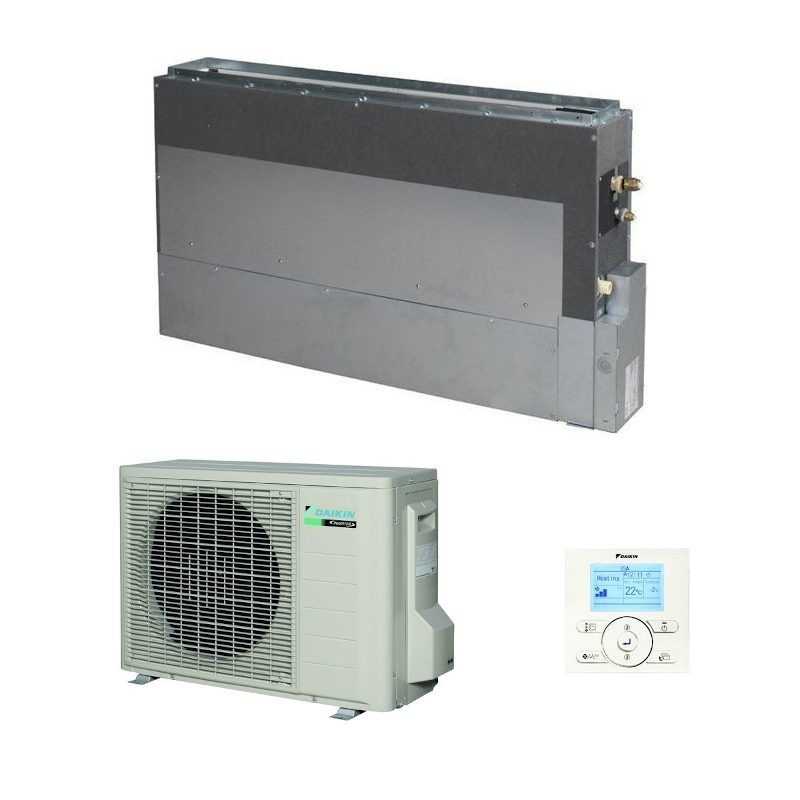

Ducted Air Conditioner Soil Daikin NAS35A
SKY AIR Series Advance 日本語 R-32 3400W Cold Δ Solo 200mm Depth Δ SEER 5,70 A+/A+
The Air Conditioning by Soil Behaviors Daikin NAS35A of the prestigious Sky Air Advance Series represents the compact revolutionary solution for ground or wall installation with cutting-edge R-32 coolant. Its optimized capacity of 3400W in cooling and 4000W in heating, combined with a revolutionary design of only 200 mm depth and compact dimensions of 620×750×200 mm, makes it the perfect choice for small residential applications, compact stores and small spaces. With energy rating A+/A+ (SEER 5,70 / SCOP 4,05), static pressure up to 48Pa and optional WiFi control, guarantees maximum efficiency in minimum spaces where every inch counts.
3️ 3400W Cold
4000W heat / R-32 compact
Total Compact
620×750×200mm / 23kg
Pressure 48Pa
8.7 m3/min efficient flow
▪ SEER 5,70
A+/A+ higher efficiency
Specifications Compact Key
Cold capacity: 3400W
Heat capacity: 4000W
Cold consumption: 1100W
Consumption heat: 1150W
Air flow: 8.7 m3/min
Dimensions: 620×750×200mm
Refrigerant Gas: R-32 (0.76 kg)
Max pipe: 20 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Air Conditioning Vertical Conduct Daikin NAS35A SKY AIR SERIE ADVANCE
Referencia: NAS35A
€1,545.90
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Soil Daikin NAS35A
SKY AIR Series Advance 日本語 R-32 3400W Cold Δ Solo 200mm Depth Δ SEER 5,70 A+/A+
The Air Conditioning by Soil Behaviors Daikin NAS35A of the prestigious Sky Air Advance Series represents the compact revolutionary solution for ground or wall installation with cutting-edge R-32 coolant. Its optimized capacity of 3400W in cooling and 4000W in heating, combined with a revolutionary design of only 200 mm depth and compact dimensions of 620×750×200 mm, makes it the perfect choice for small residential applications, compact stores and small spaces. With energy rating A+/A+ (SEER 5,70 / SCOP 4,05), static pressure up to 48Pa and optional WiFi control, guarantees maximum efficiency in minimum spaces where every inch counts.
3️ 3400W Cold
4000W heat / R-32 compact
Total Compact
620×750×200mm / 23kg
Pressure 48Pa
8.7 m3/min efficient flow
▪ SEER 5,70
A+/A+ higher efficiency
Specifications Compact Key
Cold capacity: 3400W
Heat capacity: 4000W
Cold consumption: 1100W
Consumption heat: 1150W
Air flow: 8.7 m3/min
Dimensions: 620×750×200mm
Refrigerant Gas: R-32 (0.76 kg)
Max pipe: 20 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Soil Behaviors Daikin NAS35A represents the compact and efficient solution of the revolutionary Sky Air Advance Series, designed specifically for floor or wall installation where space is extremely limited and optimized compact power is required. With a nominal capacity of 3400W in refrigeration (2923 kcal/h) and 4000W in heating (3439 kcal/h), this system incorporates the innovative R-32 refrigerant technology that guarantees maximum energy efficiency and environmental sustainability, maintaining a higher A+/A+ energy rating with SEER 5,70 and SCOP 4,05, ideal for small residential applications, compact stores, studies, apartments and efficient reduced space constraints.
Its compact revolutionary design maintains the innovative 200 mm depth with ultra-compact dimensions of 620×750×200 mm and reduced weight of 23 kg, being the most compact solution available for duct air conditioning. This configuration allows installation in minimal spaces where no other duct system can be installed, revolutionizing the possibilities of air conditioning in small residential applications. The high external static pressure (ESP) up to 48Pa allows flexible installation with ducts to the ceiling, while the down-oriented connecting port eliminates the need to connect auxiliary pipes.
The system operates with compact airflows of 8.7 m3/min in both cooling and heating with A/B speeds (8,7/7,3 m3/min), providing efficient and homogeneous air conditioning perfectly dimensioned for small spaces. Its silent operation and optional WiFi technology compatibility using the ES.DKNWSERVER adapter allows intelligent remote control from smartphone, computer or tablet from any location, representing the maximum evolution in domotic control for compact residential applications.

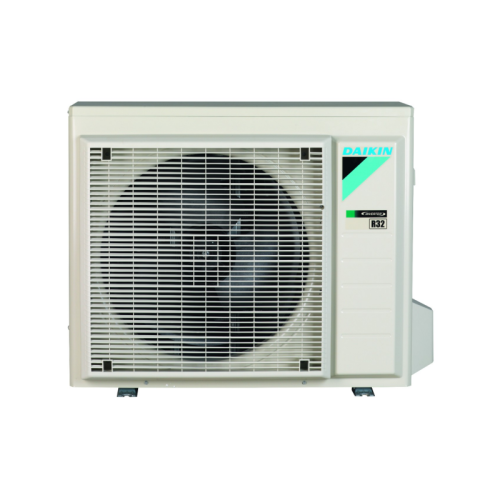

La outdoor Unit RXM35N9 with SWING compressor incorporates R-32 refrigerant load of 0.76 kg (TCO2 eq 0.5 / PCA 675), compact dimensions of 550×828×285 mm and weight of 32 kg, with operating limits extended to -15oC both in refrigeration and in heating. The system allows compact installations with a maximum pipe length of 20 meters and a height of up to 20 meters, with Ø6.4" (1/4") liquid and Ø9,5" (3/8") gas, monophasic power supply 220V with 3+T interconnection threads, ensuring maximum installation flexibility in small residential applications and compact commercial spaces that require minimal solutions.
Features Sky Air Advance Compact Series
📐
Compact Total 750mm
Dimensions ultra-compact 620×750×200 mm and only 23 kg, the most compact solution for duct air conditioning, ideal for minimum spaces.
▪
Compact Power 3400W
3400W cooling and 4000W heating perfectly dimensioned for small residential applications, studios and compact apartments.
🏆
Higher efficiency A+/A+
SEER 5,70 and SCOP 4,05 with superior energy rating A+/A+, maximum efficiency available for compact applications.
▪
Revolution 200mm Compact
It keeps revolutionaries 200 mm deep even in compact version, allowing installation in ultra-reduced spaces.
📱
Domotic WiFi Control
Optional smart control from smartphone, tablet and PC with ES.DKNWSERVER adapter, ideal for compact residential automation.
🌿
R-32 Compact
R-32 technology with a minimum load of 0.76 kg optimized for compact applications, ensuring maximum environmental sustainability.
Technical Specifications Advance Compact Series
| Feature | Value |
|---|---|
| Model Set | NAS35A (Sky Air Advance Compact Series) |
| Refrigeration capacity | 3400W (2923 kcal/h) |
| Capacity Heating | 4000W (3439 kcal/h) |
| Consumption Refrigeration | 1100W |
| Consumption Heating | 1150W |
| SEER / SCOP | 5,70 / 4,05 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Charge Design Refrigeration | 3,40 kW |
| Charge Design Heating (-10oC) | 2.42 kW |
| Consumption Energy Annual Refrigeration | 209 kWh |
| Consumption Annual Energy Heating | 1002 kWh |
| Frigorific connections | Liquid Ø6,4" (1/4") - Gas Ø9,5" (3/8") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 20 meters |
| Maximum level | 20 meters |
| Refrigerant Gas / Charge | R-32 / 0.76 kg (TCO2 eq 0.5 / PCA 675) |

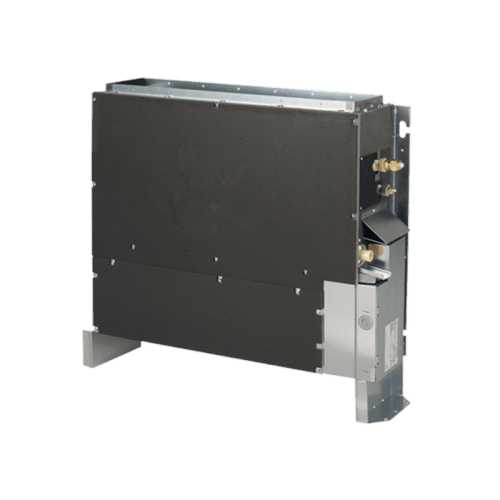

Specifications Indoor Unit FNA35A9
| Feature | Value |
|---|---|
| Air flow rate (A/B) | 8.7 / 7.3 m3/min |
| High/Nominal Available Pressure | 48 / 30 Pa |
| Dimensions (Alto×Ancho×Fondo) | 620×750×200 mm |
| Weight | 23 kg |
| Revolutionary Depth | Only 200 mm |
| Compact width | 750 mm ultra-compact |
| Installation type | Floor or Pared |
| Connection port | Focus down |
| Control WiFi | Optional with ES.DKNWSERVER |
COMMERCIAL BENEFITS
🏆
Space Revolution
Only 200mm depth allow installation where it was previously impossible
🔧
Simplified installation
Port down eliminates auxiliary pipes and reduces complexity
💰
Maximum Saving
A+/A+ with SEER 6,10 ensures minimum energy consumption
📱
Intelligent Control
Optional WiFi for total remote control from any device
🌿
Ecological R-32
Refrigerant Gas of new generation with minimal environmental impact
🔇
Quiet operation
Only 26-29 dB(A) guarantee maximum acoustic comfort
PRINCIPLES
▪ Residential sector
- Apartments and studios
- Single rooms
- Penthouses with limitations
- New construction housing
Commercial sector
- Small offices and offices
- Shops and boutiques
- Medical consultations
- Beauty centers
Sector Hotelero
- Hotel Rooms
- Pensions and hostels
- Tourist apartments
- Rural houses
Special cases
- Spaces with architectural limitations
- Reforms without civil works
- Facilities where 200mm is critical
- Compatibility with domestic units
▪ COMPACY DATA SYSTEMS
Architectural Integration
Completely hidden unit with only visible grids. Only 200mm depth allows installation on any false ceiling or under technical floor without compromising the interior design.
E️ Uniform air conditioning
Homogeneous distribution of air conditioning through multiple impulsion and return points, eliminating hot or cold areas in spaces up to 35 m2.
Acoustic comfort
Minimum sound level (26-29 dB(A)) thanks to the physical separation between unit and inhabited space. Virtually inaudible operation.
Flexibility Installation
Floor or wall installation with downward facing connection port. No need for auxiliary pipes, simplifying installation and reducing costs.
Energy Efficiency
Classification A+/A+ with SEER 6,10 and SCOP 4,60. Ecological R-32 Inverter and refrigerant technology ensure minimum consumption and maximum environmental respect.
Advanced control
Optional WiFi control via ES.DKNWSERVER for remote management from smartphone, tablet or PC. Compatibility with home systems and household units.
DAIKIN NAS35A - COMPACT REVOLUTION
Only 200mm depth Δ 3400W power Δ A+/A+ efficiency Δ WiFi optional
Air conditioning through channels where it was impossible before - The revolution you were waiting for
▪ DAIKIN NAS35A SKY AIR ADVANCE ⋅
3400W + COMPACTO 750mm + WIFI + A+/A+
3️ 3400W Compacto
3400W cold / 4000W heat
Ideal small spaces
Es Dimensions Minimum
620×750×200mm - 23kg
Total revolutionary compact
Control WiFi
Smartphone, tablet, PC
Optional advanced automation
▪ SEER 5,70 A+/A+
Higher efficiency
1100W minimum consumption
SERIE ADVANCE TOTAL COMPACY
3400W with minimum dimensions 750mm + WiFi + A+/A+
Perfect for small spaces, compact shops and small residential applications
▷ SPECIALIZED INSTALATION
️ Warranty Daikin Officer
🔧 National Technical Service
📋 A+/A+ Certification
▪ Spaces Reduced
NAS35A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FNA35A9
- Outdoor Unit
- RXM35R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.400
- Refrigerator capacity (kcal / h)
- 2.923
- Nominal consumption Cold (W)
- 1.100
- Energy class (cold)
- A+
- SEER
- 5,7
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.439
- Nominal heat consumption (W)
- 1.150
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 23,0
- Weight Outdoor Unit (Kg)
- 32,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 28m2 aprox.
- Dimensions UI (ANXFXH) mm
- 750 x 200 x 620
- EU dimensions (anxfxh) mm
- 840 x 350 x 552
