Ducted Air Conditioner Slim Haier 50 Heath Connect AD50S2SS1FA(H) + 1U50S2SJ2FA
Low-pressure slim duct air conditioning system with 5,0 kW power, designed for small-medium residential and commercial spaces. This Heath Connect range team combines ultra-compact design with energy efficiency A++/A++ and integrated Wi-Fi control, ideal for modern housing, small offices and commercial premises looking for maximum comfort with minimal visual impact.
- ▷ Power of 5,0 kW with intelligent modulation of 1,80-6,00 kW
- ▷ Maximum energy efficiency A++/A++ with SEER 6,10 and SCOP 5,32
- ▷ Ultra compact design of only 185mm high with low pressure
- ▷ Heath Connect Integrated Wi-Fi Control for Smart Management
- ▷ UVC sterilization for advanced air purification
- ▷ Ultra silent since 32 dB with drainage pump included
Reference: AD50S2SS1FA(H) + 1U50S2SJ2FA
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Slim Low Pressure Haier 50 Heath Connect AD50S2SS1FA(H) + 1U50S2SJ2FA
Referencia: SLIM50HC
€1,078.47
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Slim Haier 50 Heath Connect AD50S2SS1FA(H) + 1U50S2SJ2FA
Low-pressure slim duct air conditioning system with 5,0 kW power, designed for small-medium residential and commercial spaces. This Heath Connect range team combines ultra-compact design with energy efficiency A++/A++ and integrated Wi-Fi control, ideal for modern housing, small offices and commercial premises looking for maximum comfort with minimal visual impact.
- ▷ Power of 5,0 kW with intelligent modulation of 1,80-6,00 kW
- ▷ Maximum energy efficiency A++/A++ with SEER 6,10 and SCOP 5,32
- ▷ Ultra compact design of only 185mm high with low pressure
- ▷ Heath Connect Integrated Wi-Fi Control for Smart Management
- ▷ UVC sterilization for advanced air purification
- ▷ Ultra silent since 32 dB with drainage pump included
Reference: AD50S2SS1FA(H) + 1U50S2SJ2FA
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Slim Conduct Haier 50 Heath Connect it represents the technological evolution in domestic and light commercial air conditioning.This low-pressure system combines an extraordinarily compact design, just 185 mm high, with a power output of 5.0 kW, offering the perfect solution for spaces that require efficient air conditioning without compromising available space or architectural aesthetics.

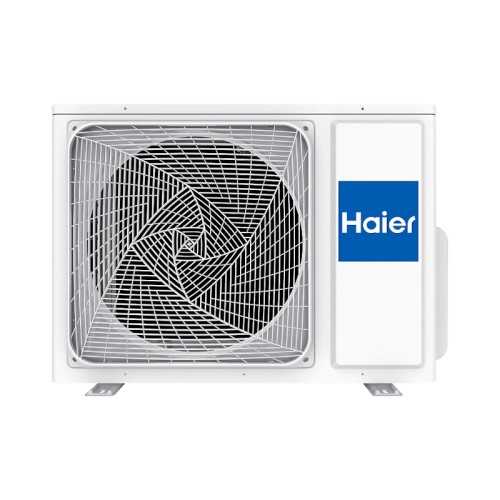

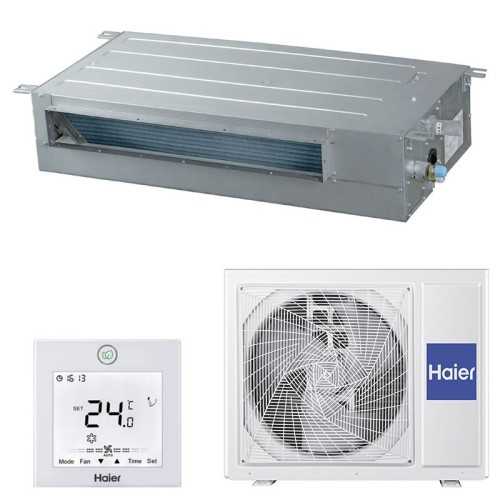

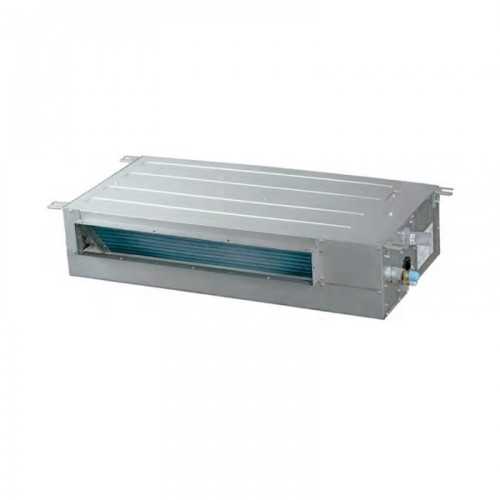

Composed of indoor Unit AD50S2SS1FA(H) of ultra compact dimensions (1170 x 420 x 185 mm) and outdoor Unit 1U50S2SJ2FA with rotary inverter compressor, this system stands out for its intelligent modulation capacity ranging from 1.80 to 6.00 kW in cooling and from 2.00 to 6.20 kW in heating. La indoor Unit incorporates a variable air flow of 600-900 m3/h with four selectable speeds, ensuring personalized comfort according to the specific needs of each moment.
The integrated Heath Connect technology allows full control via Wi-Fi, transforming any smartphone into an advanced climate control center. Complemented with the UVC sterilization system for continuous air purification and a capacitor drainage pump included, this equipment uses 1,10 kg of R32 ecological refrigerant, demonstrating the commitment to Haier with sustainable technological innovation and user welfare in modern residential and commercial environments.
Main features
📏
Ultra Compact Slim design
Only 185mm high with low-pressure system, ideal for false reduced ceilings and spaces with architectural limitations.
📱
Heath Connect Wi-Fi Control
Wi-Fi integrated smart control for complete remote management from anywhere in the world.
🦠
UVC Advanced Sterilization
Ultraviolet light purification technology that eliminates bacteria, viruses and microorganisms from the air.
🔇
Ultra Quiet
Exceptional sound levels of 32 dB indoors and 50 dB outdoors, ensuring maximum acoustic comfort.
▪
Maximum efficiency A++/A++
SEER 6,10 and SCOP 5,32 with optimized annual consumption of only 315 kWh in cold and 1961 kWh in heat.
🔧
Flexible installation
Up to 25m pipe with drain pump included and optional panel kit for maximum versatility.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | AD50S2SS1FA(H) + 1U50S2SJ2FA |
| Refrigeration power (Mín-Nom-Máx) | 1,80 - 5,00 - 6,00 kW |
| Power Heating (Min-Nom-Máx) | 2.00 - 5.50 - 6.20 kW |
| EER / COP | 3,26 / 3,73 |
| SEER / SCOP | 6,10 / 5,32 |
| Energy label ( Cold/Calor) | A++ / A++ |
| Annual Consumption Cold / Calor | 315 / 1961 kWh/year |
| Dimensions Indoor Unit (AnxPrxAl) | 1170 x 420 x 185 mm |
| Dimensions Outdoor Unit (AnxPrxAl) | 820 x 305 x 643 mm |
| Internal sound pressure (high/ medium/low) | 36 / 34 / 32 dB(A) |
| External Sonic Pressure | 50 dB(A) |
| Air flow rate (high/ medium/low/silver) | 900 / 750 / 600 / - m3/h |
| External Static Pressure | 0 / 10 / 20 / 40 Pa |
| Refrigerant Gas / Charge | R32 / 1,10 kg |
| Maximum Length Tuberia | 25 m |
| Difference Maximum Height | 15 m |
| Heath Connect Wi-Fi Control | Integrated |
| Drainage pump | Included |
| Weight Indoor Unit / Outer | 22,0 / 35,7 kg |
Air Conditioning Benefits Haier 50 Heath Connect
✓
Perfect architectural integration
Its ultra compact design of only 185mm allows installation in false ceilings of reduced height, maintaining the aesthetic of space without compromising climate performance.
✓
Smart Control Heath Connect
Wi-Fi integrated for full control from anywhere, advanced programming and consumer monitoring, transforming your air conditioning into a truly smart system.
✓
Superior air quality
UVC technology continuously sterilizes air by eliminating viruses, bacteria and microorganisms, ensuring a healthier environment for the whole family.
✓
Maximum energy savings
Classification A++/A++ with SEER 6,10 guarantees the lowest consumption of the market, significantly reducing the annual electricity bill.
Why choose Air Conditioning Haier 50 Heath Connect?
Main applications
▪
Modern housing
Ideal for houses, apartments and apartments looking for invisible air conditioning with intelligent control and maximum energy efficiency.
🏢
Small offices
Perfect for offices, medical consultations, professional studies that require quiet comfort and smart control during working hours.
️
Commercial premises
Excellent for small shops, boutiques, hairdressers and commercial spaces that need comfortable environment with minimal visual impact.
Installation Information
Important considerations:
- Ultra compact design of only 185mm high, ideal for false ceilings with limited space.
- Low-pressure system (0-40 Pa) that facilitates installation and reduces duct requirements.
- Maximum pipe length: 25 meters, with a maximum height difference of 15 meters between units.
- Frigorphic connections: Liquid 6,35 mm (1/4") / Gas 12,70 mm (1/2").
- Condensed drainage pump included, eliminating gravity evacuation problems.
- Optional panel kit P1B-1210IA/D available for custom supply and return grids.
- Heath Connect Wi-Fi control pre-installed, only requires initial setup with the mobile app.
- Installation by certified technician Haier recommended to ensure the proper functioning and validity of the warranty.
Optional Panel Kit
Kit P1B-1210IA/D Available
SLIM50HC
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.530
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 5.500
- Heat capacity (Kcal / h)
- 4.730
- Nominal heat consumption (W)
- 1.470
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 32
- Weight Indoor Unit (Kg)
- 22,0
- Weight Outdoor Unit (Kg)
- 37,8
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Integrated WiFi
- Recommended area
- Estancia de 38m2 aprox.
- Dimensions UI (ANXFXH) mm
- 890 x 420 x 185
- EU dimensions (anxfxh) mm
- 820 x 338 x 614
