Air Conditioning Panasonic KIT-71PF3Z5
Refrigeration 6800W 日本語 Heating 7700W ̄s Efficiency A+ 日本語 Comercial Grande
The Air Conditioning Panasonic KIT-71PF3Z5 is the powerful solution of the PACi NX Standard Series with 6800W in refrigeration and 7700W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for large commercial spaces and large housings.
6️ 6800W Refrigeration
EER 4,05 - Great power
7 7700W Heating
COP 4.00 - High performance
▪ SEER 6,1 / SCOP 4,2
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Conduct Great Power
Indoor Unit: CS-71PF3Z5EAW
Outdoor Unit: CU-71PF3Z5EA
Air flow: 20,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 390 kWh/year
Refrigerant Gas: R-32 (1.85 kg)
Length Tuberia: 3-30m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Panasonic KIT-71PF3Z5-6W PACi NX Standard Series
Referencia: KIT-71PF3Z5-6W
€1,444.20
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-71PF3Z5
Refrigeration 6800W 日本語 Heating 7700W ̄s Efficiency A+ 日本語 Comercial Grande
The Air Conditioning Panasonic KIT-71PF3Z5 is the powerful solution of the PACi NX Standard Series with 6800W in refrigeration and 7700W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for large commercial spaces and large housings.
6️ 6800W Refrigeration
EER 4,05 - Great power
7 7700W Heating
COP 4.00 - High performance
▪ SEER 6,1 / SCOP 4,2
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Conduct Great Power
Indoor Unit: CS-71PF3Z5EAW
Outdoor Unit: CU-71PF3Z5EA
Air flow: 20,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 23 dBA
Annual consumption: 390 kWh/year
Refrigerant Gas: R-32 (1.85 kg)
Length Tuberia: 3-30m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-71PF3Z5
Great Power 6800W Δ PACi NX Standard Δ nanoeTM X Mark 2 Δ A+
Great Power for Spacious Spaces
The Panasonic KIT-71PF3Z5 is the powerful solution of the PACi NX Standard Series, offering 6800W of frigorific power and 7700W heat power with monophasic power 220-240V. This model is designed for large commercial spaces, large offices and large surface housing that require powerful and efficient air conditioning with advanced technology.
Gran Features Great Power
Area: 65-85m2 wide spaces
▪ Frigorific power: 6800W large capacity
Calorific power: 7700W superior
Food: Monofs 220-240V
: Air flow: 20,0 m3/min high
🔧 Indoor Unit: 950mm commercial
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, especially important in large commercial spaces with high occupation and circulation of people.
Commercial Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
S Benefits Spacious Spaces
- Cleaner air over a large area
- Allergic symptoms reduction
- More commercial hygienic environment
- Continuous silent operation
Energy Efficiency A+ Superior
With SEER 6,1 A+ in cooling and SCOP 4,2 A+ in heating, the KIT-71PF3Z5 offers excellent energy efficiency for its high power.The system consumes only 390 kWh annual, optimizing energy performance for large commercial spaces where the operating cost is fundamental.
▼ Commercial advantages
- Reduced commercial operating cost
- Fast repayment
- Energy classification A+
Efficiency
SEER:
6.1 A+
6.1 A+
SCOP:
4.2 A+
4.2 A+
EER:
4,05
4,05
COP:
4,00
4,00
Dual Dual installation PF3 Versatile
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to adapt to any commercial configuration. This versatility is particularly valuable in large commercial spaces where architectural limitations require adaptable solutions.
Commercial flexibility
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Total architectural adaptation
S️ Technical advantages
- Commercial unit 950mm
- Optimized false ceiling height
- Maintenance accessibility
- Uniform air distribution
Miento Operation Ultra Silent 23dBA
Despite its great power 6800W, the KIT-71PF3Z5 maintains exceptionally silent operation with only 23 dBA sound pressure. This feature is essential for commercial spaces that require great power without compromising acoustic comfort, such as offices, commercial premises or large housing.
Tiva Comparison Sonora
- 23 dBA: Very soft whisper
- Less than whispered conversation
- Ideal sensitive commercial spaces
Nivel Sound level
23 dBA
Ultra Quiet
Perfect for commercial spaces that require silence
Advanced Drying and Control System
Included Dry Pump
Drainage pump included in series capacity 2.7 L/h, allowing elevation to 680mm and efficient condensate evacuation for any commercial configuration.
- No additional cost
- Efficient Condensed Evacuation
- Automatic operation
- Lift height 680mm

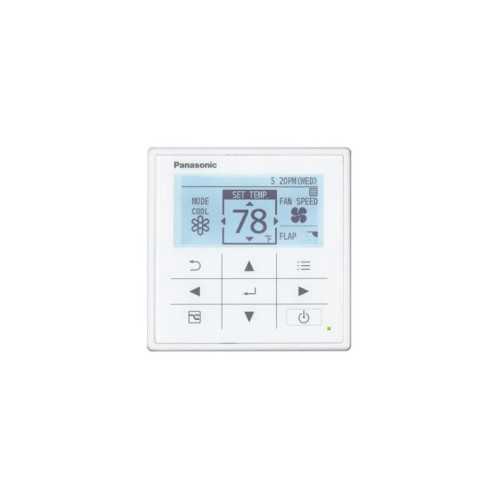

Bluetooth® Control
CZ-RTC6BL Bluetooth® included series for full wireless control from smartphone, with weekly programming and intelligent system management.
- IOS/Android Smartphone Control
- Weekly commercial programme
- Monitoring consumption
- Complete remote management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Coolant load: 1.85 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
Dimensions System
- Indoor Unit: 950mm
- Pipe length: 3-30m
- Maximum level: 20/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +46°C
- Air flow: 20,0 m3/min
- Power supply: 220-240V 1~
- Annual consumption: 390 kWh
KIT-71PF3Z5 - Great Power PACi NX Standard Series
6800W Power Δ nanoeTM X Mark 2 Δ 23dBA Quiet Δ A+ Efficiency Δ Dual Installation
Great Power Panasonic KIT-71PF3Z5!
6800W Grand Power Δ nanoeTM X Mark 2 Δ Solo 23dBA Δ SEER 6,1 A+ Δ Dual Installation
Why choose the KIT-71PF3Z5?
✓ Great Power: 6800W cooling, 7700W heating
✓ Ultra Silence: Only 23dBA, ideal spacious spaces
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Dual installation: Horizontal/vertical same tray
✓ Tuberia 30m: Extended range for large spaces
✓ Bluetooth® Control: CZ-RTC6BL included
Online Exclusive Offer
WEB TRADE PRICE
Consult special conditions great power
Consult special conditions great power
Series includes:
- Internal units (950mm) and exterior
- CZ-RTC6BL Bluetooth®
- Integrated drainage pump
- Official guarantee Panasonic
Technical Specifications Great Power
️ Frigorific Power
6800WCalorific power
7700WEfficiency SEER
6.1 A+Nivel Sound level
23 dBASurface
65-85m2Maximum pipe
30mKIT-71PF3Z5 - Great Power for Spacious Spaces
6800W Grand Power Δ nanoeTM X Mark 2 Δ 23dBA Ultra Quiet Δ SEER 6,1 A+ Δ Dual Installation Δ Control Bluetooth®
KIT-71PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-6071PF3E
- Outdoor Unit
- U-71PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- 2.140
- Energy class (cold)
- A++
- SEER
- 6,0
- Heat capacity (W)
- 6.800
- Heat capacity (Kcal / h)
- 5.848
- Nominal heat consumption (W)
- 1.700
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 23
- Weight Indoor Unit (Kg)
- 30,0
- Weight Outdoor Unit (Kg)
- 50,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 55m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 730 x 250
- EU dimensions (anxfxh) mm
- 875 x 320 x 695
