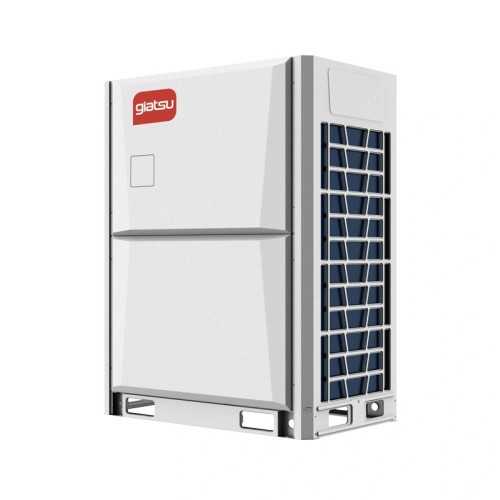

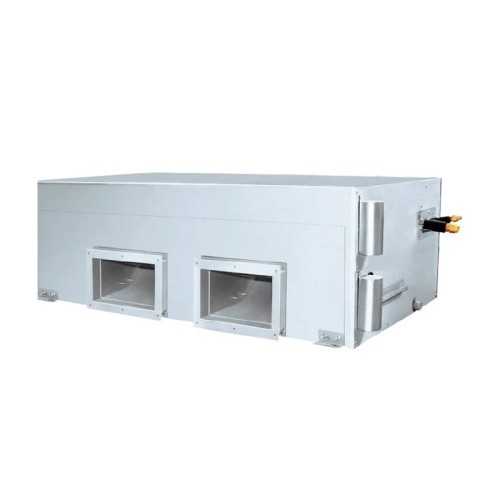

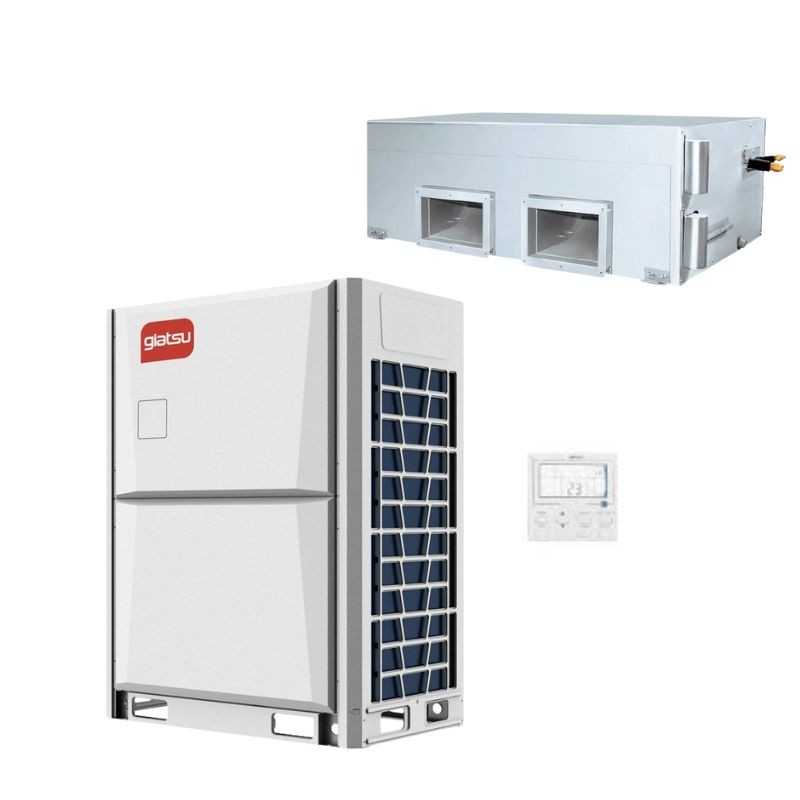

Ducted Air Conditioner Giatsu GIAC224IX49BDT3
BIG DUCT IX49B Series ⋅ 22.4kW ⋅ 76400 BTU Δ DC Inverter Δ Gran Power
The Giatsu GIAC224IX49BDT3 expands the BIG DUCT IX49B Series with 22.4kW (76400 BTU) of higher industrial power. Equipped with technology compressor DC Inverter high efficiency and airflow up to 4400 m3/h, is ideal for large commercial and industrial facilities up to 450 m2. Its three-phase design, ultra silent operation and maximum air conditioning capacity make it the perfect solution for commercial centers, industrial ships and corporate buildings that demand superior power and absolute reliability.
▪ 22.4kW Superior
76400 BTU power
4️ 4400 m3/h
Higher rate
DC Inverter
High efficiency
hasta up to 450 m2
Large scale
Reference: GIAC224IX49BDT3 Δ Giatsu BIG DUCT IX49B Grand Power
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIAC224IX49BDT3 Big Duct
Referencia: GIAC224IX49BDT3
€3,763.87
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIAC224IX49BDT3
BIG DUCT IX49B Series ⋅ 22.4kW ⋅ 76400 BTU Δ DC Inverter Δ Gran Power
The Giatsu GIAC224IX49BDT3 expands the BIG DUCT IX49B Series with 22.4kW (76400 BTU) of higher industrial power. Equipped with technology compressor DC Inverter high efficiency and airflow up to 4400 m3/h, is ideal for large commercial and industrial facilities up to 450 m2. Its three-phase design, ultra silent operation and maximum air conditioning capacity make it the perfect solution for commercial centers, industrial ships and corporate buildings that demand superior power and absolute reliability.
▪ 22.4kW Superior
76400 BTU power
4️ 4400 m3/h
Higher rate
DC Inverter
High efficiency
hasta up to 450 m2
Large scale
Reference: GIAC224IX49BDT3 Δ Giatsu BIG DUCT IX49B Grand Power
Security policy
Delivery policy
Refund policy
Great Industrial Power for Megainstallations
The Air Conditioning by Conduct Giatsu GIAC224IX49BDT3 expands the BIG DUCT IX49B Series with 22.4kW (76400 BTU/h) of great industrial power. Equipped with technology compressor DC Inverter high efficiency and robust triphase configuration, is designed for commercial and industrial mega-installations that require superior air conditioning and massive air distribution.
Its exceptional flow rate 4400 m3/h guarantees uniform distribution in complexes of up to 450 m2, while the optimized design and ultra silent operation position it as the ideal solution for large commercial centers, industrial complexes and megaprojects that demand superior power, maximum energy efficiency and absolute industrial reliability 24 hours a day.
▪
22.4kW Great Power
76400 BTU/h of high industrial power for commercial and complex mega-installations up to 450 m2.
️
Higher flow 4400 m3/h
Exceptional higher rate for mass distribution in large commercial and mega-complete centers.
DC Inverter High efficiency
High efficiency DC Inverter technology for continuous operation and maximum industrial energy saving.
Megainstallations 450m2
Extended coverage for mega-installations and large complexes that require massive air conditioning.
Gran Benefits GIAC224IX49BDT3 Scale
Shopping Centres
Ideal for large shopping centers up to 450 m2 with 4400 m3/h
▪ 22.4kW Superior
High power 76400 BTU for demanding industrial megaprojects
Higher efficiency
DC Inverter high efficiency for maximum savings in large installations
Operation 24/7
Robust design for continuous operation without interruption
Request your Budget for the Giatsu GIAC224IX49BDT3!
22.4kW Great Power - Top Solution for Megainstallations
22.4kW
76400 BTU
4️ 4400 m3/h
Higher rate
What WhatsApp
Specialized consultancy
GIAC224IX49BDT3
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 22.400
- Refrigerator capacity (kcal / h)
- 19.264
- Nominal consumption Cold (W)
- 6.750
- SEER
- 6,5
- Heat capacity (W)
- 27.500
- Heat capacity (Kcal / h)
- 23.650
- Nominal heat consumption (W)
- 5.620
- SCOP
- 4,3
- Minimum sound pressure UI DB
- 46
- Weight Indoor Unit (Kg)
- 102,0
- Weight Outdoor Unit (Kg)
- 112,7
- Diameter Liquid pipe
- 1/2"
- Diameter Gas Pipe
- 7/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 1440 x 811 x 448
- EU dimensions (anxfxh) mm
- 1015 x 450 x 1430
