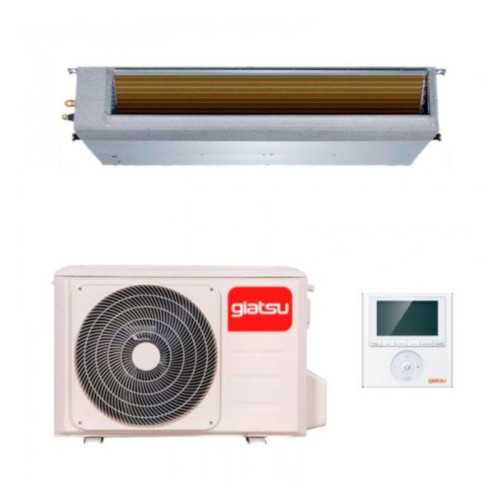

Ducted Air Conditioner Giatsu GIA-DT3-48ADM2R32-WF series Admira Plus Trif.

Product Description

The Air Conditioning by Conduct Giatsu GIA-DT3-48ADM2R32-WF represents the advanced evolution of the professional three-phase range of the Admira Plus Series, specifically designed for large industrial and commercial installations that demand maximum power with 380-415V three-phase power for superior energy efficiency, exceptional electrical stability and high-end optimized industrial performance. With an exceptional nominal capacity of 14,07 kW in refrigeration (48000 BTU/h) and 16,12 kW in heating (55000 BTU/h), this system employs advanced triphase DC inverter technology that allows intelligent modulation from 12000 to 54000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of large industrial complexes, mass production centers, maximum operating electrical installations and commercial applications.

The extraordinary combination of high-capacity three-phase GMCC inverter compressor and industrial DC fan ensures an A++ energy rating in refrigeration (SEER 6,1) and A+ in heating (SCOP 4.0), specifically optimized for three-phase power supply that provides maximum energy efficiency, lower consumption by phase, higher electrical stability and optimal load distribution compared to monophase equipment of similar capacity. The system employs eco-friendly R32 coolant with a maximum load of 2.9 kg, optimized for high capacity triphasic operation while maintaining environmental commitment, crucial for responsible industrial applications that require intensive and sustainable long-term operation with maximum environmental responsibility.

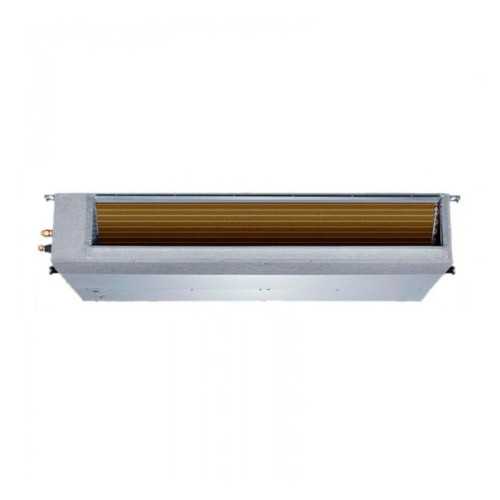

La indoor Unit maintains the industrial dimensions of 1200×245×750 mm with robust weight of 40.4 kg, conserving the versatility of horizontal and vertical multiposition installation while providing extreme airflows from 1300 to 2000 m3/h with static pressure of up to 160 Pa, optimized for massive distribution in large three-phase installations. These specifications allow maximum industrial complex installations with distribution in multiple large areas, complete plants and large-scale industrial architectural configurations. Its optimized sound levels of 43,5/41,5/39.5 dB(A) according to speed guarantee discreet professional performance even with this advanced industrial capacity, essential for three-phase applications that require comfortable and productive working environment.

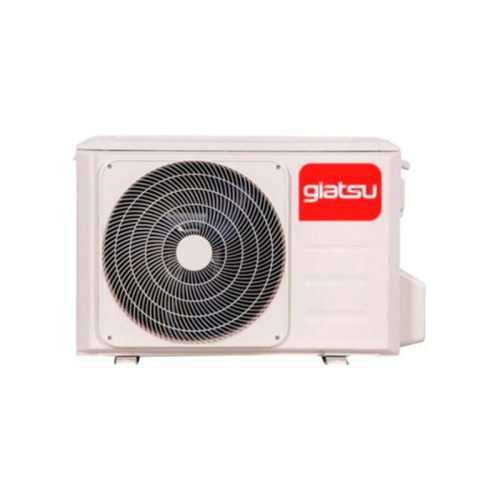

La outdoor Unit Industrial three-phase GMCC, with optimized dimensions of 980×975×375 mm and robust weight of 90 kg, has been specifically redesigned for high capacity 380-415V three-phase power supply, providing maximum electrical stability, lower current by phase, superior operating efficiency and optimal thermal distribution. It incorporates protection Golden Fin premium anticorrosion and maximum efficiency thermal exchange systems optimized for continuous high capacity triphasic operation. The system allows maximum industrial scale installations with pipe length of 75 meters and height of up to 30 meters, while the 3/8" - 5/8" refrigerator connections ensure optimal flow for this advanced capacity. The included cable control offers advanced weekly programming specifically designed for automatic optimization in complex, large-scale triphasic applications and intelligent management of multiple zones of massive industrial air conditioning.

Features Advanced Triphase Gama

Comparison Admira Plus Series Triphasic Gama

Advanced Triphase Technical Specifications

Advanced Triphase Advantages

Advanced Triphatic Applications

Advanced Triphase Gaming for Great Facilities!

The Giatsu Admira Plus DT3-48 series combines maximum three-phase power, 2000 m3/h of flow and robust industrial construction. The advanced solution for large industrial complexes that demand maximum capacity with superior triphase efficiency.

Request your advanced three-phase budget today!
