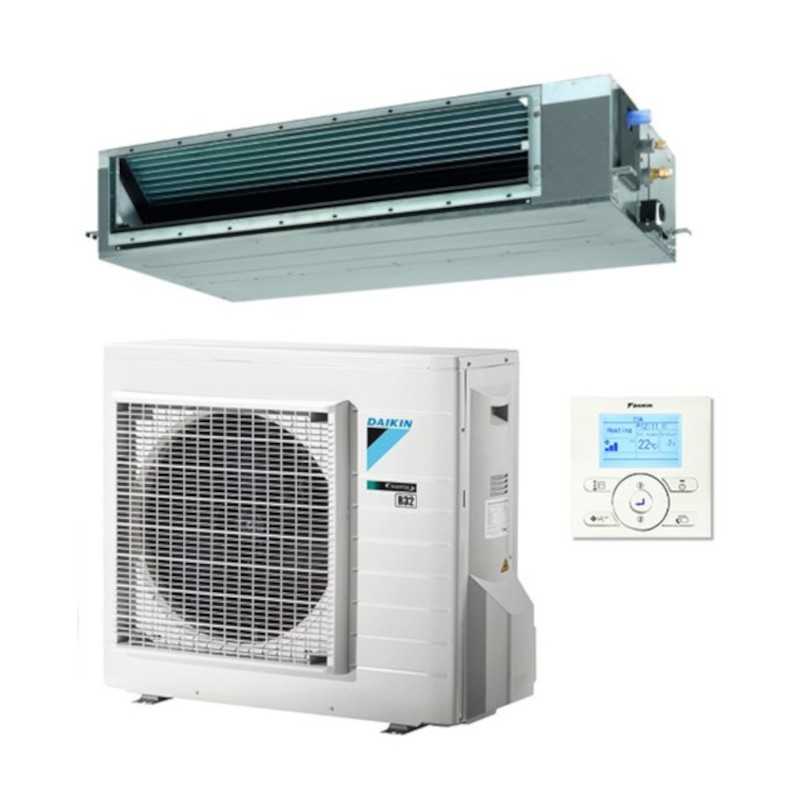

Ducted Air Conditioner Daikin ADEAS71A
SKY AIR Series Active Δ R-32 Δ 6800W Cold Δ SEER 5,35 Δ A/A Δ 150Pa Pressure
The Air Conditioning by Conduct Daikin ADEAS71A of the prestigious Sky Air Active Series represents the advanced commercial solution with state-of-the-art R-32 coolant. Its exceptional capacity of 6800W in cooling and 7500W in heating, combined with an ultra-compact design of only 245 mm high, makes it the perfect choice for large offices, large shops and demanding commercial applications. With energy rating A/A (SEER 5,35 / SCOP 3,8), static pressure up to 150Pa and sound levels from 25 dB(A), it guarantees maximum power and silent efficiency in larger commercial spaces.
️ 6800W Cold
7500W heat / R-32 advanced
Ultra-Compact
1000×245×800 mm / 35 kg
Potential flow
18 m3/min / 150Pa pressure
▪ SEER 5,35
A/A higher efficiency
Product Specifications Active Series
Cold capacity: 6800W
Heat capacity: 7500W
Air flow: 18/12.5 m3/min
Static pressure: 30/150 Pa
Sound pressure: 25/31 dB(A)
Refrigerant Gas: R-32 (1.15 kg)
Connections: Ø9,5"/Ø15,9"
Max pipe: 30 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Daikin ADEAS71A SKY AIR
Referencia: ADEAS71A
€1,865.20
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Daikin ADEAS71A
SKY AIR Series Active Δ R-32 Δ 6800W Cold Δ SEER 5,35 Δ A/A Δ 150Pa Pressure
The Air Conditioning by Conduct Daikin ADEAS71A of the prestigious Sky Air Active Series represents the advanced commercial solution with state-of-the-art R-32 coolant. Its exceptional capacity of 6800W in cooling and 7500W in heating, combined with an ultra-compact design of only 245 mm high, makes it the perfect choice for large offices, large shops and demanding commercial applications. With energy rating A/A (SEER 5,35 / SCOP 3,8), static pressure up to 150Pa and sound levels from 25 dB(A), it guarantees maximum power and silent efficiency in larger commercial spaces.
️ 6800W Cold
7500W heat / R-32 advanced
Ultra-Compact
1000×245×800 mm / 35 kg
Potential flow
18 m3/min / 150Pa pressure
▪ SEER 5,35
A/A higher efficiency
Product Specifications Active Series
Cold capacity: 6800W
Heat capacity: 7500W
Air flow: 18/12.5 m3/min
Static pressure: 30/150 Pa
Sound pressure: 25/31 dB(A)
Refrigerant Gas: R-32 (1.15 kg)
Connections: Ø9,5"/Ø15,9"
Max pipe: 30 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin ADEAS71A represents the top step of the prestigious Sky Air Active Series, designed specifically for larger commercial applications that demand exceptional power without compromising efficiency or operational discretion. With a nominal capacity of 6800W in refrigeration (5848 kcal/h) and 7500W in heating (6450 kcal/h), this system incorporates the innovative R-32 coolant technology that guarantees maximum energy efficiency and environmental sustainability, maintaining an A/A energy rating with SEER 5,35 and SCOP 3.8, ideal for large offices, large shops, medium restaurants and demanding commercial applications of up to 70 m2.
Its ultra-compact revolutionary design maintains the innovative 245 mm height with dimensions of 1000×245×800 mm and weight of 35 kg, facilitating the installation in spaces with height limitations, while its static pressure of up to 150Pa allows the use of flexible ducts of various lengths, ideal for complex architectural configurations and distribution in multiple zones. La indoor Unit incorporates series drainage pump, automatic air flow adjustment system that measures the volume and static pressure adjusting to the nominal flow regardless of the length of the duct, and F1/F2 communication port included for advanced centralized control.
The exceptional installation flexibility allows aspiration on the back or bottom, while its extraordinarily silent operation with sound levels from 25 dB(A) in low mode up to 31 dB(A) in the indoor Unit and 49 dB(A) on the outside, it guarantees completely quiet commercial environment even with this superior power. The system operates with airflows of 18 m3/min in refrigeration and 12.5 m3/min in heating with three fan speeds, providing precise and efficient air conditioning for medium-large commercial spaces. La outdoor Unit ARXM71N9 with SWING compressor incorporates 1.15 kg R-32 refrigerant load (TCO2 eq 0.78 / PCA 675), dimensions of 734×870×373 mm and weight of 50 kg, with premium anti-red protection and thermal exchange systems optimized for this superior capacity.
Features Sky Air Active Superior Series
🏢
Higher Commercial Power
6800W cooling and 7500W heating ideal for large offices, large shops and commercial spaces up to 70 m2 with high thermal demand.
📐
Ultra-Compact Advanced
It maintains 245 mm of revolutionary height with superior power, ideal for installations in spaces with height limitations without compromising capacity.
💨
Optimized Static Pressure
150Pa static pressure allows complex installations with extensive flexible ducts, ideal for challenging architectural configurations.
🌿
R-32 Advanced Superior
R-32 technology with 1,15 kg load optimized for this superior power, ensuring maximum energy efficiency and environmental sustainability.
🔇
Exceptional Silence 25dB
Sound levels since 25 dB(A) interior, the quietest of the series, for commercial environment completely quiet even with superior power.
▪
Efficiency A/A
SEER 5,35 and SCOP 3.8 with energy classification A/A even with this higher power, ensuring maximum commercial energy saving.
Technical Specifications High Active Series
| Feature | Value |
|---|---|
| Model Set | ADEAS71A (Sky Air Active Superior Series) |
| Refrigeration capacity | 6800W (5848 kcal/h) |
| Capacity Heating | 7500W (6450 kcal/h) |
| SEER / SCOP | 5,35 / 3,80 |
| Energy label ( Cold/Calor) | A/A |
| Charge Design Refrigeration | 6,80 kW |
| Charge Design Heating (-10oC) | 4.50 kW |
| Consumption Energy Annual Refrigeration | 430 kWh |
| Consumption Annual Energy Heating | 1657 kWh |
| Frigorific connections | Liquid Ø9,5" (3/8") - Gas Ø15,9" (5/8") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 20 meters |
| Refrigerant Gas / Charge | R-32 / 1.15 kg (TCO2 eq 0.78 / PCA 675) |

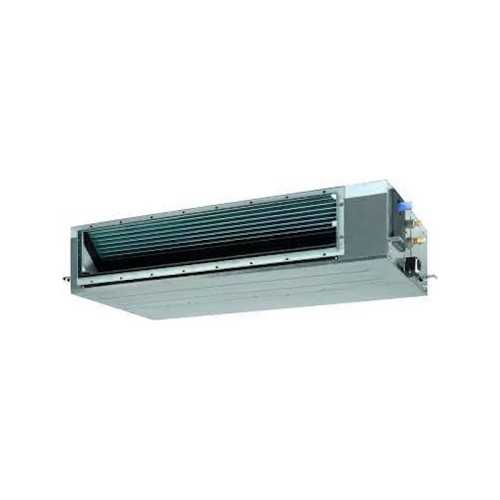

Specifications Indoor Unit ADEA71A
| Feature | Value |
|---|---|
| Refrigeration air flow | 18 m3/min |
| Air flow heating | 12.5 m3/min |
| Pressure Available Nominal/High | 30 / 150 Pa |
| Ventilator speeds | 3 speeds |
| Dimensions (Alto×Ancho×Fondo) | 245×1000×800 mm |
| Weight | 35 kg |
| Sound pressure Refrigeration (A/B) | 30 / 25 dB(A) |
| Sound pressure Heating (A/B) | 31 / 25 dB(A) |
| Level Acoustic Power | 56 dB(A) |

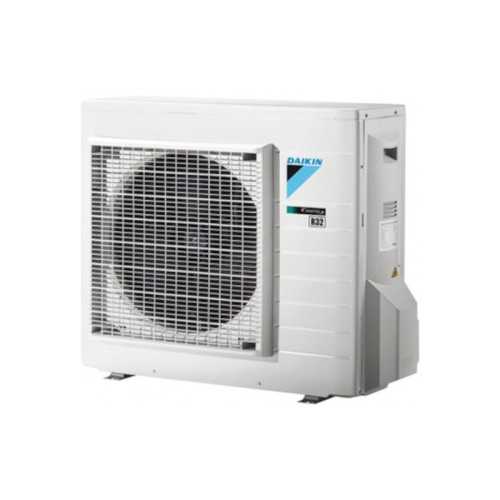

Specifications Outdoor Unit ARXM71N9
| Feature | Value |
|---|---|
| Refrigeration air flow | 56.6 m3/min |
| Air flow heating | 53.6 m3/min |
| Type of Compressor | SWING |
| Dimensions (Alto×Ancho×Fondo) | 734×870×373 mm |
| Weight | 50 kg |
| Sound pressure Refrigeration | 49 dB(A) |
| Sound pressure Heating | 49 dB(A) |
| Level Acoustic Power | 65 dB(A) |
| Charge Refrigerant Gas | 10 meters |
Commercial Advantages Active Higher Series
✓
Ideal solution for large commercial spaces
Perfectly sized 6800W capacity for large offices, large shops, medium restaurants and 60-70 m2 commercial applications that require superior power.
✓
The quietest of the series
Sound levels since 25 dB(A), the lowest in the entire Active series, guaranteeing a completely silent environment even with superior power.
✓
Reinforced cold connections
Optimized Ø9,5" and Ø15,9" connections for this superior power, ensuring optimal flow and reliable installation in demanding applications.
✓
Maintained efficiency with superior power
SEER 5,35 and A/A rating even with 6800W capacity, ensuring exceptional energy savings in high demand applications.
✓
Advanced installation flexibility
Post or lower vacuum, drainage pump included, automatic flow adjustment and 30m maximum pipe for complex installations.
✓

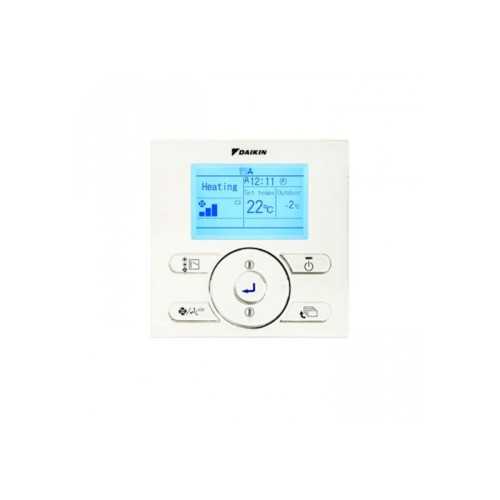

Professional centralized control
Included F1/F2 port allows advanced centralized management, ideal for complex commercial applications with multiple units.
Main Commercial Applications
🏢
Large Offices
Large corporate offices, complete plants, large coworking spaces, business centers and corporate applications that require superior power.
🏪
Spacious stores
Large shopping areas, spacious fashion stores, dealers, showrooms and large retail spaces up to 70 m2.
️
Medium restaurants
Medium restaurants, large bars, large cafes, banquets and hostel establishments that need strong and silent air conditioning.
Advantages of Behavioral Systems
✓
Air homogeneous distribution
The duct systems ensure uniform air distribution throughout the space, eliminating hot or cold areas and providing homogeneous comfort.
✓
Aesthetics and total discretion
The interior units are completely hidden in the false ceiling, keeping the aesthetics of space and only the grids of impulsion and return are visible.
✓
Flexibility of zoning
Allows to air multiple spaces from
DAIKIN ADEAS71A SKY AIR ACTIVE
6800W SUPERIOR + 25dB SELECTED + 245mm
️ Superior Power
6800W cold / 7500W heat
Ideal large offices and spacious shops
Quiet Exceptional
25dB quieter series
Fully quiet environment
Ultra-Compact Advanced
245mm maintained height
Higher power without compromising space
▪ SEER 5,35 Efficient
A/A with superior power
Maximum energy saving
🏢 Large offices 60-70m2
🌿 Organic R-32 1,15kg
🔧 Connections Ø9,5"-Ø15,9"
💨 150Pa static pressure
📏 30m pipe + 20m
📡 Centralized control F1/F2
SERIE ACTIVE SUPERIOR SILENCE
6800W with 25dB the quietest + 245mm ultra-compact + advanced R-32
Perfect for large offices, large shops, medium restaurants and superior commercial applications
▷ COMMERCIAL INSTALATION
️ Warranty Daikin Officer
🔧 National Technical Service
📋 Certification A/A Superior
🏢 Big Commercial Applications
ADEAS71A
Data sheet
- Brand
- Daikin
- Indoor Unit
- ADEA71A
- Outdoor Unit
- ARXM71R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.800
- Refrigerator capacity (kcal / h)
- 5.848
- Nominal consumption Cold (W)
- 2.310
- Energy class (cold)
- TO
- SEER
- 5,4
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Nominal heat consumption (W)
- 2.150
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 35,0
- Weight Outdoor Unit (Kg)
- 49,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 55m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 800 x 245
- EU dimensions (anxfxh) mm
- 954 x 401 x 734
