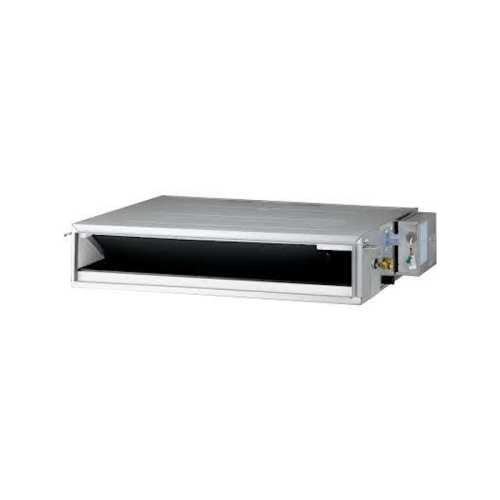

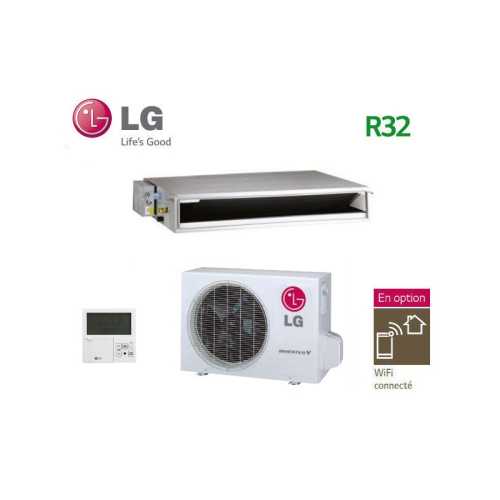

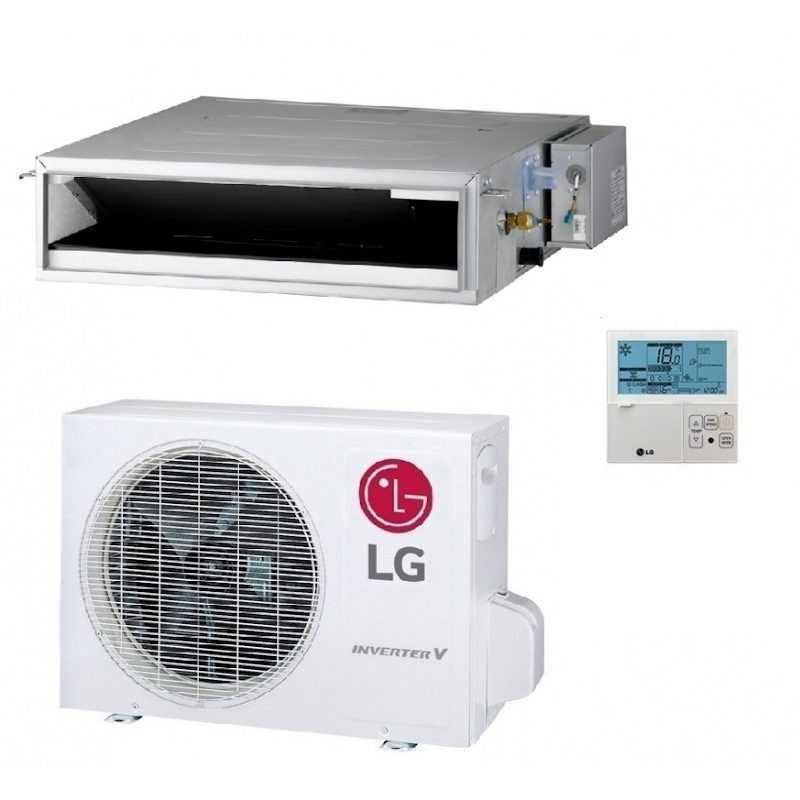

Ducted Air Conditioner Low silhouette LG CL24F CONFORT+
Air conditioning system through low silhouette ducts with 6.8 kW nominal capacity, specially designed for spaces with false limited ceilings. This team of the CONFORT+ range combines ultra compact design (only 200mm high) with energy efficiency A+/A+ and advanced technology, ideal for offices, professional consultations and commercial spaces with height restrictions that require discrete professional air conditioning.
- ▷ Low silhouette design with only 200mm height for false limited ceilings
- ▷ Nominal power of 6.8 kW in cold and 7.4 kW in heat for medium spaces
- ▷ Higher energy efficiency with SEER 5,70 and SCOP 4,10 (A+/A+)
- ▷ Ultra silent operation with only 32/30/28 dB
- ▷ Outdoor Unit compact (770x545x288 mm) and dual installation
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL24F CONFORT+ + UUB1.U20
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Low silhouette LG CL24F CONFORT+
Referencia: KITCONDCL24
€1,926.54
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Low silhouette LG CL24F CONFORT+
Air conditioning system through low silhouette ducts with 6.8 kW nominal capacity, specially designed for spaces with false limited ceilings. This team of the CONFORT+ range combines ultra compact design (only 200mm high) with energy efficiency A+/A+ and advanced technology, ideal for offices, professional consultations and commercial spaces with height restrictions that require discrete professional air conditioning.
- ▷ Low silhouette design with only 200mm height for false limited ceilings
- ▷ Nominal power of 6.8 kW in cold and 7.4 kW in heat for medium spaces
- ▷ Higher energy efficiency with SEER 5,70 and SCOP 4,10 (A+/A+)
- ▷ Ultra silent operation with only 32/30/28 dB
- ▷ Outdoor Unit compact (770x545x288 mm) and dual installation
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL24F CONFORT+ + UUB1.U20
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioned by Low Silueta Behavior LG CL24F CONFORT+ is a high-end air conditioning system specifically designed for spaces with height limitations on false ceilings. This team of the prestigious Free Combination CONFORT+ range LG it combines an ultra compact design of only 200mm height with a nominal power of 6.8 kW in cold and 7.4 kW in heat, offering an exceptional modulant capacity ranging from 3,00 to 7.50 kW in cooling and from 3,50 to 8,20 kW in heating.
Composed of indoor Unit CL24F low silhouette and outdoor Unit UUB1.U20, this system stands out for its unique installation capacity in spaces with severe height restrictions, keeping static pressure up to 150 Pa and pipe lengths up to 30 meters. La indoor Unit, with ultra compact dimensions of 900 x 200 x 700 mm, offers both horizontal and vertical installation flexibility through the ABDAMA0 accessory, providing an airflow of up to 18 m3/min with ultra silent sound levels of 32/30/28 dB according to the selected speed.

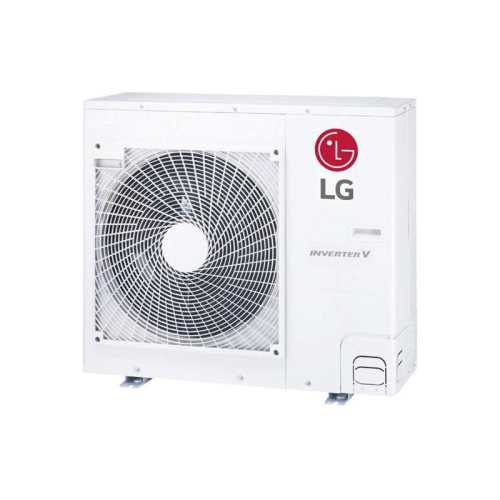

La outdoor Unit UUB1.U20, with its compact dimensions of 770 x 545 x 288 mm and optimized weight of 33.3 kg, incorporates advanced technology to maximize thermal exchange. With an extended range of operation ranging from -10°C to 50°C in cooling and from -10°C to 18°C in heating, this system uses only 1.0 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising professional performance that demand commercial applications with specific architectural restrictions.
Main features
📏
Unique low silhouette design
Only 200mm high vs 245mm standard, allowing installation in false ceilings with extremely limited space without compromising performance.
√
Balanced power
Rated power of 6.8 kW in cold and 7.4 kW in heat, with intelligent modulation from 3.00-7.50 kW in cooling and 3.50-8.20 kW in heating.
🔄
Dual Compact Installation
Horizontal or vertical installation capacity by ABDAMA0 accessory, with outdoor Unit ultra compact (770x545x288 mm).
🔇
Absolute Silence
Exceptional sound levels of 32/30/28 dB indoor Unit, practically unheard for demanding professional environments.
🔌
Versatile Static Pressure
From 20 Pa (standard) to 150 Pa (maximum), allowing to overcome resistances in complex ducts despite its compact design.
🌱
Maximum efficiency
Refrigerant Gas Ecological R32 with A+/A+ rating and SEER 5,70 / SCOP 4,10 for maximum energy saving and sustainability.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CL24F CONFORT+ + UUB1.U20 |
| Cold Capacity (Mín-Nom-Máx) | 3.00 - 6.80 - 7.50 kW |
| Heat capacity (Mín-Nom-Máx) | 3.50 - 7.40 - 8.20 kW |
| EER / COP | 2,91 / 3,41 |
| SEER / SCOP | 5,70 / 4,10 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 200 x 700 mm (low silhouette) |
| Dimensions Outdoor Unit (AnxAlxProf) | 770 x 545 x 288 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 32 / 30 / 28 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 48 / 53 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 18 / 15 / 12 m3/min |
| Air flow rate Outdoor Unit | 28 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.0 kg |
| Length Tuberia (Min/Máx) | 5 / 30 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 28.5 kg |
| Weight Outdoor Unit | 33.3 kg |
| Vertical Installation | ABDAMA0 |
Benefits of Low Silueta Air Conditioning LG CL24F CONFORT+
✓
Unique solution for spaces with height limitations
With only 200mm high, it is the only viable option for historic buildings, ancient commercial premises and spaces with extremely limited false ceilings where other equipment cannot be installed, maintaining power of 6.8 kW.
✓
Installation in challenging architectural spaces
The combination of low silhouette design, dual installation (horizontal/vertical) and outdoor Unit compact allows to adapt the system to virtually any architectural limitation without compromising performance.
✓
Maximum efficiency in ultra compact format
CONFORT+ technology LG manages to maintain A+/A+ and SEER 5,70 in an ultra-compact format, demonstrating advanced engineering that does not compromise efficiency by reduced size.
✓
Acoustic comfort in small format
Despite its ultra compact size, it maintains exceptional sound levels (from 28 dB), ideal for professional spaces where both space and silence are fundamental.
Why choose the Air Conditioning Low Silueta LG CL24F CONFORT+?
Main applications
️
Historical and Patrimonial Buildings
Spaces with historical value where architectural limitations are strict and the original structure of the false ceiling cannot be modified.
🏢
Offices in Old Buildings
Commercial premises and offices in buildings with extremely limited false ceilings that require modern air conditioning without structural works.
🏥
Specialized Technical Areas
Medical consultations, laboratories and technical spaces where each inch of height is crucial and maximum silence and efficiency are required.
Installation Information
Important considerations:
- La indoor Unit CL24F allows both horizontal and vertical installation using the ABDAMA0 accessory, with a reduced height of only 200mm.
- Maximum length of pipe: 30 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add only 20 g/m for upper lengths.
- Frigorific connections indoor Unit: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8").
- Frigorific connections outdoor Unit: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2").
- La outdoor Unit UUB1.U20 ultra compact (770x545x288 mm) facilitates installation in limited outdoor spaces.
- Installation by technical staff specialized in low silhouette systems and certified by LG to ensure proper operation and maintain the validity of the premium CONFORT+ warranty.
The only solution for spaces with extreme height limitations!
The Ducted Air Conditioner Low silhouette LG CL24F COMFORT+ solves the most complex technical challenge in air conditioning: maintaining maximum performance, A+/A+ efficiency, and absolute silence in just 200 mm of height.Invest in the most advanced technology LG for impossible spaces.
Request your custom budget today!
KITCONDCL24
Data sheet
- Brand
- LG
- Indoor Unit
- CL24F.N30
- Outdoor Unit
- UUC1.U40
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 6.791
- Refrigerator capacity (kcal / h)
- 5.840
- Nominal consumption Cold (W)
- 2.030
- Energy class (cold)
- A++
- SEER
- 6,2
- Heat capacity (W)
- 7.500
- Heat capacity (Kcal / h)
- 6.450
- Nominal heat consumption (W)
- 2.130
- Energy class (heat)
- A+
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 32
- Weight Indoor Unit (Kg)
- 26,0
- Weight Outdoor Unit (Kg)
- 59,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 45m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1100 x 700 x 190
- EU dimensions (anxfxh) mm
- 950 x 330 x 834
