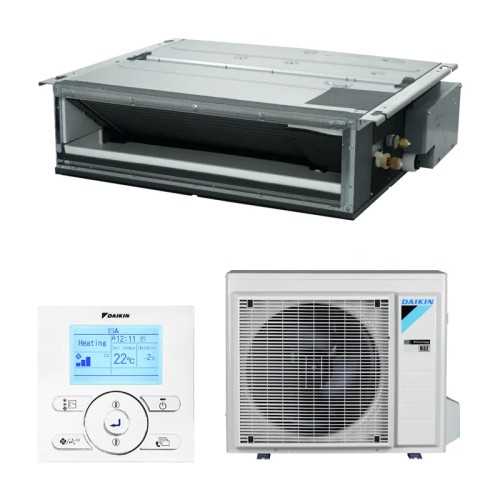

Air Conditioning Low Silueta Conduct Daikin DXM60F SKY AIR SERIE ADVANCE

Product Description

The Air Conditioning by Conduct Daikin DXM60F represents the maximum expression of the low silhouette series, designed for large spaces that require maximum power with ultracompact installation. With exceptional capacity 6000W in cooling (5160 kcal/h) and 7000W heating (6020 kcal/h), this model of the Sky Air Advance Series combines the maximum power available in low silhouette with the revolutionary solo design 200mm high, integrating advanced inverter technology with eco-friendly R-32 coolant.

Your energy efficiency A/A with SEER values 5,56 and SCOP de 3,80 guarantees annual seasonal energy consumption optimized 378 kWh in refrigeration and 1693 kWh heating, maintaining excellent energy performance even with this maximum capacity. The system uses coolant R-32 with a load 1,15 kg and an impact 0.78 TCO2eq, demonstrating commitment to environmental sustainability.

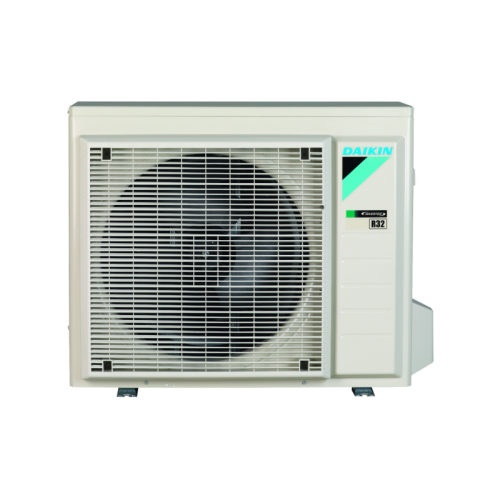

La outdoor Unit RXM60R incorporates a compressor SWING maximum efficiency with air flow 46.6 m3/min both in cooling and in heating. Its robust dimensions 734×954×401 mm and weight 49 kg are specifically designed to handle this maximum capacity, while your sound pressure 49 dBA both in cooling and in heating maintains professional sound levels.

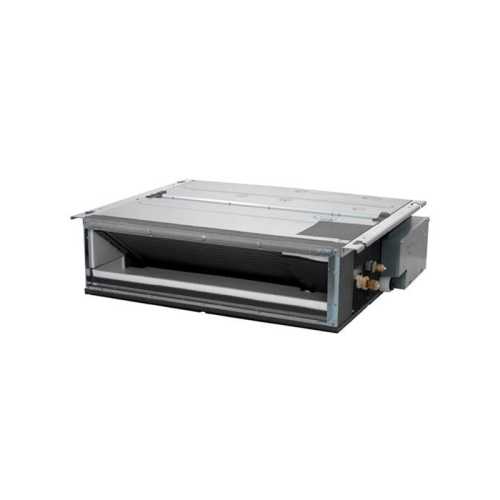

La indoor Unit FDXM60F9 keeps revolutionary design low silhouette with only 200 mm height, with enlarged dimensions 200×1150×620 mm and weight 28 kg to handle the maximum airflow of the series. Its variable flow rate 16 m3/min at high speed, , 13.5 m3/min at medium speed and 11,2 m3/min at super low speed provides the most efficient distribution for maximum spaces.

The system allows extensive facilities with maximum pipe length 30 meters and maximum level difference of 20 meters. Your cold connections 1/4" for liquid and 1/2" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, facilitate installations in the most demanding configurations.

With standard available pressure 40 Pa and 3 fan speeds, the system provides the maximum capacity to overcome resistances from extensive and complex ducts. Your inner sound pressure 38 dBA at high speed and 30 dBA at low speed maintains exceptional silent operation even with this maximum power.

Nominal consumptions 2050W in cooling and 2180W heating demonstrate system efficiency for this maximum capacity. Your design load 6,00 kW in cooling and 4,60 kW in heating at -10°C ensures constant performance for the most demanding applications that require absolute reliability throughout the year.

The refrigerant load included covers up to 10 meters of installation, with additional charge 20 gr/m for more extensive facilities. Its level of inner acoustic power 56 dBA and exterior 63 dBA maintains professional standards even with this maximum capacity, ideal for large commercial, institutional and residential spaces of luxury that require the maximum power available in low silhouette.

This model represents the technological culmination of the low silhouette series, offering 6000W cooling in just 200mm high, an exceptional technical achievement that allows to air spaces up to 60-70 m2 with practically invisible installation. Ideal for applications where the space of false ceiling is critical but you cannot compromise the power of air conditioning.

Main Features Maximum Low Power Silueta

Technical Specifications Maximum Power

Ideal Applications Maximum Power

Maximum Power 6000W in Only 200mm!

The Daikin DXM60F represents the maximum technological achievement: 6000W cooling and 7000W heating in just 200mm high. The definitive solution for spaces that require maximum power with practically invisible installation.

Request your budget for premium applications today!
