Ducted Air Conditioner Slim Haier 35 Heath Connect AD35S2SS1FA(H) + 1U35S2SM1FA-2
Low-pressure slim duct air conditioning system with 3.5 kW power, designed for medium residential spaces. This Heath Connect range team combines ultra compact design with energy efficiency A++/A++ and integrated Wi-Fi control, ideal for flats, medium-sized apartments, small offices and spaces that look for maximum comfort with total discretion.
- ▷ 3.5 kW power with intelligent 0.90-4.50 kW modulation
- ▷ Maximum energy efficiency A++/A++ with SEER 6,10 and SCOP 5,32
- ▷ Ultra compact design of only 185mm high with low pressure
- ▷ Heath Connect Integrated Wi-Fi Control for Smart Management
- ▷ UVC sterilization for advanced air purification
- ▷ Ultra silent since 25 dB with drainage pump included
Reference: AD35S2SS1FA(H) + 1U35S2SM1FA-2
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
SLIM Low Pressure Conduits Haier 35 Heath Connect Ad35S2SS1FA (H) + 1U35S2SM1FA-2
Referencia: SLIM35HC
€970.63
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Slim Haier 35 Heath Connect AD35S2SS1FA(H) + 1U35S2SM1FA-2
Low-pressure slim duct air conditioning system with 3.5 kW power, designed for medium residential spaces. This Heath Connect range team combines ultra compact design with energy efficiency A++/A++ and integrated Wi-Fi control, ideal for flats, medium-sized apartments, small offices and spaces that look for maximum comfort with total discretion.
- ▷ 3.5 kW power with intelligent 0.90-4.50 kW modulation
- ▷ Maximum energy efficiency A++/A++ with SEER 6,10 and SCOP 5,32
- ▷ Ultra compact design of only 185mm high with low pressure
- ▷ Heath Connect Integrated Wi-Fi Control for Smart Management
- ▷ UVC sterilization for advanced air purification
- ▷ Ultra silent since 25 dB with drainage pump included
Reference: AD35S2SS1FA(H) + 1U35S2SM1FA-2
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Slim Conduct Haier 35 Health Connect is the perfect solution for medium residential spaces that demand efficient air conditioning without compromising the aesthetics or the available space. With a 3.5 kW power and ultra-compact design of only 185mm high, this system represents the evolution in modern domestic air conditioning, combining superior performance with the latest intelligent control technology.

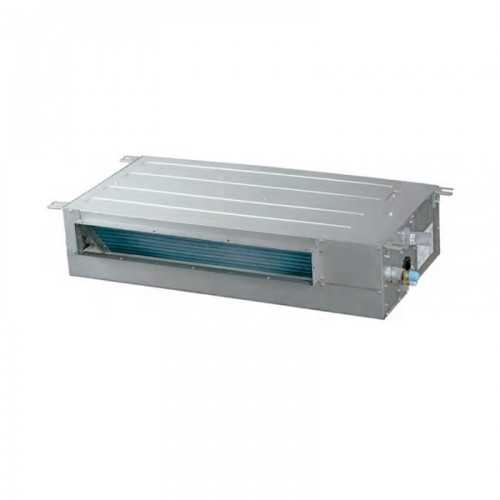

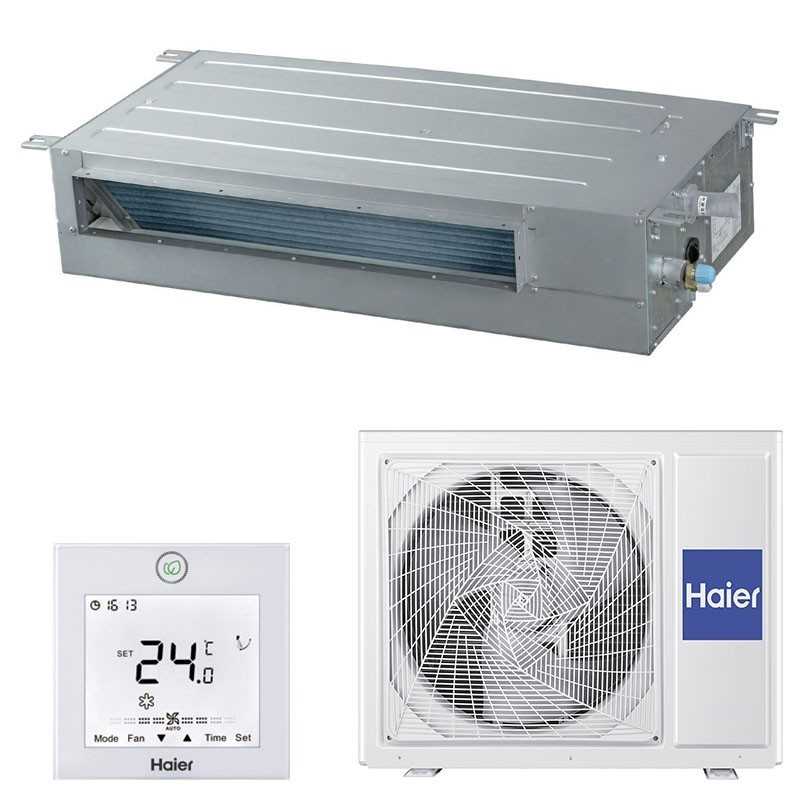

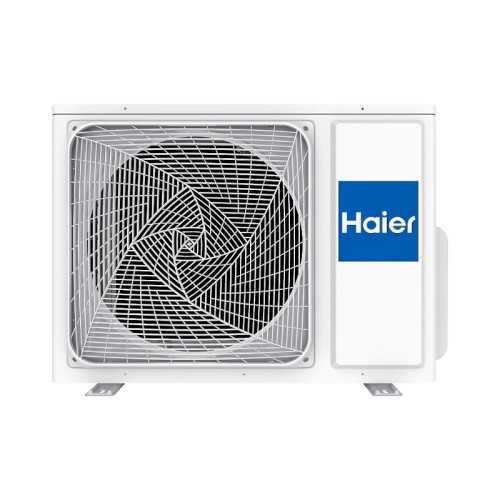

Composed of indoor Unit Compact size AD35S2SS1FA(H) (850 x 420 x 185 mm) and outdoor Unit 1U35S2SM1FA-2 with rotary inverter compressor, this system stands out for its exceptional modulation capacity ranging from 0.90 to 4.50 kW in cooling and from 1.00 to 4.80 kW in heating. La indoor Unit provides a variable airflow of 420-600 m3/h with four selectable speeds, ensuring personalized comfort for each situation.
Integrated Heath Connect technology enables full control via Wi-Fi, turning any mobile device into a smart climate command center.Complemented by the UVC sterilization system for continuous air purification and an included condensate drain pump, this unit uses 0.78 kg of eco-friendly R32 refrigerant.Its ultra-quiet operation of 25 dB makes it the ideal choice for bedrooms, living rooms, and spaces where acoustic comfort is a priority, demonstrating the commitment of Haier with sustainable innovation and the well-being of the modern home.
Main features
📏
Ultra Compact Design
Only 185mm high with low-pressure system, perfect for false reduced ceilings and space-restricted reforms.
📱

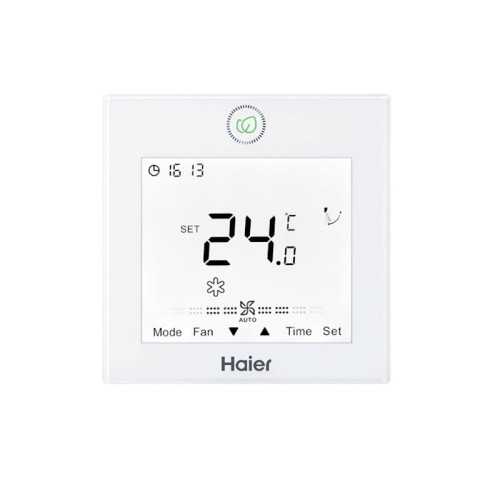

Heath Connect Wi-Fi Control
Integrated smart control for complete remote management, programming and monitoring from anywhere.
🦠
UVC sterilization
Ultraviolet light purification technology that eliminates bacteria, viruses, and microorganisms for healthier air.
🔇
Quiet Extreme
Exceptional sound levels of 25 dB indoors and 48 dB outdoors, ideal for bedrooms and rest areas.
▪
Higher efficiency A++/A++
SEER 6.10 and SCOP 5.32 with optimized annual consumption of only 241 kWh in cooling and 1427 kWh in heating.
🔧
Versatile installation
Up to 20m of pipe with drainage pump included and optional panel kit for maximum adaptability.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | AD35S2SS1FA(H) + 1U35S2SM1FA-2 |
| Refrigeration power (Mín-Nom-Máx) | 0.90 - 3.50 - 4.50 kW |
| Power Heating (Min-Nom-Máx) | 1.00 - 4.00 - 4.80 kW |
| EER / COP | 3,30 / 3,73 |
| SEER / SCOP | 6,10 / 5,32 |
| Energy label ( Cold/Calor) | A++ / A++ |
| Annual Consumption Cold / Calor | 241 / 1427 kWh/year |
| Dimensions Indoor Unit (AnxPrxAl) | 850 x 420 x 185 mm |
| Dimensions Outdoor Unit (AnxPrxAl) | 800 x 275 x 553 mm |
| Internal sound pressure (high/ medium/low) | 33 / 28 / 25 dB(A) |
| External Sonic Pressure | 48 dB(A) |
| Air flow rate (high/ medium/low/silver) | 600 / 480 / 420 / - m³/h |
| External Static Pressure | 0 / 10 / 20 / 40 Pa |
| Refrigerant Gas / Charge | R32/0.78 kg |
| Maximum Length Tuberia | 20 m |
| Difference Maximum Height | 10 m |
| Heath Connect Wi-Fi Control | Integrated |
| Drainage pump | Included |
| Weight Indoor Unit / Outer | 16,0 / 30,0 kg |
Air Conditioning Benefits Haier 35 Health Connect
✓
Perfect for medium spaces
With 3.5 kW of power, it is the ideal solution for medium floors, apartments, small detached houses and offices that require efficient and silent air conditioning.
✓
Maximum nighttime comfort
Its sound levels since 25 dB make it the perfect choice for bedrooms, ensuring a repairing rest without annoying noises.
✓
Safer air
UVC technology continuously sterilizes air by removing pathogens, creating a healthier environment for the whole family, especially important in closed spaces.
✓
Energy efficiency leader
With A+/A++ and SEER 6.10 rating, it guarantees the lowest energy consumption of the market with only 241 kWh per year in refrigeration.
Why choose Air Conditioning Haier 35 Heath Connect?
Main applications
▪
Flats and Apartments
Ideal for medium-sized homes of 60-90m2, apartments and apartments looking for discrete air conditioning with maximum efficiency and smart control.
️
Main
Perfect for air-conditioned rooms and suites with ultra-silent operation from 25 dB, ensuring uninterrupted rest.
🏢
Small offices
Excellent for offices, medical consultations and small workspaces that require comfortable environment and remote control.
Installation Information
Important considerations:
- Ultra compact design of only 185mm high, perfect for renovations and spaces with height limitations.
- Low-pressure system (0-40 Pa) that simplifies the installation and reduces duct requirements.
- Maximum length of pipe: 20 meters, with maximum height difference of 10 meters between units.
- Frigorific connections: Liquid 6,35 mm (1/4") / Gas 9,52 mm (3/8").
- Condensed drainage pump included, eliminating the need for gravity drainage.
- Optional panel kit P1B-890IA/D available for supply and return grids.
- Pre-configured Heath Connect Wi-Fi control, only requires initial connection with the mobile app.
- Installation by authorized technician Haier recommended to ensure optimal performance and maintain the validity of the warranty.
Optional Panel Kit
Kit P1B-890IA/D Available
Exit Panel:
- Dimensions: 890 x 190 x 100 mm
- Uniform air distribution
- Discreet and elegant design
Input Panel:
- Dimensions: 890 x 290.5 x 32.4 mm
- Optimized air return
- Joint weight: 4.0 kg
Guaranteed Energy Savings
241
kWh/year Cold
Minimum annual consumption in refrigeration
A++
Efficiency
Maximum energy classification
6,10
SEER
Seasonal efficiency ratio
The perfect solution for your smart home!
The Ducted Air Conditioner Slim Haier 35 Heath Connect combines ultra compact design, intelligent Wi-Fi control and maximum energy efficiency A++/A++. The ideal choice for medium-sized spaces that seek quiet comfort, healthier air with UVC sterilization and future climate management. Enjoy the tranquility of a perfect break with just 25 dB running.
Transform your home into a smart and efficient space!
SLIM35HC
Data sheet
- Brand
- Haier
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.500
- Refrigerator capacity (kcal / h)
- 3.010
- Nominal consumption Cold (W)
- 1.030
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 4.000
- Heat capacity (Kcal / h)
- 3.440
- Nominal heat consumption (W)
- 1.070
- Energy class (heat)
- A
- SCOP
- 3,8
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 16,0
- Weight Outdoor Unit (Kg)
- 31,5
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Integrated WiFi
- Recommended area
- Estancia de 30m2 aprox.
- Dimensions UI (ANXFXH) mm
- 890 x 420 x 185
- EU dimensions (anxfxh) mm
- 800 x 275 x 553
