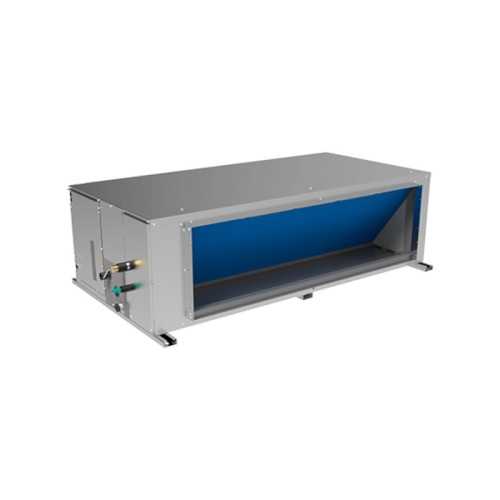

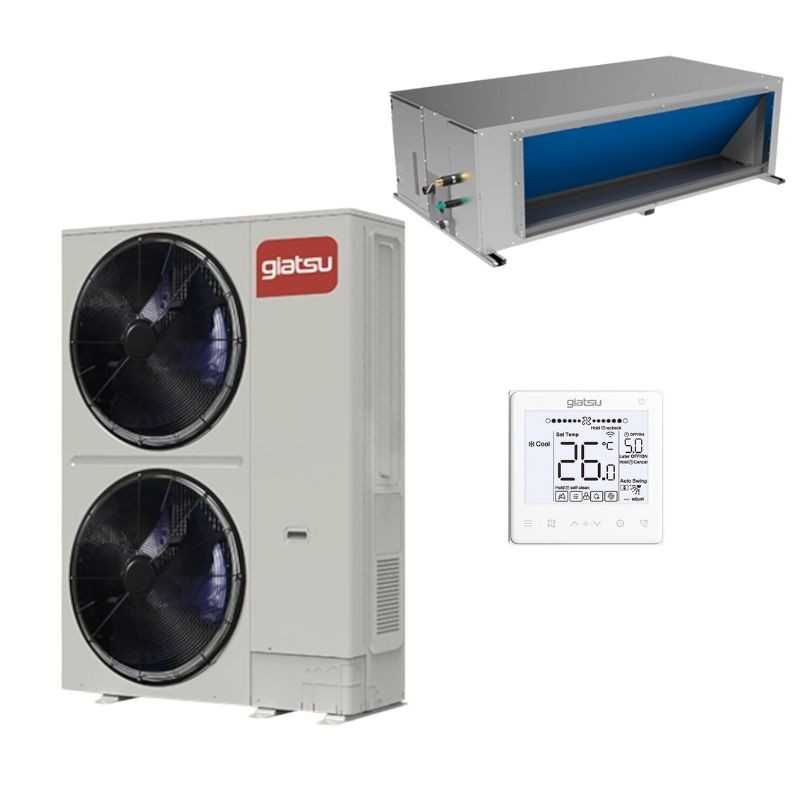

Ducted Air Conditioner Giatsu Gia-bd-28ix56a
Big Duct IX56A Series | 28000 W | 400Pa pressure | R410A | Weekly control
The Air conditioning by ducts Giatsu Gia-bd-28ix56a of the innovative Big Duct IX56A series combines high static pressure of 400 pa With advanced Inverter technology for demanding commercial and residential applications. With 28000 W of Power and Refrigerant R410A, it offers uniform air distribution up to large distances with a maximum flow of 1750 m³ / h. Your programmable weekly control system and outdoor Unit Front download guarantee maximum installation flexibility and custom comfort for spaces up to 140-160 m².
💨 400 PA pressure
High static pressure
🌬️ 1750 m³ / h
Maximum air flow
❄️ R410A Inverter
Advanced technology
📅 Weekly Control
Advanced programmer
Key Specifications
Power: 28000 W
Seer: 6,1
Static pressure: 400 pa
Air flow: 1750 m³ / h
Refrigerant Gas: R410a
Sound level: 51/49/46/42 dB (A)
Power: 220-240 / 50 Hz
Control: Programmable weekly
Reference: GIA-BD-28IX56A | Giatsu Big Duct IX56A Series
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-BD-28IX56A Big Duct
Referencia: GIA-BD-28IX56A
€5,328.96
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu Gia-bd-28ix56a
Big Duct IX56A Series | 28000 W | 400Pa pressure | R410A | Weekly control
The Air conditioning by ducts Giatsu Gia-bd-28ix56a of the innovative Big Duct IX56A series combines high static pressure of 400 pa With advanced Inverter technology for demanding commercial and residential applications. With 28000 W of Power and Refrigerant R410A, it offers uniform air distribution up to large distances with a maximum flow of 1750 m³ / h. Your programmable weekly control system and outdoor Unit Front download guarantee maximum installation flexibility and custom comfort for spaces up to 140-160 m².
💨 400 PA pressure
High static pressure
🌬️ 1750 m³ / h
Maximum air flow
❄️ R410A Inverter
Advanced technology
📅 Weekly Control
Advanced programmer
Key Specifications
Power: 28000 W
Seer: 6,1
Static pressure: 400 pa
Air flow: 1750 m³ / h
Refrigerant Gas: R410a
Sound level: 51/49/46/42 dB (A)
Power: 220-240 / 50 Hz
Control: Programmable weekly
Reference: GIA-BD-28IX56A | Giatsu Big Duct IX56A Series
Security policy
Delivery policy
Refund policy
Professional power with high static pressure
The Air conditioning by ducts Giatsu Gia-bd-28ix56a from the Big Duct IX56A series establishes a new standard in demanding commercial and residential air conditioning. With 28000W power and an exceptional static pressure of 400 pa, This equipment is designed to overcome the challenges of complex facilities where air distribution is required at great distances and multiple outputs.
Its technology inverter with refrigerant R410A guarantees maximum energy efficiency with Seer 6.1, while the programmable weekly control system allows total personnelization of comfort. The outdoor Unit with front download it offers maximum installation flexibility, ideal for spaces of 140-160 m² that demand professional and silent air conditioning.
💨
High pressure 400 pa
Exceptional static pressure for complex installations with multiple ducts, long distances and multiple air outlets.
🌬️
Powerful flow 1750 m³ / h
High air flow for uniform distribution in spacious spaces with 4 adjustable fan speeds.
❄️
R410A inverter
Inverter technology with R410A refrigerant for maximum Energy Efficiency Seer 6,1 and silent operation.
📅

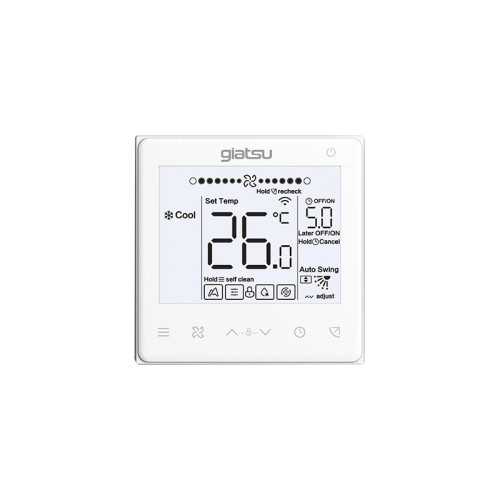

Weekly control
Advanced weekly programmer for full automation and maximum energy saving according to time-to-use schedules.
Complete technical specifications
| Feature | Specification | Unit |
|---|---|---|
| Model | Gia-bd-28ix56a | - |
| Refrigeration | 28000 | W |
| Heat power | 30000 | Wh |
| Seer (efficiency) | 6,1 | - |
| Electrical supply | 220-240v / 50hz | V / hz |
| Maximum static pressure | 400 | Pa |
| Maximum air flow | 1750 | m³ / pm |
| Sound level (4 speeds) | 51/49/46/42 | db (a) |
| Refrigerant Gas | R410a | - |
| Length maximum pipe | 50 | meters |
| Maximum | 25 | meters |

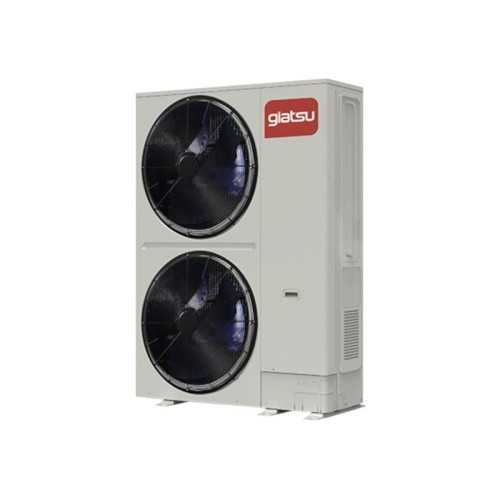

| Outdoor Unit | Front | - |
| Control | Programmable weekly | - |
Main benefits of the GIA-BD-28IX56A
💨 High static pressure
400 PA for complex installations with long distances and multiple conduits
⚡ SEER EFFICIENCY 6.1
Inverter technology R410A for maximum energy savings
🌬️ powerful flow
1750 m³ / h with 4 speeds for optimal distribution
🔇 Ultra Silent
From 42 dB (A) for maximum acoustic comfort
📅 Intelligent Control
Weekly programming for total automation
🏢 Flexible installation
Outdoor Unit front download, 50m pipe
Why choose the Giatsu Gia-bd-28ix56a?
🏢 Ideal applications:
- Medium business offices and spaces (140-160 m²)
- Facilities with long and multiple outputs
- Commercial premises that require high static pressure
- Single-family homes with complex distribution
- Medical consultations and private clinics
- Spaces demanding silent performance
💡 Competitive advantages:
- High static pressure 400 PA for complex installations
- Powerful flow 1750 m³ / h with 4 speeds
- SEER 6.1 efficiency with Inverter technology R410A
- Programmable weekly control for automation
- Outdoor Unit front download for flexibility
- Ultra silent operation from 42 dB (A)
Professional installation included
🔧
Specialized installation
Static high pressure expert technicians
📐
Conduct design
Project optimized for 400 pa
⚙️
Control configuration
Custom weekly programming
🛡️
Full warranty
Total Coverage Manufacturer + Installation
Apply for your budget for the Giatsu Gia-bd-28ix56a!
Big Duct IX56A Series - 28000 W with high pressure 400PA for professional facilities
📞 WhatsApp
Immediate response
💨 400PA
High static pressure
🛡️ Warranty
Total coverage
GIA-BD-28IX56A
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 28.000
- Refrigerator capacity (kcal / h)
- 24.080
- Nominal consumption Cold (W)
- 13.020
- SEER
- 5,9
- Heat capacity (W)
- 31.500
- Heat capacity (Kcal / h)
- 27.090
- Nominal heat consumption (W)
- 8.560
- SCOP
- 4,5
- Minimum sound pressure UI DB
- 42
- Weight Indoor Unit (Kg)
- 125,0
- Weight Outdoor Unit (Kg)
- 144,0
- Diameter Liquid pipe
- 1/2"
- Diameter Gas Pipe
- 7/8"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 1300 x 900 x 580
- EU dimensions (anxfxh) mm
- 1120 x 528 x 1558
