Ducted Air Conditioner Giatsu GIA-D-42ADM2R32-WF series Admira Plus Monof.

Product Description

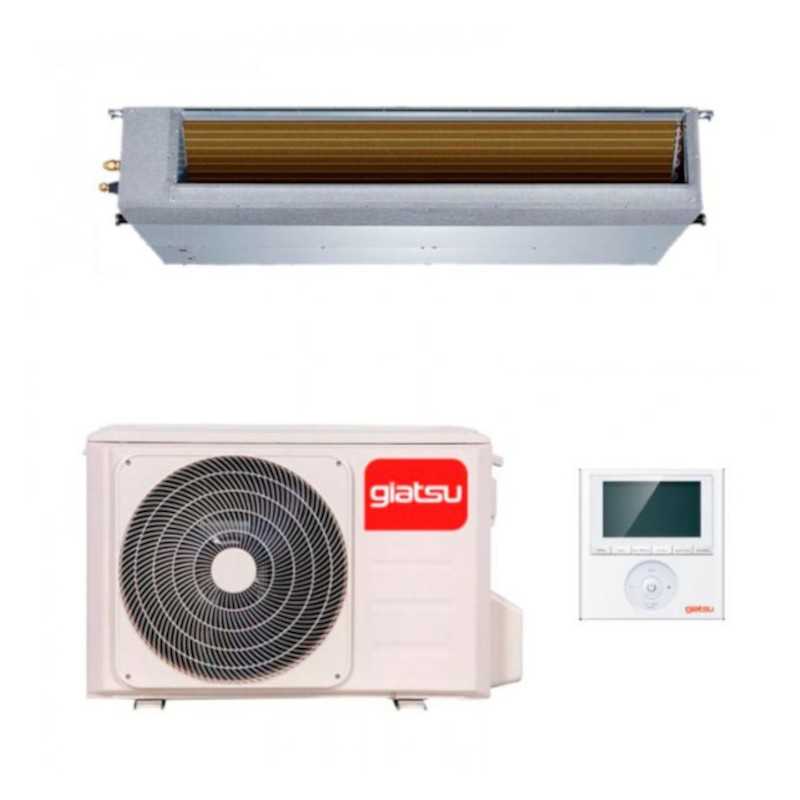

The Air Conditioning by Conduct Giatsu GIA-D-42ADM2R32-WF constitutes the technological culmination of the Admira Plus Monophasic Series, representing the maximum capacity available in 220-240V power for industrial and commercial applications of extreme demand. With an exceptional nominal capacity of 12.11 kW in refrigeration (42000 BTU/h) and 13,48 kW in heating (46000 BTU/h), this system employs maximum-power DC inverter technology that allows intelligent modulation from 10000 to 42000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of industrial complexes, large shopping centers, sports facilities and high-end commercial applications that require air conditioning.

The extraordinary combination of maximum capacity GMCC inverter compressor and industrial DC ventilator ensures an A++ energy rating in refrigeration (SEER 6,1) and A+ in heating (SCOP 4,1), maintaining exceptional efficiency even with this extreme capacity in monophase feeding. The system employs eco-friendly R32 coolant with 2.8 kg load, maximized for this industrial capacity while maintaining environmental commitment, crucial for large-scale commercial applications that require intensive, continuous and sustainable long-term operation.

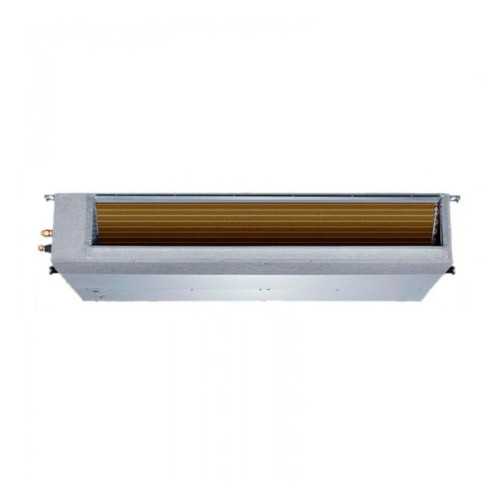

La indoor Unit has been reinforced with dimensions of 1200×245×750 mm and robust weight of 40.6 kg, maintaining the versatility of horizontal and vertical multiposition installation while providing extreme airflows from 1300 to 2000 m3/h with static pressure of up to 160 Pa. These specifications allow installations of maximum industrial complexity with distribution in complexes of multiple buildings, complete industrial plants and extremely demanding architectural configurations. Its optimized sound levels of 39/37,5/36 dB(A) according to speed guarantee discreet professional performance even with this extreme capacity, essential for industrial applications that require a peaceful working environment.

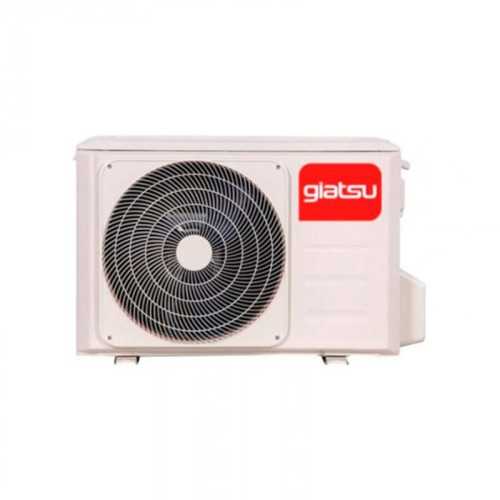

La outdoor Unit Industrial GMCC, with robust dimensions of 946×810×410 mm and weight of 71 kg, has been specifically reinforced to support the extreme thermal demands of continuous industrial operation of maximum capacity, incorporating protection Golden Fin premium anticorrosion and thermal exchange systems of maximum efficiency. The system allows extreme industrial scale installations with maximum pipe length of 75 meters and height of up to 30 meters, while 3/8" - 5/8" refrigerator connections ensure optimal flow for this maximum capacity. The included cabling control offers advanced weekly programming for automatic optimization in complex industrial applications and smart management of multiple large air conditioning zones.

Features Maximum Industrial Capacity

Technical Specifications Maximum Capacity

Advantages Maximum Monophosic Capacity

Industrial applications Extreme

Maximum Monophosic Capacity for Extreme Applications!

The Giatsu Admira Plus Series 42000 BTU is the extreme solution for industrial applications in monophase power supply. With 2000 m3/h of flow, 75m of pipe and efficiency A++/A+, it is ideal for industrial complexes and applications of maximum demand.

Request your budget for extreme applications today!
