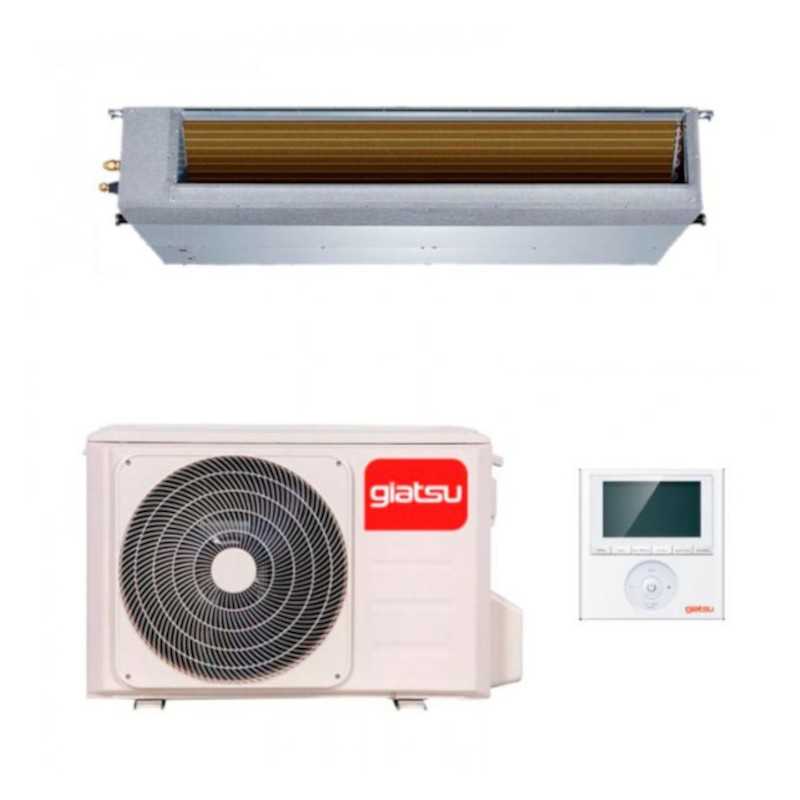

Ducted Air Conditioner Giatsu GIA-D-09ADM2R32-WF
Admira Plus Series 9000 BTU A++/A+ Русский Inverter DC
The Air Conditioning by Conduct Giatsu GIA-D-09ADM2R32-WF of the prestigious Admira Plus Series combines DC inverter technology with maximum energy efficiency A++/A+ for residential spaces and small-medium offices. With 2,64 kW of cold power and 2,93 kW in heat, it offers a 6.5 SEER and 4.1 SCOP, ensuring maximum energy saving with eco-friendly R32 coolant. Its compact design, ultra-silination operation since 31 dB and flexible horizontal installation make it the perfect solution for high-quality discrete air conditioning.
9️ 9000 BTU Eficiente
2,64 kW cold / 2,93 kW heat
▪ A++/A+ Premium
SEER 6,5 / SCOP 4,1
Ultra Quiet
31 dB minimum
▪ Premium Compact
700×200×506 mm
Key Specifications Admira Plus Series
Capacity: 9000 BTU/h
Modulation: 1200-13000 BTU/h
Cold consumption: 720W (135-1182W)
Consumption heat: 850W (290-852W)
Static pressure: 0-80 Pa
Air flow: 450-620 m3/h
Refrigerant Gas: R32 (0.65 kg)
Pipe length: Up to 25m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-D-09ADM2R32-WF series Admira Plus Monof.
Referencia: GIA-D-09ADM2R32-WF
€770.93
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-D-09ADM2R32-WF
Admira Plus Series 9000 BTU A++/A+ Русский Inverter DC
The Air Conditioning by Conduct Giatsu GIA-D-09ADM2R32-WF of the prestigious Admira Plus Series combines DC inverter technology with maximum energy efficiency A++/A+ for residential spaces and small-medium offices. With 2,64 kW of cold power and 2,93 kW in heat, it offers a 6.5 SEER and 4.1 SCOP, ensuring maximum energy saving with eco-friendly R32 coolant. Its compact design, ultra-silination operation since 31 dB and flexible horizontal installation make it the perfect solution for high-quality discrete air conditioning.
9️ 9000 BTU Eficiente
2,64 kW cold / 2,93 kW heat
▪ A++/A+ Premium
SEER 6,5 / SCOP 4,1
Ultra Quiet
31 dB minimum
▪ Premium Compact
700×200×506 mm
Key Specifications Admira Plus Series
Capacity: 9000 BTU/h
Modulation: 1200-13000 BTU/h
Cold consumption: 720W (135-1182W)
Consumption heat: 850W (290-852W)
Static pressure: 0-80 Pa
Air flow: 450-620 m3/h
Refrigerant Gas: R32 (0.65 kg)
Pipe length: Up to 25m
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Giatsu GIA-D-09ADM2R32-WF represents the technological excellence of the prestigious Admira Plus Series, designed specifically to offer premium air conditioning in small-medium residential and commercial spaces. With a nominal capacity of 2.64 kW in cooling (9000 BTU/h) and 2.93 kW in heating (10000 BTU/h), this system incorporates state-of-the-art DC inverter technology that allows intelligent modulation from 1200 to 13000 BTU/h in cold, automatically adapting to the real needs of space.
The combination of GMCC inverter compressor and DC fan ensures exceptional energy efficiency with A+ cooling rating (SEER 6,5) and A+ heating (SCOP 4,1), translated into significant energy savings throughout the year. The system uses eco-friendly R32 coolant with an optimized load of 0.65 kg, reducing environmental impact while maximizing thermal efficiency and minimizing long-term operating costs.

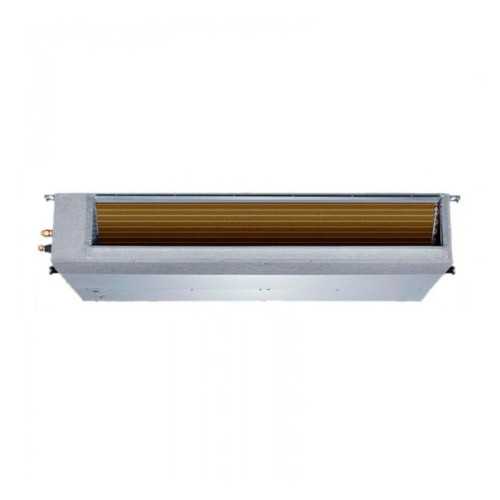

La indoor Unit, with ultra-compact dimensions of 700×200×506 mm and weight of only 16.6 kg, has been specifically designed for discreet horizontal installation, offering variable airflows of 450 to 620 m3/h with adjustable static pressure of 0 to 80 Pa. Its exceptional sound levels of 35/33/31 dB(A) according to speed guarantee practically silent operation, ideal for bedrooms, offices and spaces that require maximum acoustic comfort.

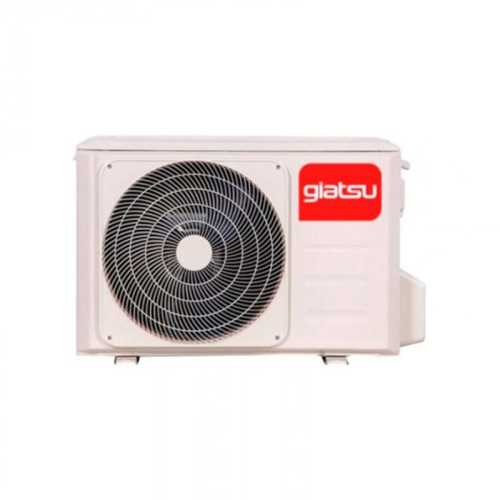

La outdoor Unit GMCC, with dimensions of 765×555×303 mm and weight of 24.6 kg, incorporates protection Golden End for maximum durability in any weather condition. The system allows flexible installations with a maximum pipe length of 25 meters and a height of up to 10 meters, while the cable control included offers advanced weekly programming for automatic optimization of energy consumption according to specific usage patterns.
Main Features Admira Plus Series
️
Intelligent Modulant Capacity
9000 nominal BTU with modulation 1200-13000 BTU/h cold and 3200-11877 BTU/h in heat. Automatic adaptation to real needs.
▪
Maximum efficiency A++/A+
SEER 6.5 in cooling (A++) and SCOP 4.1 in heating (A+). DC inverter technology for minimum energy consumption.
🔇
Ultra-silent operation
Sound levels from 31 dB at minimum speed. Ideal for bedrooms and spaces that require maximum acoustic comfort.
▪
Premium Compact Design
Optimized dimensions 700×200×506 mm and only 16.6 kg. Discreet horizontal installation on any false ceiling.
🌿
Refrigerant Gas R32 Ecological
R32 sustainable technology with optimized load of 0.65 kg. Lower environmental impact and maximum thermal efficiency.
🔧

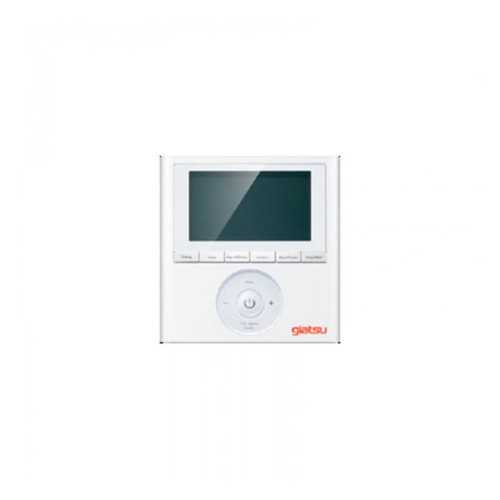

Advanced Programmable Control
Cable control with weekly programming included. Smart management for maximum automatic energy saving.
Complete Technical Specifications
| Feature | Value |
|---|---|
| Model Set | GIA-D-09ADM2R32-WF (Admira Plus Series) |
| Refrigeration capacity | 2.64 kW (0.35~3,82) - 9000 BTU/h (1200~13000) |
| Capacity Heating | 2.93 kW (0.94~3.48) - 10000 BTU/h (3200~11877) |
| Consumption Refrigeration | 720W (135~1182W) |
| Consumption Heating | 850W (290~852W) |
| SEER / SCOP | 6,5 / 4,1 |
| Energy label ( Cold/Calor) | A++ / A+ |
| Sonic pressure Indoor Unit | 35/33/31 dB(A) |
| Sonic pressure Outdoor Unit | 53 dB(A) |
| Air flow rate | 620/540/450 m3/h |
| Static pressure | 25 Pa nominal (0-80 Pa maximum) |
| Dimensions Indoor Unit | 700×200×506 mm |
| Dimensions Outdoor Unit | 765×555×303 mm |
| Weight Indoor Unit | 16.6 kg |
| Weight Outdoor Unit | 24.6 kg |
| Refrigerant Gas / Charge | R32/0.65 kg |
| Length Tuberia Maximum | 25 meters |
| Maximum level | 10 meters |
| Frigorific connections | Liquid 1/4" - Gas 3/8" |
Air Conditioning Benefits Giatsu Admira Plus Series
✓
Ideal for small-medium residential and commercial spaces
Perfect for large bedrooms, medium rooms, offices, medical consultations, small offices and shops that require high-quality quiet air conditioning.
✓
Maximum energy savings with inverter technology
Smart modulation and A++/A+ classification guarantee minimal consumption, significantly reducing electrical bills compared to conventional systems.
✓
Flexible and discreet installation
Compact dimensions and horizontal installation only, ideal for false residential ceilings. Pipe length up to 25m for maximum flexibility.
✓
Exceptional acoustic comfort
With sound levels since 31 dB, it is practically silent. Ideal for bedrooms and spaces that require maximum tranquility.
Why choose the Giatsu Admira Plus Series?
Main applications
▪
Residencial Premium
Main bedrooms, medium rooms, studios and residential spaces that require discreet and silent high quality air conditioning.
🏢
Small offices
Individual dispatches, medical consultations, small offices and professional spaces that need comfortable and quiet environment.
️
Specialized trade
Small shops, pharmacies, optics and specialized shops that require efficient air conditioning without disturbing noises for customers.
Installation Information
Installation Specifications:
- La indoor Unit only allows horizontal installation in false ceiling.
- Maximum length of frigorny pipe: 25 meters with maximum height of 10 meters.
- Frigorific connections: Liquid 1/4" and Gas 3/8" in both units.
- Electric power supply: 220-240V monophasic 50Hz outdoor Unit.
- Condensed pump included for automatic water evacuation.
- Cable control with weekly programming included for intelligent management.
- Installation by authorized technician Giatsu to ensure proper functioning and validity of warranty.
Premium acclimatization for Light Spaces!
Air Conditioning by Conduct Giatsu Admira Plus GIA-D-09ADM2R32-WF Series combines DC inverter technology, maximum A+/A+ efficiency and ultra-silination operation. The perfect solution for those looking for premium, discreet and efficient air conditioning.
Request your custom budget today!
️ GIATSU ADMIRA PLUS 9000 BTU G️
Technology Inverter DC + A++/A+ + Ultra Quiet
Premium Efficiency A++/A+
SEER 6,5 + SCOP 4,1 inverter DC
Intelligent modification 1200-13000 BTU/h
Ultra Quiet 31 dB
Perfect for bedrooms
Virtually imperceptible operation
▪ Premium Compact Design
700×200×506 mm δ 16.6 kg
Discreet horizontal installation
R32 Ecological
Refrigerant Gas sustainable
Reduced environmental impact
▪ Ideal spaces 20-35 m2
📏 Tubería up to 25m
🔧 Programmable control included
💧 Condensed pump included
️ Protection Golden Fin
🎯 Gama Office premium
SERIE ADMIRA PLUS DISPONIBLE
The most silent range of Giatsu with technology inverter DC
Perfect for bedrooms, offices and small offices
▷ INCLUDING PROFESSIONAL INSTRUMENT
️ Warranty 3+5 years
🔧 Technical Service Giatsu
📋 Certification A++/A+
🌿 R32 Ecological
GIA-D-09ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 2.640
- Refrigerator capacity (kcal / h)
- 2.270
- Nominal consumption Cold (W)
- 720
- Energy class (cold)
- A++
- SEER
- 6,5
- Heat capacity (W)
- 2.930
- Heat capacity (Kcal / h)
- 2.520
- Nominal heat consumption (W)
- 850
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 31
- Weight Indoor Unit (Kg)
- 16,6
- Weight Outdoor Unit (Kg)
- 24,6
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Incluido de serie
- Recommended area
- Estancia de 22m2 aprox.
- Dimensions UI (ANXFXH) mm
- 700 x 506 x 200
- EU dimensions (anxfxh) mm
- 765 x 303 555
