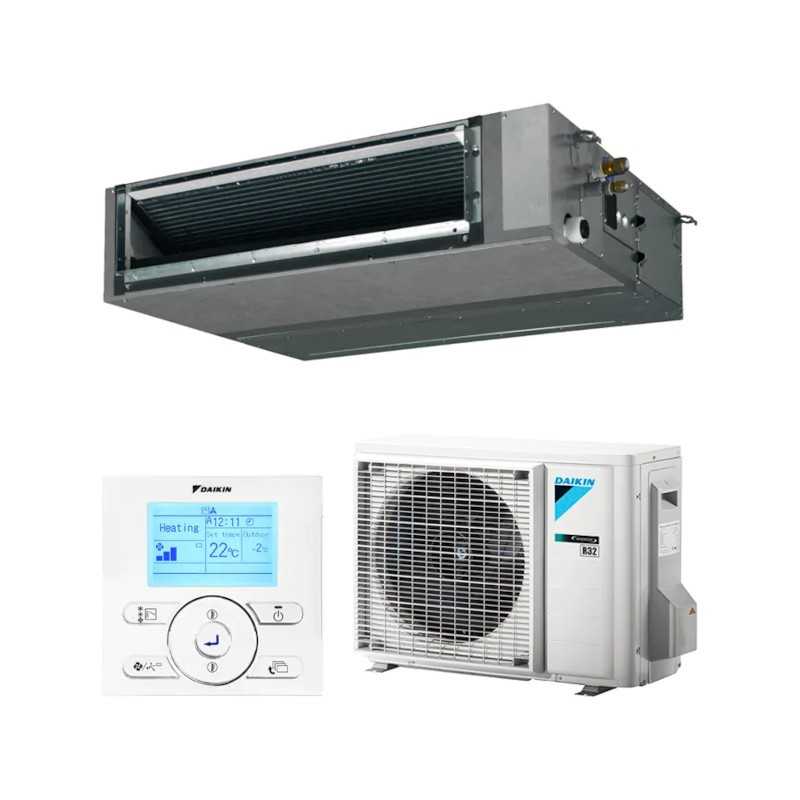

Ducted Air Conditioner Daikin BASG125A SKY AIR SERIE ADVANCE
Referencia: BASG125A
€4,550.68
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin BASG125A represents the technological hub of the Sky Air Advance Series, designed specifically for the most demanding commercial and industrial air conditioning applications. With exceptional capacity 12100W in refrigeration (10400 kcal/h) and 13500W heating (11615 kcal/h), this system constitutes the ultimate solution for large installations that demand maximum power with cutting-edge and eco-friendly R-32 inverter technology.
Your optimized energy efficiency with SEER values 5,27 and SCOP de 3,63 guarantees annual seasonal energy consumption 1378 kWh in refrigeration and 2314 kWh heating, maintaining competitive operating costs for this maximum capacity. The system uses coolant R-32 with a load 2.60 kg and an impact 1.76 TCO2eq, demonstrating commitment to environmental sustainability even in larger applications.

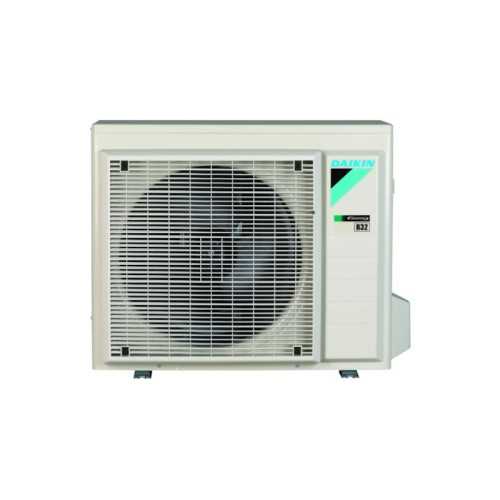

La outdoor Unit RZASG125MV1 incorporates a compressor SWING maximum capacity with air flow 71 m3/min cooling and 82 m3/min heating. Its robust dimensions 990×940×320 mm and weight 70 kg are specifically designed to support the intensive operation of the most demanding facilities, while their sound pressure 53 dBA in cooling and 57 dBA heating maintains professional sound levels.

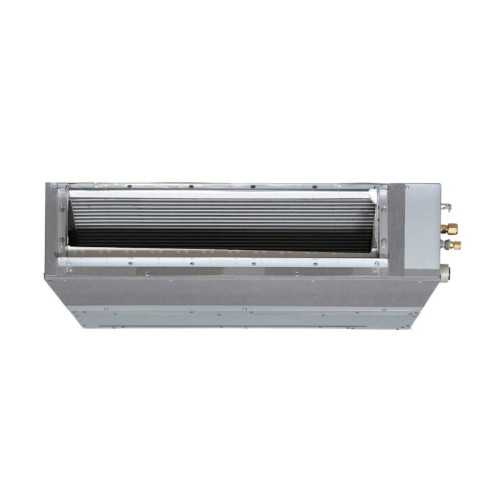

La indoor Unit FBA125A maintains revolutionary ultra-compact design by itself 245 mm height, with dimensions 245×1400×800 mm and weight 46 kg. Its upper air flow 34 m3/min at high speed and 23.5 m3/min at low speed provides the most powerful air distribution available in the series, ensuring homogeneous air conditioning in the wider spaces.
The system allows installations of maximum architectural complexity with maximum pipe length of 50 meters (70 meters equivalent) and maximum level difference of 30 meters. Your cold connections 3/8" for liquid and 5/8" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, allow installations in the most challenging configurations.
With available pressure 50 Pa nominal and up to 150 Pa high, the system is able to overcome the highest resistances of extensive and complex duct systems. Its exceptional internal sound pressure 37 dBA in cooling (32 dBA at low speed) and 38 dBA heating (32 dBA at low speed) makes it the ideal choice for large commercial spaces, convention centers, hospital facilities and institutional applications that require maximum power with professional acoustic comfort.
The refrigerant load included covers up to 30 meters of installation, with specific additional loads +0.35kg for 30-40m and +0.7kg for 40-50m, optimizing installation costs in large scale projects. Your design load 12.10 kW in cooling and 6.00 kW in heating at -10°C ensures constant performance even in the most extreme weather conditions, essential for critical applications.
The level of internal acoustic power 62 dBA and exterior 71 dBA maintains professional standards even with this maximum capacity. Advanced inverter technology allows intelligent power modulation according to variable demands, maximizing operational efficiency in intensive use facilities and multiple climate zones.
Main Features Maximum Capacity
🏥
Institutional applications
Hospitals, universities, research centers and government buildings that demand maximum air conditioning capacity.
Maximum Capacity 12100W for Critical Installations!
The Daikin BASG125A series Advance represents the technological hub with 12100W in cooling and 13500W in heating. Massive flow of 82 m3/min, 150 Pa superior pressure and green R-32 technology for the most demanding applications on the market.
Request your budget for critical facilities today!
️
Refrigeration 12100W
Maximum capacity available for large industrial and commercial installations.
🔥
Heating 13500W
Superior heating power for thermal comfort in the most demanding applications.
💨
Maximum rate
82 m3/min in heating for the most powerful air distribution.
📐
Maximum pressure
50 Pa nominal up to 150 Pa for the most complex and extensive duct systems.
🌿
R-32 Sustainable
Refrigerant Gas eco-friendly for maximum capacity with environmental responsibility.
🏗️
Maximum Flexibility
50m pipe, 30m high and 245mm high for the most challenging installations.
Technical Specifications Maximum Capacity
| Feature | Value |
|---|---|
| Model Set | BASG125A (FBA125A + RZASG125MV1) |
| Refrigeration capacity | 12100W (10400 kcal/h) |
| Capacity Heating | 13500W (11615 kcal/h) |
| SEER / SCOP | 5,27 / 3,63 |
| Energy label ( Cold/Calor) | - / - |
| Annual Energy Consumption | 1378 kWh (Refrigeration), 2314 kWh (Calefaction) |
| Charge Design (Pdesign) | 12.10 kW (cold), 6,00 kW (Calor -10°C) |
| Refrigerant Gas | R-32 (2.60 kg / 1.76 TCO2eq / PCA 675) |
| Frigorific connections | Liquid 9.5mm (3/8") - Gas 15.9mm (5/8") |
| Electrical supply | I/220V (3+T interconnected threads) |
| Maximum Length Tuberia | 50 meters (70 meters equivalent) |
| Maximum level difference | 30 meters |
| Air flow Indoor Unit | 34/23.5 m3/min (Refrigeration A/B), 34/23.5 m3/min (A/B) |
| Available pressure | 50 Pa (Nominal) / 150 Pa (Alta) |
| Ventilator speeds | 3 speeds |
| Dimensions Indoor Unit | 245×1400×800 mm (Alto×Ancho×Fondo) |
| Weight Indoor Unit | 46 kg |
| Sonic pressure Indoor Unit | 37/32 dBA (Refrigeration A/B), 38/32 dBA (A/B) |
| Level Domestic acoustic power | 62 dBA |
| Air flow Outdoor Unit | 71 m3/min (Refrigeration), 82 m3/min (Calefaction) |
| Type Compressor | SWING |
| Dimensions Outdoor Unit | 990×940×320 mm (Alto×Ancho×Fondo) |
| Weight Outdoor Unit | 70 kg |
| Sonic pressure Outdoor Unit | 53 dBA (Refrigeration), 57 dBA (Calefaction) |
| Level External Acoustic Power | 71 dBA |
| Charge Refrigerant Gas Included | 30 meters |
| Additional charge | +0.35kg (30-40m), +0.7kg (40-50m) |
Advantages Maximum Capacity Advance Series
✓
Solution for Maximum Facilities
12100W the highest capacity available for convention centers, large shopping centers, industrial facilities and critical institutional applications.
✓
Higher Masive Distribution
34 m3/min indoor Unit and 82 m3/min external for the fastest and most efficient air conditioning of mass volumes.
✓
Maximum Pressure for Complex Behaviors
50 Pa nominal up to 150 Pa to overcome the highest resistances in extensive duct systems and multiple ramifications.
✓
Revolutionary Compact for Maximum Power
Only 245mm high with 12100W, unique technological achievement for installations with severe architectural limitations.
Main applications Maximum capacity
🏢
Convention centres
Conference venues, exhibition centers, auditoriums and event facilities that require massive air conditioning.
🏭
Industrial facilities
Industrial ships, production centers, logistics stores and large-scale manufacturing applications.
BASG125A
Data sheet
- Brand
- Daikin
- Indoor Unit
- FBA125A
- Outdoor Unit
- RZASG125MV1
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 12.093
- Refrigerator capacity (kcal / h)
- 10.400
- Nominal consumption Cold (W)
- 4.640
- SEER
- 5,3
- Heat capacity (W)
- 13.506
- Heat capacity (Kcal / h)
- 11.615
- SCOP
- 3,6
- Minimum sound pressure UI DB
- 32
- Weight Indoor Unit (Kg)
- 46,00
- Weight Outdoor Unit (Kg)
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 800 x 245
- EU dimensions (anxfxh) mm
- 940 x 380 x 990
