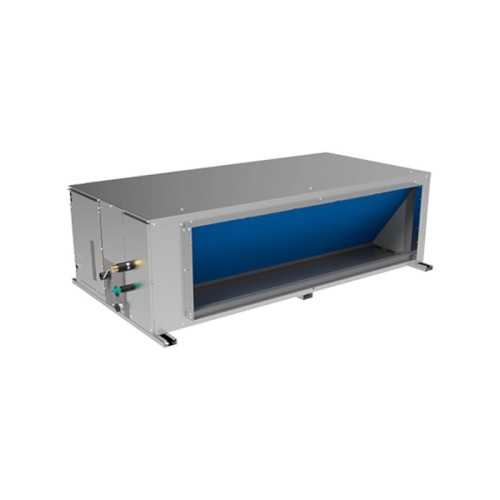

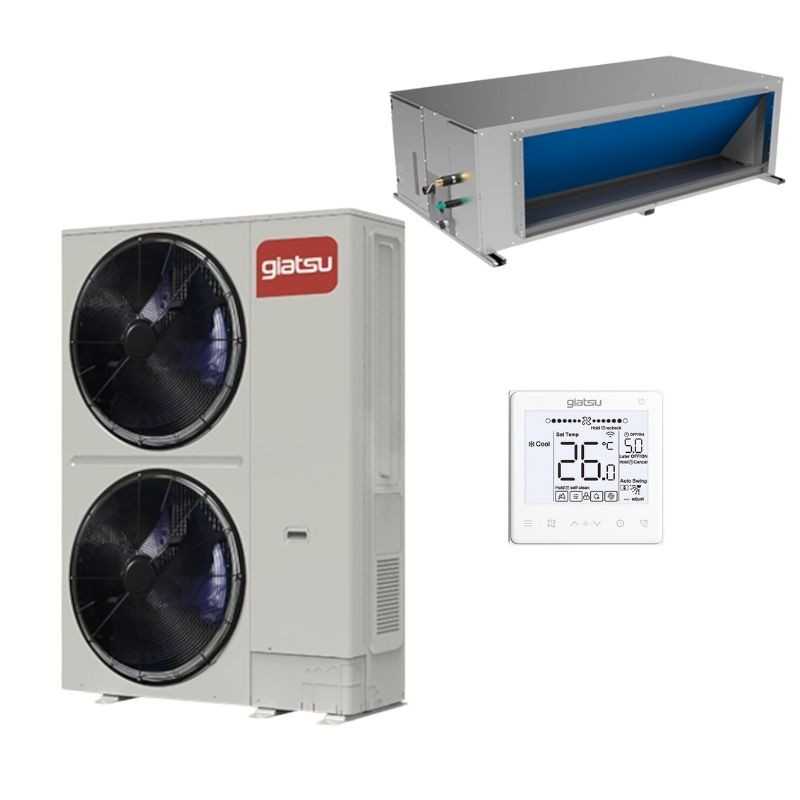

Ducted Air Conditioner Giatsu GIA-BD-40IX56A
Series BIG DUCT IX56A ⋅ 40000 W Ș 400Pa Pressure Δ R410A Δ Comercial
The Air Conditioning by Conduct Giatsu GIA-BD-40IX56A achieves the commercial power with 40kW maintaining the exceptional static pressure 400 Pa characteristic of the BIG DUCT IX56A series. Designed for commercial spaces of 180-220 m2, it integrates R410A inverter technology with SEER 6,5 and a robust 2500 m3/h flow. Its advanced weekly control and multiposition configuration make it the ideal solution for large offices, trades and light industrial applications that demand powerful and efficient air conditioning.
400 400 Pass
Maximum commercial pressure
️ 2500 m3/h
Commercial flow
▪ SEER 6,5
Higher efficiency
180-220 m2
Commercial application
Key Specifications
Power: 40000 W
SEER: 6,5
Static pressure: 400 Pa
Air flow: 2500 m3/h
Refrigerant Gas: R410A
Sound level: 53/51/48/45 dB(A)
Food: 220-240/50 Hz
Settings: Multiposition
Reference: GIA-BD-40IX56A Giatsu BIG DUCT IX56A
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-BD-40IX56A Big Duct
Referencia: GIA-BD-40IX56A
€8,351.25
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-BD-40IX56A
Series BIG DUCT IX56A ⋅ 40000 W Ș 400Pa Pressure Δ R410A Δ Comercial
The Air Conditioning by Conduct Giatsu GIA-BD-40IX56A achieves the commercial power with 40kW maintaining the exceptional static pressure 400 Pa characteristic of the BIG DUCT IX56A series. Designed for commercial spaces of 180-220 m2, it integrates R410A inverter technology with SEER 6,5 and a robust 2500 m3/h flow. Its advanced weekly control and multiposition configuration make it the ideal solution for large offices, trades and light industrial applications that demand powerful and efficient air conditioning.
400 400 Pass
Maximum commercial pressure
️ 2500 m3/h
Commercial flow
▪ SEER 6,5
Higher efficiency
180-220 m2
Commercial application
Key Specifications
Power: 40000 W
SEER: 6,5
Static pressure: 400 Pa
Air flow: 2500 m3/h
Refrigerant Gas: R410A
Sound level: 53/51/48/45 dB(A)
Food: 220-240/50 Hz
Settings: Multiposition
Reference: GIA-BD-40IX56A Giatsu BIG DUCT IX56A
Security policy
Delivery policy
Refund policy
Advanced Commercial Power for Large Spaces
The Air Conditioning by Conduct Giatsu GIA-BD-40IX56A represents the leap towards advanced commercial power within the BIG DUCT IX56A Series. With 40kW capacity and maintaining the exceptional static pressure 400 Pa, is specifically designed for commercial and light industrial applications that require robust air conditioning and efficient distribution in wide spaces.
Your technology inverter with coolant R410A achieves higher efficiency SEER 6,5, while the robust flow rate 2500 m3/h guarantees effective air conditioning for 180-220 m2. Ideal solution for large offices, small malls and light industrial applications.
🏢
40000 W Commercial
Advanced commercial power for large offices, malls and light industrial applications.
️
Caudal Robust 2500 m3/h
Robust range for efficient distribution in large commercial spaces up to 220 m2.
▪
SEER 6,5 Senior
Higher energy efficiency with R410A inverter technology for commercial operating savings.
🔧
Commercial building

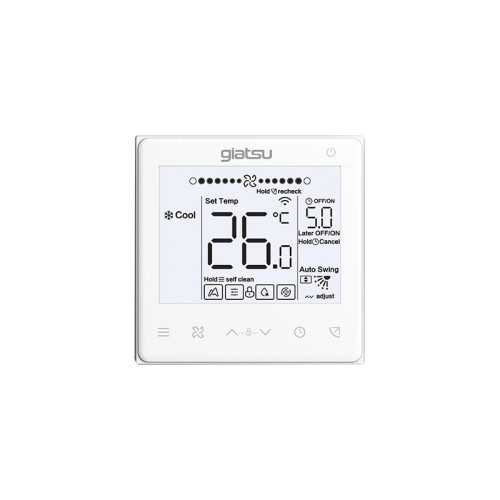

Advanced control for maximum commercial installation flexibility.
Commercial Technical Specifications
| Feature | Specification | Unit |
|---|---|---|
| Model | GIA-BD-40IX56A | - |
| Frigorific power | 40000 | W |
| Calorific power | 42000 | W |
| SEER (Efficiency) | 6,5 | - |
| Electrical supply | 220-240V/50Hz | V/Hz |
| Maximum Static Pressure | 400 | Pa |
| Maximum Air flow rate | 2500 | m3/h |
| Sound level (4 speeds) | 53/51/48/45 | dB(A) |
| Refrigerant Gas | R410A | - |
| Settings | Horizontal | - |
| Recommended Coverage | 180-220 | m2 |
Why choose to choose Giatsu GIA-BD-40IX56A?
: Commercial applications:
- Large offices and corporate spaces (180-220 m2)
- Small and medium-sized shopping centres
- Medical and Clinical Consultants
- Restaurants and hostel facilities
- Industrial applications
- Facilities with complex ducts and multiple outputs
▼ Competitive advantages:
- 40kW commercial power with efficiency SEER 6,5
- High static pressure 400 Pa for complex installations
- 2500 m3/h for large spaces
- Horizontal configuration for maximum flexibility
- Inverter technology R410A for energy saving
- Silent operation since 45 dB(A)
Request your Budget for the Giatsu GIA-BD-40IX56A!
40000 W Commercial - The perfect solution for large commercial and industrial spaces light
What WhatsApp
Commercial advice
2 2500 m3/h
Commercial flow
▪ SEER 6,5
Higher efficiency
️ Warranty
Commercial coverage
GIA-BD-40IX56A
Data sheet
- Brand
- Giatsu
- Indoor Unit

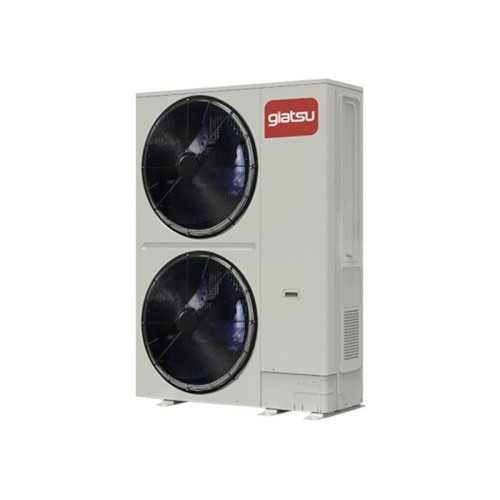

- Outdoor Unit
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 40.000
- Refrigerator capacity (kcal / h)
- 34.400
- Nominal consumption Cold (W)
- 17.860
- SEER
- 6,2
- Heat capacity (W)
- 45.000
- Heat capacity (Kcal / h)
- 38.700
- Nominal heat consumption (W)
- 12.228
- SCOP
- 4,7
- Minimum sound pressure UI DB
- 48
- Weight Indoor Unit (Kg)
- 166,0
- Weight Outdoor Unit (Kg)
- 187,0
- Diameter Liquid pipe
- 1/2"
- Diameter Gas Pipe
- 1"
- Possibility Integration
- It does not incorporate WiFi
- Recommended area
- Consultation
- Dimensions UI (ANXFXH) mm
- 1850 x 900 x 580
- EU dimensions (anxfxh) mm
- 1130 x 445 x 1760
