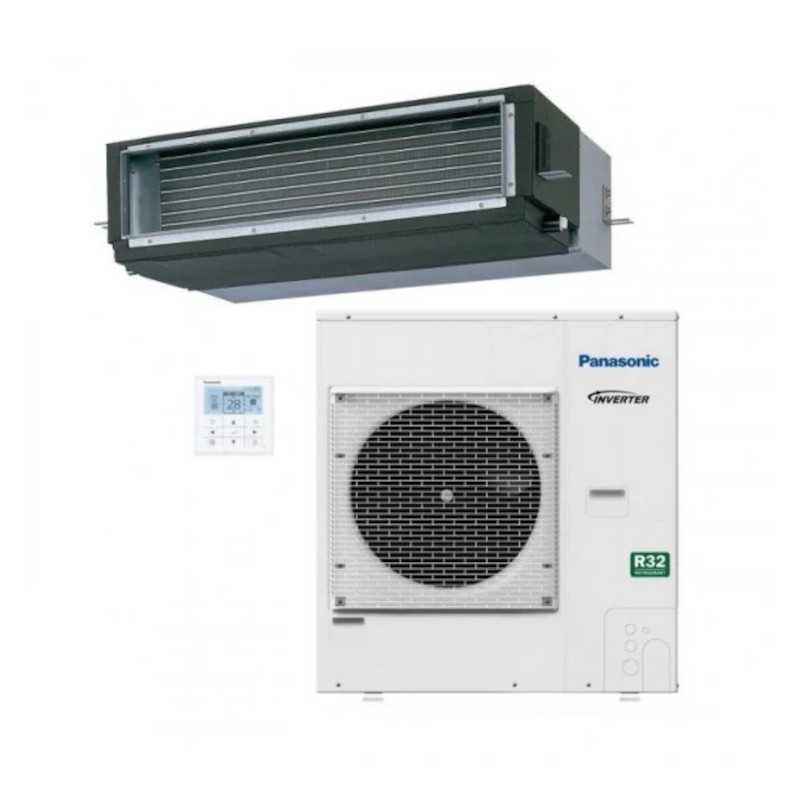

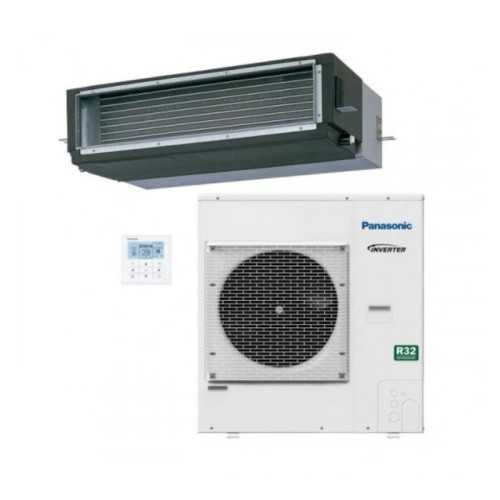

Air Conditioning Panasonic KIT-50PF3Z5
Refrigeration 5000W 日本語 Heating 5400W ̄s Efficiency A++ 日本語 Commercial Media
The Air Conditioning Panasonic KIT-50PF3Z5 is the efficient solution of the PACi NX Standard Series with 5000W in cooling and 5400W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for medium commercial spaces and large housings that require powerful and efficient air conditioning.
5️ 5000W Refrigeration
EER 4,17 - Efficient
5 5400W Heating
COP 4.00 - High performance
▪ SEER 6,5 / SCOP 4,0
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Efficient Conduct

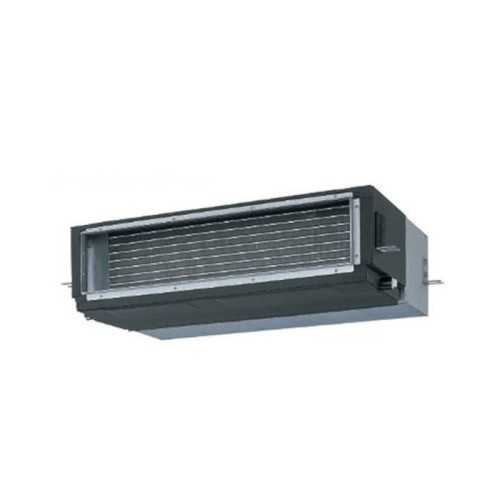

Indoor Unit: CS-50PF3Z5EAW

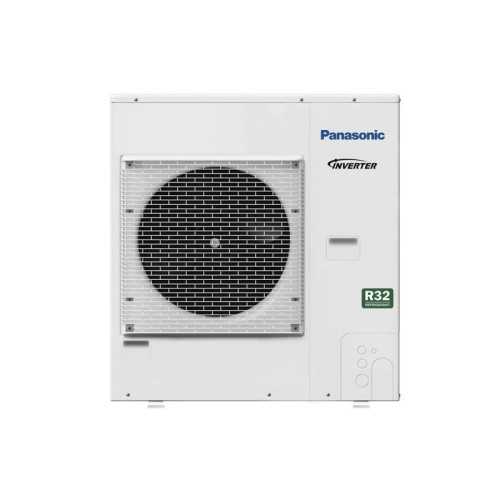

Outdoor Unit: CU-50PF3Z5EA
Air flow: 14.0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 25 dBA
Annual consumption: 269 kWh/year
Refrigerant Gas: R-32 (1.35 kg)
Length Tuberia: 3-20m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Panasonic KIT-50PF3Z5-6W PACi NX Standard Series
Referencia: KIT-50PF3Z5-6W
€1,479.62
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-50PF3Z5
Refrigeration 5000W 日本語 Heating 5400W ̄s Efficiency A++ 日本語 Commercial Media
The Air Conditioning Panasonic KIT-50PF3Z5 is the efficient solution of the PACi NX Standard Series with 5000W in cooling and 5400W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for medium commercial spaces and large housings that require powerful and efficient air conditioning.
5️ 5000W Refrigeration
EER 4,17 - Efficient
5 5400W Heating
COP 4.00 - High performance
▪ SEER 6,5 / SCOP 4,0
Efficiency A+ / A+
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Efficient Conduct
Indoor Unit: CS-50PF3Z5EAW
Outdoor Unit: CU-50PF3Z5EA
Air flow: 14.0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 25 dBA
Annual consumption: 269 kWh/year
Refrigerant Gas: R-32 (1.35 kg)
Length Tuberia: 3-20m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-50PF3Z5
Efficiency 5000W Δ PACi NX Standard Δ nanoeTM X Mark 2 Δ A++
Efficiency and Optimized Power
The Panasonic KIT-50PF3Z5 represents the efficient solution of the PACi NX Standard Series, offering 5000W of frigorific power and 5400W heat power with monophasic power 220-240V. This model is designed for medium-sized commercial spaces, offices and spacious housing that require powerful and efficient air conditioning with advanced air purification technology.
Es Efficient characteristics
Area: 45-65m2 medium space
▪ Frigorific power: 5000W efficient
Calorific power: 5400W performance
Food: Monofs 220-240V
: Air flow: 14.0 m3/min
🔧 Indoor Unit: 800mm standard
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, creating a healthier and more comfortable space especially important in offices and commercial spaces with constant movement of people.
Efficient Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
S Benefits Medium Spaces
- Cleaner and healthy air
- Allergic symptoms reduction
- More hygienic environment
- Continuous silent operation
Energy Efficiency A++ Superior
With SEER 6,5 A++ in cooling and SCOP 4.0 A+ in heating, the KIT-50PF3Z5 offers excellent energy efficiency for its power. The system consumes only 269 kWh annual, optimizing energy performance for medium spaces where the balance between power and consumption is fundamental.
▼ Advantages Efficiency
- Reduced annual operating cost
- Fast repayment
- Energy rating A++
Efficiency
SEER:
6.5 A++
6.5 A++
SCOP:
4.0 A+
4.0 A+
EER:
4,17
4,17
COP:
4,00
4,00
Dual Dual installation PF3 Versatile
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to fit any space settings. This versatility is particularly valuable in offices and commercial spaces where architectural limitations require adaptable solutions.
Flexibility Installation
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Total architectural adaptation
S️ Technical advantages
- Standard 800mm unit
- Optimized false ceiling height
- Maintenance accessibility
- Uniform air distribution
Miento Operation Ultra Silent 25dBA
With its power 5000W, the KIT-50PF3Z5 maintains exceptionally silent operation with only 25 dBA sound pressure. This feature is fundamental for commercial spaces and offices that require a peaceful and productive environment without compromising the performance of air conditioning.
Tiva Comparison Sonora
- 25 dBA: Very soft whisper
- Less than whispered conversation
- Ideal workspaces
Nivel Sound level
25 dBA
Ultra Quiet
Perfect for offices and medium commercial spaces
Advanced Drying and Control System
Included Dry Pump
Drainage pump included in series capacity 2.7 L/h, allowing elevation to 680mm and efficient condensate evacuation for any space configuration.
- No additional cost
- Efficient Condensed Evacuation
- Automatic operation
- Lift height 680mm

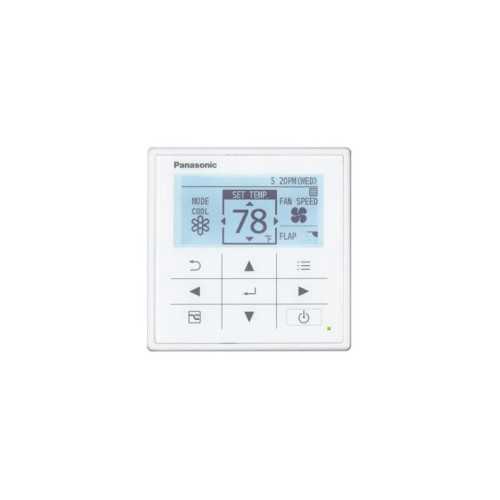

Bluetooth® Control
CZ-RTC6BL Bluetooth® included series for full wireless control from smartphone, with weekly programming and intelligent system management.
- IOS/Android Smartphone Control
- Weekly programme
- Monitoring consumption
- Complete remote management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Coolant load: 1.35 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
Dimensions System
- Indoor Unit: 800mm
- Pipe length: 3-20m
- Maximum level: 15/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +46°C
- Air flow: 14,0 m3/min
- Power supply: 220-240V 1~
- Annual consumption: 269 kWh
KIT-50PF3Z5 - Efficiency PACi NX Standard Series
5000W Efficient Δ nanoeTM X Mark 2 ⋅ 25dBA Quietness A++ Efficiency Δ Dual Installation
¡ Higher Efficiency Panasonic KIT-50PF3Z5!
5000W Eficient Δ nanoeTM X Mark 2 Δ Solo 25dBA Δ SEER 6,5 A++ Δ Dual Installation
Why choose the KIT-50PF3Z5?
✓ Higher efficiency: 5000W with SEER 6,5 A++
✓ Ultra Silence: Only 25dBA performance
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Dual installation: Horizontal/vertical same tray
✓ Tuberia 20m: Versatile range medium spaces
✓ Bluetooth® Control: CZ-RTC6BL included
Online Efficient Offer
PRECIO EFICIENTE WEB
Consult special conditions efficiency A++
Consult special conditions efficiency A++
Efficient Pack Includes:
- Internal units (800mm) and exterior
- CZ-RTC6BL Bluetooth®
- Integrated drainage pump
- Official guarantee Panasonic
S Efficient Technical Specifications
️ Frigorific Power
5000WCalorific power
5400WEfficiency SEER
6.5 A++Nivel Sound level
25 dBASurface
45-65m2Maximum pipe
20mKIT-50PF3Z5 - Efficiency and Optimized Power
5000W Efficient Δ SEER 6,5 A++ Δ nanoeTM X Mark 2 Δ 25dBA Δ Tubería 20m Δ Control Bluetooth® Δ Pump
KIT-50PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-3650PF3E
- Outdoor Unit
- U-50PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.800
- Energy class (cold)
- A++
- SEER
- 6,5
- Heat capacity (W)
- 5.000
- Heat capacity (Kcal / h)
- 4.300
- Nominal heat consumption (W)
- 1.380
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 25,0
- Weight Outdoor Unit (Kg)
- 35,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 40m2 aprox.
- Dimensions UI (ANXFXH) mm
- 800 x 730 x 250
- EU dimensions (anxfxh) mm
- 824 x 299 x 619
