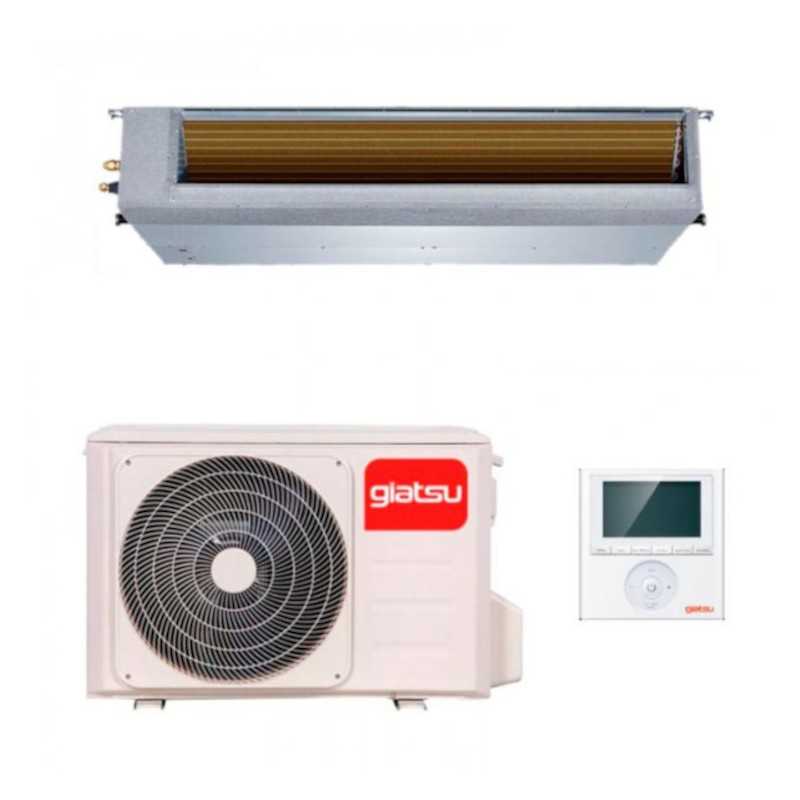

Ducted Air Conditioner Giatsu GIA-D-36ADM2R32-WF
Admira Plus Series 36000 BTU A++/A+ Δ Great Commercial Scale ⋅ 75m Tub
The Air Conditioning by Conduct Giatsu GIA-D-36ADM2R32-WF admira Plus Series marks a milestone in large-scale commercial air conditioning with 10,55 kW in cooling and 11,72 kW in heating. Its DC inverter technology allows modulation from 9400 to 40000 BTU/h, while its installation capabilities extend to 75 meters of pipe 30m high. With energy rating A++/A+ (SEER 6,3 / SCOP 4,1), airflow up to 1700 m3/h, indoor Unit 1200×245×750 mm and 2.4 kg R32 coolant represents the premium solution for large commercial surfaces that demand maximum professional industrial air conditioning.
36 36000 BTU Industrial
10,55 kW cold / 11,72 kW heat
75 75m Maximum Tube
Large scale + 30m
17 1700 m3/h Caudal
Massive distribution
da Expanded Unit
1200×245×750 mm
Key Specifications Large Commercial Scale
Capacity: 36000 BTU/h
Modulation: 9400-40000 BTU/h
Cold consumption: 3950W (900-4300W)
Consumption heat: 3250W (800-4300W)
Static pressure: 0-160 Pa
Air flow: 1100-1700 m3/h
Refrigerant Gas: R32 (2.4 kg)
Pipe length: Up to 75m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Giatsu GIA-D-36ADM2R32-WF series Admira Plus Monof.
Referencia: GIA-D-36ADM2R32-WF
€1,480.31
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-D-36ADM2R32-WF
Admira Plus Series 36000 BTU A++/A+ Δ Great Commercial Scale ⋅ 75m Tub
The Air Conditioning by Conduct Giatsu GIA-D-36ADM2R32-WF admira Plus Series marks a milestone in large-scale commercial air conditioning with 10,55 kW in cooling and 11,72 kW in heating. Its DC inverter technology allows modulation from 9400 to 40000 BTU/h, while its installation capabilities extend to 75 meters of pipe 30m high. With energy rating A++/A+ (SEER 6,3 / SCOP 4,1), airflow up to 1700 m3/h, indoor Unit 1200×245×750 mm and 2.4 kg R32 coolant represents the premium solution for large commercial surfaces that demand maximum professional industrial air conditioning.
36 36000 BTU Industrial
10,55 kW cold / 11,72 kW heat
75 75m Maximum Tube
Large scale + 30m
17 1700 m3/h Caudal
Massive distribution
da Expanded Unit
1200×245×750 mm
Key Specifications Large Commercial Scale
Capacity: 36000 BTU/h
Modulation: 9400-40000 BTU/h
Cold consumption: 3950W (900-4300W)
Consumption heat: 3250W (800-4300W)
Static pressure: 0-160 Pa
Air flow: 1100-1700 m3/h
Refrigerant Gas: R32 (2.4 kg)
Pipe length: Up to 75m
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Giatsu GIA-D-36ADM2R32-WF represents a significant advance in large-scale commercial air conditioning, specifically designed for industrial and commercial applications that demand exceptional capabilities without compromising energy efficiency. With a robust nominal capacity of 10.55 kW in refrigeration (36000 BTU/h) and 11.72 kW in heating (40000 BTU/h), this system employs industrial inverter DC technology that allows intelligent modulation from 9400 to 40000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of large commercial surfaces, industrial ships, distribution centers and maximum commercial applications.
The combination of GMCC inverter industrial compressor and high-capacity DC fan ensures an A+ energy rating in refrigeration (SEER 6,3) and A+ in heating (SCOP 4,1), maintaining exceptional efficiency even with this industrial capacity. The system employs eco-friendly R32 coolant with 2.4 kg load, optimized for maximum thermal capacity while maintaining environmental sustainability, crucial for large-scale responsible commercial applications that require intensive and continuous operation.

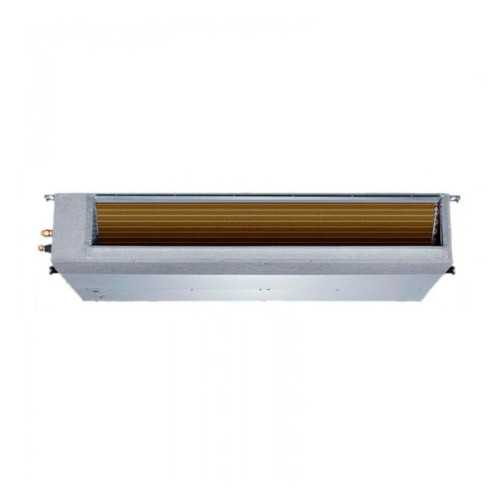

La indoor Unit has been redesigned with enlarged dimensions of 1200×245×750 mm and weight of 38.8 kg, maintaining the versatility of horizontal and vertical multiposition installation while providing industrial airflows from 1100 to 1700 m3/h with static pressure of up to 160 Pa. These specifications allow maximum complexity installations with multi-storey distribution, complete buildings and industrial architectural configurations. Its optimized sound levels of 38/36/33 dB(A) according to speed guarantee discreet professional performance even with this industrial capacity, essential for commercial applications that require a peaceful working environment.

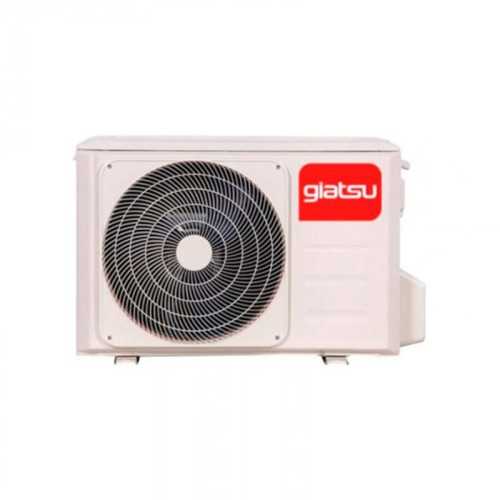

La outdoor Unit Industrial GMCC, with dimensions of 946×810×410 mm and weight of 66.9 kg, has been specifically reinforced to support the thermal demands of continuous industrial operation, incorporating protection Golden Fin premium anticorrosion and thermal exchange systems of maximum capacity. The system allows industrial scale installations with maximum pipe length of 75 meters and height of up to 30 meters, while the 3/8" - 5/8" refrigerator connections guarantee optimal flow for this capacity. The included cable control offers advanced weekly programming for automatic optimization in complex commercial applications and smart management of multiple industrial air conditioning zones.
Industrial Features Large Scale
🏭
Industrial capacity 36000 BTU
Modulation from 9400 to 40000 BTU/h. Designed for industrial ships, large commercial surfaces and high-end applications.
📏
Industrial Escalation
75 meters of pipe with 30m. Capacity to air full buildings and complex industrial configurations.
💨
Industrial range 1700 m3/h
Massive air distribution for rapid air conditioning of large volumes. Ideal for ships, warehouses and industrial spaces.
📐
Indoor Unit Industrial
1200×245×750 mm multiposition for complex industrial installations. Reinforced construction for continuous operation.
▪
Industrial efficiency A++/A+
SEER 6,3 and SCOP 4,1 with industrial DC inverter technology. Efficiency maintained even with 36000 BTU capacity.
🌿
R32 Industrial Capacity
2.4 kg R32 optimized for intensive industrial operation while maintaining environmental sustainability.
Technical Specifications Large Scale
| Feature | Value |
|---|---|
| Model Set | GIA-D-36ADM2R32-WF (Admira Plus Large Scale Series) |
| Refrigeration capacity | 10.55 kW (2.75~11.73) - 36000 BTU/h (9400~40000) |
| Capacity Heating | 11,72 kW (2,78~12,61) - 40000 BTU/h (9500~43000) |
| Consumption Refrigeration | 3950W (900~4300W) |
| Consumption Heating | 3250W (800~4300W) |
| SEER / SCOP | 6,3 / 4,1 |
| Energy label ( Cold/Calor) | A++ / A+ |
| Installation Available | Horizontal & Vertical (Multiposition) |
| Sonic pressure Indoor Unit | 38/36/33 dB(A) |
| Sonic pressure Outdoor Unit | 65 dB(A) |
| Air flow rate | 1700/1400/1100 m3/h (high/ medium/low) |
| Static pressure | 37 Pa nominal (0-160 Pa maximum) |
| Dimensions Indoor Unit | 1200×245×750 mm (Industrial) |
| Dimensions Outdoor Unit | 946×810×410 mm |
| Weight Indoor Unit | 38.8 kg |
| Weight Outdoor Unit | 66.9 kg |
| Refrigerant Gas / Charge | R32 / 2.4 kg |
| Length Tuberia Maximum | 75 meters |
| Maximum level | 30 meters |
| Frigorific connections | Liquid 3/8" - Gas 5/8" |
Industrial Advantages Large Scale
✓
Ideal for industrial and large scale applications
36000 BTU perfect for industrial ships, large warehouses, distribution centers, supermarkets and large commercial spaces +120 m2.
✓
Industrial scale installation
75 meters of pipe allow air conditioning complete buildings, large surface ships and complex industrial configurations with maximum flexibility.
✓
Massive distribution of air conditioning
1700 m3/h guarantee fast and homogeneous air conditioning of large volumes, ideal for industrial ships and high-rise spaces.
✓
Reinforced industrial durability
Reinforced construction for continuous and intensive industrial operation. Sizing components for large-scale commercial applications.
Main Industrial Applications
🏭
Industrial ships
Industrial ships, large surface warehouses, logistics centers, distribution centers and large industrial spaces.
🛒
Large Commercial Surfaces
Supermarkets, hypermarkets, large shopping centers, large stores and retail spaces of maximum surface.
🏢
Corporate Complexes
Complex offices, corporate centres, administrative buildings and large-scale institutional facilities.
Large-scale Industrial acclimatization!
The Giatsu Admira Plus 36000 BTU Series is the ultimate solution for industrial applications with 75m of pipe, 1700 m3/h of flow and DC inverter technology. Ideal for industrial ships, large surfaces and applications of maximum size.
Request your industrial budget today!
GIATSU ADMIRA PLUS 36000 BTU G
GRAN ESCALA Industrial + 75m Tubería + 1700 m3/h
Industrial capacity
36000 BTU/h large scale
Massive modulation 9400-40000 BTU/h
75m Industrial Tube
Industrial scale + 30m
Full buildings and ships
Massive range 1700 m3/h
Industrial air distribution
Rapid air conditioning large volume
Reinforced construction
1200×245×750 mm industrial
Intensive operating components
🏭 Ideal spaces 120+ m2
🔄 Multiposition H+V
▪ A++/A+ efficiency
🔇 Quiet since 33 dB
📐 Pressure 160 Industrial Pa
🌿 Organic R32 2.4 kg
GREAT INDUSTRIAL SCALE
36000 BTU with 75m pipe and 1700 m3/h mass flow
Perfect for industrial ships, large surfaces and complexes
▷ SPECIALIZED INDUSTRIAL INSTALATION
️ Warranty 3+5 years
🔧 Industrial Technical Service
📋 Certification A++/A+
🏭 Industrial applications
GIA-D-36ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- GIA-DI-36ADMR32-WF
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 10.550
- Refrigerator capacity (kcal / h)
- 9.073
- Nominal consumption Cold (W)
- 3.950
- Energy class (cold)
- A++
- SEER
- 6,3
- Heat capacity (W)
- 11.720
- Heat capacity (Kcal / h)
- 10.062
- Nominal heat consumption (W)
- 3.250
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 33
- Weight Indoor Unit (Kg)
- 41,00
- Weight Outdoor Unit (Kg)
- 66,9
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Incluido de serie
- Recommended area
- Estancia de 90m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1200 x 750 x 245
- EU dimensions (anxfxh) mm
- 946 x 410 x 810
