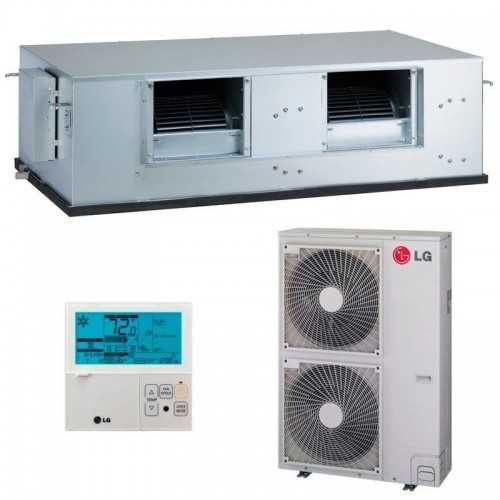

Ducted Air Conditioner High Pressure LG UB70 TRIFÁSICA
Air conditioning system with high capacity ducts with 20.1 kW of nominal triphase power, specially designed for medium-large industrial and commercial installations. This high-pressure equipment combines excellent performance with robust technology, ideal for large shopping centers, hotels, medium hospitals and spaces that require large air conditioning with maximum reliability and high static pressure.
- ▷ Industrial power of 20.1 kW in cold and 22.4 kW in heat for large spaces
- ▷ Modulant capacity of 7.5-21.5 kW cold and 8,0-24,5 kW heat
- ▷ Robust triphase system with static pressure up to 150 Pa
- ▷ High air flow rate up to 58 m3/min for large volumes
- ▷ Refrigerant Gas R-410A for maximum reliability in intensive applications
- ▷ Maximum pipe length up to 50 meters for extensive installations
Reference: UB70 TRIFÁSICA
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
LG UB70 Three-Phase High-Pressure Ducts
Referencia: KITCONDUB70
€5,052.29
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner High Pressure LG UB70 TRIFÁSICA
Air conditioning system with high capacity ducts with 20.1 kW of nominal triphase power, specially designed for medium-large industrial and commercial installations. This high-pressure equipment combines excellent performance with robust technology, ideal for large shopping centers, hotels, medium hospitals and spaces that require large air conditioning with maximum reliability and high static pressure.
- ▷ Industrial power of 20.1 kW in cold and 22.4 kW in heat for large spaces
- ▷ Modulant capacity of 7.5-21.5 kW cold and 8,0-24,5 kW heat
- ▷ Robust triphase system with static pressure up to 150 Pa
- ▷ High air flow rate up to 58 m3/min for large volumes
- ▷ Refrigerant Gas R-410A for maximum reliability in intensive applications
- ▷ Maximum pipe length up to 50 meters for extensive installations
Reference: UB70 TRIFÁSICA
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioned by High Pressure Conduct LG UB70 TRIFÁSICA is a high-capacity industrial air conditioning system specifically designed for medium-sized commercial and industrial installations that require high power, exceptional reliability and constant performance. This equipment of the industrial range LG combines a nominal power of 20.1 kW in cold and 22.4 kW in heat with an exceptional modulant capacity ranging from 7.5 to 21.5 kW in cooling and from 8.0 to 24,5 kW in heating.
This three-phase system stands out for its robust construction designed for continuous operation in intensive applications, with static pressure up to 150 Pa and pipe lengths up to 50 meters. La indoor Unit, with optimized industrial dimensions and robust construction, provides an airflow of up to 58 m3/min with controlled sound levels of 47/45/43 dB according to the selected speed, optimized for commercial environments where the balance between performance and acoustic comfort is sought.

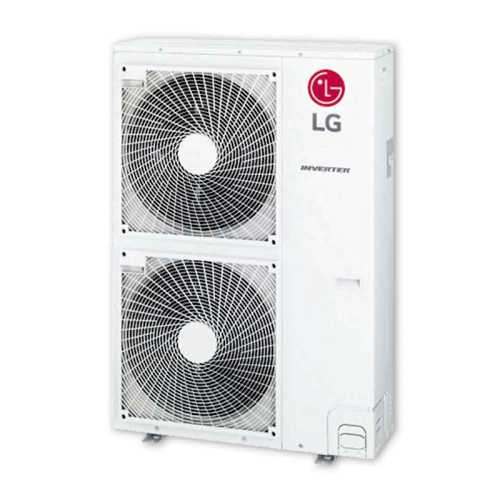

La outdoor Unit, with robust industrial construction and high-performance technology, it incorporates advanced systems to maximize thermal exchange in large-scale applications. With an extended range of operation ranging from -10°C to 48°C in cooling and from -20°C to 18°C in heating, this system uses R-410A coolant in optimized quantity, ensuring maximum reliability and constant performance in the demanding operating conditions that demand medium-scale commercial and industrial installations.
Main features
🏭
Industrial Power Robusta
Rated power of 20.1 kW in cold and 22.4 kW in heat, with advanced modulation from 7.5-21.5 kW in cooling and 8,0-24,5 kW in heating for large installations.
▪
Efficient Triphasic System
Three-phase food for maximum stability and efficiency in continuous commercial applications with high energy demands.
🔧
High Static Pressure
Up to 150 Maximum static pressure pa to overcome resistances in large ducts and complex business configurations.
💨
Optimized Elevated Caudal
Air flow up to 58 m3/min to efficiently air large commercial and industrial volumes with homogeneous distribution.
📏
Extensive facilities
Maximum length of pipe up to 50 meters with a height of 30 meters, ideal for large commercial facilities and multi-storey buildings.
️
Refrigerant Gas R-410A Fiable
It uses R-410A coolant for maximum reliability and constant performance in intensive commercial applications with continuous operation.
Technical Specifications
| Feature | Value |
|---|---|
| Model | UB70 TRIFÁSICA |
| Cold Capacity (Mín-Nom-Máx) | 7.5 - 20.1 - 21,5 kW |
| Heat capacity (Mín-Nom-Máx) | 8.0 - 22.4 - 24,5 kW |
| EER / COP | 2,82 / 3,05 |
| SEER / SCOP | 3,65 / 3,65 |
| Energy label ( Cold/Calor) | C/C |
| Food | Tripha |
| Dimensions Indoor Unit (AnxAlxProf) | 1,200 x 600 x 800 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 1.240 x 1.380 x 800 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 47 / 45 / 43 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 56 / 58 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 58 / 52 / 45 m3/min |
| Air flow rate Outdoor Unit | 250 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 80 / 150 Pa |
| Refrigerant Gas / Charge | R-410A / 7.5 kg |
| Length Tuberia (Min/Máx) | 5 / 50 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 105 kg |
| Weight Outdoor Unit | 265 kg |
Air Conditioning Benefits LG UB70 TRIFÁSICA
✓
Robust solution for large commercial facilities
With 20.1 kW of nominal triphasic power, it is ideal for large shopping centers, medium-large hotels, hospitals, large corporate offices and commercial spaces that require high-capacity air conditioning with continuous operation and exceptional reliability.
✓
Higher flexibility in extensive facilities
With pipe lengths up to 50 meters, high static pressure (150 Pa) and large airflow (58 m3/min), it allows to air large commercial installations with complex configurations and distribution on multiple plants.
✓
Industrial reliability with acoustic comfort
The triphase system with R-410A coolant ensures continuous operation in intensive applications, while maintaining controlled sound levels (from 43 dB), offering the perfect balance between industrial power and commercial acoustic comfort.
✓
Robust operation in varied conditions
Its wide range of operation from -20°C to 48°C and robust construction allow efficient operation in varied environmental conditions, ideal for demanding commercial applications throughout the year with maximum availability.
Why choose Air Conditioning LG UB70 TRIFÁSICA?
Main applications
🏢
Large Shopping Centres
Large surface shopping centers, large department stores and large commercial spaces that need powerful air conditioning with adequate acoustic comfort.
🏨
Hotels and Hospitals Medianos-Grandes
High capacity hotels, large-scale hospitals and service buildings that require continuous robust air conditioning with exceptional reliability.
🏭
Industrial facilities
Medium industrial facilities, large surface warehouses and production spaces that require robust air conditioning with balanced acoustic control.
Installation Information
Important considerations:
- Triphasic system that requires proper industrial electrical installation and dimensioned for the nominal power of 20.1 kW.
- Maximum length of pipe: 50 meters, with a maximum height of 30 meters between the inner and outer units.
- R-410A coolant preload for 30 meters of pipe, it is necessary to add 45 g/m for upper lengths.
- Industrial fridge connections: Liquid 15.88 mm (5/8") / Gas 28.58 mm (1-1/8") in both units.
- La outdoor Unit requires adequate space due to its industrial dimensions (1,240 x 1,380 x 800 mm) and high weight (265 kg).
- La indoor Unit (105 kg) requires robust support structure for its weight and industrial dimensions.
- Installation by technical staff specialized in three-phase commercial systems and certified by LG to ensure proper functioning and maintain the validity of the industrial guarantee.
The ideal industrial solution for large commercial facilities!
The Ducted Air Conditioner High Pressure LG UB70 TRIFÁSICA combines robust industrial power with commercial acoustic comfort. With 20.1 kW of three-phase power, robust construction and exceptional reliability, it is the balanced choice for large-scale commercial projects that demand high performance with adequate acoustic comfort.
Request your custom budget today!
KITCONDUB70
Data sheet
- Brand
- LG
- Indoor Unit
- UB70.N95
- Outdoor Unit
- UU70W.U34
- Refrigerant Gas
- R410A
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 19.000
- Refrigerator capacity (kcal / h)
- 16.340
- Nominal consumption Cold (W)
- 6.690
- Heat capacity (W)
- 22.395
- Heat capacity (Kcal / h)
- 19.260
- Nominal heat consumption (W)
- 6.400
- Minimum sound pressure UI DB
- 40
- Weight Indoor Unit (Kg)
- 90,0
- Weight Outdoor Unit (Kg)
- 110,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 50m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1563 x 791 x 458
- EU dimensions (anxfxh) mm
- 950 x 330 x 1380
