Air Conditioning Samsung AC140RNMDKG/EU
Refrigeration 13400W 日本語 Heating 15500W ̄s Efficiency A+ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC140RNMDKG/EU is the maximum absolute power of the Deluxe Conduct Series with 13400W in cooling and 15500W heating. With indoor Unit robust 300mm high, this hidden duct system offers powerful industrial air conditioning for commercial and corporate spaces up to 170m2 with advanced technology Samsung and ultra-precise control.
13️ 13400W Refrigeration
Range 3.5-15.5 kW
Calefacción 15500W Heating
Range 3.5-18.0 kW
▪ SEER 6,0 / SCOP 4,0
Efficiency A+ / A+
Robust 300mm
Deluxe Conduct
Specifications Key Conduct Deluxe Samsung
Indoor Unit: AC140RNMDKG/EU
Outdoor Unit: AC140RXADKG/EU
Air flow: 23,0-33,0 m3/min
Sonic Pressure: 30 dBA
:️ Tactile Control: MWR-SH11N
Nominal consumption: 4,62 kW cold/heat
Refrigerant Gas: R-32 (2.9 kg)
Length Tuberia: up to 75m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

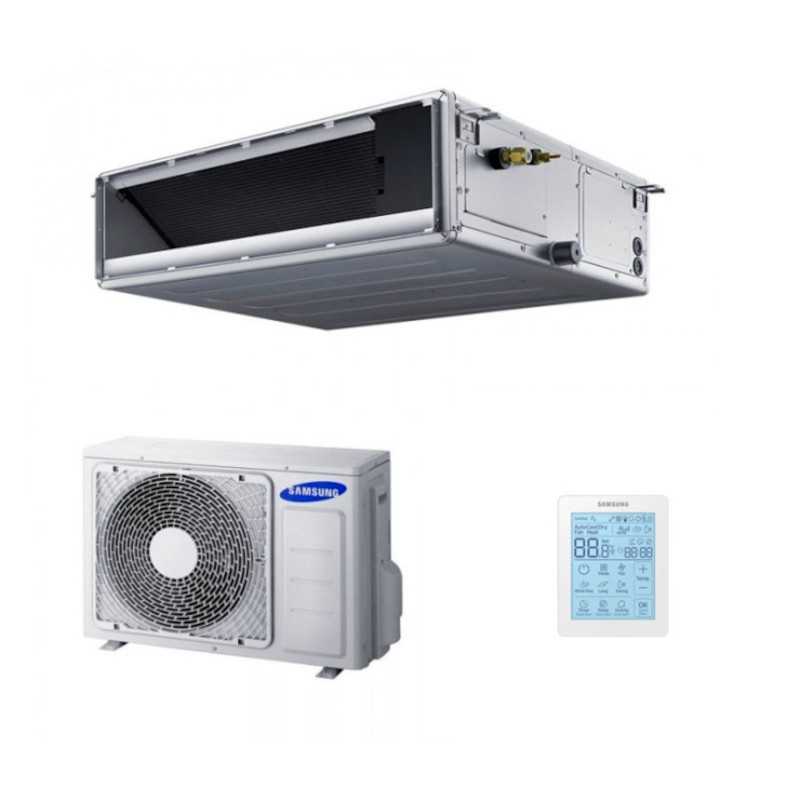

Ducted Air Conditioner Samsung KIT-140MDKG Inverter Deluxe Monof.
Referencia: F-DUCTMPMF140R
€3,034.75
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Samsung AC140RNMDKG/EU
Refrigeration 13400W 日本語 Heating 15500W ̄s Efficiency A+ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC140RNMDKG/EU is the maximum absolute power of the Deluxe Conduct Series with 13400W in cooling and 15500W heating. With indoor Unit robust 300mm high, this hidden duct system offers powerful industrial air conditioning for commercial and corporate spaces up to 170m2 with advanced technology Samsung and ultra-precise control.
13️ 13400W Refrigeration
Range 3.5-15.5 kW
Calefacción 15500W Heating
Range 3.5-18.0 kW
▪ SEER 6,0 / SCOP 4,0
Efficiency A+ / A+
Robust 300mm
Deluxe Conduct
Specifications Key Conduct Deluxe Samsung
Indoor Unit: AC140RNMDKG/EU
Outdoor Unit: AC140RXADKG/EU
Air flow: 23,0-33,0 m3/min
Sonic Pressure: 30 dBA
:️ Tactile Control: MWR-SH11N
Nominal consumption: 4,62 kW cold/heat
Refrigerant Gas: R-32 (2.9 kg)
Length Tuberia: up to 75m
Security policy
Delivery policy
Refund policy
Samsung AC140RNMDKG/EU - Maximum Residential Power
Deluxe Steering Series - 13400W Refrigeration / 15500W Heating
Efficiency A+ Δ Technology R-32 Δ Control Táctil MWR-SH11N
Power for your home or office
The Samsung AC140RNMDKG/EU represents maximum absolute power deluxe Conduct Series Samsung, designed specifically for residential, commercial and industrial applications of large size. With capacity 13400W in cooling and 15500W in heating, this team is prepared to efficiently air space up to 130-170 square metres, from corporate offices to larger ed sites.
Its robust design 300mm high (over 250mm of smaller models) provides greater internal capacity and dimensioned components for maximum performance. Industrial construction includes optimized exchangers and larger diameter fan to efficiently manage the required air volume in professional applications.
The system incorporates technology Samsung more advanced with 450-step EEV electronic expansion valve, which allows ultra-precise control of the R-32 refrigerant, optimizing energy efficiency and ensuring stable operation in all load conditions.
️
Maximum Refrigeration
13400W
Modulant range 3.5-15.5 kW
🔥
Heating Powerful
15500W
Modulant range 3.5-180.0 kW
📐
Industrial Coverage
130-170 m2
Large commercial spaces
▪
Efficiency A+
SEER 6.0
Optimized consumption 4.62 kW
Advanced technology Samsung

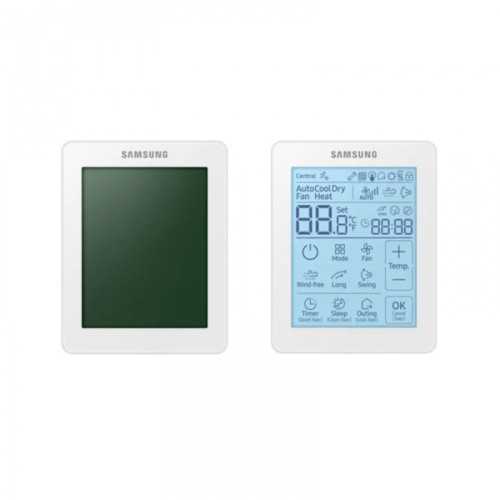

️ MWR-SH11N Tactile Control Professional
The mWR-SH11N touch control included series offers a professional user experience with backlit LCD display and advanced programming. It allows setting of weekly schedules, temperature control by zones, and monitoring of energy consumption in real time. Its elegant design and intuitive features make it the ideal solution for commercial applications that require precise and professional control.
S 450-step EEV valve
La integrated EEV electronic expansion valve with 450-step control allows ultra-precise regulation of the R-32 refrigerant flow. This advanced technology continuously optimizes the performance of the system, adapting instantly to thermal load variations and environmental conditions, ensuring maximum energy efficiency and stable comfort.
🌿 Refrigerant Gas R-32 Ecological
The coolant Organic R-32 (2.9 kg load) offers reduced global warming potential (GWP) by 68% compared to traditional refrigerants. In addition to its lower environmental impact, the R-32 provides greater energy efficiency and requires less loading, reducing installation and maintenance costs in commercial applications.
Function Auto Restart
La function Auto Restart ensures operational continuity in critical applications, automatically re-establishing the previous configuration after power supply cuts. This feature is essential in commercial and industrial environments where the interruption of the air conditioning system can affect the productivity or conservation of temperature-sensitive products.
Maximum performance and efficiency
S Energy Certifications A+
SEER 6.0
Seasonal efficiency Refrigeration
Class A+
SCOP 4.0
Seasonal efficiency Heating
Class A+
EER 2,90
Energy efficiency Refrigeration
Class A+
COP 3,34
Coefficient Performance Heating
Optimized
S Advanced Technical Specifications
De Industrial Ventilation System
The variable airflow from 23.0 to 33.0 m3/min allows to adapt to different climate needs, from silent operation to maximum capacity. The ventilation system incorporates high-efficiency centrifugal fan with variable-speed EC engine, ensuring silent operation 30 dBA at minimum speed, ideal for commercial applications where acoustic comfort is a priority.
Variable Static Pressure
The system variable external static pressure from 0 to 147 Pa (0-14.7 mmCA) provides maximum flexibility in duct design, allowing complex installations with extended lengths and multiple forks. This feature is fundamental in commercial applications where the ducts must go through complex architectural spaces or distribute air to multiple areas.
▪ Flexible power
The equipment offers flexible monophase and triphase feeding: 220-240V/1~/40A for standard monophasic installations, or 380-415V/3~/16A for industrial triphasic installations. This versatility allows you to adapt to different electrical infrastructures, from commercial offices to industrial vessels with triphase power.
Es Dimensions and Weight

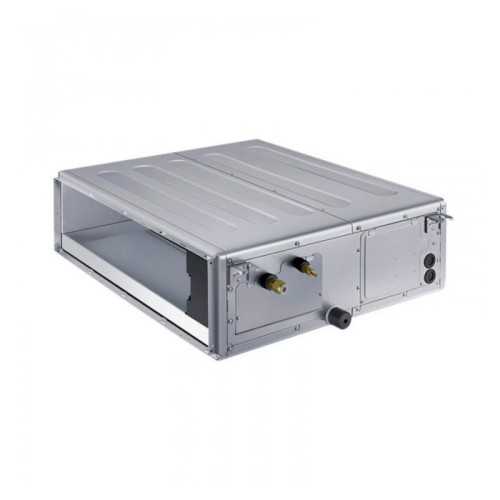

📦 Indoor Unit
Dimensions: 1300 x 300 x 700 mm
Weight: 38.5 kg

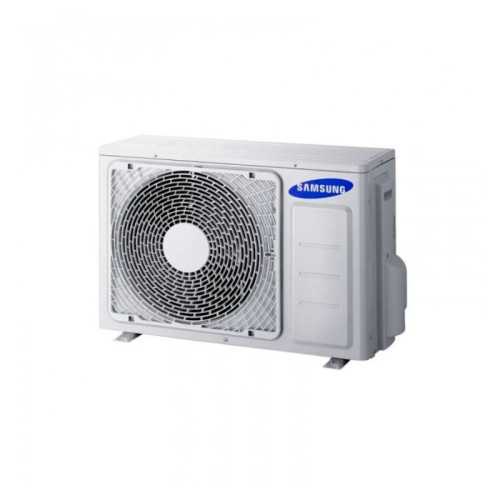

▪ Outdoor Unit
Dimensions: 940 x 1210 x 330 mm
Weight: 91.5 kg
Y Installation and Connections
Pipe connections are dimensioned for maximum performance: 3/8" liquid pipe and 5/8" gas pipe", allowing lengths up to 75 meters with maximum height of 30 meters. The factory R-32 refrigerant load (2.9 kg for 30m) minimizes installation work, requiring additional load only in installations above 30 meters (50g/m additional).
Es Professional applications
🏭
Industrial ships
🏢
Corporate offices
🏬
Shopping Centres
🏥
Hospitals
🎓
Educational centres
√
Gymnasium
F-DUCTMPMF140R
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC140RNMDKG
- Outdoor Unit
- AC140RXADKG
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 14.512
- Refrigerator capacity (kcal / h)
- 12.480
- Nominal consumption Cold (W)
- 4.500
- Energy class (cold)
- A+
- SEER
- 5,8
- Heat capacity (W)
- 15.500
- Heat capacity (Kcal / h)
- 13.330
- Nominal heat consumption (W)
- 4.900
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 38,5
- Weight Outdoor Unit (Kg)
- 81,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Wifi Opcional con módulo MIM-H04EN
- Recommended area
- Estancia de 20m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1300 x 700 x 300
- EU dimensions (anxfxh) mm
- 940 x 330 x 1210
