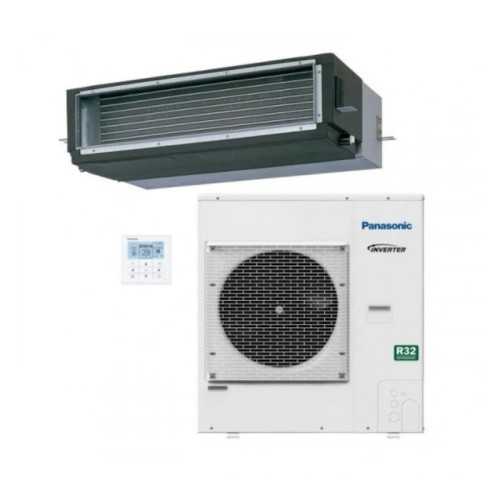

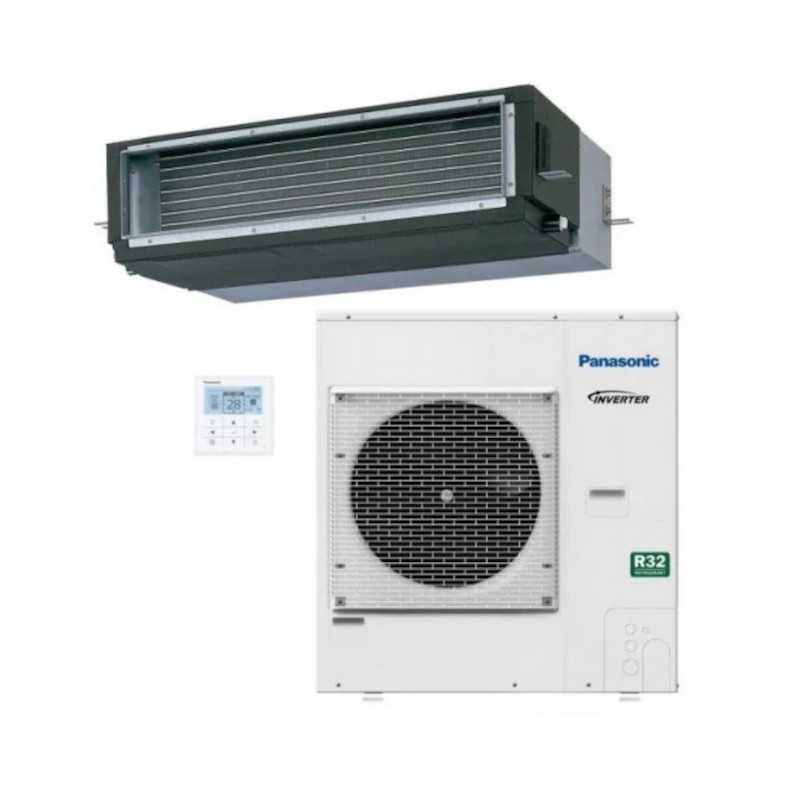

Air Conditioning Panasonic KIT-125PF3Z8-6W
Refrigeration 12100W 日本語 Heating 12100W Δ Efficiency θsc 256,2%
The Air Conditioning Panasonic KIT-125PF3Z8-6W is the ultra high triphase power solution of the PACi NX Standard Series with 12100W in cooling and 12100W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for large spaces that require 380-415V triphase power.
12️ 12100W Refrigeration
EER 3.40 - Ultra high
12 12100W Heating
COP 3,56 - Ultra power
≤225.2% / 142.6%
Higher efficiency
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Ultra High Power Conduct

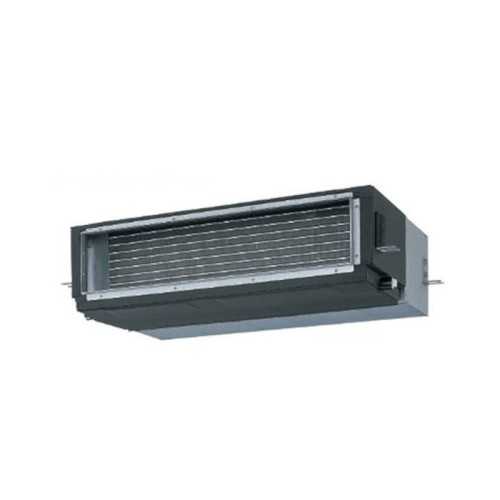

Indoor Unit: S-1014PF3E

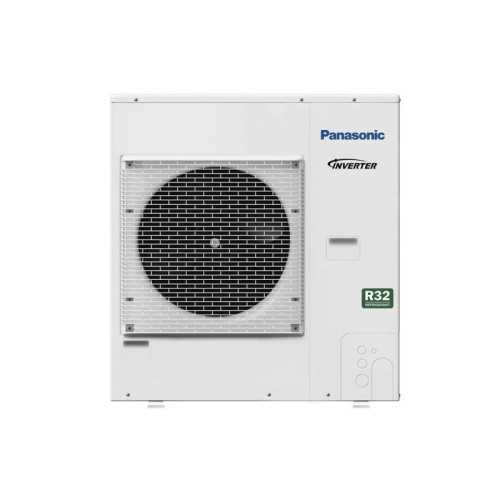

Outdoor Unit: U-125PZ3E8
Air flow: 34,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 35 dBA
Electrical consumption: 3,56 kW
Refrigerant Gas: R-32 (2.80 kg)
Length Tuberia: 5-50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducts Panasonic Kit-125PF3Z8-6W Paci NX Standard Series
Referencia: KIT-125PF3Z8-6W
€3,114.56
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-125PF3Z8-6W
Refrigeration 12100W 日本語 Heating 12100W Δ Efficiency θsc 256,2%
The Air Conditioning Panasonic KIT-125PF3Z8-6W is the ultra high triphase power solution of the PACi NX Standard Series with 12100W in cooling and 12100W heating. Incorporated technology nanoetm X Mark 2 with 9.6 billion hydroxyl radicals, dual horizontal/vertical installation and drainage pump included, ideal for large spaces that require 380-415V triphase power.
12️ 12100W Refrigeration
EER 3.40 - Ultra high
12 12100W Heating
COP 3,56 - Ultra power
≤225.2% / 142.6%
Higher efficiency
nanoetm X Mark 2
9.6 billion radicals
Key Specifications Ultra High Power Conduct
Indoor Unit: S-1014PF3E
Outdoor Unit: U-125PZ3E8
Air flow: 34,0 m3/min
Static pressure: 150 Pa
Sonic Pressure: 35 dBA
Electrical consumption: 3,56 kW
Refrigerant Gas: R-32 (2.80 kg)
Length Tuberia: 5-50m
Security policy
Delivery policy
Refund policy
Air Conditioning Panasonic KIT-125PF3Z8-6W
Ultra High Triphase Power 12100W Δ PACi NX Standard Δ nanoeTM X Mark 2
Ultra High Power with Triphase Feeding
The Panasonic KIT-125PF3Z8-6W represents the ultra high triphase power solution of the PACi NX Standard Series, offering 12100W of frigorific power and 12100W heat power with 380-415V triphase feeding. This model is designed for large-scale spaces that require maximum air conditioning power with the stability and efficiency that provides three-phase feeding for the most demanding applications.
Características Features Ultra High Triphasic Power
Area: 105-140m2 ultra large capacity
▪ Frigorific power: 12100W ultra high
Calorific power: 12100W Balanced
Food: 380-415V
: Air flow: 34,0 m3/min ultra high
🔧 Indoor Unit: 1400mm ultra professional
NanoeTM X Mark 2 Advanced Technology
Technology nanoetm X Mark 2 series generates 9.6 billion hydroxyl radicals per second, providing continuous and effective air purification. This technology eliminates bacteria, viruses, odors and allergens from the environment, especially important in large spaces with high occupancy where air quality is essential for the well-being, productivity and comfort of all occupants.
Ultra High Power Purification
- 9.6 billion radical hydroxyl/second
- Removing bacteria and viruses
- Reduction of persistent odors
- Environmental allergen control
S Benefits Ultra Large Spaces
- Cleaner air on ultra large surface
- Allergic symptoms reduction
- More hygienic environment
- Ultra silent continuous operation
Higher Energy Efficiency
With Bolivariansc 256,2% in cooling and Bolivarian 142.6% in heating, the KIT-125PF3Z8-6W offers excellent energy efficiency for its ultra high three-phase power. The system maintains optimized consumption for large spaces where operational efficiency is crucial for the project's profitability and sustainability.
▼ Ultra Triphatic Advantages
- Higher ultra high power efficiency
- Three-phase feeding stability
- Optimal professional performance
Efficiency
Bolivarian Cold:
256.2%
256.2%
Bolivarian Calor:
142.6%
142.6%
EER:
3,40
3,40
COP:
3,56
3,56
Dual PF3 Ultra Professional Installation
The system PF3 dual installation allows mounting indoor Unit so much horizontal position as vertical using the same drainage tray, providing maximum flexibility to adapt to any ultra large space configuration. La indoor Unit of 1400mm ultra professional offers maximum capacity and performance for applications that require ultra high triphase power.
Ultra Professional Flexibility
- Horizontal: Standard configuration
- Vertical: reduced height spaces
- Misma tray both positions
- Unit 1400mm ultra professional
S️ Ultra Triphasic Benefits
- Up to 50m maximum range
- Static pressure 150 Pa ultra
- Maintenance accessibility
- Ultra-high performance
Ado Controlled operation 35dBA
With its ultra high three-phase power 12100W, KIT-125PF3Z8-6W maintains controlled operation 35 dBA sound pressure. This feature is important for ultra large spaces that require maximum power while maintaining a productive and comfortable environment for large occupations.
Tiva Comparison Sonora
- 35 dBA: Ultra High Power Control Level
- Power-functioning balance
- Suitable for ultra large spaces
Nivel Sound level
35 dBA
Controlled for Ultra High Power
Ultra perfect balance between power and operation
Ultra Advanced Drying and Control System
Ultra Included Dry Pump
Drainage pump included in series capacity 4.1 L/h, allowing elevation to 680mm and ultra efficient condensate evacuation for any ultra large space configuration.
- No additional cost
- Ultra efficient condensed evacuation
- Automatic operation
- Lift height 680mm
Wi Wi-Fi Control + Bluetooth® Ultra

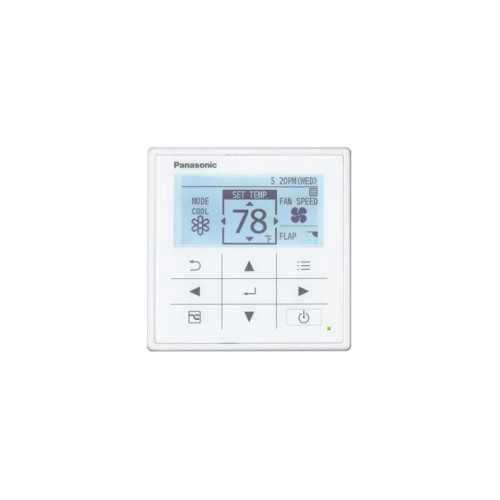

CZ-RTC6BLW Wi-Fi + Bluetooth® included in series for ultra total wireless control from smartphone, with ultra-advanced connectivity and ultra-system smart management.
- Remote Wi-Fi control ultra total
- Ultra local Bluetooth®
- Ultra advanced monitoring
- Ultra complete intelligent management
🌿 Refrigerant Gas R32 and Technical Specifications
R32 Ecological
- Coolant load: 2.80 kg
- Low potential warming
- Increased energy efficiency
- Respectful environment
S Ultra Triphasic dimensions
- Indoor Unit: 1400mm
- Pipe length: 5-50m
- Maximum level: 15/30m
- Static pressure: 150 Pa
️ Operation
- Outer temperature: -10°C to +43°C
- Air flow: 34,0 m3/min
- Power supply: 380-415V 3~
- Electric consumption: 3,56 kW
KIT-125PF3Z8-6W - Ultra High Triphase Power PACi NX Standard Series
12100W Ultra Triphasic Δ nanoeTM X Mark 2 Δ 35dBA Δ Higher Efficiency Δ Wi-Fi + Bluetooth® Δ Dual Installation
Ultra High Triphasic Power Panasonic KIT-125PF3Z8-6W!
12100W Ultra Triphasic Δ nanoeTM X Mark 2 Δ Wi-Fi + Bluetooth® Δ Higher Efficiency Δ Dual Installation
Why Choose the KIT-125PF3Z8-6W?
✓ Ultra High Power: 12100W power supply 380-415V
✓ Higher efficiency: bolivariansc 256.2% market leader
✓ nanoeTM X Mark 2: 9.6 billion radical hydroxyl
✓ Wi-Fi Control + Bluetooth®: Ultra advanced CZ-RTC6BLW
✓ Ultra surface: 105-140m2 large capacity
✓ Dual installation: Horizontal/vertical same tray
Professional Ultra Triphase Offer
ULTRA TRIFÁSICO WEB
Check special conditions ultra high power
Check special conditions ultra high power
Ultra Triphasic Pack Includes:
- Interior units (1400mm) and exterior ultra
- CZ-RTC6BLW Wi-Fi + Bluetooth® ultra
- Ultra-integrated drainage pump
- Official guarantee Panasonic extended
S Technical Specifications Ultra Triphasic
️ Frigorific Power
12100WCalorific power
12100W▪ Efficiency
256.2%Nivel Sound level
35 dBASurface
105-140m2Food
380-415VKIT-125PF3Z8-6W - The High Power Ultra Triphasic Solution
12100W Ultra Triphasic Suppliesc 256,2% Δ nanoeTM X Mark 2 Δ Wi-Fi + Bluetooth® Δ Tubería 50m Δ Pump Drenage
KIT-125PF3Z8-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PF3E
- Outdoor Unit
- U-125PZ3E8
- Refrigerant Gas
- R32
- Electrical supply
- Trifásica
- Refrigerator capacity (W)
- 12.099
- Refrigerator capacity (kcal / h)
- 10.405
- Nominal consumption Cold (W)
- 3.560
- Heat capacity (W)
- 12.099
- Heat capacity (Kcal / h)
- 10.405
- Nominal heat consumption (W)
- 3.400
- Minimum sound pressure UI DB
- 27
- Weight Indoor Unit (Kg)
- 39,0
- Weight Outdoor Unit (Kg)
- 87,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 730 x 250
- EU dimensions (anxfxh) mm
- 980 x 370 x 996
