Ducted Air Conditioner Giatsu GIA-D-12ADM2R32-WF
Admira Plus Series 12000 BTU A++/A+ Русский Inverter DC
The Air Conditioning by Conduct Giatsu GIA-D-12ADM2R32-WF of the Admira Plus series elevates the standard of residential and commercial air conditioning with 3.52 kW in cooling and 3,81 kW in heating. Its advanced DC inverter technology allows modulation from 1800 to 13334 BTU/h cold, automatically optimizing energy consumption. With A++/A+ rating (SEER 6,5 / SCOP 4,1) and eco-friendly R32 coolant, guarantees maximum energy saving and ultra-silenced operation since 31 dB. Ideal for medium spaces that demand premium, discreet and efficient air conditioning.
12️ 12000 BTU Premium
3,52 kW cold / 3,81 kW heat
▪ A++/A+ Efficient
SEER 6,5 / SCOP 4,1
Ultra Quiet
31 dB minimum
▪ Improved pressure
Up to 100 Pa
Key Specifications Admira Plus Series
Capacity: 12000 BTU/h
Modulation: 1800-13334 BTU/h
Cold consumption: 1080W (155-1373W)
Consumption heat: 1285W (302-1423W)
Static pressure: 0-100 Pa
Air flow: 470-660 m3/h
Refrigerant Gas: R32 (0.71 kg)
Pipe length: Up to 25m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducts Giatsu GIA-D-12ADM2R32-WF Series Admires Plus Monof.
Referencia: GIA-D-12ADM2R32-WF
€772.34
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Giatsu GIA-D-12ADM2R32-WF
Admira Plus Series 12000 BTU A++/A+ Русский Inverter DC
The Air Conditioning by Conduct Giatsu GIA-D-12ADM2R32-WF of the Admira Plus series elevates the standard of residential and commercial air conditioning with 3.52 kW in cooling and 3,81 kW in heating. Its advanced DC inverter technology allows modulation from 1800 to 13334 BTU/h cold, automatically optimizing energy consumption. With A++/A+ rating (SEER 6,5 / SCOP 4,1) and eco-friendly R32 coolant, guarantees maximum energy saving and ultra-silenced operation since 31 dB. Ideal for medium spaces that demand premium, discreet and efficient air conditioning.
12️ 12000 BTU Premium
3,52 kW cold / 3,81 kW heat
▪ A++/A+ Efficient
SEER 6,5 / SCOP 4,1
Ultra Quiet
31 dB minimum
▪ Improved pressure
Up to 100 Pa
Key Specifications Admira Plus Series
Capacity: 12000 BTU/h
Modulation: 1800-13334 BTU/h
Cold consumption: 1080W (155-1373W)
Consumption heat: 1285W (302-1423W)
Static pressure: 0-100 Pa
Air flow: 470-660 m3/h
Refrigerant Gas: R32 (0.71 kg)
Pipe length: Up to 25m
Security policy
Delivery policy
Refund policy
Product Description

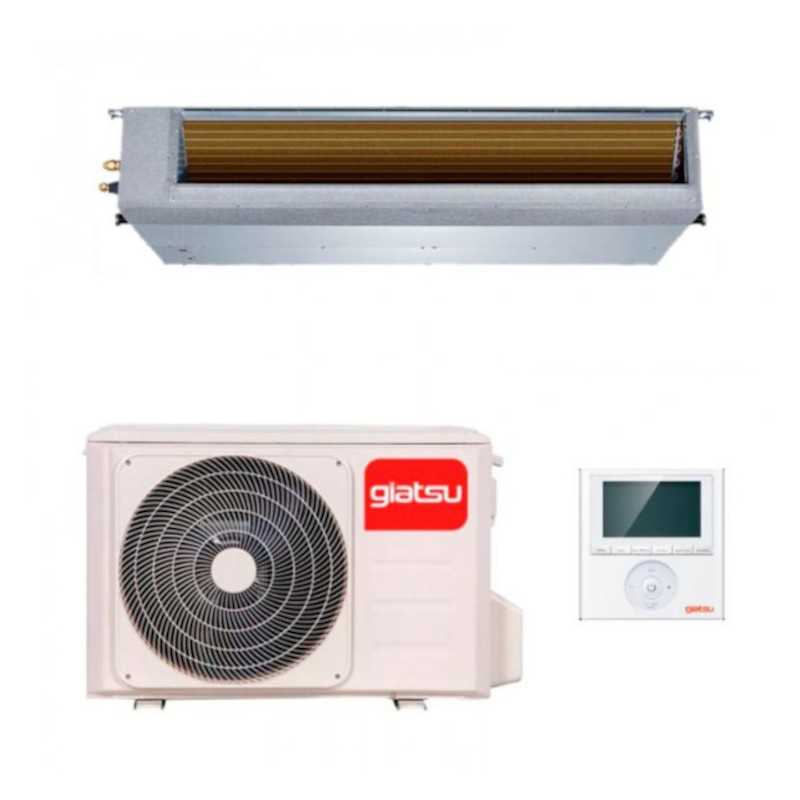

The Air Conditioning by Conduct Giatsu GIA-D-12ADM2R32-WF represents the natural evolution of the prestigious Admira Plus Series, designed to offer premium air conditioning in residential and medium commercial spaces. With an optimized rated capacity of 3.52 kW in cooling (12000 BTU/h) and 3.81 kW in heating (13000 BTU/h), this system incorporates state-of-the-art DC inverter technology that allows intelligent modulation from 1800 to 13334 BTU/h in cold mode, ensuring automatic and accurate adaptation to the real demands of the air-conditioned space.
The exceptional combination of GMCC inverter compressor and DC fan ensures outstanding energy efficiency with A+ cooling rating (SEER 6,5) and A+ heating (SCOP 4,1), translated into substantial energy savings throughout the annual cycle. The system employs eco-friendly R32 coolant with optimized load of 0.71 kg, significantly minimizing the environmental impact while maximizing thermal efficiency and reducing long-term operating costs.

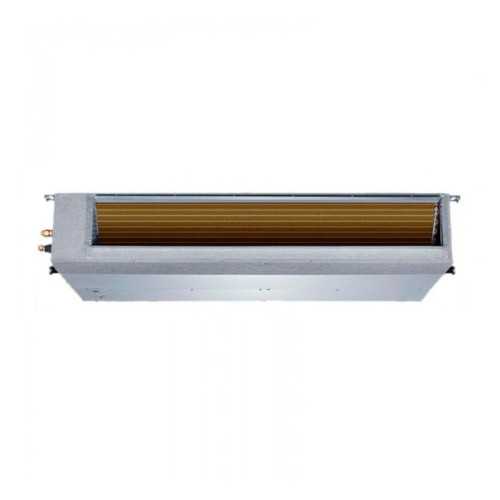

La indoor Unit maintains the premium compact dimensions of 700×200×506 mm with weight of 16.6 kg, specifically designed for discreet horizontal installation. It offers variable airflows from 470 to 660 m3/h with improved static pressure from 0 to 100 Pa, allowing more demanding installations. Its exceptional sound levels of 35/33/31 dB(A) according to speed guarantee virtually silent operation, ideal for main bedrooms, spacious rooms and professional spaces that require maximum acoustic comfort.

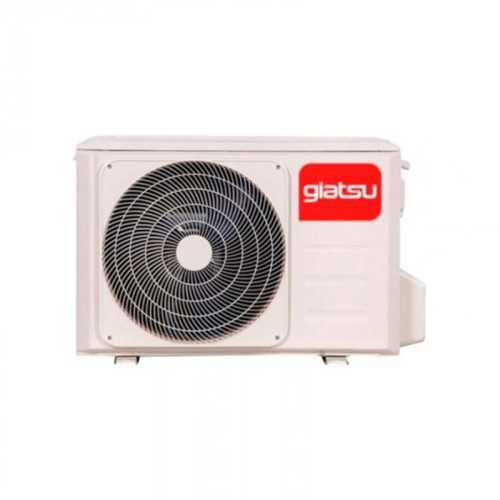

La outdoor Unit GMCC, with dimensions of 765×555×303 mm and weight of 26.6 kg, incorporates protection Golden Fin anticorrosion advanced for maximum durability in any adverse weather condition. The system allows flexible installations with maximum pipe length of 25 meters and height of up to 10 meters, while the cable control included offers full weekly programming for automatic optimization of energy consumption according to specific usage patterns and custom preferences.
Complete Technical Specifications
| Feature | Value |
|---|---|
| Model Set | GIA-D-12ADM2R32-WF (Admira Plus Series) |
| Refrigeration capacity | 3.52 kW (0.53~3,91) - 12000 BTU/h (1800~13334) |
| Capacity Heating | 3,81 kW (1,00~4,47) - 13000 BTU/h (3400~15241) |
| Consumption Refrigeration | 1080W (155~1373W) |
| Consumption Heating | 1285W (302~1423W) |
| SEER / SCOP | 6,5 / 4,1 |
| Energy label ( Cold/Calor) | A++ / A+ |
| Sonic pressure Indoor Unit | 35/33/31 dB(A) |
| Sonic pressure Outdoor Unit | 55.5 dB(A) |
| Air flow rate | 660/570/470 m3/h (Alto/Medium/Bajo) |
| Static pressure | 25 Pa nominal (0-100 Pa maximum) |
| Dimensions Indoor Unit | 700×200×506 mm |
| Dimensions Outdoor Unit | 765×555×303 mm |
| Weight Indoor Unit | 16.6 kg |
| Weight Outdoor Unit | 26.6 kg |
| Refrigerant Gas / Charge | R32/0.71 kg |
| Length Tuberia Maximum | 25 meters |
| Maximum level | 10 meters |
| Frigorific connections | Liquid 1/4" - Gas 3/8" |
Advantages of the Giatsu 12000 BTU Admira Plus Series
✓
Optimized capacity for medium spaces
12000 BTU ideal for large living rooms, main bedrooms, medium offices, large consultations and shops that require premium air conditioning with improved static pressure up to 100 Pa.
✓
Advanced Intelligent Modulation
DC inverter technology with modulation from 1800 to 13334 BTU/h, adapting automatically for maximum comfort and minimum energy consumption.
✓
Improved professional installation
Increased static pressure (100 Pa) allows installations with longer and complex ducts, ideal for distribution in multiple rooms with maximum flexibility.
✓
Premium balanced performance
Perfect balance between power, efficiency and acoustic comfort. It works quietly from 31 dB maintaining maximum A+/A+ performance.
Main applications
▪
Residencial Amplio
Large living rooms, large main bedrooms, family studies and residential spaces that require powerful and silent air conditioning.
🏢
Medium offices
Wide rooms, meeting rooms, large medical consultations and offices that need comfortable professional environment.
️
Medium-term trade
Medium stores, boutiques, wide hairdressers and shops that require discreet and efficient air conditioning for better customer experience.
Power and Silence for Medium Spaces!
The Giatsu Admira Plus 12000 BTU Series combines DC inverter technology, maximum A+/A+ efficiency and improved static pressure. The perfect solution for those looking for premium air conditioning with greater capacity and installation flexibility.
Request your custom budget today!
️ GIATSU ADMIRA PLUS 12000 BTU G️
Optimized Power + A++/A+ + Improved Pressure 100 Pa
Intelligent Modulation
1800-13334 BTU/h inverter DC
Automatic adaptation to real demand
Ultra Silent Premium
31 dB night performance
Ideal bedrooms and offices
Improved Static Pressure
Up to 100 Pa for long ducts
More complex facilities
Efficiency A++/A+
SEER 6,5 / SCOP 4,1
Maximum energy saving
▪ Ideal spaces 30-45 m2
📏 Tubería up to 25m
🔧 Programmable control included
💧 Condensed pump included
️ Protection Golden Fin
🎯 Gama Office premium
OPTIMIZED CAPACITY
12000 BTU with improved static pressure up to 100 Pa
Perfect for large rooms, medium offices and shops
▷ INCLUDING PROFESSIONAL INSTRUMENT
️ Warranty 3+5 years
🔧 Technical Service Giatsu
📋 Certification A++/A+
🌿 R32 Ecological
GIA-D-12ADM2R32-WF
Data sheet
- Brand
- Giatsu
- Indoor Unit
- Outdoor Unit
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 3.520
- Refrigerator capacity (kcal / h)
- 3.027
- Nominal consumption Cold (W)
- 1.080
- Energy class (cold)
- A++
- SEER
- 6,5
- Heat capacity (W)
- 4.546
- Heat capacity (Kcal / h)
- 3.910
- Nominal heat consumption (W)
- 1.285
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 31
- Weight Indoor Unit (Kg)
- 16,6
- Weight Outdoor Unit (Kg)
- 26,6
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 3/8"
- Possibility Integration
- Incluido de serie
- Recommended area
- Estancia de 30m2 aprox.
- Dimensions UI (ANXFXH) mm
- 700 x 506 x 200
- EU dimensions (anxfxh) mm
- 765 x 303 555
