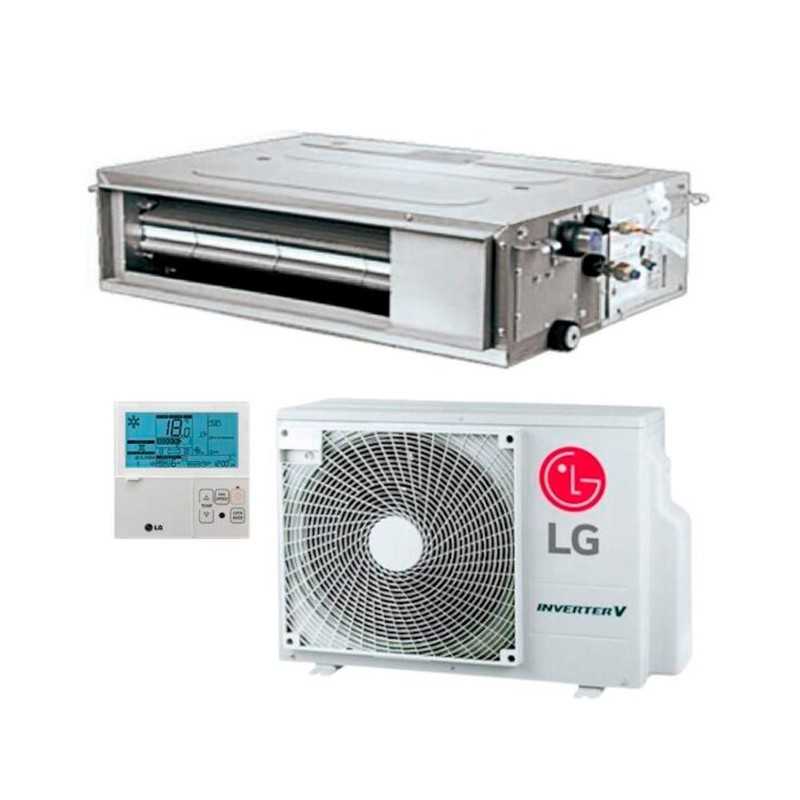

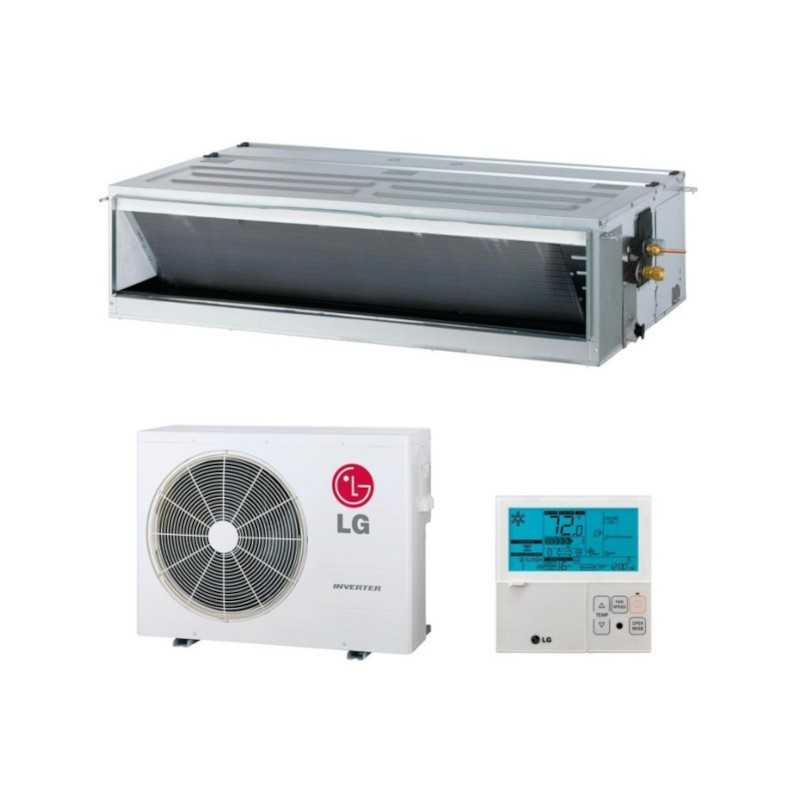

Ducted Air Conditioner LG UM30F CONFORT+ UM30F.NA0 + UUC1.U40
Air conditioning system with high efficiency channels with 7.5 kW nominal capacity, designed for small-medium commercial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced technology, ideal for small-medium offices, professional consultations, small shops and spaces that require superior quality professional air conditioning.
- ▷ Nominal power of 7.5 kW in cold and 8,0 kW in heat for medium-sized small spaces
- ▷ Modulant capacity of 3,00-8,30 kW cold and 3,20-8,80 kW heat
- ▷ High energy efficiency with SEER 5,60 and SCOP 3,90 (A+/A)
- ▷ Static pressure up to 150 Pa for flexible installations
- ▷ Ultra silent operation with only 38/33/30 dB
- ▷ Horizontal/vertical and ecological coolant installation R32
Reference: UM30F.NA0 + UUC1.U40
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG UM30F CONFORT+ UM30F.NA0 + UUC1.U40
Referencia: KITCONDCM30F_CONFORT+
€2,027.23
Tax included
Envío GRATIS en España (Península) a partir de 300€ + info
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Ducted Air Conditioner LG UM30F CONFORT+ UM30F.NA0 + UUC1.U40
Air conditioning system with high efficiency channels with 7.5 kW nominal capacity, designed for small-medium commercial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced technology, ideal for small-medium offices, professional consultations, small shops and spaces that require superior quality professional air conditioning.
- ▷ Nominal power of 7.5 kW in cold and 8,0 kW in heat for medium-sized small spaces
- ▷ Modulant capacity of 3,00-8,30 kW cold and 3,20-8,80 kW heat
- ▷ High energy efficiency with SEER 5,60 and SCOP 3,90 (A+/A)
- ▷ Static pressure up to 150 Pa for flexible installations
- ▷ Ultra silent operation with only 38/33/30 dB
- ▷ Horizontal/vertical and ecological coolant installation R32
Reference: UM30F.NA0 + UUC1.U40
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM30F CONFORT+ is a high-end air conditioning system designed to provide superior comfort in small and medium commercial spaces that require balanced power, exceptional reliability and maximum energy efficiency. This team of the prestigious Free Combination CONFORT+ range LG combines a nominal power of 7.5 kW in cold and 8,0 kW in heat with an exceptional modulant capacity ranging from 3,00 to 8,30 kW in cooling and from 3,20 to 8,80 kW in heating.

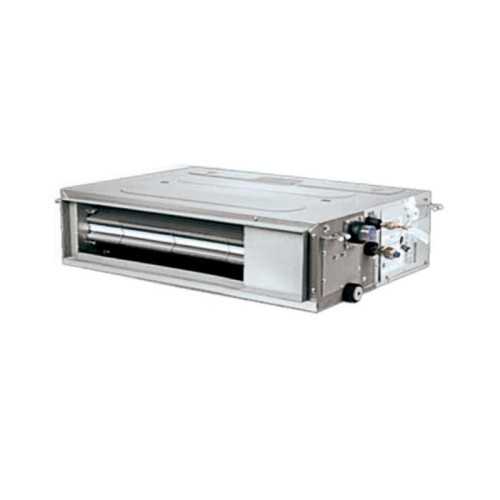

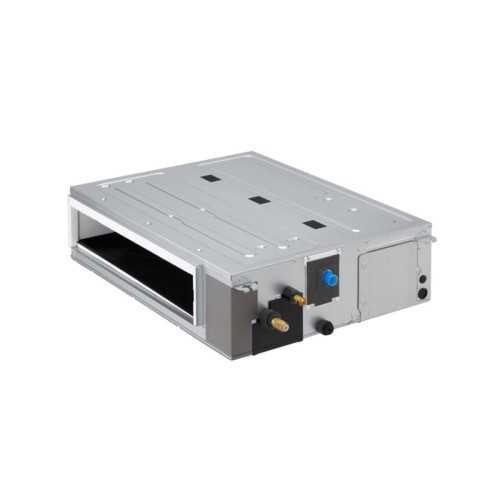

Composed of indoor Unit UM30F.NA0 and outdoor Unit UUC1.U40, this system stands out for its versatility of installation with static pressure up to 150 Pa and pipe lengths up to 50 meters. La indoor Unit, with compact dimensions of 900 x 245 x 700 mm, offers the unique installation flexibility both horizontally and vertically through the ABDAMA0 accessory, providing an airflow of up to 20 m3/min with ultra silent sound levels of 38/33/30 dB according to the selected speed.

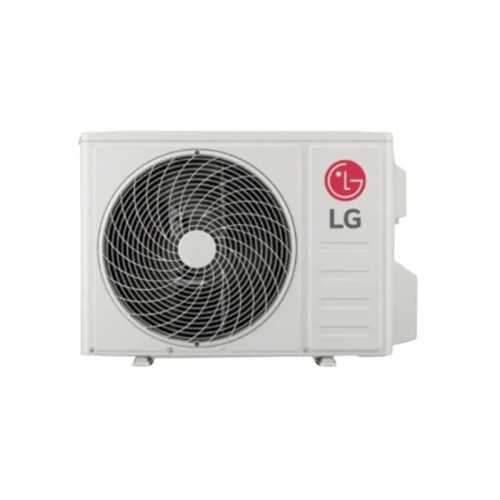

La outdoor Unit UUC1.U40, with its optimized dimensions of 950 x 834 x 330 mm and weight of 59 kg, incorporates advanced technology to maximize thermal exchange ensuring optimal performance. With a range of operation ranging from -10°C to 48°C in cooling and from -15°C to 18°C in heating, this system uses 1.9 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising the professional performance demanded by demanding commercial applications.
Main features
🏢
Versatile Commercial Power
Rated power of 7.5 kW in cold and 8.0 kW in heat, with intelligent modulation from 3.00-8.30 kW in cooling and 3.20-8.80 kW in heating.
🔄
Dual installation
Single horizontal or vertical installation capacity by ABDAMA0 accessory, adapting to any available space configuration.
📐
Outdoor Unit Compacta
Optimized dimensions of 950x834x330 mm and reduced weight of 59 kg, ideal for limited outdoor spaces in commercial environments.
🔇
Ultra Quiet
Exceptional sound levels of 38/33/30 dB indoor Unit, perfect for commercial environments that require maximum tranquility.
🔌
Elevada Static Pressure
Up to 150 Maximum static pressure pa to overcome resistances in complex ducts and adapt to different installations.
🌱
Sustainable efficiency
Refrigerant Gas Ecological R32 with optimized load of 1.9 kg, combining high performance with environmental responsibility.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM30F.NA0 + UUC1.U40 |
| Cold Capacity (Mín-Nom-Máx) | 3,00 - 7.50 - 8,30 kW |
| Heat capacity (Mín-Nom-Máx) | 3,20 - 8,00 - 8,80 kW |
| EER / COP | 2,92 / 3,56 |
| SEER / SCOP | 5,60 / 3,90 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 245 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 834 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 38 / 33 / 30 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 54 / 56 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 20 / 15.5 / 13 m3/min |
| Air flow rate Outdoor Unit | 50 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 25 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.9 kg |
| Length Tuberia (Min/Máx) | 5 / 50 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 29.1 kg |
| Weight Outdoor Unit | 59.0 kg |
| Vertical Installation | ABDAMA0 |
Air Conditioning Benefits LG UM30F CONFORT+
✓
Versatile solution for small-medium commercial spaces
With 7.5 kW rated power, it is perfect for small-medium offices, professional consultations, specialized clinics, small shops and commercial spaces that require professional air conditioning without oversizing the system.
✓
Flexibility of single installation
Horizontal or vertical installation capacity and outdoor Unit compact allows to adapt to any available space, even in buildings with strict architectural limitations.
✓
Optimized energy efficiency
Advanced modulation technology and the A+/A rating with SEER 5,60 ensure efficient energy consumption, reducing operating costs while maintaining maximum comfort throughout the year.
✓
Exceptional acoustic comfort
Its ultra-silent sound levels (from 30 dB) guarantee a peaceful working environment, ideal for medical consultations, professional offices and spaces where concentration is fundamental.
Why choose Air Conditioning LG UM30F CONFORT+?
Main applications
🏢
Small-Medium Offices
Professional offices, executive offices and workplaces that require silent and efficient air conditioning during full working days.
🏥
Consultations and clinics
Medical consultations, specialized clinics and health centers that need ultra silent and comfortable environment for patients and professionals.
️
Small Trades
Specialized stores, boutiques and commercial spaces that require comfortable environment to improve the experience of purchasing and productivity of the staff.
Installation Information
Important considerations:
- La indoor Unit UM30F.NA0 allows both horizontal and vertical installation through the ABDAMA0 accessory.
- Maximum length of pipe: 50 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 55 g/m for upper lengths.
- Frigorific connections indoor Unit: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8").
- Frigorific connections outdoor Unit: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2").
- La outdoor Unit UUC1.U40 with optimized dimensions (950x834x330 mm) facilitates installation in limited outdoor spaces.
- Installation by specialized technical staff and authorized by LG to ensure proper operation and maintain the validity of the CONFORT+ warranty.
The most versatile solution for commercial spaces looking for flexibility!
Air Conditioning by Conduct LG UM30F CONFORT+ combines balanced power, single installation flexibility and superior energy efficiency to deliver the ideal air conditioning solution for your business. Invest in technology LG CONFORT+ and guarantee maximum comfort with total installation versatility.
Request your custom budget today!
KITCONDCM30F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- UM30F.NA0
- Outdoor Unit
- UUC1.U40
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Fridge capacity (W)
- 7.500
- Fridge capacity (Kcal/h)
- 6.450
- Nominal consumption Cold (W)
- 2.140
- Energy class
- A+
- SEER
- 5,8
- Heating Capacity (W)
- 8.000
- Heating capacity (Kcal/h)
- 6.880
- Nominal heat consumption (W)
- 2.420
- Energy class (Calor)
- A
- SCOP
- 3,9
- Minimum sound pressure UI dB
- 30
- Weight Indoor Unit (Kg)
- 29,1
- Weight Outdoor Unit (Kg)
- 89
- Diameter Liquid Tubery
- 3/8"
- Diameter Gas Tuberia
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended surface
- Estancia de 60m2 aprox.
- IU dimensions (AnxFxH) mm
- 900 x 700 x 245
- EU dimensions (AnxFxH) mm
- 950 x 330 x 834
