Air Conditioning Low Silueta Conduct Daikin DXM50F SKY AIR SERIE ADVANCE
Referencia: DXM50F
€2,791.70
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin DXM50F represents the ideal solution for large spaces that require maximum power with discreet installation. With capacity 5000W in refrigeration (4300 kcal/h) and 5800W heating (4988 kcal/h), this model of the Sky Air Advance Series combines high power with the revolutionary low silhouette design 200mm high, integrating advanced inverter technology with eco-friendly R-32 coolant.
Its exceptional energy efficiency A+/A with SEER values 5,77 and SCOP de 3,93 guarantees annual seasonal energy consumption optimized 303 kWh in cooling and 1424 kWh heating, offering superior performance with significant energy savings. The system uses coolant R-32 with a load 1,15 kg and an impact 0.78 TCO2eq, maintaining commitment to environmental sustainability.

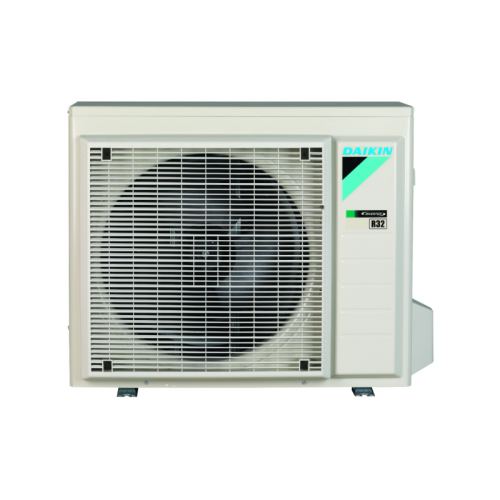

La outdoor Unit RXM50R incorporates a compressor SWING high efficiency with air flow 46.6 m3/min cooling and 44.1 m3/min heating. Its robust dimensions 734×954×401 mm and weight 49 kg are designed to support this greater capacity, while its sound pressure 48 dBA in cooling and 49 dBA heating maintains professional sound levels.

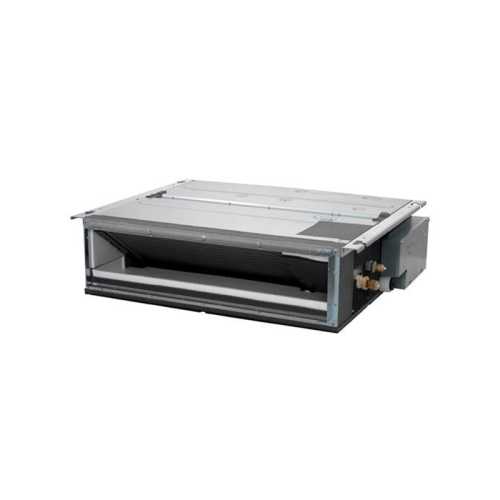

La indoor Unit FDXM50F9 keeps revolutionary design low silhouette with only 200 mm height, but with enlarged dimensions 200×1150×620 mm and weight 28 kg to handle the highest airflow. Its variable flow rate 15.8 m3/min at high speed and 13.3 m3/min at low speed provides efficient distribution for large spaces.
The system allows more extensive facilities with maximum pipe length 30 meters and maximum level difference of 20 meters. Your cold connections 1/4" for liquid and 1/2" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, facilitate installations in more complex configurations.
With standard available pressure 40 Pa and 3 fan speeds, the system provides greater capacity to overcome more extensive ducts. Your inner sound pressure 38 dBA at high speed and 30 dBA at low speed maintains a silent operation even with this greater power.
Nominal consumptions 1630W in cooling and 1870W heating demonstrate system efficiency for this capacity. Your design load 5,00 kW in cooling and 4,00 kW in heating at -10°C ensures constant performance for large commercial and residential applications that require reliability throughout the year.
The refrigerant load included covers up to 10 meters of installation, with additional charge 20 gr/m for more extensive facilities. Its level of inner acoustic power 55 dBA and exterior 62 dBA maintains professional standards even with this superior capacity, ideal for large commercial and residential spaces that require maximum power with discreet installation.
Main Features High Power
📐
Low silhouette 200mm
Ultra-compact design with 5000W power for discreet installation.
️
Refrigeration 5000W
High capacity for large commercial and residential spaces.
🔥
Heating 5800W
Higher heating power for exceptional thermal comfort.
▪
Efficiency A+/A
SEER 5,77 and SCOP 3,93 for maximum energy saving with high power.
🌿
R-32 Ecological
Refrigerant Gas sustainable with minimized environmental impact.
📏
Extended installation
30m pipe and 20m uneven for more complex configurations.
Technical Specifications High Power
| Feature | Value |
|---|---|

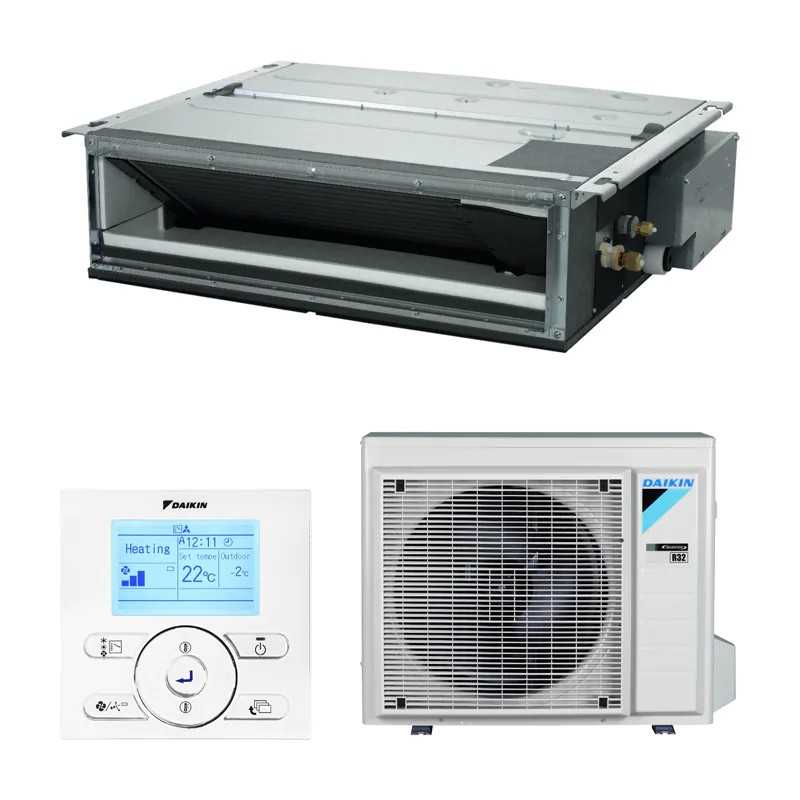

| Model Set | DXM50F (FDXM50F9 + RXM50R + BRC1E53A) |
| Refrigeration capacity | 5000W (4300 kcal/h) |
| Capacity Heating | 5800W (4988 kcal/h) |
| Nominal consumption | 1630W (Refrigeration), 1870W (Calefaction) |
| SEER / SCOP | 5,77 / 3,93 |
| Energy label ( Cold/Calor) | A+ / A |
| Annual Energy Consumption | 303 kWh (Refrigeration), 1424 kWh (Calefaction) |
| Charge Design (Pdesign) | 5,00 kW (cold), 4,00 kW (Calor -10°C) |
| Refrigerant Gas | R-32 (1.15 kg / 0.78 TCO2eq / PCA 675) |
| Frigorific connections | Liquid 6.4mm (1/4") - Gas 12.7mm (1/2") |
| Electrical supply | I/220V (3+T interconnected threads) |
| Maximum Length Tuberia | 30 meters |
| Maximum level difference | 20 meters |
| Air flow Indoor Unit | 15.8/13.3 m3/min (A/B) Refrigeration and Heating |
| Available pressure | 40 Pa (Standard) |
| Ventilator speeds | 3 speeds |
| Dimensions Indoor Unit | 200×1150×620 mm (Alto×Ancho×Fondo) |
| Weight Indoor Unit | 28 kg |
| Sonic pressure Indoor Unit | 38/30 dBA (A/B), 38/30 dBA (A/B) |
| Level Domestic acoustic power | 55 dBA |
| Air flow Outdoor Unit | 46,6/44.1 m3/min (Refrig./Calef.) |
| Type Compressor | SWING |
| Dimensions Outdoor Unit | 734×954×401 mm (Alto×Ancho×Fondo) |
| Weight Outdoor Unit | 49 kg |
| Sonic pressure Outdoor Unit | 48 dBA (Refrigeration), 49 dBA (Calefaction) |
| Level External Acoustic Power | 62 dBA |
| Charge Refrigerant Gas Included | 10 meters |
| Additional charge | 20 gr/m |
Ideal applications High Power
🏢
Large Commercial Spaces
Large offices, showrooms, medium stores and commercial spaces that require high power.
▪
Large houses
Chalets, spacious apartments and large homes that need high air conditioning capacity.
🏥
Professional applications
Large consultants, clinics, professional centers that require high power with discreet installation.
5000W Power in Only 200mm Height!
The Daikin DXM50F offers the perfect combination of high power 5000W with low silhouette ultra-compact design and A+/A energy efficiency. The ideal solution for large spaces that require maximum capacity with discreet installation.
Request your budget for large spaces today!
DXM50F
Data sheet
- Brand
- Daikin
- Indoor Unit
- FDXM50F9
- Outdoor Unit
- RXM50R
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.630
- Energy class (cold)
- A+
TO - SEER
- 5,8
- Heat capacity (W)
- 5.800
- Heat capacity (Kcal / h)
- 4.988
- Nominal heat consumption (W)
- 1.870
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 28,0
- Weight Outdoor Unit (Kg)
- 49,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 40m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1150 x 620 x 200
- EU dimensions (anxfxh) mm
- 954 x 401 x 734
