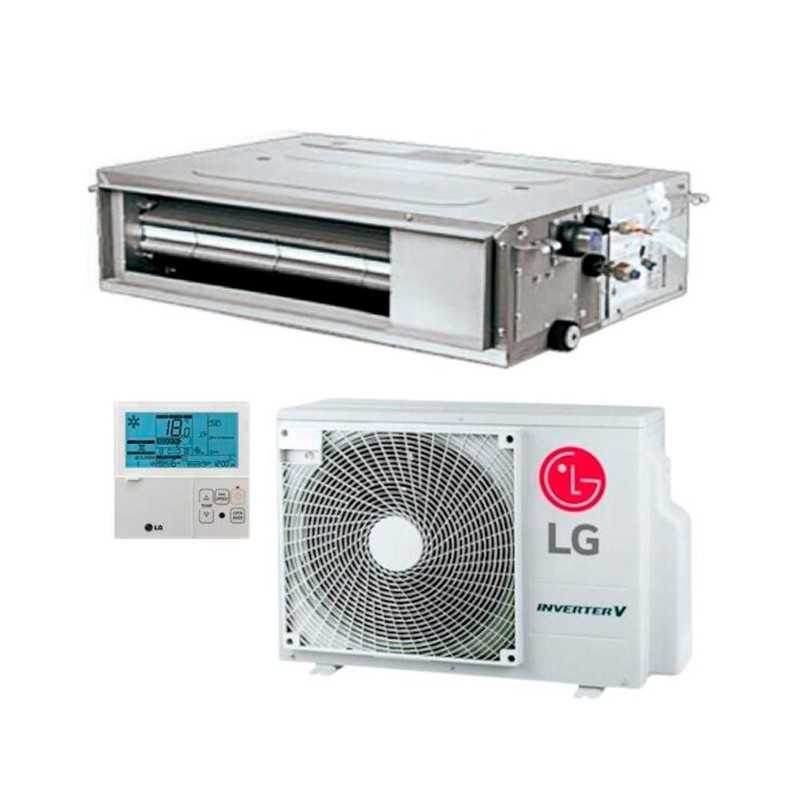

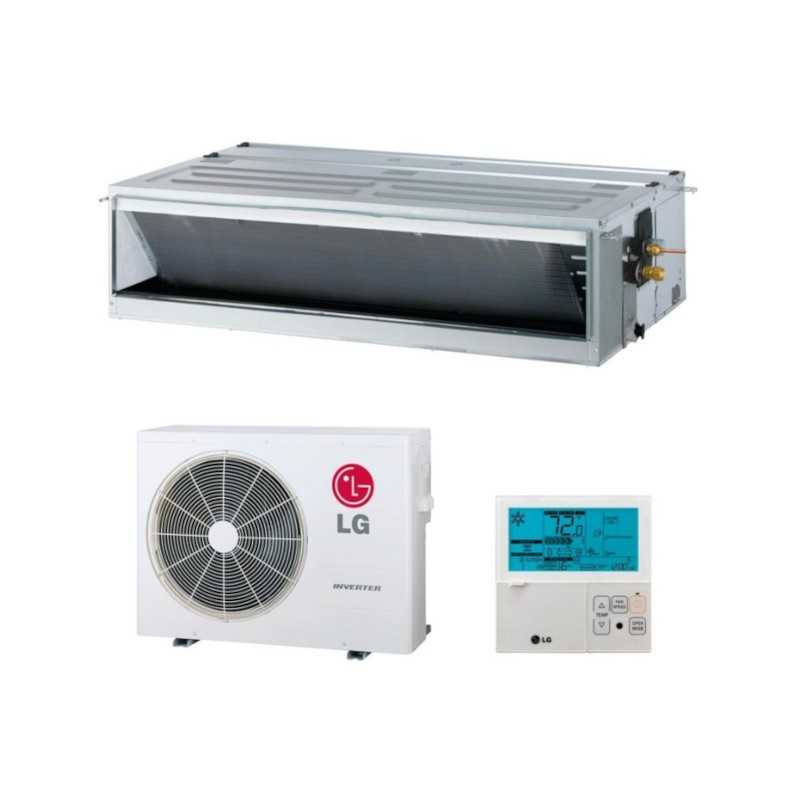

Ducted Air Conditioner LG CM18F CONFORT+ CM18F.NA0 + UUB1.U20
High efficiency air conditioning system with 5,0 kW nominal capacity, designed for small commercial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced technology, ideal for small offices, professional consultations, studies and spaces that require high quality professional air conditioning and absolute silence.
- ▷ Nominal power of 5.0 kW in cold and 5.5 kW in heat for small commercial spaces
- ▷ Modulant capacity of 1,80-5,50 kW cold and 2,20-6,30 kW heat
- ▷ High energy efficiency with SEER 5,70 and SCOP 3,80 (A+/A)
- ▷ Static pressure up to 150 Pa for maximum installation flexibility
- ▷ Absolute silent operation with only 31/29/28 dB
- ▷ Outdoor Unit compact (870x650x288 mm) and dual installation
Reference: CM18F.NA0 + UUB1.U20
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG CM18F CONFORT+ CM18F.NA0 + UUB1.U20
Referencia: KITCONDCM18F_CONFORT+
€1,494.82
Tax included
Envío GRATIS en España (Península) a partir de 300€ + info
We do not have stock at this time.
Ask us about availability!!
Ducted Air Conditioner LG CM18F CONFORT+ CM18F.NA0 + UUB1.U20
High efficiency air conditioning system with 5,0 kW nominal capacity, designed for small commercial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced technology, ideal for small offices, professional consultations, studies and spaces that require high quality professional air conditioning and absolute silence.
- ▷ Nominal power of 5.0 kW in cold and 5.5 kW in heat for small commercial spaces
- ▷ Modulant capacity of 1,80-5,50 kW cold and 2,20-6,30 kW heat
- ▷ High energy efficiency with SEER 5,70 and SCOP 3,80 (A+/A)
- ▷ Static pressure up to 150 Pa for maximum installation flexibility
- ▷ Absolute silent operation with only 31/29/28 dB
- ▷ Outdoor Unit compact (870x650x288 mm) and dual installation
Reference: CM18F.NA0 + UUB1.U20
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG CM18F CONFORT+ is a high-end air conditioning system designed to provide superior comfort in small commercial spaces that require balanced power, exceptional reliability and maximum energy efficiency with absolute silence. This team of the prestigious Free Combination CONFORT+ range LG combines a nominal power of 5.0 kW in cold and 5.5 kW in heat with an exceptional modulant capacity ranging from 1.80 to 5.50 kW in cooling and from 2.20 to 6.30 kW in heating.

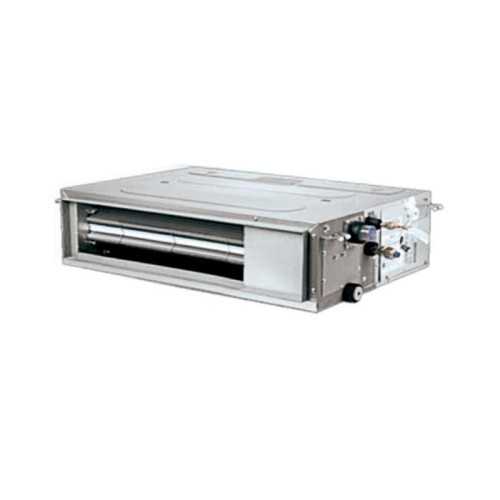

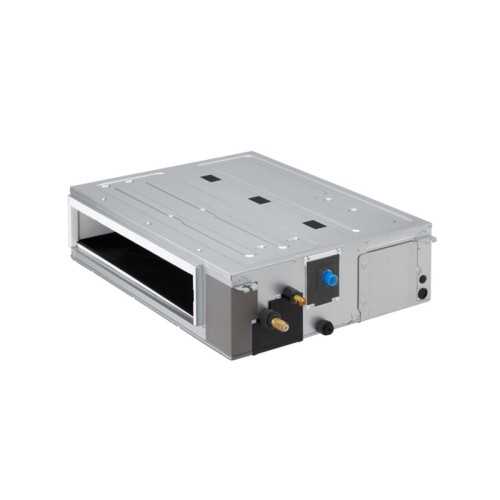

Composed of indoor Unit CM18F.NA0 and outdoor Unit UUB1.U20, this system stands out for its ultra compact design with static pressure up to 150 Pa and pipe lengths up to 35 meters. La indoor Unit, with dimensions of 900 x 245 x 700 mm, offers the unique flexibility of both horizontal and vertical installation by means of the ABDAMA0 accessory, providing an airflow of up to 14 m3/min with practically inaudible sound levels of 31/29/28 dB according to the selected speed.

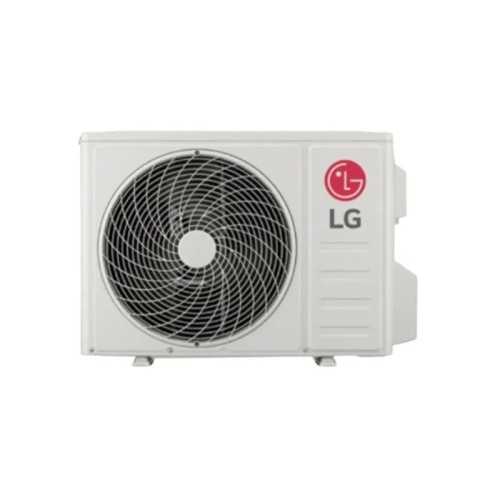

La outdoor Unit UUB1.U20, with its ultra compact dimensions of 870 x 650 x 330 mm and optimized weight of 44,5 kg, incorporates advanced technology to maximize thermal exchange by ensuring optimal performance in small but demanding commercial applications. With a range of operation ranging from -10°C to 48°C in cooling and from -15°C to 18°C in heating, this system uses only 1.2 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability and efficiency without compromising professional performance that demand the most select commercial applications.
Main features
▪
Premium Compact Power
Nominal power of 5.0 kW in cold and 5.5 kW in heat, with intelligent modulation from 1.80-5.50 kW in cooling and 2.20-6.30 kW in heating.
📐
Ultra Compact Design
Outdoor Unit with minimum dimensions of 870x650x330 mm and only 44,5 kg, ideal for very limited outdoor spaces in urban environments.
🔄
Dual Premium installation
Unique capacity for horizontal or vertical installation by ABDAMA0 accessory, adapting to any architectural configuration.
🔇
Absolute Silence
Exceptional sound levels of 31/29/28 dB indoor Unit, practically inaudible for more demanding professional environments.
🔌
Economic installation
Preload for 10 meters of pipe and addition of only 40 g/m for higher lengths, up to maximum 35 meters with minimal economic impact.
🌱
Maximum Ecological Efficiency
Refrigerant Gas Ecological R32 with minimum load of 1.2 kg and A+/A classification for maximum environmental sustainability.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CM18F.NA0 + UUB1.U20 |
| Cold Capacity (Mín-Nom-Máx) | 1,80 - 5,00 - 5.50 kW |
| Heat capacity (Mín-Nom-Máx) | 2,20 - 5,50 - 6,30 kW |
| EER / COP | 3,00 / 3,50 |
| SEER / SCOP | 5,70 / 3,80 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 245 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 870 x 650 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 31 / 29 / 28 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 48 / 53 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 14 / 12 / 10 m3/min |
| Air flow rate Outdoor Unit | 50 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.2 kg |
| Length Tuberia (Min/Máx) | 5 / 35 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 27.9 kg |
| Weight Outdoor Unit | 44,5 kg |
| Vertical Installation | ABDAMA0 |
Air Conditioning Benefits LG CM18F CONFORT+
✓
Premium solution for small commercial spaces
With 5,0 kW rated power, it is perfect for premium small offices, specialized medical consultations, professional studies, small offices and select commercial spaces that require maximum quality air conditioning without oversizing the system.
✓
Ultra compact and versatile installation
His outdoor Unit of minimum dimensions (870x650x330 mm) and horizontal or vertical installation capacity allow to adapt the system even in the most limited spaces, ideal for urban centers with architectural restrictions.
✓
Avant-garde energy efficiency
Advanced modulation technology and the A+/A rating with SEER 5,70 ensure optimized energy consumption with minimal R32 refrigerant load, reducing both operating costs and environmental impact.
✓
Unmatched professional silence
Its exceptional sound levels (from 28 dB) guarantee an absolutely silent working environment, ideal for medical consultations, law firms and professional spaces where concentration and privacy are fundamental.
Why choose Air Conditioning LG CM18F CONFORT+?
Main applications
🏢
Small Premium Offices
Executive equipment, professional studies and individual offices that require ultra silent and efficient air conditioning in high quality reduced spaces.
🏥
Specialized Medical Consultations
Private medical consultations, premium specialized clinics and exclusive health centers that need ultra silent environment for maximum privacy and comfort of patients.
💎
Exclusive Commercial Spaces
Luxury boutiques, exclusive jewellery and premium commercial spaces that require perfectly air-conditioned and quiet environment for top quality shopping experiences.
Installation Information
Important considerations:
- La indoor Unit CM18F.NA0 allows both horizontal and vertical installation through the ABDAMA0 accessory.
- Maximum length of pipe: 35 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add only 40 g/m for higher lengths.
- Uniform fridge connections: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2") in both units.
- La outdoor Unit UUB1.U20 ultra compact (870x650x330 mm) facilitates installation in the most limited outdoor spaces.
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation by specialized technical staff and certified by LG to ensure proper operation and maintain the validity of the premium CONFORT+ warranty.
The premium solution for small spaces that deserve great quality!
Air Conditioning by Conduct LG CM18F CONFORT+ demonstrates that small commercial spaces can also enjoy premium quality air conditioning. Invest in technology LG CONFORT+ and ensure maximum comfort with absolute silence in a perfectly dimensioned and ultra compact system.
Request your custom budget today!
KITCONDCM18F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- CM18F.NA0
- Outdoor Unit
- UUB1.U20
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Fridge capacity (W)
- 5.000
- Fridge capacity (Kcal/h)
- 4.300
- Nominal consumption Cold (W)
- 1.330
- Energy class
- A++
- SEER
- 6,2
- Heating Capacity (W)
- 5.500
- Heating capacity (Kcal/h)
- 4.730
- Nominal heat consumption (W)
- 1.480
- Energy class (Calor)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI dB
- 28
- Weight Indoor Unit (Kg)
- 27,9
- Weight Outdoor Unit (Kg)
- 44,5
- Diameter Liquid Tubery
- 1/4"
- Diameter Gas Tuberia
- 1/2"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended surface
- Estancia de 38m2 aprox.
- IU dimensions (AnxFxH) mm
- 900 x 700 x 245
- EU dimensions (AnxFxH) mm
- 870 x 330 x 650
