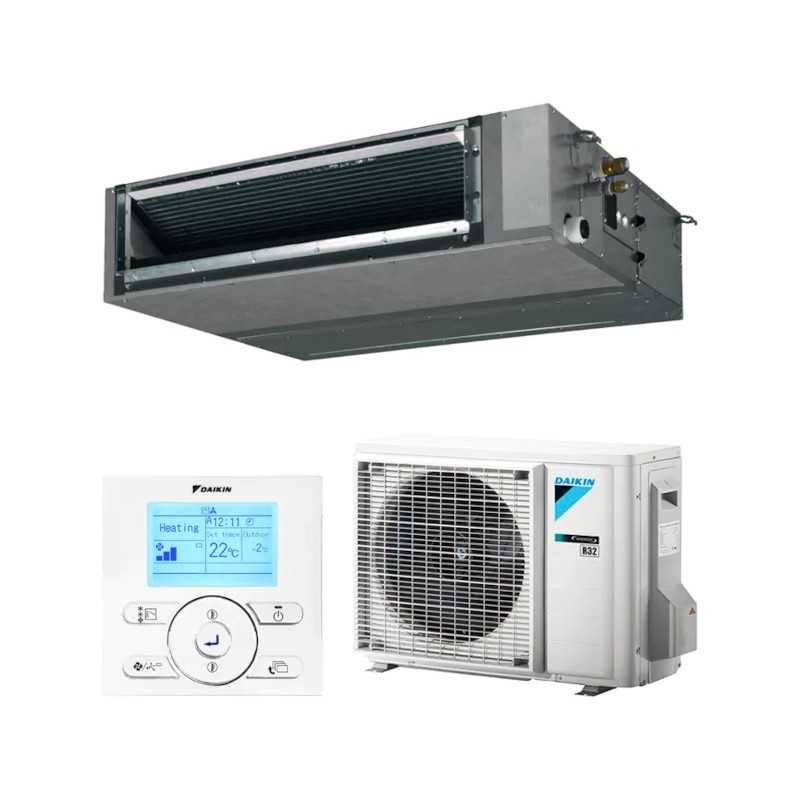

Ducted Air Conditioner Daikin BASG140A SKY AIR SERIE ADVANCE

Product Description

The Air Conditioning by Conduct Daikin BASG140A represents the maximum expression of power and technology in the Sky Air Advance Series, it is the ultimate solution for the most demanding and critical applications of the commercial and industrial air conditioning market. With exceptional capacity 13400W in refrigeration (11524 kcal/h) and 15500W heating (13330 kcal/h), this system redefines the limits of professional air conditioning, integrating state-of-the-art inverter technology with eco-friendly R-32 coolant to deliver absolute performance on top-notch installations.

Your optimized energy efficiency with SEER values 5,81 and SCOP de 3.85 guarantees annual seasonal energy consumption 1384 kWh in refrigeration and 2836 kWh heating, maintaining proportionality in operating costs even with this absolute power. The system uses coolant R-32 with a load 2.90 kg and an impact 1.96 TCO2eq, establishing new environmental sustainability standards in high capacity applications.

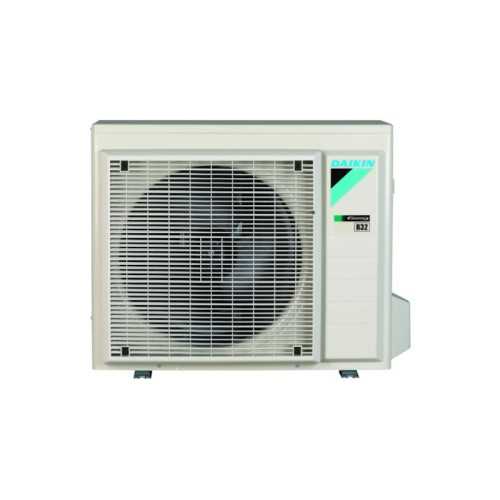

La outdoor Unit RZASG140MV1 incorporates a compressor SWING of absolute power with a flow of air 76 m3/min cooling and 82 m3/min heating. Its robust dimensions 990×940×320 mm and weight 78 kg are specifically designed to support the most intensive operation of the most critical facilities, while their sound pressure 54 dBA in cooling and 57 dBA heating maintains professional standards even with this maximum capacity.

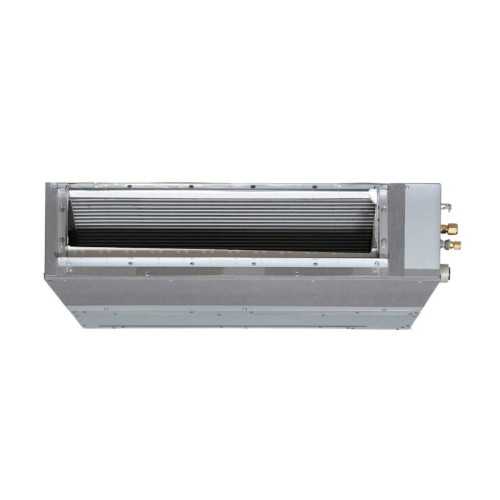

La indoor Unit FBA140A preserves the revolutionary ultra-compact design 245 mm height, with dimensions 245×1400×800 mm and weight 46 kg. Its upper air flow 34 m3/min at high speed and 23.5 m3/min at low speed provides the most powerful and efficient air distribution available on the market, ensuring homogeneous air conditioning in the wider and demanding spaces.

The system allows installations of maximum architectural complexity with maximum pipe length of 50 meters (70 meters equivalent) and maximum level difference of 30 meters. Your cold connections 3/8" for liquid and 5/8" for gas, along with monophasic power supply I/220V with 3+T interconnection threads, facilitate installations in the most challenging architectural configurations of the sector.

With available pressure 50 Pa nominal and up to 150 Pa high, the system is able to overcome the highest resistances of extremely extensive and complex duct systems. Its exceptional internal sound pressure 37 dBA in cooling (32 dBA at low speed) and 38 dBA heating (32 dBA at low speed) makes it the ultimate choice for large industrial complexes, international convention centers, critical hospital facilities and institutional applications that require absolute power with maximum acoustic comfort.

The refrigerant load included covers up to 30 meters of installation, with additional charges optimized according to specific table for 30-50m installations, maximizing economic efficiency in maximum scale projects. Your design load 13,04 kW in cooling and 7,80 kW heating at -10°C ensures exceptional performance even in the most adverse weather conditions, essential for critical applications that cannot afford faults.

The level of internal acoustic power 62 dBA and exterior 73 dBA maintains exceptional professional standards even with this absolute power. The most advanced inverter technology allows maximum precision intelligent modulation according to variable demands, maximizing operational efficiency in 24/7 intensive facilities and multiple critical air conditioning zones.

This model represents the technological culmination of Daikin for applications that do not support commitments: large hospital complexes, critical data centers, pharmaceutical installations, research centers, international congress palaces and high demand industrial applications where reliability, power and efficiency are critical success factors.

Main Features Absolute Power

Technical Specifications Absolute Power

Advantages Absolute Power Advance Series

Critical Applications Absolute Power

Absolute Power 13400W for Multitud of both Residential and Commercial Applications!

The Daikin BASG140A series Advance represents the absolute power with 13400W in cooling and 15500W in heating. Massive flow of 82 m3/min, 150 Pa superior pressure and ecological R-32 technology for the most critical and demanding applications of the professional market.
