Ducted Air Conditioner LG UM48F CONFORT+ UM48F.N21 + UUD1.U30
High-powered air conditioning system with 13.4 kW nominal capacity, designed for large commercial and industrial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced control technology, ideal for large offices, medium shopping centers and industrial spaces that require high-level air conditioning.
- ▷ Nominal power of 13.4 kW in cold and 15.5 kW in heat for large spaces
- ▷ Modulant capacity of 5,40-15,68 kW cold and 6,20-17,52 kW heat
- ▷ Energy efficiency A+/A with SEER 5,80 and SCOP 4,00
- ▷ Static pressure up to 147 Pa for large complex installations
- ▷ Maximum pipe length up to 85 meters for maximum flexibility
- ▷ Refrigerant Gas ecological R32 and silent operation since 36 dB
Reference: UM48F.N21 + UUD1.U30
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG UM48F CONFORT+ UM48F.N21 + UUD1.U30
Referencia: KITCONDCM48F_CONFORT+
€3,052.02
Tax included
Envío GRATIS en España (Península) a partir de 300€ + info
We do not have stock at this time.
Ask us about availability!!
Ducted Air Conditioner LG UM48F CONFORT+ UM48F.N21 + UUD1.U30
High-powered air conditioning system with 13.4 kW nominal capacity, designed for large commercial and industrial spaces. This team of the CONFORT+ range combines excellent performance with A+/A energy efficiency and advanced control technology, ideal for large offices, medium shopping centers and industrial spaces that require high-level air conditioning.
- ▷ Nominal power of 13.4 kW in cold and 15.5 kW in heat for large spaces
- ▷ Modulant capacity of 5,40-15,68 kW cold and 6,20-17,52 kW heat
- ▷ Energy efficiency A+/A with SEER 5,80 and SCOP 4,00
- ▷ Static pressure up to 147 Pa for large complex installations
- ▷ Maximum pipe length up to 85 meters for maximum flexibility
- ▷ Refrigerant Gas ecological R32 and silent operation since 36 dB
Reference: UM48F.N21 + UUD1.U30
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM48F CONFORT+ is a high efficiency air conditioning system designed to provide superior comfort in large commercial and industrial spaces that require high power and maximum reliability. This team from the Free Combination CONFORT+ range LG combines a nominal power of 13,4 kW in cold and 15.5 kW in heat with an exceptional modulant capacity ranging from 5,40 to 15,68 kW in cooling and from 6.20 to 17,52 kW in heating.

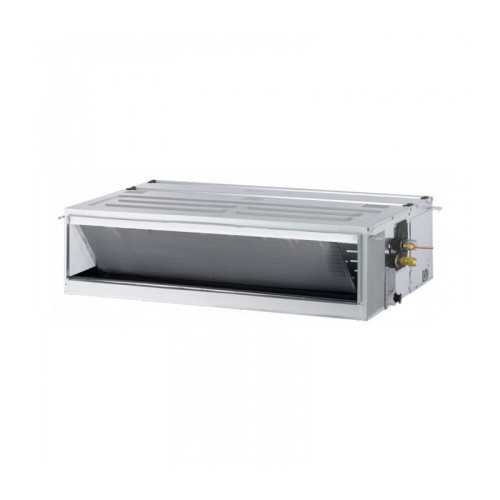

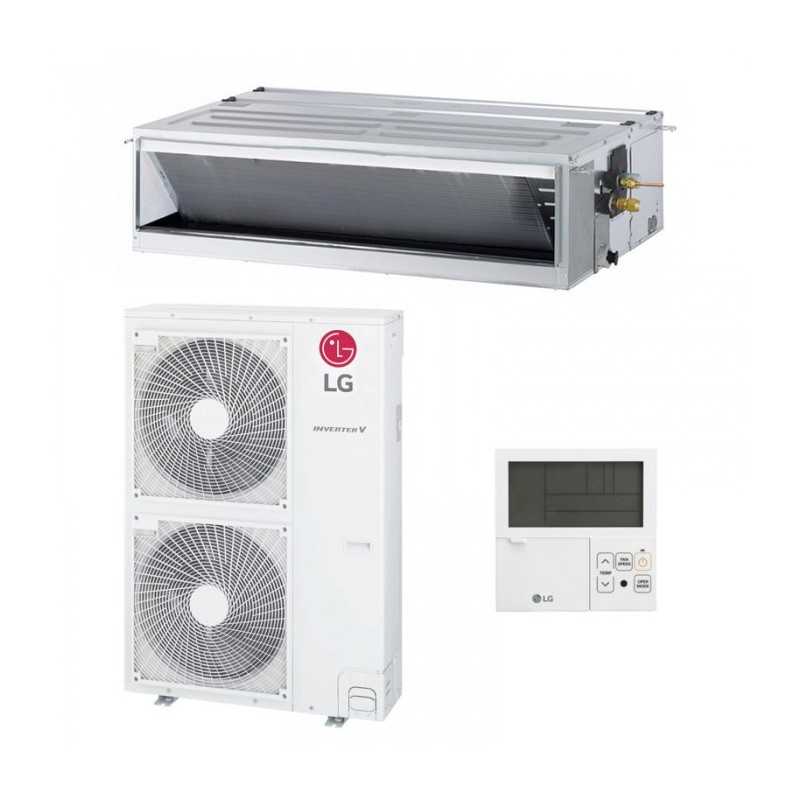

Composed of indoor Unit UM48F.N21 and the outdoor Unit UUD1.U30, this system stands out for its ability to handle large-scale installations with pipe lengths up to 85 meters and static pressure up to 147 Pa. La indoor Unit, with dimensions of 1,250 x 360 x 700 mm, has been specifically designed for horizontal installation in large commercial spaces, providing an airflow of up to 40 m3/min with optimized sound levels of 39/38/36 dB according to the selected speed.

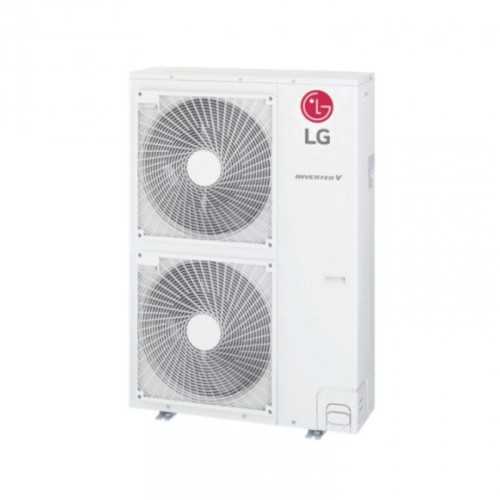

La outdoor Unit UUD1.U30, with its 950 x 1.380 x 330 mm dimensions, incorporates dual fan technology (55 x 2 m3/min) to maximize thermal exchange and ensure optimal performance even in extreme environmental conditions. With a range of operation ranging from -20°C to 52°C in cooling and from -25°C to 18°C in heating, this system uses 3.0 kg of R32 ecological coolant, demonstrating the commitment to LG with environmental sustainability without compromising professional performance.
Main features
🏢
High Commercial Power
Nominal power of 13,4 kW in cold and 15.5 kW in heat, with advanced modulation from 5,40-15,68 kW in cooling and 6,20-17,52 kW in heating.
📏
Extended Scope
Maximum length of pipe up to 85 meters with 30 metre dense, ideal for multi-storey buildings and complex configurations.
️
Operation Extended Range
It works efficiently from -20°C to 52°C in cooling and from -25°C to 18°C in heating.
🔧
Elevada Static Pressure
Up to 147 Maximum static pressure pa to overcome resistances in complex and long ducts.
🔇
Optimized operation
Controlled sound levels of 39/38/36 dB indoor Unit, providing acoustic comfort in working spaces.
️
Double External Fan
Double fan system (55 x 2 m3/min) which guarantees maximum thermal exchange and efficiency in all conditions.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM48F.N21 + UUD1.U30 |
| Cold Capacity (Mín-Nom-Máx) | 5,40 - 13,40 - 15,68 kW |
| Heat capacity (Mín-Nom-Máx) | 6,20 - 15,50 - 17.52 kW |
| EER / COP | 3,10 / 3,60 |
| SEER / SCOP | 5,80 / 4,00 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 1.250 x 360 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 1.380 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 39 / 38 / 36 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 52/53 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 40 / 34 / 28 m3/min |
| Air flow rate Outdoor Unit | 55 x 2 m3/min |
| Static Pressure (Standard/Maximum) | 39 / 147 Pa |
| Refrigerant Gas / Charge | R32 / 3.0 kg |
| Length Tuberia (Min/Máx) | 5 / 85 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 41.8 kg |
| Weight Outdoor Unit | 89 kg |
Air Conditioning Benefits LG UM48F CONFORT+
✓
Ideal solution for medium commercial spaces
With 13.4 kW of nominal power, it is perfect for large offices, medium stores, restaurants, educational centers and commercial spaces that require powerful and reliable air conditioning.
✓
Flexibility of professional installation
With pipe lengths up to 85 meters and high static pressure, it allows to air complex buildings and spaces distributed in multiple areas or plants.
✓
Commercial energy efficiency
Advanced modulation technology and A+/A classification ensure optimized energy consumption in commercial facilities, significantly reducing long-term operating costs.
✓
Acoustic comfort in working environments
Its controlled sound levels (from 36 dB) guarantee a comfortable working environment without interfering with the productivity or well-being of the occupants.
Why choose Air Conditioning LG UM48F CONFORT+?
Main applications
🏢
Large Offices
Spacious workspaces, large board rooms and office centres that require silent and efficient air conditioning.
️
Medium-sized trade
Shops, boutiques, restaurants and commercial spaces that need comfort for customers and employees.
🏥
Health Centres
Clinics, medical clinics and health centers that require constant and reliable air conditioning.
Installation Information
Important considerations:
- La indoor Unit UM48F.N21 is designed exclusively for horizontal installation.
- Maximum length of pipe: 85 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 50 g/m for upper lengths.
- Frigorific connections: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8") in both units.
- La outdoor Unit UUD1.U30 requires adequate space due to its dimensions (950 x 1.380 x 330 mm) and weight (89 kg).
- External double fan system that requires free ventilation on both sides for optimal operation.
- Installation by technical staff specialized in commercial systems and authorized by LG to ensure proper functioning and maintain the validity of the warranty.
Smart choice for commercial spaces that seek excellence!
Air Conditioning by Conduct LG UM48F CONFORT+ offers the perfect combination of power, efficiency and reliability for medium commercial spaces. Invest in professional technology LG and ensure maximum comfort for your business with superior energy efficiency.
Request your custom budget today!
KITCONDCM48F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- UM48F.N31
- Outdoor Unit
- UUD1.U30
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Fridge capacity (W)
- 13.400
- Fridge capacity (Kcal/h)
- 11.524
- Nominal consumption Cold (W)
- 4.320
- SEER
- 5,8
- Heating Capacity (W)
- 15.500
- Heating capacity (Kcal/h)
- 13.330
- Nominal heat consumption (W)
- 4.310
- SCOP
- 4,0
- Minimum sound pressure UI dB
- 36
- Weight Indoor Unit (Kg)
- 41,8
- Weight Outdoor Unit (Kg)
- 89,0
- Diameter Liquid Tubery
- 3/8"
- Diameter Gas Tuberia
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended surface
- Estancia de 110m2 aprox.
- IU dimensions (AnxFxH) mm
- 1250 x 700 x 360
- EU dimensions (AnxFxH) mm
- 950 x 330 x 1380
