Air Conditioning Samsung AC120RNMDKG/EU
Refrigeration 12000W 日本語 Heating 13200W ̄s Efficiency A+ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC120RNMDKG/EU is the high power solution of the Deluxe Conduct Series with 12000W in cooling and 13200W heating. With indoor Unit of 300mm high, this hidden duct system offers high-power and discreet air conditioning for large commercial spaces with advanced technology Samsung and monophasic/core options.
12️ 12000W Refrigeration
EER 2,66 - High Power
13 13200W Heating
COP 3,42 - Excellent
▪ SEER 5.8 / SCOP 4.0
Efficiency A+ / A+
Robust 300mm
Deluxe Conduct
Specifications Key Conduct Deluxe High Power
Indoor Unit: AC120RNMDKG/EU
Outdoor Unit: AC120RXADKG/EU
Air flow: 23,0-33,0 m3/min
Static pressure: 0-147 Pa
Sonic Pressure: 30 dBA
Tactile control: MWR-SH11N
Nominal consumption: 4.5 kW cold
Refrigerant Gas: R-32 (2.7 kg)
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

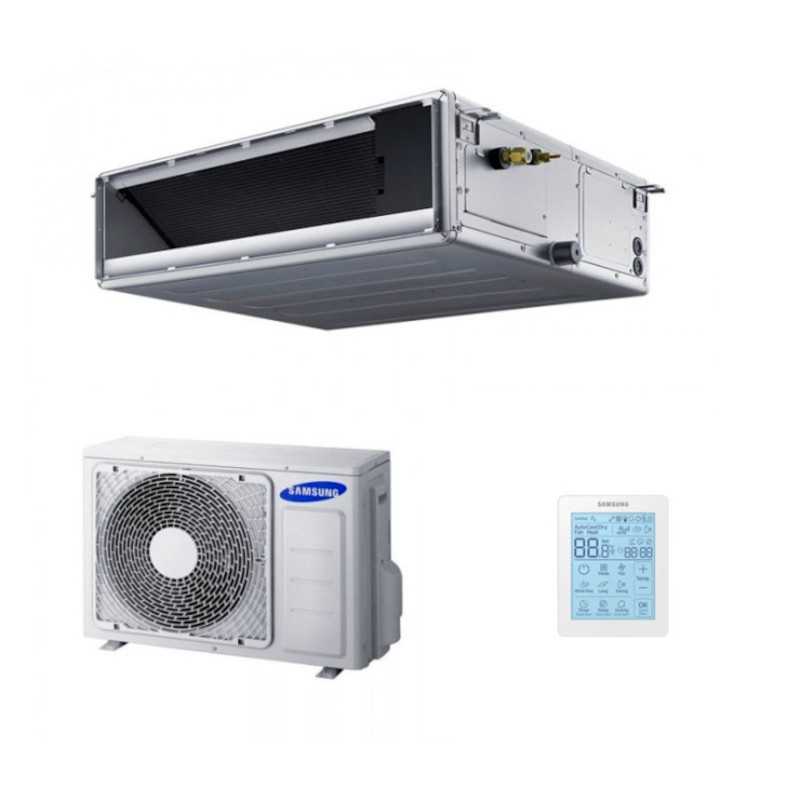

Ducted Air Conditioner Samsung KIT-120MDKG Inverter Deluxe Monof.
Referencia: F-AC120MDKG
€1,971.13
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Samsung AC120RNMDKG/EU
Refrigeration 12000W 日本語 Heating 13200W ̄s Efficiency A+ Δ R-32 日本語 Conduct Deluxe
The Air Conditioning Samsung AC120RNMDKG/EU is the high power solution of the Deluxe Conduct Series with 12000W in cooling and 13200W heating. With indoor Unit of 300mm high, this hidden duct system offers high-power and discreet air conditioning for large commercial spaces with advanced technology Samsung and monophasic/core options.
12️ 12000W Refrigeration
EER 2,66 - High Power
13 13200W Heating
COP 3,42 - Excellent
▪ SEER 5.8 / SCOP 4.0
Efficiency A+ / A+
Robust 300mm
Deluxe Conduct
Specifications Key Conduct Deluxe High Power
Indoor Unit: AC120RNMDKG/EU
Outdoor Unit: AC120RXADKG/EU
Air flow: 23,0-33,0 m3/min
Static pressure: 0-147 Pa
Sonic Pressure: 30 dBA
Tactile control: MWR-SH11N
Nominal consumption: 4.5 kW cold
Refrigerant Gas: R-32 (2.7 kg)
Security policy
Delivery policy
Refund policy
Samsung AC120RNMDKG/EU
Ducted Air Conditioner 12000W Deluxe High Power Conduct Series
High Power Deluxe Advanced
The AC120RNMDKG/EU represents the high advanced power of technology Samsung Deluxe driver with 12000W in cooling and 13200W heating. Equipped with 450-step electronic expansion valve (EEV) and variable static pressure of 0-147 Pa. Your rating SEER 5.8 A+ optimizes efficiency for intensive commercial applications of 90-130m2.
Tecnología High Power R32 Technology
Use coolant R32 new generation with load 2.7 kg optimized for high-power applications. It significantly reduces environmental impact while maximizing efficiency in intensive business facilities. It includes Auto Restart function that automatically restarts the system after power cuts, critical for commercial applications.
Technical Specifications High Power
Re️ Cooling
- • Nominal power: 12000W
- • Operation Range: 3.0-13.5 kW
- • EER: 2,66 (High Power)
- • SEER: 5.8 A+ (Efficient)
- • Nominal consumption: 4.5 kW
Performance Heating
- • Nominal power: 13200W
- • Operation Range: 2.5-17.0 kW
- • COP: 3.42 (Excellent)
- • SCOP: 4.0 A+ (High Efficiency)
- • Nominal consumption: 4.9 kW
S Technical characteristics
- • Indoor Unit: AC120RNMDKG/EU
- • Outdoor Unit: AC120RXADKG/EU
- • Dimensions: 1300x300x700mm
- • Interior weight: 38.5 kg
- • Tuberia: Ø3/8" - 5/8"
Y️ Control and Functionality
- • Tactile control: MWR-SH11N
- • Air flow: 23,0-33,0 m3/min
- • Static pressure: 0-147 Pa variable
- • Sound level: 30-37 dBA
- • Food: 220-240V Monkey/Trip
High Power Technology Samsung
450-step EEV valve .S. Height 300mm
High power optimized with technology Samsung Advanced commercial Deluxe Drive
Installation and High Power Dimensions

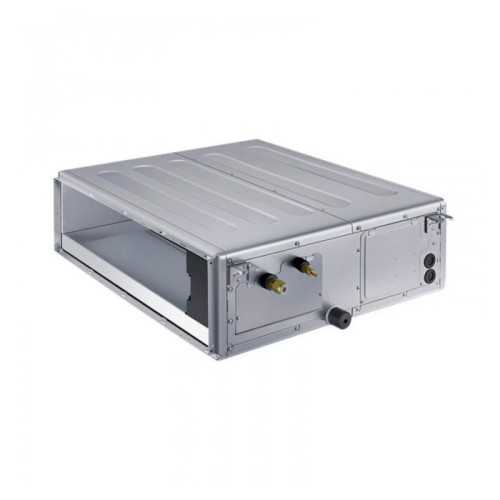

📐 Indoor Unit AC120RNMDKG/EU
- • Dimensions: 1300 x 300 x 700 mm
- • Robust height: 300mm high power
- • Weight: 38.5 kg (high power)
- • Air flow: 23,0-28,0-33,0 m3/min
- • Static pressure: 0-147 Pa variable
- • Sound level: 30-34-37 dBA

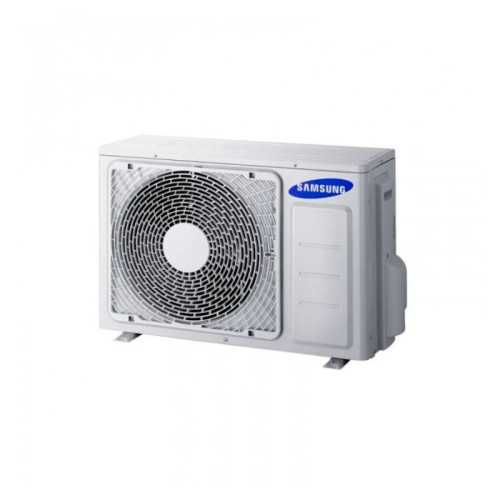

🏢 Outdoor Unit AC120RXADKG/EU
- • Dimensions: 940 x 998 x 330 mm
- • Weight: 81.0 kg (hard core)
- • Sound level: 54-56 dBA
- • Food: 220-240V Monkey/Trip
- • Max intensity: 25A Monkey / 16A Tri
- • Protection: IPX4 external commercial

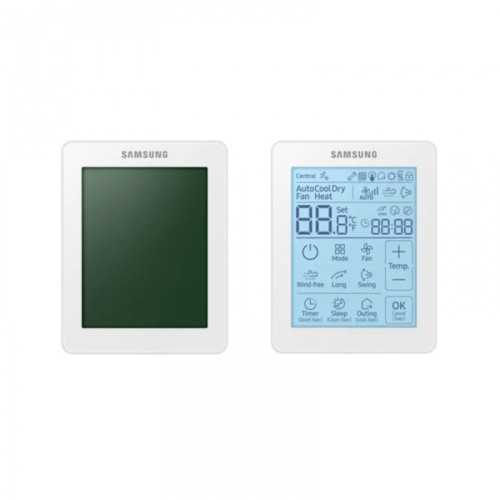

Alta️ MWR-SH11N Tactile Control High Power
Includes touch control MWR-SH11N with LCD display and optimized high power features. Advanced weekly programming, precision temperature control and multiple operating modes for intensive commercial applications. Optional Wi-Fi kit compatible MIM-H04EN for advanced commercial remote control.
High power functions: Dual Control Monkey/Tri, Optimized Static Pressure, Commercial Wi-Fi
Advanced Commercial Connectivity
System prepared for high-power commercial applications. Wi-Fi Kit MIM-H04EN for advanced corporate remote control, optional drain pump MDP-G075SP/SQ with elevation of 750mm, and optional SPi ionizer MSD-CAN1 for the purification of intense commercial air.
High power accessories: Corporate Wi-Fi Kit, SPi Ionizer, Trading
Y️ Installation and Features High Power
Requirements Installation
- • Liquid pipe: Ø3/8" (9,52mm)
- • Gas pipe: Ø5/8" (15.88mm)
- • Max length: 50m total / 30m vertical
- • Disclaimer: VP25 (Ext.32, Int.25mm)
Das️ Advanced Features
- • EV valve: 450 steps precision
- • Permanent filter: Commercial laundry
- • Auto Restart: Automatic reinstatement
- • Higher height: 300mm high power
Gos️ Rangos Operation
- • Refrigeration: -15°C to +50°C ext.
- • Heating: -15°C to +24°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Es Commercial Warranty and Certifications
Warranty Samsung Commercial 日本語 CE Certification Cumple ErP 2019
Korean quality with specialized commercial technical support and national service network
+️ MWR-SH11N Tactile Control + Dual Power
Commercial LCD touch control • Electronic expansion valve 450 steps • Single-phase/quarter power • Variable static pressure 0-147 Pa • High 300mm height • Auto Restart • Spaces 90-130m2
▷ Includes in the Price
- • Indoor Unit AC120RNMDKG/EU
- • Outdoor Unit AC120RXADKG/EU
- • MWR-SH11N Tactile Control
- • Washable permanent filter
S Unique benefits
- • Warranty Samsung Commercial
- • Professional installation available
- • Commercial technical support
- • Deluxe Conduct Technology
▪ High Power Advanced Available!
AC120RNMDKG/EU with height 300mm and efficiency A+ - Deluxe driver Samsung
🎯 Spaces: 90-130m2
▪ Consumption: 4.5 kW nominal
🌿 Gas: R32 Ecological
️ Control: Touch MWR-SH11N
🏆 Samsung Deluxe driver AC120RNMDKG/EU
High power air conditioning with Korean technology • MWR-SH11N touch control included • Commercial installation available
F-AC120MDKG
Data sheet
- Brand
- Samsung
- Indoor Unit
- AC120RNMDKG
- Outdoor Unit
- AC120RXADKG
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 12.000
- Refrigerator capacity (kcal / h)
- 10.320
- Nominal consumption Cold (W)
- 4.500
- Energy class (cold)
- A+
- SEER
- 5,8
- Heat capacity (W)
- 13.200
- Heat capacity (Kcal / h)
- 11.352
- Nominal heat consumption (W)
- 4.900
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 30
- Weight Indoor Unit (Kg)
- 38,5
- Weight Outdoor Unit (Kg)
- 81,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Wifi Opcional con módulo MIM-H04EN
- Recommended area
- Estancia de 100m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1300 x 700 x 300
- EU dimensions (anxfxh) mm
- 940 x 330 x 998
