Ducted Air Conditioner Low silhouette LG CL18F CONFORT+
Air conditioning system through low silhouette ducts with 5.0 kW nominal capacity, specially designed for small spaces with extremely limited false ceilings. This team of the CONFORT+ range combines ultra compact design (only 200mm high) with energy efficiency A+/A and advanced technology, ideal for small offices, professional consultations and compact commercial spaces with severe height restrictions.
- ▷ Low silhouette design with only 200mm height for extremely limited false ceilings
- ▷ Nominal power of 5.0 kW in cold and 5.5 kW in heat for compact spaces
- ▷ High energy efficiency with SEER 5,70 and SCOP 3,80 (A+/A)
- ▷ Absolute silent operation with only 28/26/25 dB
- ▷ Outdoor Unit ultra compact (770x545x288 mm) and dual installation
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL18F CONFORT+ + UUA1.UL0
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
LG CL18F CONFORT+ Low-Profile Ducts
Referencia: KITCONDCL18
€1,508.10
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Low silhouette LG CL18F CONFORT+
Air conditioning system through low silhouette ducts with 5.0 kW nominal capacity, specially designed for small spaces with extremely limited false ceilings. This team of the CONFORT+ range combines ultra compact design (only 200mm high) with energy efficiency A+/A and advanced technology, ideal for small offices, professional consultations and compact commercial spaces with severe height restrictions.
- ▷ Low silhouette design with only 200mm height for extremely limited false ceilings
- ▷ Nominal power of 5.0 kW in cold and 5.5 kW in heat for compact spaces
- ▷ High energy efficiency with SEER 5,70 and SCOP 3,80 (A+/A)
- ▷ Absolute silent operation with only 28/26/25 dB
- ▷ Outdoor Unit ultra compact (770x545x288 mm) and dual installation
- ▷ Static pressure up to 150 Pa and ecological coolant R32
Reference: CL18F CONFORT+ + UUA1.UL0
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioned by Low Silueta Behavior LG CL18F CONFORT+ is a high-end air conditioning system specifically designed for small spaces with extreme height limitations on false ceilings. This team of the prestigious Free Combination CONFORT+ range LG it combines an ultra compact design of only 200mm high with a nominal power of 5.0 kW in cold and 5.5 kW in heat, offering an exceptional modulant capacity ranging from 1.80 to 5.50 kW in cooling and from 2.20 to 6.30 kW in heating.

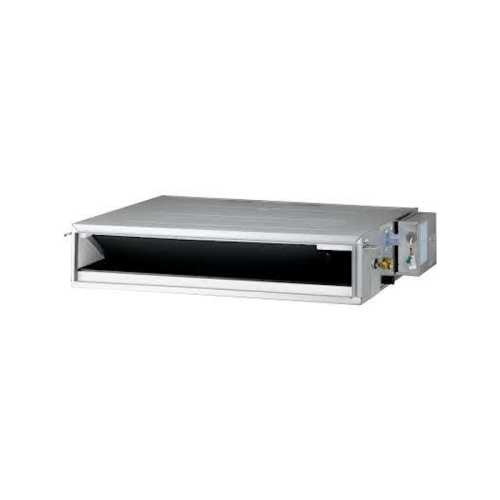

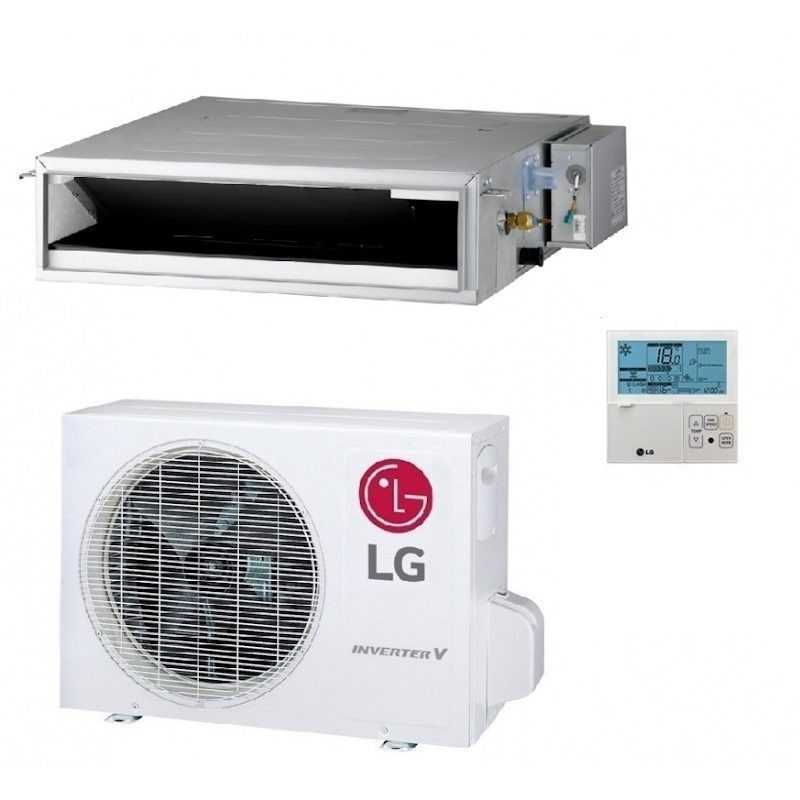

Composed of indoor Unit CL18F low silhouette and outdoor Unit UUA1.UL0, this system stands out for its unique installation capacity in spaces with severe height restrictions and limited outdoor spaces, keeping static pressure up to 150 Pa and pipe lengths up to 30 meters. La indoor Unit, with ultra-compact dimensions of 900 x 200 x 700 mm, offers both horizontal and vertical installation flexibility through the ABDAMA0 accessory, providing an airflow of up to 14 m3/min with virtually inaudible sound levels of 28/26/25 dB according to the selected speed.

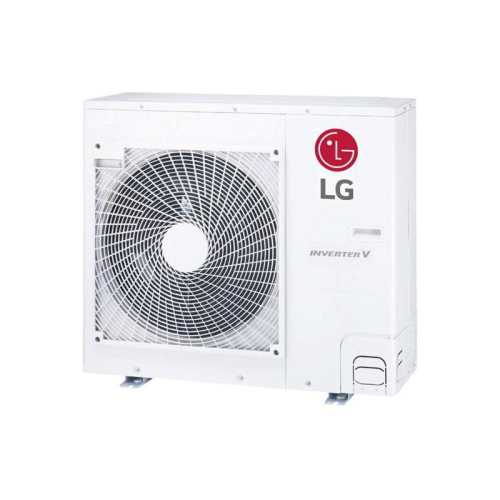

La outdoor Unit UUA1.UL0, with its ultra compact dimensions of 770 x 545 x 288 mm and optimized weight of 33.3 kg, incorporates advanced technology to maximize thermal exchange. With an extended range of operation ranging from -10°C to 50°C in cooling and from -10°C to 18°C in heating, this system uses only 1.0 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising professional performance that demand commercial applications with the most challenging architectural restrictions.
Main features
📏
Low Silueta Extremo
Only 200mm high vs 245mm standard, the definitive solution for spaces with extreme height limitations without compromising power or efficiency.
▪
Compact Power Perfecta
Nominal power of 5.0 kW in cold and 5.5 kW in heat, with intelligent modulation from 1.80-5.50 kW in cooling and 2.20-6.30 kW in heating.
📐
Totally Compact System
Outdoor Unit ultra compact (770x545x288 mm) and reduced weight (33.3 kg), ideal for extremely limited outdoor spaces.
🔇
Unmatched silence
Exceptional sound levels of 28/26/25 dB indoor Unit, practically unheard even in the quietest environments.
🔄
Dual Extreme Installation
Horizontal or vertical installation capacity by ABDAMA0 accessory, adapting to the most challenging configurations.
🌱
Sustainable efficiency
Refrigerant Gas Ecological R32 with minimum load of 1.0 kg and A+/A classification for maximum environmental sustainability in ultra compact format.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | CL18F CONFORT+ + UUA1.UL0 |
| Cold Capacity (Mín-Nom-Máx) | 1,80 - 5,00 - 5.50 kW |
| Heat capacity (Mín-Nom-Máx) | 2,20 - 5,50 - 6,30 kW |
| EER / COP | 3,00 / 3,50 |
| SEER / SCOP | 5,70 / 3,80 |
| Energy label ( Cold/Calor) | A+ / A |
| Dimensions Indoor Unit (AnxAlxProf) | 900 x 200 x 700 mm (low silhouette) |
| Dimensions Outdoor Unit (AnxAlxProf) | 770 x 545 x 288 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 28 / 26 / 25 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 49 / 52 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 14 / 12 / 10 m3/min |
| Air flow rate Outdoor Unit | 28 x 1 m3/min |
| Static Pressure (Standard/Maximum) | 20 / 150 Pa |
| Refrigerant Gas / Charge | R32 / 1.0 kg |
| Length Tuberia (Min/Máx) | 5 / 30 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 28.5 kg |
| Weight Outdoor Unit | 33.3 kg |
| Vertical Installation | ABDAMA0 |
Benefits of Low Silueta Air Conditioning LG CL18F CONFORT+
✓
Final solution for small spaces with extreme limitations
With only 200mm high and 5,0 kW power, it is the only viable option for professional studies, small offices and compact commercial spaces in historical buildings or with extremely limited false ceilings where other equipment is impossible to install.
✓
Fully compact interior and exterior system
The combination of indoor Unit low silhouette (200mm), outdoor Unit ultra compact (770x545x288 mm) and dual installation allows the system to adapt to the most severe architectural limitations both indoor and outdoor.
✓
Efficiency and sustainability in extreme format
CONFORT+ technology LG manages to maintain A+/A and SEER 5,70 with a minimum R32 refrigerant load (1,0 kg) in an ultra compact format, demonstrating cutting-edge engineering without compromising sustainability.
✓
Absolute silence in intimate spaces
Its exceptional sound levels (from 25 dB) make it practically inaudible, ideal for professional studies, private consultations and intimate spaces where absolute silence is fundamental for concentration and privacy.
Why choose the Air Conditioning Low Silueta LG CL18F CONFORT+?
Main applications
️
Small Historical Buildings
Small spaces in heritage buildings where architectural limitations are extreme and any structural modification is prohibited or technically impossible.
🏢
Professional Studies
Small professional equipment, architecture studies, private consultations and individual offices in buildings with extremely limited false ceilings.
💎
Premium spaces Íntimos
Exclusive small boutiques, intimate jewellery and compact premium commercial spaces that require perfectly air-conditioned environment with absolute silence in architecturally complex spaces.
Installation Information
Important considerations:
- La indoor Unit CL18F allows both horizontal and vertical installation through the ABDAMA0 accessory, with extreme reduced height of only 200mm.
- Maximum length of pipe: 30 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 10 meters of pipe, it is necessary to add only 20 g/m for upper lengths.
- Uniform fridge connections: Liquid 6,35 mm (1/4") / Gas 12.7 mm (1/2") in both units.
- La outdoor Unit Ultra compact UUA1.UL0 (770x545x288 mm) facilitates installation in the most limited outdoor spaces.
- The condensate pump is included in series, facilitating the evacuation of the condensed water.
- Installation is required by highly specialized technical staff in low silhouette systems and certified by LG to ensure proper operation and maintain the validity of the premium CONFORT+ warranty.
The ultimate solution for small spaces with extreme architectural limitations!
The Ducted Air Conditioner Low silhouette LG CL18F CONFORT+ represents the most advanced engineering LG to solve the most complex technical challenge: professional air conditioning in just 200mm high. It invests in the most exclusive technology for architecturally impossible spaces.
Request your custom budget today!
KITCONDCL18
Data sheet
- Brand
- LG
- Indoor Unit
- CL18F.N60
- Outdoor Unit
- UUB1.U20
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.000
- Refrigerator capacity (kcal / h)
- 4.300
- Nominal consumption Cold (W)
- 1.350
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 5.791
- Heat capacity (Kcal / h)
- 4.980
- Nominal heat consumption (W)
- 1.770
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 29
- Weight Indoor Unit (Kg)
- 20,9
- Weight Outdoor Unit (Kg)
- 44,5
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended area
- Estancia de 38m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1100 x 460 x 190
- EU dimensions (anxfxh) mm
- 870 x 330 x 650
