Air Conditioning Panasonic KIT-100PF3Z5
Refrigeration 9500W 日本語 Heating 9500W ̄s Efficiency A++ Δ R-32 Δ High Power
The Air Conditioning Panasonic KIT-100PF3Z5 represents the maximum power available in monophase 220-240V power supply of the PACi NX Standard Series. Offer exceptional 9500W power with Inverter+ and eco-friendly R-32 coolant technology. PF3 revolutionary design that allows horizontal and vertical installation with nanoetm X Mark 2 series. Ideal for large commercial and industrial spaces of 85-120m2.
9️ 9500W Refrigeration
EER 3.57 - High power
9 9500W Heating
COP 4,09 - High performance
▪ SEER 6,6 / SCOP 3,9
Efficiency A++ / A
・ Monofásico
220-240V • 9500W
Key Specifications High Power
Indoor Unit: S-1014PF3E
Outdoor Unit: U-100PZ3E5
Air flow: 32,0/26,0/21,0 m3/min
Static pressure: 40 Pa (10-150 Pa)
Sonic Pressure: 33/29/25 dBA
Annual consumption: 502 kWh/year
Refrigerant Gas: R-32 (2.40 kg)
Length Tuberia: 5-50m
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts

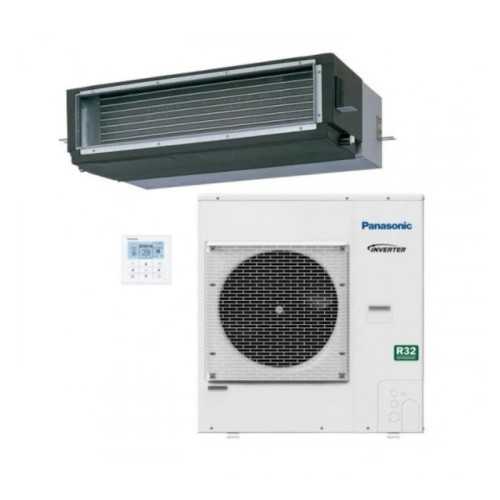

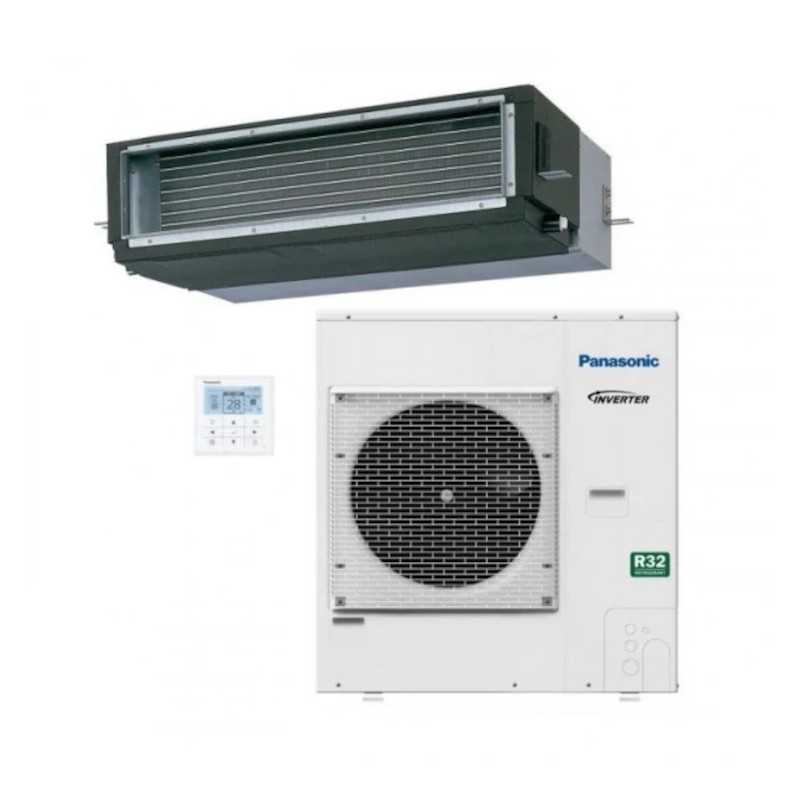

Ducted Air Conditioner Panasonic KIT-100PF3Z5-6W PACi NX Standard Series
Referencia: KIT-100PF3Z5-6W
€2,244.36
Tax included
IMMEDIATE DELIVERY!
For deliveries in Europe, consult delivery time
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Panasonic KIT-100PF3Z5
Refrigeration 9500W 日本語 Heating 9500W ̄s Efficiency A++ Δ R-32 Δ High Power
The Air Conditioning Panasonic KIT-100PF3Z5 represents the maximum power available in monophase 220-240V power supply of the PACi NX Standard Series. Offer exceptional 9500W power with Inverter+ and eco-friendly R-32 coolant technology. PF3 revolutionary design that allows horizontal and vertical installation with nanoetm X Mark 2 series. Ideal for large commercial and industrial spaces of 85-120m2.
9️ 9500W Refrigeration
EER 3.57 - High power
9 9500W Heating
COP 4,09 - High performance
▪ SEER 6,6 / SCOP 3,9
Efficiency A++ / A
・ Monofásico
220-240V • 9500W
Key Specifications High Power
Indoor Unit: S-1014PF3E
Outdoor Unit: U-100PZ3E5
Air flow: 32,0/26,0/21,0 m3/min
Static pressure: 40 Pa (10-150 Pa)
Sonic Pressure: 33/29/25 dBA
Annual consumption: 502 kWh/year
Refrigerant Gas: R-32 (2.40 kg)
Length Tuberia: 5-50m
Security policy
Delivery policy
Refund policy
🏭 Ducted Air Conditioner Panasonic KIT-100PF3Z5
PACi NX Standard • Inverter+ • R32 • nanoeTM X Mark 2
9️ 9500W Refrigeration • 9 9500W Heating • ・ ALTA POTENCIA MONOFÁSICA
Product Details
The Air Conditioning by Conduct Panasonic KIT-100PF3Z5 represents the top of the monophase power within the PACi NX Standard Series, offering exceptional 9500W capacity with standard 220-240V power. This Inverter+ system with R32 coolant is designed for large commercial and industrial spaces of 85-120m2 that require maximum air conditioning without the need for triphase installation.
The revolutionary pF3 design allows for the first time the installation both horizontal and vertical, providing unprecedented flexibility in complex industrial installations. With an external static pressure of up to 150 Pa, this equipment is ideal for remote installations in industrial ships, large shopping centers and spaces where the units must be located far from the heated areas, with pipe lengths of up to 50 meters.
Incorporates technology nanoeTM X Mark 2 series, which generates 9.6 billion hydroxyl radicals per second, essential to maintain air quality in large spaces with high occupation. The drainage pump included and the indoor Unit large (1400mm) guarantee professional performance for the most demanding applications.
This model represents the maximum power available in monophase power, being the perfect solution for companies that need high air conditioning capacity without the costs and complexity of a three-phase facility. Its exceptional energy efficiency SEER 6,6 A++ guarantees economic performance despite its high power.
M Maximum Energy Efficiency A+
SEER 6,6 A++
SCOP 3.9 A
️ EER 3.57
COP 4,09
De High Power Features
▪
Maximum Monophosic Power
9500W with standard power 220-240V. Smart modulation from 3000W to 11400W for maximum efficiency.
🔄
Dual PF3 Industrial Installation
Horizontal or vertical assembly with indoor Unit 1400mm. External static pressure of 150 Pa for industrial facilities.
🦠
nanoeTM X Mark 2 Industrial
Professional purification with 9.6 billion hydroxyl/second radicals. Essential for large industrial spaces.
🔧
Maximum range 50m
It would be up to 50m and uneven 15/30m for remote installations in industrial ships and large centers.
📱

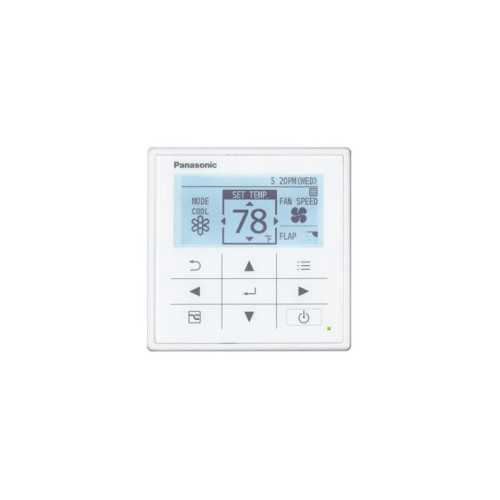

Advanced Industrial Control
Compatible with BMS systems, centralized control and remote management for professional industrial applications.
🌿
R32 Industrial Ecological
Refrigerant Gas R32 with low GWP. 2.40 kg load equivalent to 1.62 T CO2, optimized for intensive industrial use.
Technical Specifications Kit KIT-100PF3Z5
Refrigeration capacity
9,5 kW (3,0-11,4 kW)
Capacity Heating
9,5 kW (3,0-13,5 kW)
EER Nominal
3.57 (2.36-5.08)
COP Nominal
4,09 (3,00-5,08)
SEER / Classification
6 A++
SCOP / Classification
3.9 A
Nominal consumption Cold
2.66 kW (0.59-4.84)
Nominal heat consumption
2.32 kW (0.59-4.50)
Annual Consumption Cold
502 kWh/year
Annual Calor consumption
2795 kWh/year
Refrigerant Gas R32
2.40 kg / 1.62 T CO2 Eq
Electrical supply
220-230-240 V

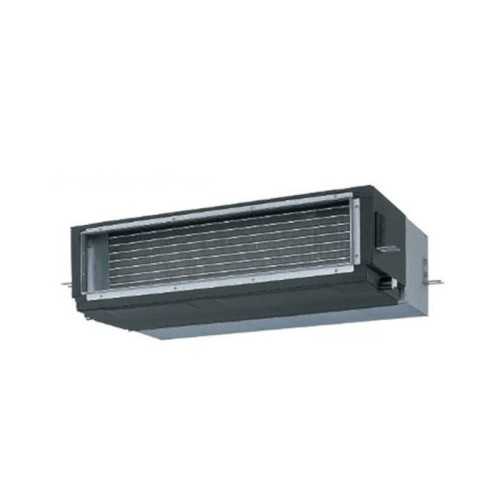

Specifications Indoor Unit S-1014PF3E
Indoor Unit High Power Conduct
External Static Pressure
40 Pa (10-150 Pa)
Alto/Med/Bajo Air Force
32,0/26,0/21,0 m3/min
Volume Eliminated Humidity
3.2 L/h
High/Med/Bajo Sonic Pressure
33/29/25 dB(A)
High/Med/Bajo Sonora Power
56/52/48 dB(A)
Dimensions (Al x An x Pr)
250x1400x730 mm
Weight
39 kg
nanoeTM X Generator
Mark 2

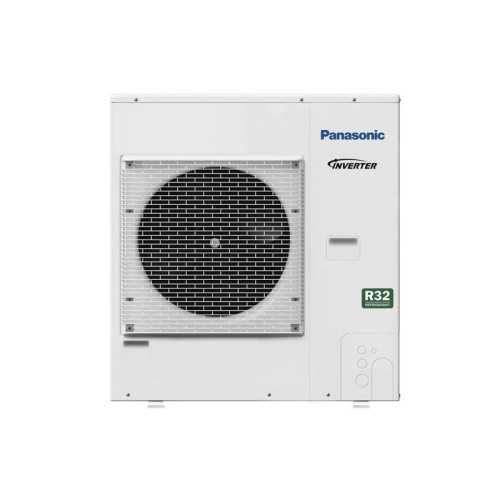

Русский Outdoor Unit U-100PZ3E5
Outdoor Unit High Power Condenser
Electrical supply
220-230-240 V
Intensity Cold
13,30-12,70-12,20 A
Intensity Calor
11,60-11,10-10,60 A
Cold Air/Calor
73.0/73.0 m3/min
Cold Sound Pressure/Calor
52/52 dB(A)
Frío/Calor Sonora Power
70/70 dB(A)
Dimensions (Al x An x Pr)
996x980x370 mm
Weight
83 kg
Liquid Tube
3/8" (9.52 mm)
Tubería Gas
5/8" (15.88 mm)
Range Longitude Tube
5-50 meters
Uneven Height (int./ext.)
15/30 meters
High Power Competitive Advantages
- ▷ Maximum Monophosic Power: 9500W without three-phase installation, ideal for companies that require high power with standard installation
- ▷ Efficiency A++ Superior: SEER 6,6 A++ guarantees economic performance despite high power
- ▷ nanoeTM X Mark 2 Industrial: Advanced essential purification for large spaces with high occupancy
- ▷ Maximum range 50m: Tubing up to 50m for remote installations on industrial ships
- ▷ Indoor Unit 1400mm: Larger size for higher airflow and industrial performance
- ▷ Industrial Control: Compatible with BMS systems and centralized control for professional management
- ▷ Included Drining Pump: No additional cost, increased moisture disposal capacity (3.2 L/h)
- ▷ R32 Industrial: Refrigerant Gas optimized for high-power intensive industrial use
Es Ideal Industrial Applications
🏭
Industrial ships
Workshops • Warehouses • Logistics centres
Workshops • Warehouses • Logistics centres
🏢
Large Houses / Offices
Complete Plants • Corporate Spaces
Complete Plants • Corporate Spaces
🏪
Great Surfaces
Supermarkets • Shopping centers
Supermarkets • Shopping centers
🏥
Health Centres
Hospitals • Large clinics • laboratories
Hospitals • Large clinics • laboratories
🏫
Educational centres
Colleges • Universities • Libraries
Colleges • Universities • Libraries
🏨
Hotel Grande
Hotels • Convention centres
Hotels • Convention centres
️
Sports Centres
Sports • Pools • Large gyms
Sports • Pools • Large gyms
️
Industrial restoration
Industrial eaters • Catering
Industrial eaters • Catering
Request Your Uncompromised Industrial Budget!
Air conditioning Panasonic KIT-100PF3Z5 High Power with professional installation included.
▷ Price transparent − Official guarantee − Industrial solution
KIT-100PF3Z5-6W
Data sheet
- Brand
- Panasonic
- Indoor Unit
- S-1014PF3E
- Outdoor Unit
- U-100PZ3E5
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.660
- Energy class (cold)
- A++
- SEER
- 6,6
- Heat capacity (W)
- 9.500
- Heat capacity (Kcal / h)
- 8.170
- Nominal heat consumption (W)
- 2.320
- Energy class (heat)
- A
- SCOP
- 3,9
- Minimum sound pressure UI DB
- 25
- Weight Indoor Unit (Kg)
- 39,0
- Weight Outdoor Unit (Kg)
- 83,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- WiFi Included
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 730 x 250
- EU dimensions (anxfxh) mm
- 980 x 370 x 996
