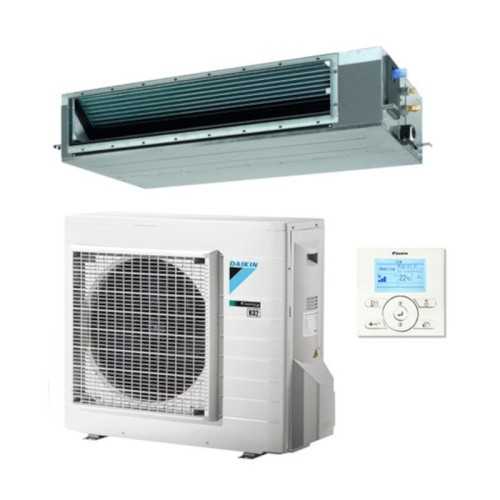

Ducted Air Conditioner Daikin ADEAS60A
SKY AIR Series Active Δ R-32 Δ 5700W Cold Δ SEER 5,74 Δ A/A Δ 150Pa Pressure
The Air Conditioning by Conduct Daikin ADEAS60A of the prestigious Sky Air Active series represents the highest evolution in commercial air conditioning with R-32 coolant. Its exceptional capacity of 5700W in cooling and 7200W in heating, combined with an ultra-compact design of only 245 mm in height, makes it the ideal solution for heating stores, medium offices and commercial applications. With energy classification A/A (SEER 5,74 / SCOP 4.0), static pressure up to 150Pa and sound levels from 30 dB(A), guarantees maximum efficiency and quiet comfort in demanding commercial spaces.
️ 5700W Cold
7200W heat / R-32 ecological
Only 245mm tall
1000×245×800 mm ultracompact
150 Pass
18 m3/min nominal flow rate
▪ SEER 5,74
A/A trade efficiency
Product Specifications Active Series
Cold capacity: 5700W
Heat capacity: 7200W
Air flow: 18/12.5 m3/min
Static pressure: 30/150 Pa
Sound pressure: 30 dB(A)
Refrigerant Gas: R-32 (1.15 kg)
Connections: Ø6,4"/Ø12.7"
Max pipe: 30 meters
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner Daikin ADEAS60A SKY AIR
Referencia: ADEAS60A
€1,852.33
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Ducted Air Conditioner Daikin ADEAS60A
SKY AIR Series Active Δ R-32 Δ 5700W Cold Δ SEER 5,74 Δ A/A Δ 150Pa Pressure
The Air Conditioning by Conduct Daikin ADEAS60A of the prestigious Sky Air Active series represents the highest evolution in commercial air conditioning with R-32 coolant. Its exceptional capacity of 5700W in cooling and 7200W in heating, combined with an ultra-compact design of only 245 mm in height, makes it the ideal solution for heating stores, medium offices and commercial applications. With energy classification A/A (SEER 5,74 / SCOP 4.0), static pressure up to 150Pa and sound levels from 30 dB(A), guarantees maximum efficiency and quiet comfort in demanding commercial spaces.
️ 5700W Cold
7200W heat / R-32 ecological
Only 245mm tall
1000×245×800 mm ultracompact
150 Pass
18 m3/min nominal flow rate
▪ SEER 5,74
A/A trade efficiency
Product Specifications Active Series
Cold capacity: 5700W
Heat capacity: 7200W
Air flow: 18/12.5 m3/min
Static pressure: 30/150 Pa
Sound pressure: 30 dB(A)
Refrigerant Gas: R-32 (1.15 kg)
Connections: Ø6,4"/Ø12.7"
Max pipe: 30 meters
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct Daikin ADEAS60A represents the highest evolution of the prestigious Sky Air Active Series, designed specifically for medium-sized commercial applications that demand power, efficiency and operational discretion. With a nominal capacity of 5700W in cooling and 7200W in heating, this system incorporates the innovative R-32 coolant technology that guarantees maximum energy efficiency and environmental sustainability, maintaining an A/A energy rating with SEER 5,74 and SCOP 4.0, ideal for shops, medium offices, restaurants and demanding commercial applications.
Its ultra-compact revolutionary design of only 245 mm high with dimensions of 1000×245×800 mm and weight of 28 kg, facilitates installation in spaces with height limitations, while its static pressure of up to 150Pa allows the use of flexible ducts of various lengths, ideal for complex architectural configurations. La indoor Unit incorporates series drainage pump, automatic air flow adjustment system that measures the volume and static pressure by adjusting to the nominal flow regardless of the length of the duct, and F1/F2 communication port included for central control.
The exceptional installation flexibility allows aspiration on the back or bottom, while its silent operation with sound levels from 30 dB(A) on the back indoor Unit and 48 dB(A) on the outside, ensures peaceful commercial environment. The system operates with airflows of 18 m3/min in refrigeration and 12.5 m3/min in heating with three fan speeds, providing accurate and efficient air conditioning for medium-sized commercial spaces.
La outdoor Unit ARXM60N9 with SWING compressor incorporates 1.15 kg R-32 coolant load (TCO2 eq 0.78 / PCA 675), dimensions of 734×870×373 mm and weight of 50 kg, with antico-red protection and optimized thermal exchange systems. The system allows installations with maximum pipe length of 30 meters and height of up to 20 meters, with Ø6,4" liquid and Ø12,7" gas, monophasic power 220V with 3+T interconnection threads, ensuring easy installation and reliable operation in intensive commercial applications.
Features Sky Air Active Series
🏪
Optimized Commercial Capacity
5700W refrigeration and 7200W heating ideal for shops, medium offices, restaurants and medium size commercial spaces.
📐
Ultra-Compact 245mm
Revolutionary design of only 245 mm height for installation in spaces with height limitations and maximum discretion.
💨
Static pressure 150Pa
Static pressure up to 150Pa facilitates use of flexible ducts of various lengths for complex configurations.
🌿
Refrigerant Gas R-32 Ecological
R-32 technology with 1,15 kg load guarantees maximum energy efficiency and environmental sustainability.
🔇
Quiet since 30dB
Sound levels from 30 dB(A) inside and 48 dB(A) outside for quiet commercial environment.
▪
Efficiency A/A
SEER 5,74 and SCOP 4.0 with energy rating A/A guarantee maximum commercial energy savings.
Technical Specifications Active Series
| Feature | Value |
|---|---|
| Model Set | ADEAS60A (Sky Air Active Series) |
| Refrigeration capacity | 5700W (4902 kcal/h) |
| Capacity Heating | 7200W (6450 kcal/h) |
| SEER / SCOP | 5,74 / 4,00 |
| Energy label ( Cold/Calor) | A/A |
| Charge Design Refrigeration | 5,70 kW |
| Charge Design Heating (-10oC) | 4,60 kW |
| Consumption Energy Annual Refrigeration | 339 kWh |
| Consumption Annual Energy Heating | 1610 kWh |
| Frigorific connections | Liquid Ø6,4" (1/4") - Gas Ø12.7" (1/2") |
| Electrical supply | Monof Classic 220V |
| No Hilos Interconnection | 3 + T |
| Maximum Length Tuberia | 30 meters |
| Maximum level | 20 meters |
| Refrigerant Gas / Charge | R-32 / 1.15 kg (TCO2 eq 0.78 / PCA 675) |

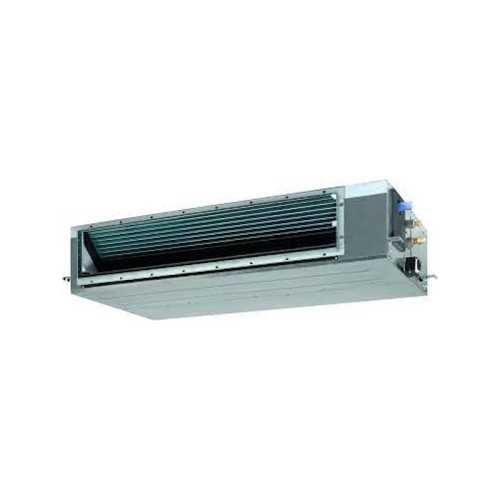

Specifications Indoor Unit ADEA60A
| Feature | Value |
|---|---|
| Refrigeration air flow | 18 m3/min |
| Air flow heating | 12.5 m3/min |
| Pressure Available Nominal/High | 30 / 150 Pa |
| Ventilator speeds | 3 speeds |
| Dimensions (Alto×Ancho×Fondo) | 245×1000×800 mm |
| Weight | 28 kg |
| Sound pressure Refrigeration | 30 dB(A) |
| Sound pressure Heating | 31 dB(A) |
| Level Acoustic Power | 56 dB(A) |
Specifications Outdoor Unit ARXM60N9
| Feature | Value |
|---|---|
| Refrigeration air flow | 56.6 m3/min |
| Air flow heating | 53.6 m3/min |
| Type of Compressor | SWING |
| Dimensions (Alto×Ancho×Fondo) | 734×870×373 mm |
| Weight | 50 kg |
| Sound pressure Refrigeration | 48 dB(A) |
| Sound pressure Heating | 49 dB(A) |
| Level Acoustic Power | 63 dB(A) |
| Charge Refrigerant Gas | 10 meters |
Commercial Advantages Active Series
✓
Ideal solution for medium commercial spaces
Fully sized 5700W capacity for shops, mid-size offices, restaurants and 40-60 m2 commercial applications that require efficient and discreet air conditioning.
✓
Ultra-compact revolutionary design
Only 245 mm high allows installation in spaces with height limitations, ideal for false low ceilings and applications where discretion is fundamental.
✓
Flexibility of superior installation
Subsequent or lower aspiration, drainage pump included, 30m maximum pipe and automatic flow adjustment facilitates complex installations and adaptation to any configuration.
✓
Energy efficiency and sustainability
Refrigerant Gas Organic R-32, SEER 5,74 and A/A classification guarantee maximum energy savings and environmental responsibility in commercial applications.
✓
Optimized comfort guaranteed

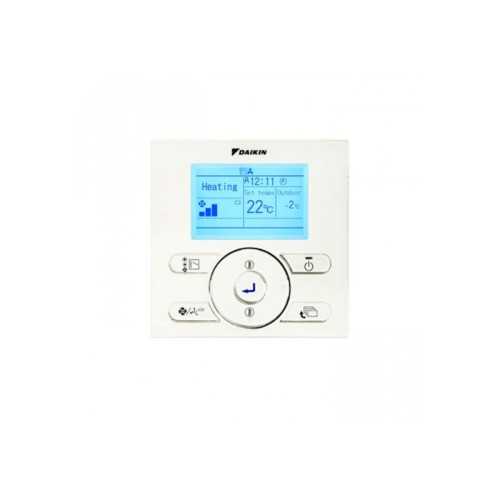

Automatic air flow adjustment function, variable static pressure from remote control and silent operation from 30 dB guarantee exceptional comfort.
✓
Integrated central control
F1/F2 communication port included in series allows centralized control for intelligent multi-unit management in complex commercial applications.
Main Commercial Applications
🏪
Shops and Trades
Clothing shops, shoe stores, small shops, pharmacies, optical and medium retail spaces that require discreet and efficient air conditioning.
🏢
Medium offices
Corporate offices, professional offices, medical consultations, dental clinics and workspaces that need a quiet environment.
️
Restaurants and catering
Medium-sized restaurants, bars, cafes, beauty salons and hostel facilities that require reliable commercial air conditioning.
Advantages of Behavioral Systems
✓
Air homogeneous distribution
The duct systems ensure uniform air distribution throughout the space, eliminating hot or cold areas and providing homogeneous comfort.
✓
Aesthetics and total discretion
The interior units are completely hidden in the false ceiling, keeping the aesthetics of space and only the grids of impulsion and return are visible.
✓
Flexibility of zoning
Allows to air multiple spaces from one single indoor Unit, ideal for diaphanous plants, offices with multiple offices or commercial compartments.
✓
Lower sound level
Being hidden in the false ceiling, the inner units generate less noise perception, essential for commercial applications that require a quiet environment.
✓
Higher energy efficiency
The duct systems optimize thermal exchange and reduce energy losses, resulting in greater efficiency and less consumption compared to individual systems.
✓
Centralized maintenance
One alone indoor Unit to air multiple spaces simplifies maintenance, reduces operating costs and facilitates the technical management of the system.
Ultra-Compact and Efficient Commercial acclimatization!
The Daikin ADEAS60A Series Sky Air Active combines power of 5700W, ultra-compact design of 245mm, ecological R-32 technology and silent operation from 30dB. The ultimate solution for stores, medium offices and commercial applications that demand maximum discretion and efficiency.
Request your custom business budget!
DAIKIN ADEAS60A SKY AIR ACTIVE
5700W COMERCIAL + 245mm ULTRA-COMPACTO + R-32
️ Commercial Capacity
5700W cold / 7200W heat
Ideal stores and offices
Ultra-Compact 245mm
1000×245×800 mm
Revolutionary design minimum height
Está Static Pressure 150Pa
18 m3/min air flow
Flexible conducts various lengths
▪ SEER 5.74 Efficient
A/A energy classification
Maximum trade savings
🏪 Shops and offices 40-60m2
🌿 Organic R-32 1,15kg
📏 30m pipe + 20m
🔇 Quiet since 30dB
🔧 Drainage pump included
📡 Centralized control F1/F2
SERIE SKY AIR ACTIVE ULTRA-COMPACTA
245mm minimum height with 5700W commercial power and ecological R-32
Perfect for shops, medium offices, restaurants and commercial applications
▷ SPECIALIZED COMMERCIAL INSTALATION
️ Warranty Daikin Officer
🔧 National Technical Service
📋 Certification A/A
🏪 Commercial applications
ADEAS60A
Data sheet
- Brand
- Daikin
- Indoor Unit
- ADEA60A
- Outdoor Unit
- ARXM60R9
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 5.700
- Refrigerator capacity (kcal / h)
- 4.902
- Nominal consumption Cold (W)
- 1.660
- Energy class (cold)
- A+
- SEER
- 5,7
- Heat capacity (W)
- 7.000
- Heat capacity (Kcal / h)
- 6.019
- Nominal heat consumption (W)
- 1.930
- Energy class (heat)
- A+
- SCOP
- 4,0
- Minimum sound pressure UI DB
- 30
- Weight Outdoor Unit (Kg)
- 49,0
- Diameter Liquid pipe
- 1/4"
- Diameter Gas Pipe
- 1/2"
- Possibility Integration
- Optional WiFi with BRP069C81 module
- Recommended area
- Estancia de 50m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1000 x 800 x 245
- EU dimensions (anxfxh) mm
- 954 x 401 x 734
