Air Conditioning Mitsubishi Electric MSPEZ-100VJA
Refrigeration 9500W 日本語 Heating 11200W ̄s Efficiency A+ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-100VJA is the professional solution of the Standard Inverter series with 9500W in cooling and 11200W heating. With indoor Unit only 250mm high, this hidden duct system offers professional and discrete air conditioning for large spaces that require maximum energy performance and advanced monophasic control.
9️ 9500W Refrigeration
EER 3,30 - Professional
11 11200W Heating
COP 3,80 - Excellent
▪ SEER 6,1 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M100JA
Outdoor Unit: PUZ-M100VKA
Air flow: 24,0-34,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 29 dBA
Annual consumption: 538 kWh/year
Refrigerant Gas: R-32 (3.10 kg)
PAR-41MAA Command: Advanced control
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Mitsubishi Electric MSPEZ-100VJA Standard Inverter Single-Phase Ducted
Referencia: MSPEZ-100VJA
€3,338.78
Tax included
We are currently out of stock.
Ask us about availability!!
Envío GRATIS en España (Península) a partir de 300€ + info
Email has been sent successfully.
Calcular Gastos de Envío
🛡️ Pago Seguro ✅ Garantía Oficial
Air Conditioning Mitsubishi Electric MSPEZ-100VJA
Refrigeration 9500W 日本語 Heating 11200W ̄s Efficiency A+ Δ R-32 Δ Standard series
The Air Conditioning Mitsubishi Electric MSPEZ-100VJA is the professional solution of the Standard Inverter series with 9500W in cooling and 11200W heating. With indoor Unit only 250mm high, this hidden duct system offers professional and discrete air conditioning for large spaces that require maximum energy performance and advanced monophasic control.
9️ 9500W Refrigeration
EER 3,30 - Professional
11 11200W Heating
COP 3,80 - Excellent
▪ SEER 6,1 / SCOP 4,1
Efficiency A+ / A+
Compact 250mm
Standard series
Key Specifications Standard Series Conduct
Indoor Unit: PEAD-M100JA
Outdoor Unit: PUZ-M100VKA
Air flow: 24,0-34,0 m3/min
Static pressure: 35-150 Pa
Sonic Pressure: 29 dBA
Annual consumption: 538 kWh/year
Refrigerant Gas: R-32 (3.10 kg)
PAR-41MAA Command: Advanced control
Security policy
Delivery policy
Refund policy
Mitsubishi Electric MSPEZ-100VJA
Ducted Air Conditioner 9500W Series Standard Inverter Monofásico
Professional Power Standard Series
The MSPEZ-100VJA represents the professional power of the Standard Series with advanced monophasic Inverter technology. With 9500W in cooling and 11200W heating, provides complete air conditioning for wide professional and residential spaces. Your rating SEER 6,1 A++ maintains controlled consumption 538 kWh/year, ideal for surfaces of 80-120m2.
Tecnología Professional R32 Technology
Equipped with refrigerant R32, optimizes efficiency in high-power professional applications. The load 3.10 kg is dimensioned for this higher power, ensuring sustainable and efficient operation in demanding applications. Its advanced ecological design meets the strictest ErP European standards.
S Complete Technical Specifications
Re️ Cooling
- • Nominal power: 9500W
- • Operation Range: 4.0-10.6 kW
- • EER: 3,30 (Excellent)
- • SEER: 6.1 A++ (Ultraefficient)
- • Consumption: 2.87 kW nominal
Performance Heating
- • Nominal power: 11200W
- • Operation Range: 2,8-12,5 kW
- • COP: 3.80 (Excellent)
- • SCOP: 4.1 A+ (High Efficiency)
- • Consumption: 2.94 kW nominal
S Technical characteristics
- • Indoor Unit: PEAD-M100JA
- • Outdoor Unit: PUZ-M100VKA
- • Dimensions: 250x1400x732mm
- • Interior weight: 37.0 kg
- • Tuberia: Ø9,52/15,88mm
Y️ Control and Functionality
- • PAR-41MAA Command: Advanced control
- • Air flow: 24,0-34,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 29-38 dBA
- • Food: 230V/1~ 22.7A
▼ Annual Professional Consumption
538 kWh/year cooling Ș 2725 kWh/year heating
Optimized Professional Power with Inverter Standard Monophase Series
Installation and Dimensions Standard Professional Series

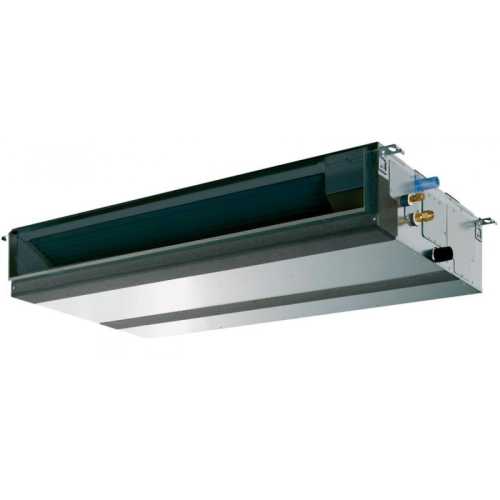

📐 Indoor Unit PEAD-M100JA
- • Dimensions: 250 x 1400 x 732 mm
- • Compact height: Only 250mm
- • Weight: 37.0 kg (professional)
- • Air flow: 24,0-29,0-34,0 m3/min
- • Static pressure: 35-150 Pa
- • Sound level: 29-34-38 dBA

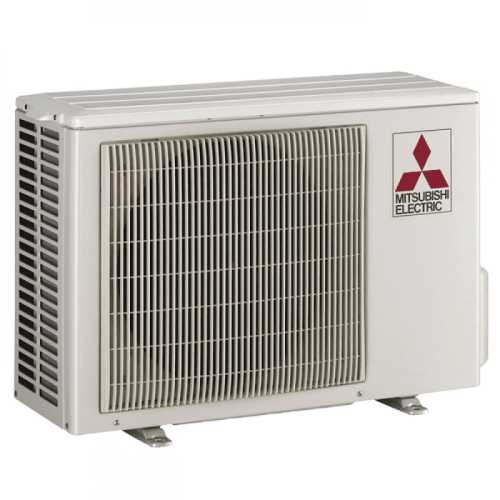

🏢 Outdoor Unit PUZ-M100VKA
- • Dimensions: 981 x 1050 x 330 mm
- • Weight: 76 kg (professional)
- • Air flow: 79 m3/min
- • Sound level: 51 dBA
- • Food: 230V/1~ - 22.7A
- • Operation range: -15°C to +46°C

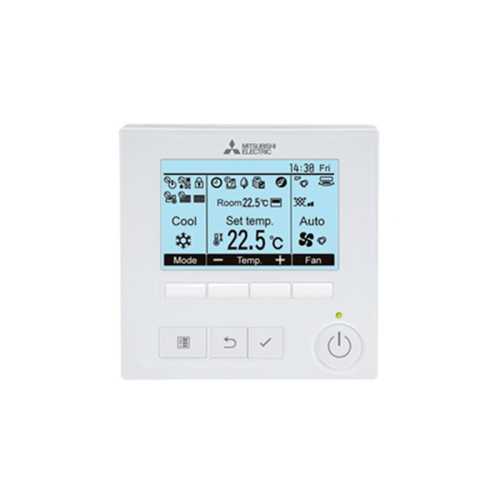

️ Control PAR-41MAA Professional
Includes command PAR-41MAA with comprehensive control of the high-power professional system. Full weekly programming, precision temperature control, intelligent automatic modes and advanced energy monitoring. Compatible with professional automation systems and optional WiFi control.
Featured functions: Programming 7 days, Multizone Control, Automatic Eco Mode, Professional Diagnosis
Professional connectivity
System prepared for advanced professional integration. Optional WiFi connection MAC-587IF for full remote control by smartphone. Interface M-NET for integration with centralized energy management systems and professional smart buildings.
Available options: Smart WiFi, centralized M-NET, External signals, Remote temperature sensor
Y️ Installation and Professional Maintenance
Requirements Installation
- • Tuberia: Ø9,52/15,88mm
- • Max length: 55m total / 30m vertical
- • Electrical connection: 230V/1~ monophasic
- • Minimum space: According to installation standards
S️ Included Protections
- • Condensing control: Incorporated
- • Dehydrator filter: Standard series
- • Overload protection: Automatic
- • Self-diagnosis: Complete system
Gos️ Rangos Operation
- • Refrigeration: -15°C to +46°C ext.
- • Heating: -15°C to +21°C ext.
- • Rel humiliation. : 20% to 80% RH
- • Highness max. : 1000m above sea level
Es Professional Warranty and Certifications
Warranty Mitsubishi Electric 日本語 CE Certification Cumple ErP 2021
Japanese quality with specialized technical support and national professional service network
El Professional power with MSPEZ-100VJA
Professional air conditioning of 9500W with maximum efficiency A++ and advanced control PAR-41MAA
️
SEER 6,1 A++
Professional 538 kWh/year
🔥
COP 3.80
Powerful 11200W Heating
🔇
29 dBA Controlled
Quiet for your power
▪
230V Monof Classic
Standard installation
️ Control PAR-41MAA Include + R32 Ecological
Advanced command with weekly programming • Refrigerant Gas R32 reduced environmental impact • Japanese Inverter technology • Installation occult ducts • Spaces 80-120m2

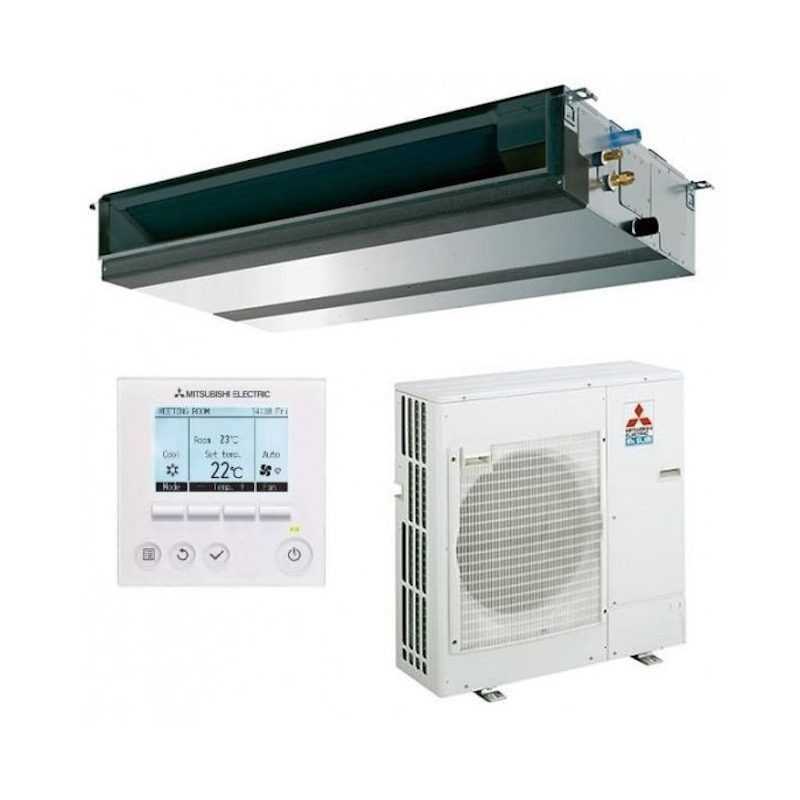

▷ Includes in the Price
- • Indoor Unit PEAD-M100JA
- • Outdoor Unit PUZ-M100VKA
- • PAR-41MAA
- • Basic installation kit
S Unique benefits
- • Warranty Mitsubishi Electric
- • Professional installation available
- • Specialized technical support
- • Certified A++ Efficiency
▪ Professional Power Available!
MSPEZ-100VJA with Inverter technology and efficiency A++ - Standard Professional Series
🎯 Spaces: 80-120m2
▪ Consumption: 538 kWh/year
🌿 Gas: R32 Ecological
📱 Control: PAR-41MAA
🏆 Mitsubishi Electric Standard MSPEZ-100VJA series
Professional air conditioning with Japanese technology • Advanced control PAR-41MAA included • Professional installation available
MSPEZ-100VJA
Data sheet
- Brand
- Mitsubishi Electric
- Indoor Unit
- PEAD-M100JA
- Outdoor Unit
- SUZ-M100VKA
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Refrigerator capacity (W)
- 9.500
- Refrigerator capacity (kcal / h)
- 8.170
- Nominal consumption Cold (W)
- 2.870
- Energy class (cold)
- A++
- SEER
- 6,1
- Heat capacity (W)
- 11.200
- Heat capacity (Kcal / h)
- 9.632
- Nominal heat consumption (W)
- 2.940
- Energy class (heat)
- A+
- SCOP
- 4,1
- Minimum sound pressure UI DB
- 29
- Weight Indoor Unit (Kg)
- 37,0
- Weight Outdoor Unit (Kg)
- 76,0
- Diameter Liquid pipe
- 3/8"
- Diameter Gas Pipe
- 5/8"
- Possibility Integration
- Optional WiFi accessory MAC-587IF
- Recommended area
- Estancia de 80m2 aprox.
- Dimensions UI (ANXFXH) mm
- 1400 x 732 x 250
- EU dimensions (anxfxh) mm
- 1050 x 330 x 981
