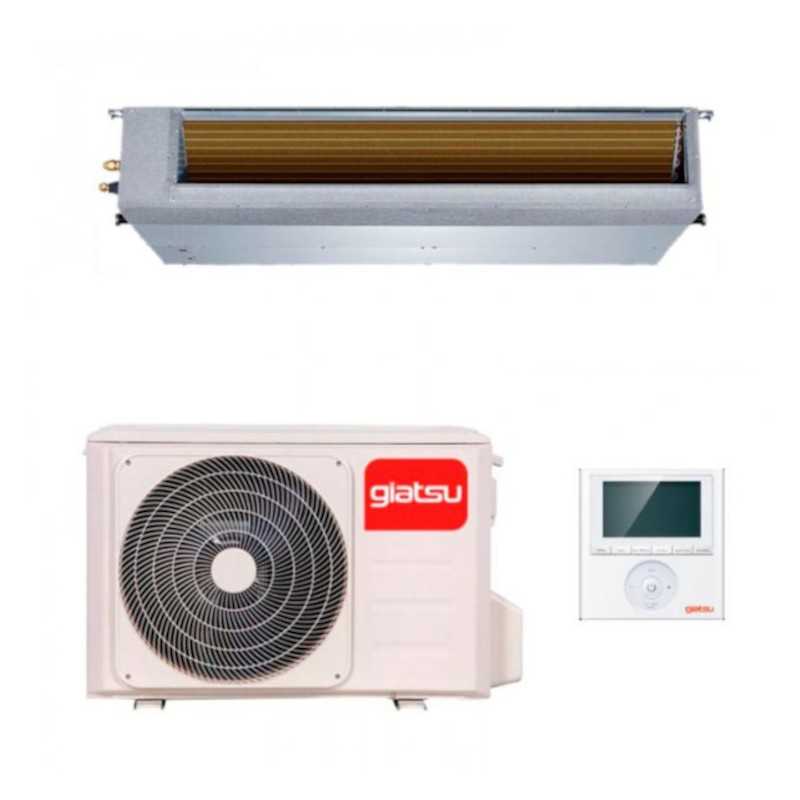

Ducted Air Conditioner Giatsu GIA-DT3-36ADM2R32-WF series Admira Plus Trif.

Product Description

The Air Conditioning by Conduct Giatsu GIA-DT3-36ADM2R32-WF mark the start of the professional triphase range of the Admira Plus Series, designed specifically for industrial and commercial installations that require 380-415V power supply for maximum energy efficiency, superior electrical stability and optimized industrial performance. With a nominal capacity of 10.55 kW in refrigeration (36000 BTU/h) and 11.72 kW in heating (40000 BTU/h), this system employs three-phase DC inverter technology that allows intelligent modulation from 9300 to 40000 BTU/h in cold mode, ensuring precise adaptation to the variable demands of complex industrial installations, production centers, corporate complexes and commercial applications that require maximum operating efficiency.

The exceptional combination of three-phase GMCC inverter compressor and industrial DC ventilator ensures an A+ energy rating in refrigeration (SEER 6,1) and A+ in heating (SCOP 4.0), specifically optimized for three-phase power supply that provides greater energy efficiency, lower consumption by phase and higher electrical stability compared to mono-phase equipment of similar capacity. The system employs eco-friendly R32 coolant with 2.4 kg load, optimized for three-phase operation while maintaining environmental commitment, crucial for responsible industrial applications that require continuous and sustainable long-term operation.

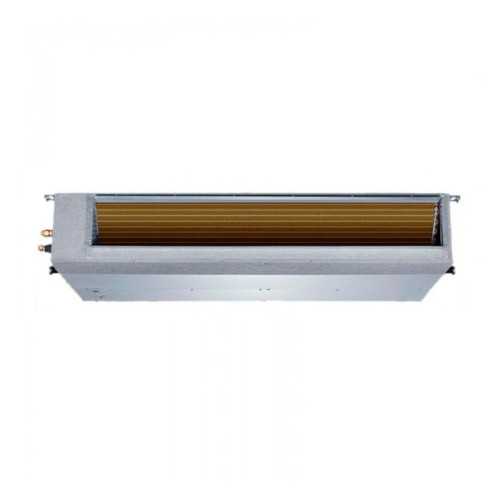

La indoor Unit maintains the industrial dimensions of 1200×245×750 mm with weight of 38.4 kg, conserving the versatility of horizontal and vertical multiposition installation while providing airflows from 1100 to 1700 m3/h with static pressure of up to 160 Pa, optimized for efficient distribution in three phases. These specifications allow maximum industrial complex installations with distribution in multiple zones, complete plants and industrial architectural configurations. Its optimized sound levels of 40/37/34 dB(A) according to speed guarantee discreet professional performance, essential for three-phase industrial applications that require comfortable and productive working environment.

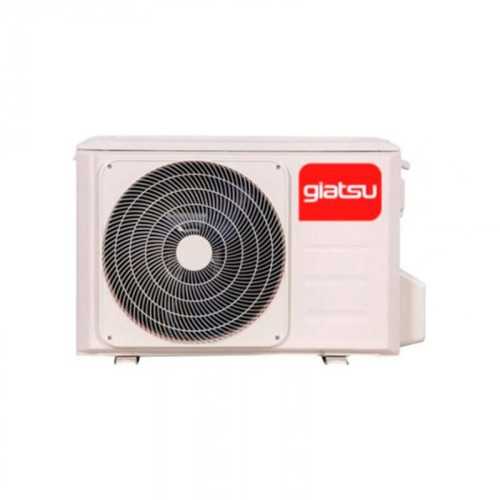

La outdoor Unit Three-phase GMCC, with dimensions of 946×810×410 mm and weight of 80.5 kg, has been specifically optimized for 380-415V three-phase feeding, providing greater electrical stability, lower current by phase and higher operating efficiency. It incorporates protection Golden Fin premium anticorrosion and optimized thermal exchange systems for continuous triphasic operation. The system allows industrial scale installations with a maximum pipe length of 75 meters and a height of up to 30 meters, while the 3/8" - 5/8" refrigerator connections guarantee optimal flow. The included cable control offers advanced weekly programming specifically designed for automatic optimization in complex triphase applications and intelligent management of multiple industrial air conditioning zones.

Advantages Professional Triphase Gama

Triphasic vs Monophosic Advantages

Technical specifications

Ideal applications

Professional Triphasic Gama for Industrial Installations!

The Giatsu Admira Plus DT3-36 Series opens the three-phase range with maximum efficiency, superior electrical stability and optimization for industrial installations. Take advantage of existing three-phase infrastructure with lower installation costs.

Request your professional three-phase budget today!
