Ducted Air Conditioner LG UM36F CONFORT+ UM36F.N21 + UUD1.U30
High-power air conditioning system with 9.5 kW nominal capacity, designed for medium commercial spaces. This team of the CONFORT+ range combines excellent performance with energy efficiency A+/A+ and advanced technology, ideal for medium offices, shopping centers, wide medical consultations and spaces that require superior quality professional air conditioning.
- ▷ Nominal power of 9.5 kW in cold and 10.8 kW in heat for medium commercial spaces
- ▷ Modulant capacity of 3,80-10,50 kW cold and 4,30-11,50 kW heat
- ▷ Higher energy efficiency with SEER 5,90 and SCOP 4,00 (A+/A+)
- ▷ Static pressure up to 147 Pa for high flexibility facilities
- ▷ Maximum pipe length up to 85 meters for maximum versatility
- ▷ Quiet operation (36 dB) and ecological coolant R32
Reference: UM36F.N21 + UUD1.U30
¿Any doubt about the product?
Talk to us and consult us. We will solve all your doubts
Ducted Air Conditioner LG UM36F CONFORT+ UM36F.N21 + UUD1.U30
Referencia: KITCONDCM36F_CONFORT+
€2,510.41
Tax included
Envío GRATIS en España (Península) a partir de 300€ + info
We do not have stock at this time.
Ask us about availability!!
Ducted Air Conditioner LG UM36F CONFORT+ UM36F.N21 + UUD1.U30
High-power air conditioning system with 9.5 kW nominal capacity, designed for medium commercial spaces. This team of the CONFORT+ range combines excellent performance with energy efficiency A+/A+ and advanced technology, ideal for medium offices, shopping centers, wide medical consultations and spaces that require superior quality professional air conditioning.
- ▷ Nominal power of 9.5 kW in cold and 10.8 kW in heat for medium commercial spaces
- ▷ Modulant capacity of 3,80-10,50 kW cold and 4,30-11,50 kW heat
- ▷ Higher energy efficiency with SEER 5,90 and SCOP 4,00 (A+/A+)
- ▷ Static pressure up to 147 Pa for high flexibility facilities
- ▷ Maximum pipe length up to 85 meters for maximum versatility
- ▷ Quiet operation (36 dB) and ecological coolant R32
Reference: UM36F.N21 + UUD1.U30
Security policy
Delivery policy
Refund policy
Product Description
The Air Conditioning by Conduct LG UM36F CONFORT+ is a high-end air conditioning system designed to provide superior comfort in medium-sized commercial spaces that require balanced power, exceptional reliability and maximum energy efficiency. This team of the prestigious Free Combination CONFORT+ range LG combines a nominal power of 9.5 kW in cold and 10.8 kW in heat with an exceptional modulant capacity ranging from 3.80 to 10.50 kW in cooling and from 4.30 to 11.50 kW in heating.
Composed of indoor Unit UM36F.N21 and outdoor Unit UUD1.U30, this system stands out for its ability to handle large-scale installations with pipe lengths up to 85 meters and static pressure up to 147 Pa. La indoor Unit, with dimensions of 1,250 x 270 x 700 mm, has been specifically designed for horizontal installation in commercial spaces, providing an airflow of up to 32 m3/min with exceptional sound levels of 36/34/33 dB according to the selected speed.

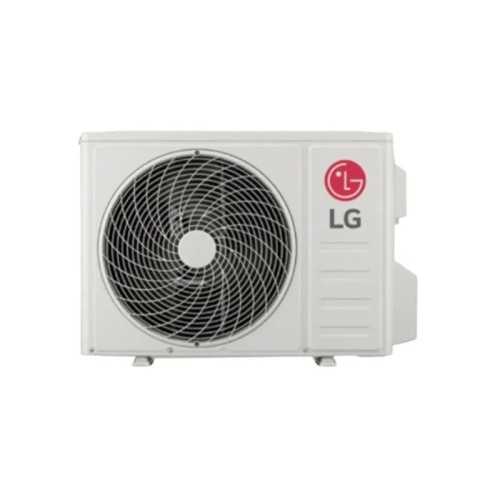

La outdoor Unit UUD1.U30, with its 950 x 1.380 x 330 mm dimensions, incorporates dual fan technology (55 x 2 m3/min) to maximize thermal exchange and ensure optimal performance even in extreme environmental conditions. With a range of operation ranging from -20°C to 52°C in cooling and from -25°C to 18°C in heating, this system uses 3.0 kg of R32 ecological coolant, demonstrating the commitment to LG with sustainability without compromising the professional performance demanded by demanding commercial applications.
Main features
🏢
Balanced Commercial Power
Nominal power of 9.5 kW in cold and 10.8 kW in heat, with intelligent modulation from 3,80-10,50 kW in cooling and 4,30-11,50 kW in heating.
📏
Extended facilities
Maximum length of pipe up to 85 meters with a 30 meters high, ideal for commercial buildings of multiple plants and complex distributions.
️
Operation Wide Range
It works efficiently from -20°C to 52°C in cooling and from -25°C to 18°C in heating, ensuring comfort in any condition.
🔇
Superior Acoustic Comfort
Reduced sound levels of 36/34/33 dB indoor Unit, ideal for commercial environments that require tranquility and concentration.
️
Dual Ventilator Technology
External double fan system (55 x 2 m3/min) which guarantees maximum thermal exchange and constant efficiency in all conditions.
🌱
Advanced Sustainability
Refrigerant Gas Ecological R32 with 3.0 kg load, combining high performance with environmental responsibility and A+/A+ efficiency.
Technical Specifications
| Feature | Value |
|---|---|
| Model Set | UM36F.N21 + UUD1.U30 |
| Cold Capacity (Mín-Nom-Máx) | 3.80 - 9.50 - 10.50 kW |
| Heat capacity (Mín-Nom-Máx) | 4,30 - 10,80 - 11,50 kW |
| EER / COP | 3,01 / 3,57 |
| SEER / SCOP | 5,90 / 4,00 |
| Energy label ( Cold/Calor) | A+ / A+ |
| Dimensions Indoor Unit (AnxAlxProf) | 1.250 x 270 x 700 mm |
| Dimensions Outdoor Unit (AnxAlxProf) | 950 x 1.380 x 330 mm |
| Sonic pressure Indoor Unit (Stop/Medium/Base) | 36 / 34 / 33 dB(A) |
| Sonic pressure Outdoor Unit (Crying/Crying) | 54 / 56 dB(A) |
| Air flow rate Indoor Unit (Stop/Medium/Base) | 32 / 28 / 24 m3/min |
| Air flow rate Outdoor Unit | 55 x 2 m3/min |
| Static Pressure (Standard/Maximum) | 39 / 147 Pa |
| Refrigerant Gas / Charge | R32 / 3.0 kg |
| Length Tuberia (Min/Máx) | 5 / 85 m |
| Maximum level | 30 m |
| Condemned Pump | Included |
| Weight Indoor Unit | 36.5 kg |
| Weight Outdoor Unit | 89 kg |
Air Conditioning Benefits LG UM36F CONFORT+
✓
Ideal solution for medium commercial spaces
With 9.5 kW of nominal power, it is perfect for medium offices, large medical consultations, small shopping centers, medium restaurants and commercial spaces that require professional air conditioning of superior quality without oversize.
✓
Exceptional energy efficiency
Advanced modulation technology and the A+/A+ classification with SEER 5,90 and SCOP 4,00 ensure optimized energy consumption, significantly reducing operating costs throughout the team's lifetime.
✓
Maximum installation flexibility
With pipe lengths up to 85 meters and high static pressure, it allows to air commercial buildings with complex architectural configurations, even those with multiple plants and challenging distributions.
✓
Comfortable professional environment
Its reduced sound levels (from 33 dB) guarantee a peaceful and productive working environment, ideal for offices, medical consultations and commercial spaces where acoustic comfort is essential.
Why choose Air Conditioning LG UM36F CONFORT+?
Main applications
🏢
Medium offices
Medium-sized workspaces, executive offices and business centres that require silent and efficient air conditioning during working hours.
🏥
Medical Consultations
Clinics, extensive medical consultations and health centers that need comfortable and quiet environment for patients and health professionals.
️
Medium-sized trade
Medium stores, premium boutiques and commercial spaces that require comfortable environment to improve the staff's shopping and work experience.
Installation Information
Important considerations:
- La indoor Unit UM36F.N21 is designed exclusively for horizontal installation.
- Maximum length of pipe: 85 meters, with a maximum height of 30 meters between the inner and outer units.
- R32 coolant preload for 20 meters of pipe, it is necessary to add 50 g/m for upper lengths.
- Frigorific connections: Liquid 9,52 mm (3/8") / Gas 15,88 mm (5/8") in both units.
- La outdoor Unit UUD1.U30 requires adequate space due to its dimensions (950 x 1.380 x 330 mm) and weight (89 kg).
- External double fan system that requires free ventilation on both sides for optimal operation.
- Installation by technical staff specialized in commercial systems and authorized by LG to ensure proper functioning and maintain the validity of the warranty.
The perfect solution for medium-sized commercial spaces that seek excellence!
Air Conditioning by Conduct LG UM36F CONFORT+ combines balanced power, A+/A+ energy efficiency and installation flexibility to deliver the ideal air conditioning solution for your business. Invest in technology LG CONFORT+ and ensure maximum comfort for your customers and employees.
Request your custom budget today!
KITCONDCM36F_CONFORT+
Data sheet
- Brand
- LG
- Indoor Unit
- UM36F.N21
- Outdoor Unit
- UUD1.U30
- Refrigerant Gas
- R32
- Electrical supply
- Monofásica
- Fridge capacity (W)
- 9.500
- Fridge capacity (Kcal/h)
- 8.170
- Nominal consumption Cold (W)
- 2.500
- Energy class
- A+
- SEER
- 5,8
- Heating Capacity (W)
- 10.800
- Heating capacity (Kcal/h)
- 9.288
- Nominal heat consumption (W)
- 2.770
- Energy class (Calor)
- A
- SCOP
- 3,9
- Minimum sound pressure UI dB
- 33
- Weight Indoor Unit (Kg)
- 37,3
- Weight Outdoor Unit (Kg)
- 89,0
- Diameter Liquid Tubery
- 3/8"
- Diameter Gas Tuberia
- 5/8"
- Possibility Integration
- Optional WiFi with PWFMDD200 module
- Recommended surface
- Estancia de 80m2 aprox.
- IU dimensions (AnxFxH) mm
- 1250 x 700 x 270
- EU dimensions (AnxFxH) mm
- 950 x 330 x 1380
